FZJ80L-GNPEKA (1992)

Toyota Land Cruiser

Production Aug 1992 - Jan 1998
Engine 1FZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

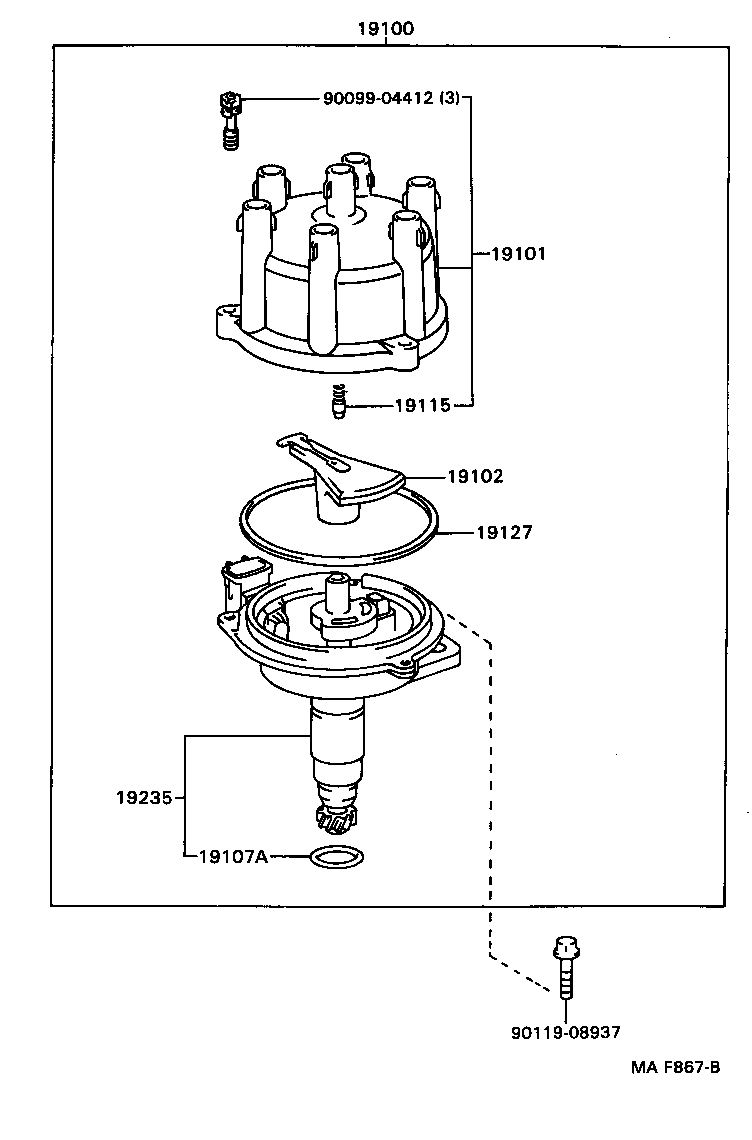

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19235 9009904412 9011908937
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-66020

1FZFE..FZJ80

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-66010

1FZFE..FZJ80

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-61240

1FZFE,3FE..FJ80,FZJ80

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14118

1FZFE..FZJ80

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1FZFE..FZJ80

 1
19127 - PACKING, DUST PROOF
19127-66020

1FZFE..FZJ80

 1
19235 - HOUSING, DISTRIBUTOR
19235-66020

1FZFE..FZJ80

 1
Common parts
90099-04412
90119-08937
