FZJ79R-TJMRKQ3 (1999)
Toyota Land Cruiser

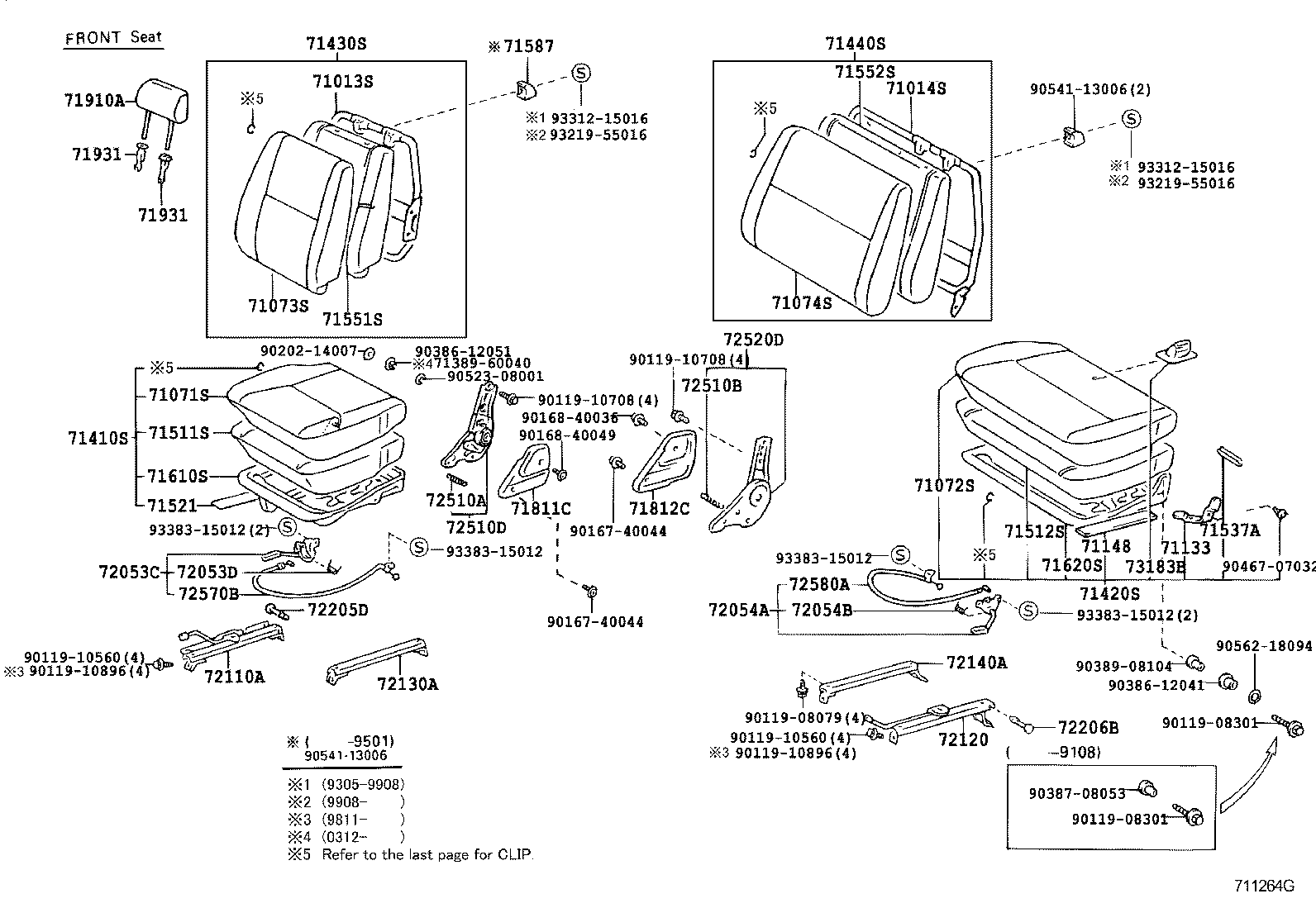

ILLUST NO. 1 OF 3(9001-0701)RHD..PIC
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60132 |
HZJ79..RHD;HZJ79..GCC;FZJ79..RHD..CBU;FZJ79,HDJ79..ARL,GCC |
1 | ||
| 71013-60132 |
FZJ79..ARL |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60110 |
LJ79,RJ7#..LHD..STD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD..(HT,SOT) |
1 | ||
| 71014-60191 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60323B1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71071-60312E3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71071-60312B3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71071-60312E3 |
FZJ78,79..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ78,79..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71071-60312B3 |
FZJ78,79..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79..ARL MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60252B1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60252E1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60252B1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60402E2 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 71072-60252E1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60402B2 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60252B3 |
FZJ79,HDJ79,HZJ79..STD..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60252E3 |
FZJ79,HDJ79,HZJ79..STD..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71073-60223B2 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79,HZJ79..RHD..GEN;HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71073-60223E1 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79,HZJ79..RHD..GEN;HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71073-60252B3 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60223B2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71073-60252E3 |
FZJ79..ARL OAK,TRIM4# |
1 | ||
| 71073-60223E1 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60302B2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71074-60521E2 |
FZJ79..ARL OAK,TRIM4# |
1 | ||
| 71074-60521B2 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60302E2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71132-90K01 |
FZJ75,HZJ75,PZJ73,RJ70..RHD..STD;FJ70,75,FZJ70,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77..RHD |
1 | ||
| 71132-90K01 |
FZJ78,79..ARL |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77 |
2 | ||
| 71148-90304 |
FZJ78,79..ARL |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-60572E1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71410-60513E1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71410-60572B1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60513B1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6A570E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 71420-6A570B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A580B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A580E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-60413E1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71430-60502B1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60413B1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60502E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-60372E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60312B1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60312E1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60372E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV OAK,TRIM4# |
1 | ||
| 71440-60372B1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60020 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD |
1 | ||
| 71501-60021 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60040 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F |
1 | ||
| 71502-60120 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77 |
1 | ||
| 71537-90K00 |
FZJ78,79..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60010 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD |
1 | ||
| 71505-60011 |
FZJ74..LX;HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ78,79,HZJ78..RHD..CBU;FZJ71,HDJ7#,HZJ71..ARL,GEN |
1 | ||
| 71505-60011 |
FZJ78,79..ARL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60010 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F |
1 | ||
| 71506-60060 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-60130 |
FZJ79..ARL W(SEPARATE SEAT) |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60090 |
LJ77;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,HZJ70,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 71610-60101 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..RHD..CBU;FZJ78,HDJ7#,HZJ78,79..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90K05 |
FJ70,FZJ70,HZJ70,LJ72,79,PZJ70,73,RJ7#..RHD..STD |
1 | ||
| 71620-60270 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-6002003 |
RJ70..LHD..STD;FJ73,LJ70,RJ70..RHD;FJ75,FZJ75,HZJ73,75,LJ77,79,PZJ73,RJ77;FJ70,73,FZJ70,73,HJ75,HZJ70,LJ72,PZJ70,75..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71811-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-6002006 |
HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77 SABLE,TRIM4# |
1 | ||
| 71812-6002003 |
HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71812-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60331B0 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60331E0 |
FZJ79..ARL OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K0016 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD SABLE,TRIM4# |
1 | ||
| 72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH) | ||||
| 90508-16079 |
RJ70..LHD;FZJ7#,HZJ70,75,LJ77..5F;LJ72,79,PZJ7#,RJ77..GCC,GEN |
1 | ||
| 90508-16079 |
FZJ78,79..ARL |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K0016 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F SABLE,TRIM4# |
1 | ||
| 72054-90K0113 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..ARL W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH) | ||||
| 90508-16080 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90508-16080 |
FZJ78,79..ARL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-90K15 |
LJ77;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,HZJ70,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 72110-60160 |
FZJ78,79..ARL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-90K15 |
PZJ73,RJ70..RHD..GEN;FJ70,FZJ70,HZJ70,LJ72,77,79,PZJ70,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72120-60210 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-90K00 |
LJ77;HZJ70..ARL;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,71,HZJ71,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 72130-60170 |
HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..GEN..IV;FZJ78,79,HZJ78..RHD..CBU |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-90K05 |
PZJ73,RJ70..RHD..GEN;FJ70,FZJ70,HZJ70,LJ72,77,79,PZJ70,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72140-90K00 |
FZJ70..LHD..CBR;LJ79,RJ77..LHD..STD;FZJ73,LJ77,79,RJ77..5F..(CBR,DSL,TD);FJ70,73,FZJ71,74,HZJ71,LJ70,72,PZJ70,RJ70..LHD |
1 | ||
| 72140-60180 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-90K00 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD |
1 | ||
| 72205-90K00 |
FZJ78,79..ARL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K02 |
FZJ75..PIC..CBR;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73..LHD..STD..CBR;FJ75,FZJ79,HJ75,HZJ79,PZJ75..PIC;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FZJ75,LJ77,79,RJ77..LHD..HT..(CBR,DSL,TD);FJ7#,FZJ71,74,78,HZJ71,LJ72,PZJ70,75,RJ70..LHD..(HT,SOT)..STD W(BENCH SEAT) |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K02 |
FZJ75,HZJ75,PZJ73,RJ70..RHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC;FJ70,75,FZJ70,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72520-90K02 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-90K00 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-90K01 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72580-90K01 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 90562-18094 | ||||
| 93219-55016 | ||||
| 93312-15016 | ||||
| 93383-15012 | ||||
ILLUST NO. 1 OF 3(9001-0701)LHD..PIC ; (0701-0808)FZJ79
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60132 |
HZJ79..RHD;HZJ79..GCC;FZJ79..RHD..CBU;FZJ79,HDJ79..ARL,GCC |
1 | ||
| 71013-60132 |
FZJ79..ARL |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60110 |
LJ79,RJ7#..LHD..STD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD..(HT,SOT) |
1 | ||
| 71014-60191 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60323B1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71071-60312E3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71071-60312B3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71071-60312E3 |
FZJ78,79..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ78,79..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71071-60312B3 |
FZJ78,79..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79..ARL MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60252B1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60252E1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60252B1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60402E2 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 71072-60252E1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60402B2 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60252B3 |
FZJ79,HDJ79,HZJ79..STD..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60252E3 |
FZJ79,HDJ79,HZJ79..STD..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71073-60223B2 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79,HZJ79..RHD..GEN;HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71073-60223E1 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79,HZJ79..RHD..GEN;HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71073-60252B3 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60223B2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71073-60252E3 |
FZJ79..ARL OAK,TRIM4# |
1 | ||
| 71073-60223E1 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60302B2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71074-60521E2 |
FZJ79..ARL OAK,TRIM4# |
1 | ||
| 71074-60521B2 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60302E2 |
FZJ79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71132-90K01 |
FZJ75,HZJ75,PZJ73,RJ70..RHD..STD;FJ70,75,FZJ70,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77..RHD |
1 | ||
| 71132-90K01 |
FZJ78,79..ARL |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77 |
2 | ||
| 71148-90304 |
FZJ78,79..ARL |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-60572E1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71410-60513E1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71410-60572B1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60513B1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6A570E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 71420-6A570B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A580B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A580E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-60413E1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71430-60502B1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60413B1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60502E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-60372E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60312B1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60312E1 |
HZJ79..ARL..IV;HZJ79..RHD..GEN;FZJ79,HDJ79..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60372E1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV OAK,TRIM4# |
1 | ||
| 71440-60372B1 |
FZJ79,HDJ79,HZJ79..STD..ARL..IV ***,SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60020 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD |
1 | ||
| 71501-60021 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60040 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F |
1 | ||
| 71502-60120 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77 |
1 | ||
| 71537-90K00 |
FZJ78,79..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60010 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD |
1 | ||
| 71505-60011 |
FZJ74..LX;HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ78,79,HZJ78..RHD..CBU;FZJ71,HDJ7#,HZJ71..ARL,GEN |
1 | ||
| 71505-60011 |
FZJ78,79..ARL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60010 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F |
1 | ||
| 71506-60060 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-60130 |
FZJ79..ARL W(SEPARATE SEAT) |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60090 |
LJ77;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,HZJ70,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 71610-60101 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..RHD..CBU;FZJ78,HDJ7#,HZJ78,79..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90K05 |
FJ70,FZJ70,HZJ70,LJ72,79,PZJ70,73,RJ7#..RHD..STD |
1 | ||
| 71620-60270 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-6002003 |
RJ70..LHD..STD;FJ73,LJ70,RJ70..RHD;FJ75,FZJ75,HZJ73,75,LJ77,79,PZJ73,RJ77;FJ70,73,FZJ70,73,HJ75,HZJ70,LJ72,PZJ70,75..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71811-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-6002006 |
HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77 SABLE,TRIM4# |
1 | ||
| 71812-6002003 |
HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71812-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60331B0 |
FZJ79..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60331E0 |
FZJ79..ARL OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K0016 |
RJ77..LHD..LX..GEN;FJ70,FZJ70,LJ72,79,PZJ70,RJ70..LHD..LX;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77..HT,PIC;FJ70,75,FZJ70,75,HZJ75,LJ72,79,PZJ7#,RJ7#..RHD SABLE,TRIM4# |
1 | ||
| 72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH) | ||||
| 90508-16079 |
RJ70..LHD;FZJ7#,HZJ70,75,LJ77..5F;LJ72,79,PZJ7#,RJ77..GCC,GEN |
1 | ||
| 90508-16079 |
FZJ78,79..ARL |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K0016 |
LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F SABLE,TRIM4# |
1 | ||
| 72054-90K0113 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..ARL W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH) | ||||
| 90508-16080 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90508-16080 |
FZJ78,79..ARL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-90K15 |
LJ77;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,HZJ70,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 72110-60160 |
FZJ78,79..ARL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-90K15 |
PZJ73,RJ70..RHD..GEN;FJ70,FZJ70,HZJ70,LJ72,77,79,PZJ70,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72120-60210 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-90K00 |
LJ77;HZJ70..ARL;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,71,HZJ71,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 72130-60170 |
HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..GEN..IV;FZJ78,79,HZJ78..RHD..CBU |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-90K05 |
PZJ73,RJ70..RHD..GEN;FJ70,FZJ70,HZJ70,LJ72,77,79,PZJ70,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72140-90K00 |
FZJ70..LHD..CBR;LJ79,RJ77..LHD..STD;FZJ73,LJ77,79,RJ77..5F..(CBR,DSL,TD);FJ70,73,FZJ71,74,HZJ71,LJ70,72,PZJ70,RJ70..LHD |
1 | ||
| 72140-60180 |
FZJ79..ARL W(BENCH SEAT) |
1 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-90K00 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD |
1 | ||
| 72205-90K00 |
FZJ78,79..ARL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K02 |
FZJ75..PIC..CBR;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73..LHD..STD..CBR;FJ75,FZJ79,HJ75,HZJ79,PZJ75..PIC;FZJ75,HZJ75..RHD..PIC..(DSL,EFI);FZJ75,LJ77,79,RJ77..LHD..HT..(CBR,DSL,TD);FJ7#,FZJ71,74,78,HZJ71,LJ72,PZJ70,75,RJ70..LHD..(HT,SOT)..STD W(BENCH SEAT) |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K02 |
FZJ75,HZJ75,PZJ73,RJ70..RHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC;FJ70,75,FZJ70,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72520-90K02 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-90K00 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-90K01 |
PZJ73,RJ70..RHD..GEN;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77..RHD W(BENCH SEAT) |
1 | ||
| 72580-90K01 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90468-16019 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 90562-18094 | ||||
| 93219-55016 | ||||
| 93312-15016 | ||||
| 93383-15012 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08653 | ||||
| 90179-08143 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90387-08052 | ||||
| 90540-09060 | ||||
| 93311-16010 | ||||
| 94531-01200 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
(0701-1608)LX..IV ; (0701- )DCB..IV ; (0701-)RHD..DCB,HT,PIC..CBU ; (1408-16
FRONT SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90119-08079 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90468-18071 | ||||
| 90506-18070 | ||||
| 90523-08001 | ||||
| 93219-55016 | ||||
| 93383-15012 | ||||
(0701-1408)VDJ79..PIC..STD ; (0701- )DCB..IV; (0701- )FZJ79,GRJ79,HZJ79,VDJ7
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93219-55016 | ||||
| 93383-15012 | ||||
(0701-1208)GRJ78..RHD ; (0701-1608)GRJ78..LHD ;(0701-1608)HZJ78..GEN ; (0701- )
PARALLEL REAR SEAT, W(SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71434-95701 | ||||
| 90119-08653 | ||||
| 90176-10008 | ||||
| 90183-08003 | ||||
| 90183-08073 | ||||
| 90202-08039 | ||||
| 90560-08048 | ||||
| 91512-G1025 | ||||
| 91673-80818 | ||||
| 96160-00600 | ||||
(0701-1608)FZJ78,79,GRJ78,79,HZJ78,79,VDJ78,79..RHD..HT,PIC..STD ; (1608- )GRJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
