FZJ79R-TJMRK (2007)

Toyota Land Cruiser

Production Jan 2007 - Jul 2009
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

FRONT(MAKER OPTION)

diagram 8271122270 8712860050 8712860060 88501 88510 88515 88539 88605 88605 88625 88630 88645G 88645G 88650 8868860430 88688A 88716F 9009914122 9011906373 9015960198 9017906274 9161160812 9165140616
Part # Description Qty Price
Common parts
82711-22270
87128-60050
87128-60060
88688-60430
90099-14122
90119-06373
90159-60198
90179-06274
91611-60812
91651-40616

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 2 OF 2(0701- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

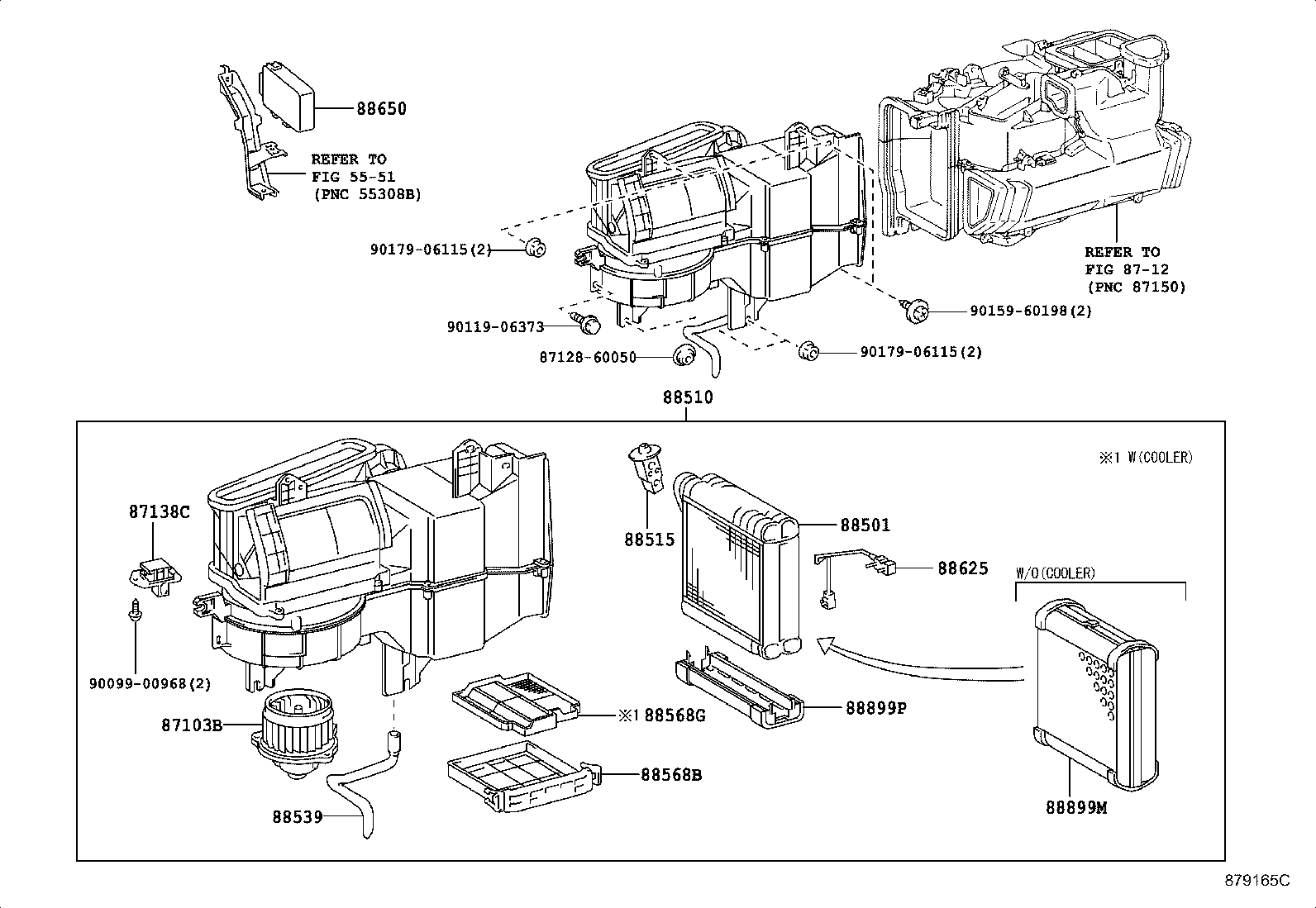

ILLUST NO. 1 OF 2(0701-0907)RHD

Click highlighted areas on diagram

FRONT

diagram 5551 87103B 8712 8712860050 87138C 88501 88510 88515 88539 88568B 88568G 88625 88650 88899M 88899P 9009900968 9011906373 9015960198 9017906115 9017906115
Part # Description Qty Price
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60290

FZJ71,78,79,HZJ7#,VDJ7#..RHD

 1
87103-60310

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
87138C - RESISTOR, BLOWER
87138-60310

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
87138-60300

FZJ71,78,79..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60340

FZJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88501-60400

FZJ71,78,79..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88510 - UNIT ASSY, COOLER
88510-6A370

FZJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88510-6A360

FZJ71,78,79,HZJ7#,VDJ7#..RHD

 1
88510-6A400

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
88515 - VALVE, COOLER EXPANSION
88515-60210

FZJ7#,HZJ7#

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60250

FZJ71,78,79,HZJ7#,VDJ7#..RHD

 1
88568B - FILTER, AIR
88568-60020

FZJ7#,HZJ7#

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88568G - FILTER, AIR
88568-60030

FZJ71,78,79..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88568-60030

GRJ71,78,79,HZJ7#..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60200

FZJ7#

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88625-60200

GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60C40

FZJ7#

AIR CONDITIONER-WITH

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-60350

FZJ71,78,79..RHD

 1
88899P - PLATE, COVER
88899-60330

GRJ71..STD..GEN;GRJ78,79,HZJ7#..RHD

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
88899-60330

FZJ7#

HEATER-W(FRONT)&AIR CONDITIONER-WITH

 1
Common parts
87128-60050
90099-00968
90119-06373
90159-60198
90179-06115
