FZJ79R-TJMRK (2007)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
FZJ7# AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| 77110-60011 |
FZJ7# AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||
ILLUST NO. 5 OF 5(0701- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
FZJ7# AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| 77110-60011 |
FZJ7# AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||

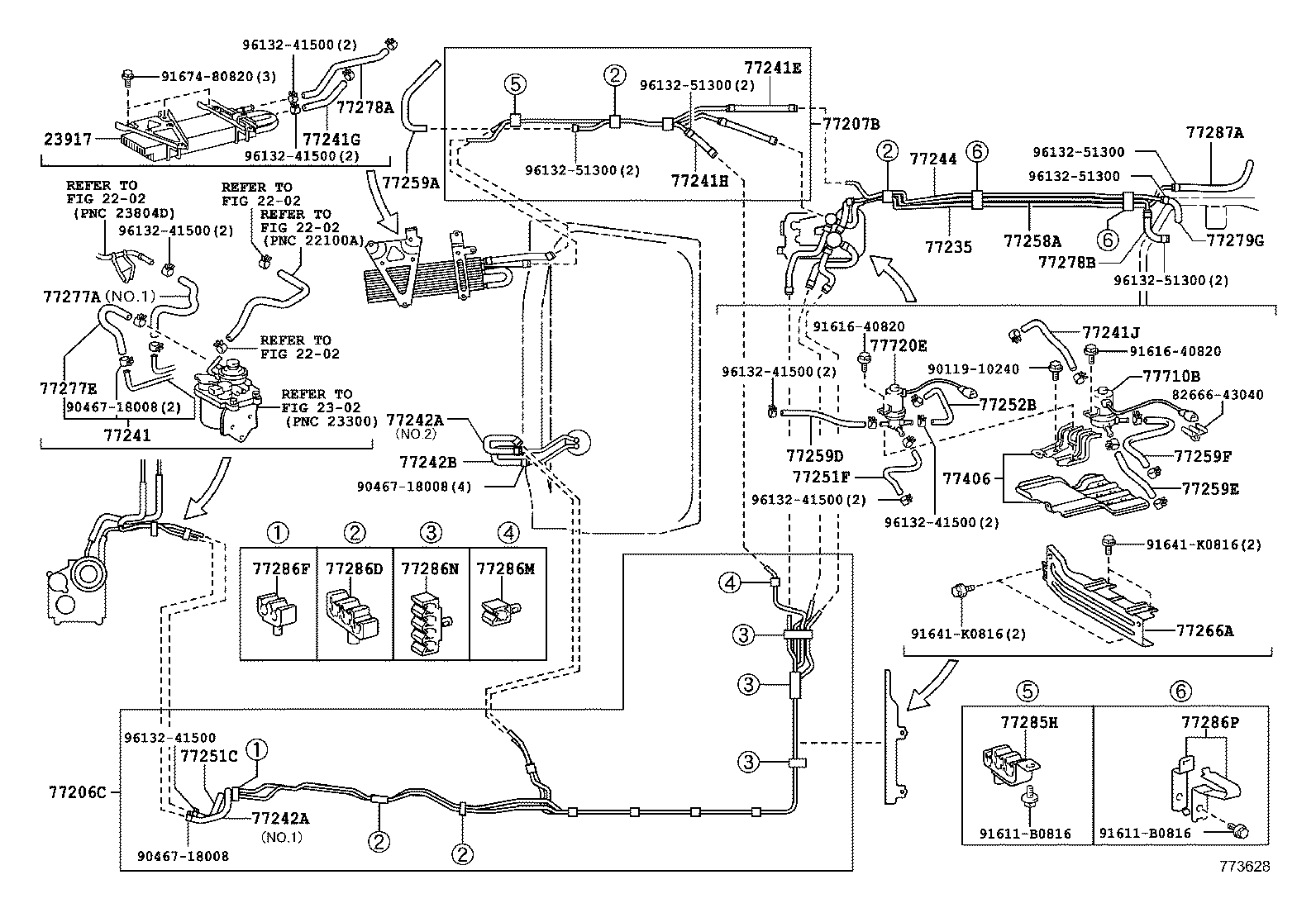

ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60361 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60361 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77241G - HOSE, FUEL, NO.6 | ||||
| 95332-10018 |
VDJ78,79 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
FZJ7# |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06030 |
FZJ79 *H,L=300,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.1 |
1 | ||
| 95334-06055 |
FZJ79 *H,L=360,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.2 |
1 | ||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06055 |
FZJ78,79 *H,L=360,FUEL TANK-W(SUB TANK),NO.2 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

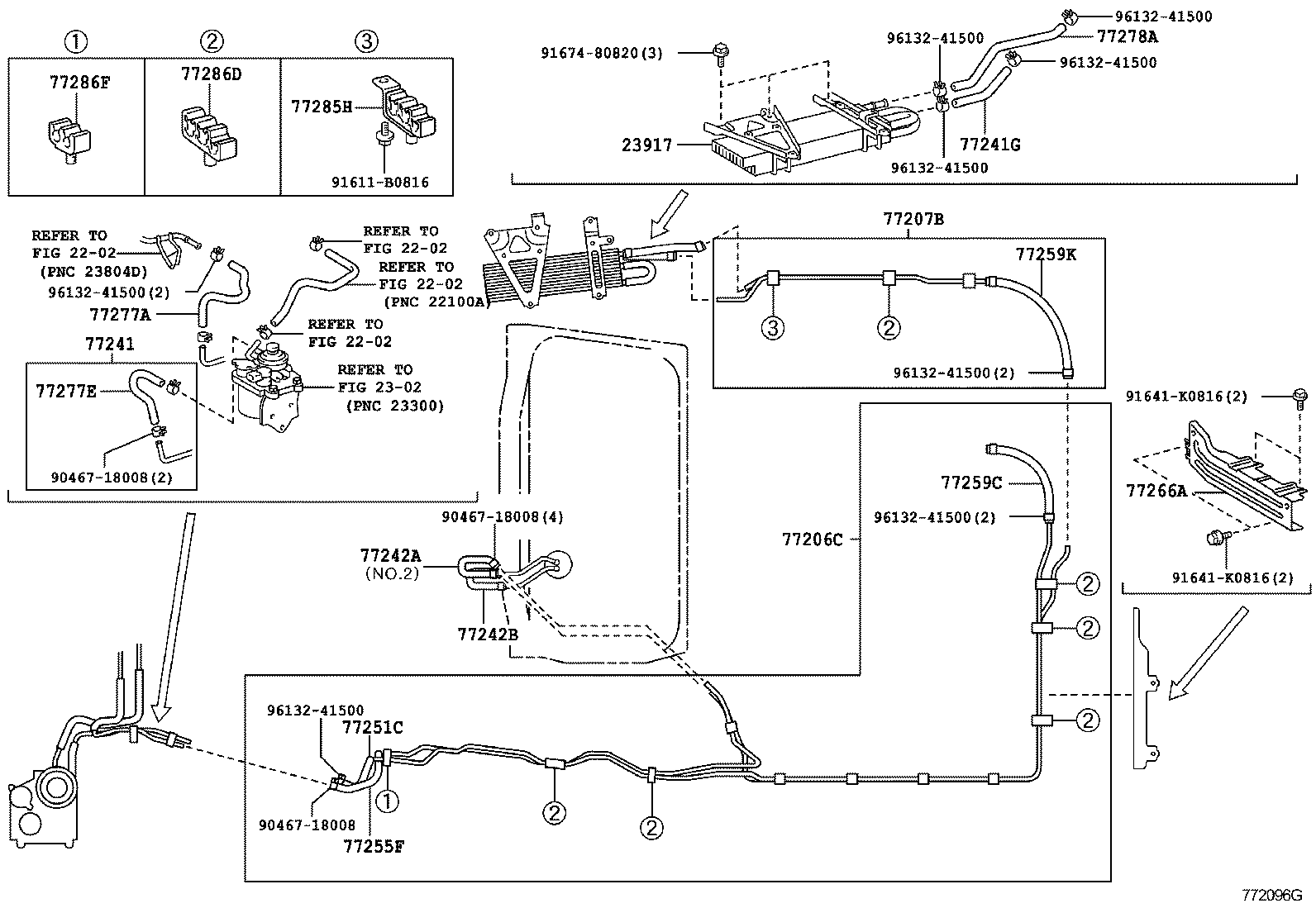

ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60440 |
FZJ78,79 |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95334-06014 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06014 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A20 |
FZJ7# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A10 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A70 |
FZJ78,79 |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
FZJ7# |
3 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60780 |
FZJ78,79 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
FZJ7# |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60150 |
FZJ78,79 |
1 | ||
| 77716-60200 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60410 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-08030 |
FZJ79..RHD *H,L=260,SOUTH AFRICA SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60170 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60350 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| Common parts | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||

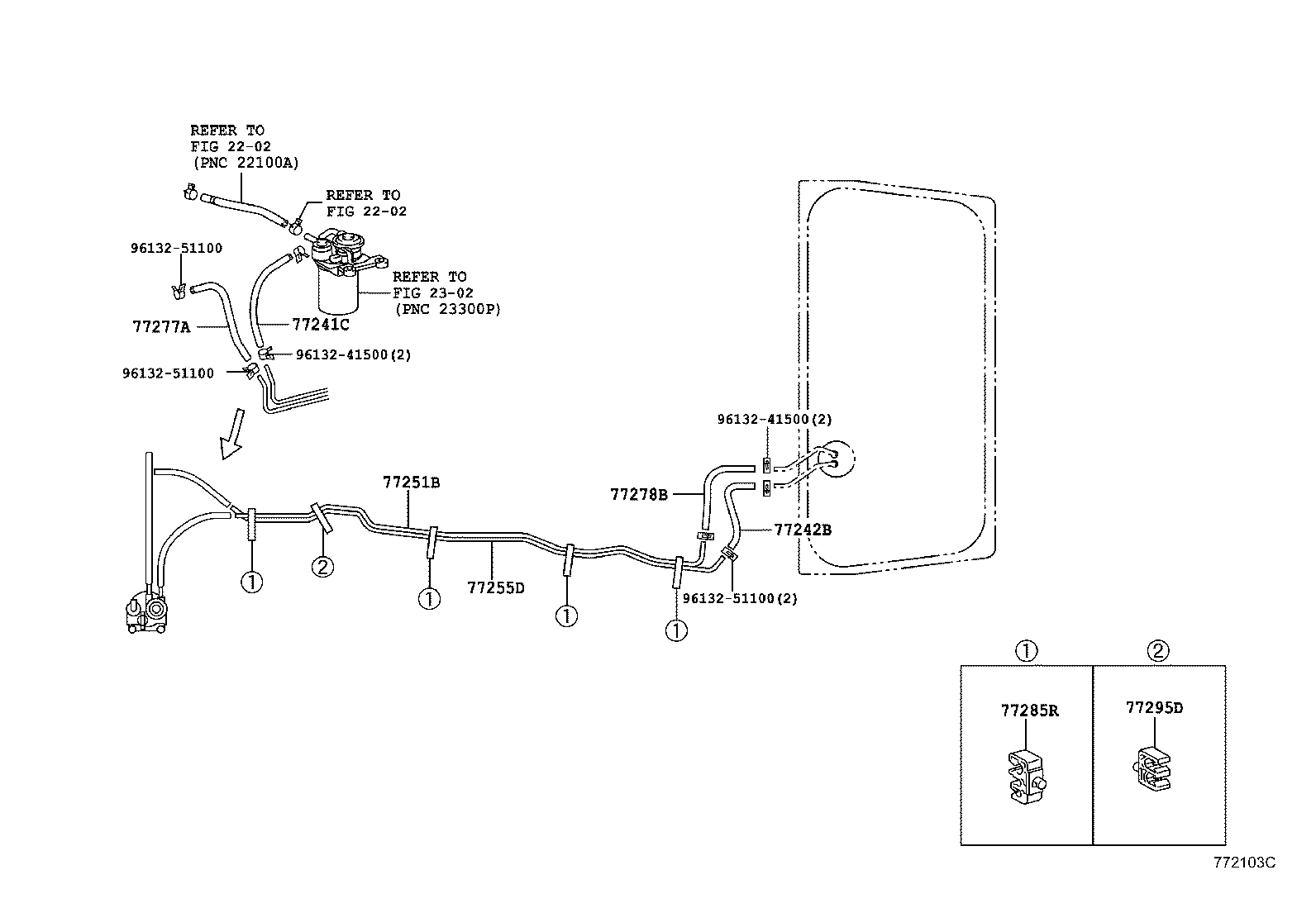

ILLUST NO. 3 OF 5(0701- )HZJ78,79..HT,PIC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10060 |
HZJ78,79 *H,L=500,FUEL TANK-W(SUB TANK) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A20 |
FZJ7# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A10 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A70 |
FZJ78,79 |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10040 |
HZJ78,79 *H,L=320 |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
3 | ||
| Common parts | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60361 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60361 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60370 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77209-60370 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95334-06014 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06014 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77249-60200 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06020 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06020 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A20 |
FZJ7# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77236-60080 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77236-60080 |
FZJ79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95334-08030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95334-08030 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A10 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A70 |
FZJ78,79 |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77253-60290 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77253-60290 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77253-60310 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77261-60410 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77257-60140 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77257-60140 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77257-60160 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
FZJ7# |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06030 |
FZJ79 *H,L=300,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.1 |
1 | ||
| 95334-06055 |
FZJ79 *H,L=360,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.2 |
1 | ||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06055 |
FZJ78,79 *H,L=360,FUEL TANK-W(SUB TANK),NO.2 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06030 |
FZJ79 *H,L=300,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.1 |
1 | ||
| 95334-06055 |
FZJ79 *H,L=360,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.2 |
1 | ||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06055 |
FZJ78,79 *H,L=360,FUEL TANK-W(SUB TANK),NO.2 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
FZJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
FZJ79 FUEL TANK-W(SUB TANK) |
6 | ||
| 77285-60790 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
6 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
FZJ7# |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60440 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77285-60440 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-60460 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77285-60460 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
FZJ7# |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60200 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60200 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60150 |
FZJ78,79 |
1 | ||
| 77716-60200 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60090 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60410 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-08030 |
FZJ79..RHD *H,L=260,SOUTH AFRICA SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60170 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60350 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60060 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| Common parts | ||||
| 90119-08862 | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90461-10750 | ||||
| 90461-12407 | ||||
| 90464-00554 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 5(0701- )HZJ78,79..HT,PIC
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 95333-06020 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60361 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60361 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10060 |
HZJ78,79 *H,L=500,FUEL TANK-W(SUB TANK) |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95334-06014 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06014 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06020 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06020 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06020 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79 FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06020 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60A30 |
HZJ78,79..HT,PIC |
1 | ||
| 77251-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77251-60A20 |
FZJ7# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77236-60080 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77236-60080 |
FZJ79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95334-08030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95334-08030 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60A10 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77255-60A70 |
FZJ78,79 |
1 | ||
| 77255-60A10 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A10 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77255-60A20 |
HZJ78,79..HT,PIC |
1 | ||
| 77255-60A40 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77253-60290 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77253-60290 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77253-60310 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77257-60140 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77257-60140 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77257-60160 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
FZJ7# |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06030 |
FZJ79 *H,L=300,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.1 |
1 | ||
| 95334-06055 |
FZJ79 *H,L=360,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.2 |
1 | ||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06055 |
FZJ78,79 *H,L=360,FUEL TANK-W(SUB TANK),NO.2 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
FZJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
FZJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 77259-60640 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
FZJ79 FUEL TANK-W(SUB TANK) |
6 | ||
| 77285-60790 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
6 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60A70 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
3 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60380 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60250 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-60240 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60200 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60200 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60150 |
FZJ78,79 |
1 | ||
| 77716-60200 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77716-60160 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720B - HOSE, FUEL, NO.1(FOR SAFETY VALVE) | ||||
| 95332-10016 |
HZJ78,79 *H,L=160,FUEL TANK-W(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60090 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 82711-60530 | ||||
| 90119-08862 | ||||
| 90461-10750 | ||||
| 90461-12407 | ||||
| 90464-00311 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 95338-10016 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 5(0701-0907)FZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ7# |
1 | ||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77203-60220 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60220 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60230 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77203-60220 |
FZJ78,79 |
1 | ||
| 77203-60220 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60220 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60230 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77203-60230 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77203-60230 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC |
1 | ||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC |
1 | ||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77249-60090 |
FZJ79..RHD L=60,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60200 |
FZJ78,79..GEN |
1 | ||
| 77026-60200 |
HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60200 |
FZJ78,79..GEN |
1 | ||
| 77026-60200 |
HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77026-60070 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
FZJ79 |
1 | ||
| 77310-60090 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
FZJ79 |
1 | ||
| 77316-12050 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60541 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60780 |
VDJ78,79 MAIN TANK |
1 | ||
| 77001-60541 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60551 |
VDJ78,79 SUB TANK |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77001-60740 |
HZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60541 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60551 |
HZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60541 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60740 |
HZJ78,79 |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60542 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
FZJ79..GEN FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90105-12116 |
FZJ78,79..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FZJ78,79..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
FZJ79..GEN FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ79 L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
FZJ78,79 L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 90445-22024 |
FZJ79 L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
FZJ79 L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
FZJ78,79 L=150 |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ7# |
1 | ||
| 77178-20010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FZJ78,79 |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FZJ78,79 |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FZJ78,79 |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FZJ78,79 |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-20040 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77169-14010 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
FZJ79 |
1 | ||
| 77213-60210 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60200 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
FZJ79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
FZJ78,79..GEN *H,L=140,FUEL TANK-W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ79..GEN *H,L=140,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 95333-06020 |
FZJ78,79..GEN *H,L=140 |
1 | ||
| 95333-06020 |
HZJ78,79,VDJ78,79..HT,PIC *H,L=140 |
1 | ||
| 95333-06020 |
HZJ78,79..HT,PIC *H,L=140,FUEL TANK-W(SUB TANK) |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ78,79 |
1 | ||
| 77293-60030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
FZJ78,79 |
1 | ||
| 77380-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
FZJ78,79 |
1 | ||
| 77420-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
FZJ78,79 |
1 | ||
| 77606-60130 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
FZJ78,79 RH |
1 | ||
| 77601-60230 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
FZJ78,79 LH |
1 | ||
| 77601-60261 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
FZJ78,79 RH |
1 | ||
| 77601-60230 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
FZJ78,79 LH |
1 | ||
| 77601-60261 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
FZJ78,79 |
2 | ||
| 90240-10011 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77616-60080 |
FZJ78,79 |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
FZJ78,79 |
2 | ||
| 77615-60050 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
FZJ78,79..GEN |
1 | ||
| 90917-10092 |
HZJ78,79,VDJ78,79 |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06347 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-0907)FZJ78,79
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58279A - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
FZJ79..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 58279-90K00 |
FZJ79..CBU FUEL TANK-W(SUB TANK) |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
FZJ7# |
1 | ||
| 77011-60120 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77011-60120 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60410 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60540 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77310-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77310-60090 |
FZJ79 |
1 | ||
| 77310-60090 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77316-12050 |
FZJ79 |
1 | ||
| 77316-12050 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77316-12050 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60541 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60780 |
VDJ78,79 MAIN TANK |
1 | ||
| 77001-60541 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60551 |
VDJ78,79 SUB TANK |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77001-60740 |
HZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60541 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60551 |
HZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60541 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60740 |
HZJ78,79 |
1 | ||
| 77001-60890 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60542 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60542 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60891 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
FZJ79..GEN FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90105-12116 |
FZJ78,79..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90105-12116 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FZJ78,79..GEN FUEL TANK-W(SUB TANK) |
1 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 90430-12245 |
FZJ79..GEN FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90430-12245 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 90430-12245 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ79 L=385,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
FZJ78,79 L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 90445-22024 |
FZJ79 L=385,FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 95311-13015 |
FZJ79 L=150,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 95311-13015 |
FZJ78,79 L=150 |
1 | ||
| 95311-13015 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC L=150 |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 95311-13015 |
HZJ78,79..HT,PIC L=150,FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77133-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77133-60100 |
GRJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ7# |
1 | ||
| 77178-20010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77178-20010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77178-20010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60660 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60680 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
FZJ79 |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60730 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60740 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB-TANK |
1 | ||
| 77201-60720 |
FZJ79..RHD SOUTH AFRICA SPEC |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-20040 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-20040 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77169-14010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77169-14010 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14010 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77169-14020 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
FZJ79 |
1 | ||
| 77213-60210 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77213-60200 |
FZJ79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60200 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77213-60210 |
FZJ79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ78,79 |
1 | ||
| 77293-60030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
2 | ||
| 77293-60030 |
FZJ79 FUEL TANK-W(SUB TANK) |
2 | ||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 90480-01303 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 90480-01303 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90480-01303 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 90480-01303 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 90949-01182 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 90949-01182 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(SUB TANK) |
1 | ||
| 90949-01182 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 90949-01182 |
FZJ79..RHD SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60030 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
FZJ78,79 |
1 | ||
| 77606-60130 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77606-60130 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60130 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
1 | ||
| 77606-60130 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
FZJ78,79 RH |
1 | ||
| 77601-60230 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
FZJ78,79 LH |
1 | ||
| 77601-60261 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60261 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
FZJ78,79 RH |
1 | ||
| 77601-60230 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
FZJ78,79 LH |
1 | ||
| 77601-60261 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77602-60100 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60230 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC RH |
1 | ||
| 77601-60261 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC LH |
1 | ||
| 77601-60230 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
FZJ78,79 |
2 | ||
| 90240-10011 |
FZJ78,79 FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 90249-14002 |
FZJ78,79 FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),SUB TANK |
2 | ||
| 90240-10011 |
GRJ78..LHD;GRJ79,HZJ78,79..HT,PIC |
2 | ||
| 90240-10011 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90249-14002 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| Common parts | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60361 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77206-60361 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77235 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77235-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
VDJ78,79 *H,L=220,ID=7.6 |
1 | ||
| 77241G - HOSE, FUEL, NO.6 | ||||
| 95332-10018 |
VDJ78,79 |
1 | ||
| 77241H - HOSE, FUEL, NO.7 | ||||
| 95332-10016 |
VDJ78,79 |
1 | ||
| 77241J - HOSE, FUEL, NO.8 | ||||
| 77259-60A80 |
VDJ78,79 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=300 |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60240 |
VDJ78,79..HT,PIC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60830 |
VDJ78,79 |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
FZJ79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259-60610 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60610 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60670 |
VDJ78,79 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 95332-12016 |
VDJ78,79 |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60810 |
VDJ78,79 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77406-60030 |
FZJ7# |
1 | ||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66050 |
FZJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,FUEL TANK-W(SUB TANK),NO.1 |
1 | ||
| 95333-06030 |
FZJ79 *H,L=300,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.1 |
1 | ||
| 95334-06055 |
FZJ79 *H,L=360,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK),NO.2 |
1 | ||
| 77259-60630 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 95334-06055 |
FZJ78,79 *H,L=360,FUEL TANK-W(SUB TANK),NO.2 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-10040 |
HZJ78,79 *H,L=320 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77259-60410 |
VDJ78,79 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-34380 |
VDJ78,79..HT,PIC |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60830 |
VDJ78,79..HT,PIC |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-60740 |
VDJ78,79..HT,PIC |
2 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60200 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60200 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60090 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60090 |
FZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 82666-43040 | ||||
| 90119-10240 | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
