FZJ79R-TJMRK (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-12136 | ||||
| 90119-08495 | ||||
| 90119-08503 | ||||
| 90119-08871 | ||||
| 90119-10349 | ||||
| 90119-10375 | ||||
| 90119-10769 | ||||
| 90179-08068 | ||||
| 90179-10016 | ||||
| 90179-10132 | ||||
| 90201-12096 | ||||
| 90467-07132 | ||||
| 90467-10071A1 | ||||
| 90950-01853 | ||||
| 91651-41020 | ||||
| 91651-61020 | ||||
| 91651-61025 | ||||
| 91651-G1025 | ||||
| 93240-66014 | ||||
| 94130-01202 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 2(0701- )
W(STEP BUMPER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015B - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016B - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52101B - PLATE SUB-ASSY, FRONT BUMPER REINFORCEMENT | ||||
| 52101-60200 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52101-60200 |
GRJ71,78,79..RHD |
1 | ||
| 52101-60210 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-60120 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
2 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-60120 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
2 | ||
| 52137F - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-60100 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52137-60110 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52137-60100 |
GRJ71,78,79..RHD |
1 | ||
| 52138D - BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 | ||||
| 52138-60090 |
GRJ71,78,79..RHD |
1 | ||
| 52138-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52138-60090 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
5 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
GRJ71,78,79..RHD |
5 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
5 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
GRJ71,78,79..RHD |
5 | ||
| 53285M - SEAL, RADIATOR SIDE AIR, RH | ||||
| 53285-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 53285-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 53285-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 53285-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 53286D - SEAL, RADIATOR SIDE AIR, LH | ||||
| 53286-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 53286-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 53286-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 53286-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90119-10902 | ||||
| 90119-12200 | ||||
| 90119-12367 | ||||
| 90179-06159 | ||||
| 91553-80814 | ||||
| 91553-81230 | ||||
| 91651-61025 | ||||
| 94130-01202 | ||||
| 94150-80800 | ||||
| 94622-51200 | ||||

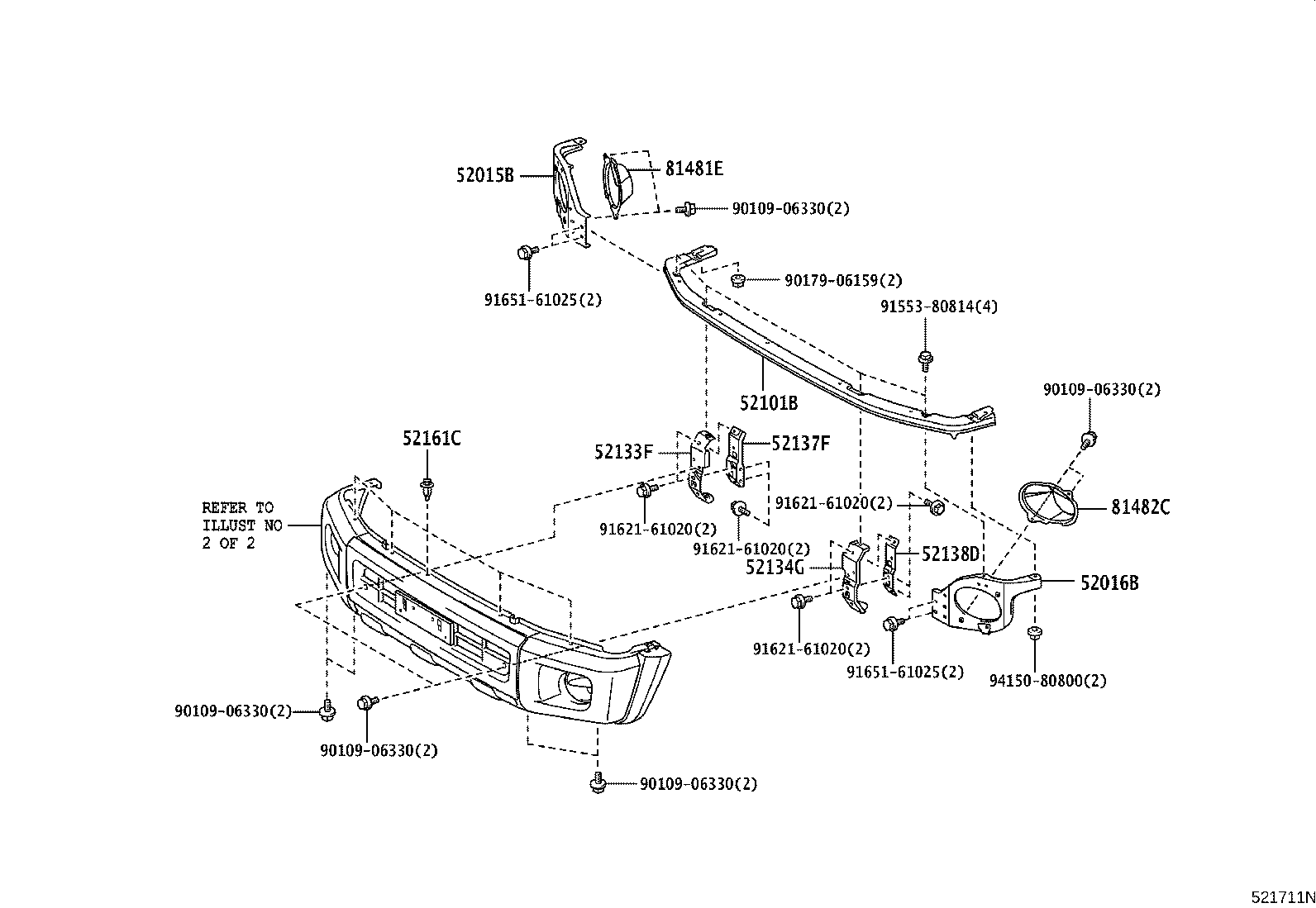

ILLUST NO. 1 OF 2(0701- )FZJ79,GRJ79,VDJ78..HT,PIC..ARL,GEN ;(0701- )FZJ71,76,78,GRJ71,76,78,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015B - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016B - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52101B - PLATE SUB-ASSY, FRONT BUMPER REINFORCEMENT | ||||
| 52101-60200 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52101-60200 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52101-60200 |
GRJ71,78,79..RHD |
1 | ||
| 52101-60200 |
GRJ71,78,79..RHD |
1 | ||
| 52101-60210 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52101-60210 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-60090 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52133-60090 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52133-60090 |
GRJ71,78,79..RHD |
1 | ||
| 52133-60090 |
GRJ71,78,79..RHD |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52134-60100 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52134-60100 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52134-60100 |
GRJ71,78,79..RHD |
1 | ||
| 52134-60100 |
GRJ71,78,79..RHD |
1 | ||
| 52137F - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-60100 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52137-60100 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52137-60110 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52137-60110 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52137-60100 |
GRJ71,78,79..RHD |
1 | ||
| 52137-60100 |
GRJ71,78,79..RHD |
1 | ||
| 52138D - BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 | ||||
| 52138-60090 |
GRJ71,78,79..RHD |
1 | ||
| 52138-60090 |
GRJ71,78,79..RHD |
1 | ||
| 52138-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52138-60100 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52138-60090 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52138-60090 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
5 | ||
| 52161-16010 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
5 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
9 | ||
| 52161-16010 |
GRJ71,78,79..RHD |
5 | ||
| 52161-16010 |
GRJ71,78,79..RHD |
5 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90179-06159 | ||||
| 91553-80814 | ||||
| 91621-61020 | ||||
| 91651-61025 | ||||
| 94150-80800 | ||||
ILLUST NO. 2 OF 2(0701- )FZJ79,GRJ79,VDJ78..HT,PIC..ARL,GEN ;(0701- )FZJ71,76,78,GRJ71,76,78,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015B - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016B - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52112 - BAR, FRONT BUMPER, RH | ||||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52113 - BAR, FRONT BUMPER, LH | ||||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60830 |
VDJ78,79..STD NO PAINT REQ. |
1 | ||
| 52119-60830 |
VDJ78,79..STD NO PAINT REQ. |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60830 |
GRJ79..LHD..GEN;FZJ79,HZJ79..GEN;FZJ71,76,78,GRJ71,76,78,HZJ71,76,78..STD NO PAINT REQ. |
1 | ||
| 52119-60830 |
GRJ79..LHD..GEN;FZJ79,HZJ79..GEN;FZJ71,76,78,GRJ71,76,78,HZJ71,76,78..STD NO PAINT REQ. |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V) |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V) |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42030 |
FZJ7# |
1 | ||
| 52127-42030 |
FZJ7# |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42030 |
FZJ7# |
1 | ||
| 52128-42030 |
FZJ7# |
1 | ||
| 52139D - PLATE, FRONT BUMPER BRACKET, NO.3 | ||||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52139D - PLATE, FRONT BUMPER BRACKET, NO.3 | ||||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 75392-35220 | ||||
| 90109-06330 | ||||
| 90170-06011 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8102 | ||||
ILLUST NO. 2 OF 2(0701- )
W(STEP BUMPER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015B - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52015-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52015-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52015-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52016B - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52016-60020 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
1 | ||
| 52016-60030 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V) |
1 | ||
| 52016-60020 |
GRJ71,78,79..RHD |
1 | ||
| 52049 - COVER SUB-ASSY, FRONT BUMPER WINCH | ||||
| 52049-60060B0 |
HZJ71,76,79..GEN WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),GRAY ME.,058 ,1F7 ,1G3 ,1G6,3Q3 ,4E9 ,4R3 ,8H6 |
1 | ||
| 52049-60060B0 |
HZJ71,76,79..GEN WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,GRAY ME.,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,4E9 ,4R3 ,8H6 |
1 | ||
| 52049-60050 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V) |
1 | ||
| 52049-60060B0 |
HZJ79..PIC..GCC;FZJ71,76,79..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),GRAY ME.,058 ,1F7 ,1G3 ,1G6,3Q3 ,4E9 ,4R3 ,8H6 |
1 | ||
| 52049-60060B0 |
HZJ79..PIC..GCC;FZJ71,76,79..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,GRAY ME.,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,4E9 ,4R3 ,8H6 |
1 | ||
| 52049-60050 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 52112 - BAR, FRONT BUMPER, RH | ||||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52112-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52113 - BAR, FRONT BUMPER, LH | ||||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52113-60901 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60830 |
VDJ78,79..STD NO PAINT REQ. |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60830 |
GRJ79..LHD..GEN;FZJ79,HZJ79..GEN;FZJ71,76,78,GRJ71,76,78,HZJ71,76,78..STD NO PAINT REQ. |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V) |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60830 |
VDJ78,79..STD NO PAINT REQ. |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60830 |
GRJ79..LHD..GEN;FZJ79,HZJ79..GEN;FZJ71,76,78,GRJ71,76,78,HZJ71,76,78..STD NO PAINT REQ. |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52119-60984 |
GRJ79..LHD..GEN;FZJ79,HZJ71,79..(DCB,HT,PIC)..GEN;FZJ71,76,78,GRJ71,76,78,HZJ76,78..STD PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V) |
1 | ||
| 52119-60A10 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 52119-60A10 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC NO PAINT REQ.,WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42030 |
FZJ7# |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42030 |
FZJ7# |
1 | ||
| 52139D - PLATE, FRONT BUMPER BRACKET, NO.3 | ||||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52139D - PLATE, FRONT BUMPER BRACKET, NO.3 | ||||
| 52139-60020 |
FZJ7# RH |
1 | ||
| 52139-60030 |
FZJ7# LH |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.1 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH),NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V),NO.2 |
2 | ||
| 52421-60140 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.1 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60150 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH,NO.2 |
2 | ||
| 52421-60160 |
FZJ79..GEN;FZJ71,76,78,VDJ7# |
2 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 52541-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH) |
1 | ||
| 52711-60030 |
FZJ7#..STD;HZJ71..SOT PLATED,FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
2 | ||
| 76854-44010 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78..STD WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
HZJ79..GEN;FZJ7#,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7#..STD;HZJ71..SOT FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81481-60030 |
FZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81481-60040 |
FZJ7# |
1 | ||
| 81481-60030 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-60020 |
FZJ7#..STD;GRJ79..RHD..DCB;GRJ79,HZJ79..STD..GCC WINCH-W(ELECTRIC 12V)&FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
HZJ71,VDJ79..DCB,HT;FZJ7#,GRJ7#,HZJ76,78,79..STD FRONT BUMPER-W(PLATING GARNISH)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
VDJ79..DCB..IV;VDJ76,79..HT,PIC TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60020 |
FZJ7#;GRJ79..RHD..DCB;GRJ79,HZJ79..GCC WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60030 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 81482-60020 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 75392-35220 | ||||
| 90109-06330 | ||||
| 90170-06011 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
