FZJ79R-TJMRK (2007)
Toyota Land Cruiser

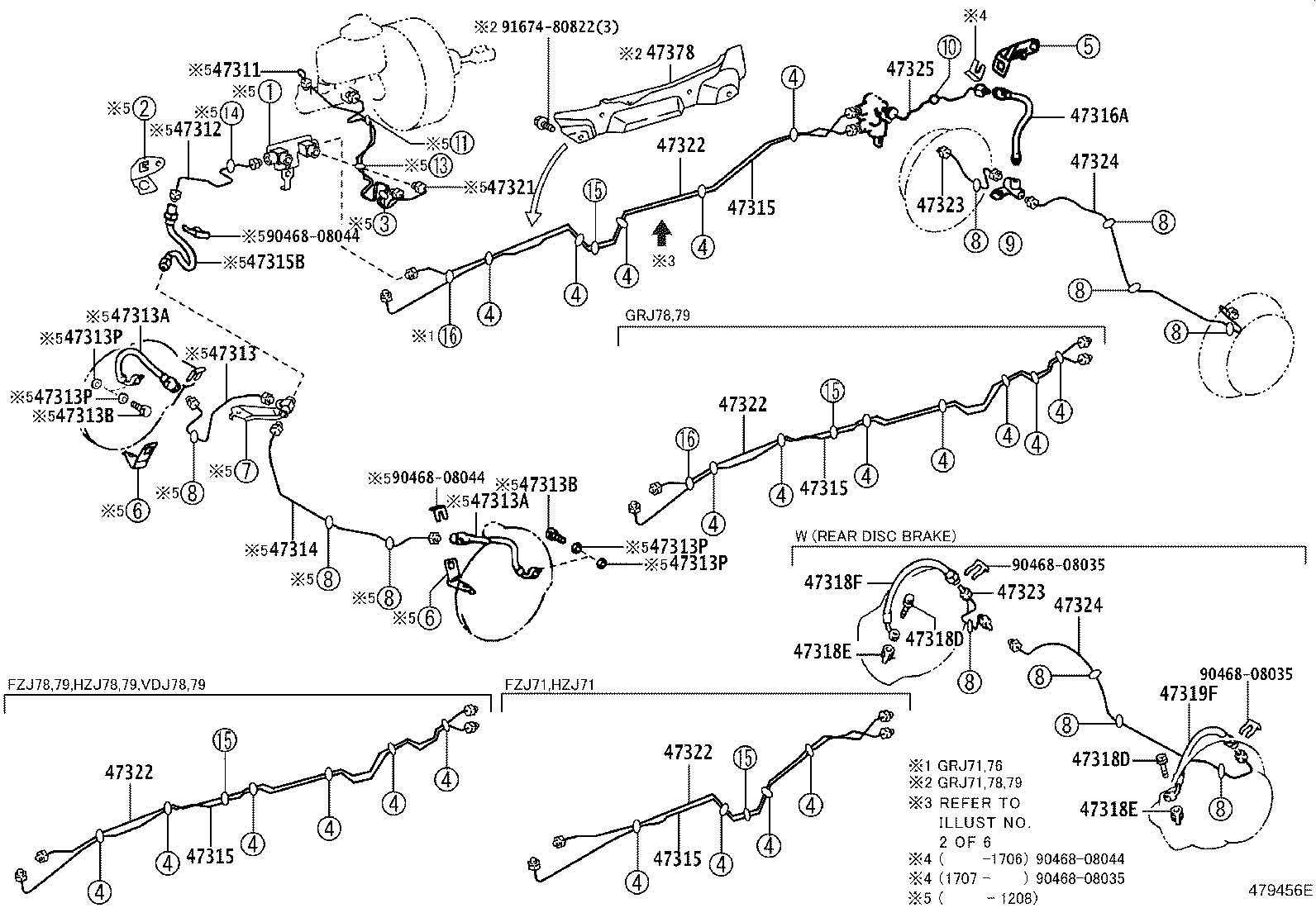

ILLUST NO. 1 OF 6(0701-0907)FZJ71,78,79..RHD ; (0701- )HZJ7#,VDJ7#..RHD..HT,PIC,SOT ; (0907-1208)
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60A00 |
FZJ71,78,79..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60420 |
FZJ7# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60280 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B48 |
FZJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B48 |
FZJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
FZJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
FZJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60520 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60620 |
FZJ79 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60620 |
FZJ79 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60620 |
FZJ79 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60620 |
FZJ79 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02B72 |
FZJ7# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B52 |
FZJ7# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A09 |
HZJ78..GEN;HZJ76,79..CBU;FZJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A10 |
HZJ78..GEN;HZJ76,79..CBU;FZJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60A10 |
FZJ71,78,79..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60800 |
FZJ79 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60800 |
FZJ79 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60800 |
FZJ79 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60800 |
FZJ79 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60312 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324-60330 |
FZJ7# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60312 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324-60330 |
FZJ7# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60290 |
FZJ7# |
1 | ||
| 47325-60242 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60290 |
FZJ7# |
1 | ||
| 47325-60242 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60241 |
FZJ7# |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 91674-80822 | ||||
ILLUST NO. 2 OF 6(0701-0907)FZJ7# ; (0701- )VDJ76,78..RHD ; (0701- )VDJ79..PIC..IV ; (0701-
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10315 |
FZJ7# |
1 | ||
| 90413-10315 |
FZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10316 |
FZJ7# |
1 | ||
| 90413-10316 |
FZJ7# |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01107 |
FZJ78,79 |
6 | ||
| 90480-01107 |
FZJ78,79 |
6 | ||
| 90480-01107 |
GRJ71..LHD;HZJ78,79,VDJ78,79 |
6 | ||
| 90480-01107 |
GRJ71..LHD;HZJ78,79,VDJ78,79 |
6 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47395-60031 |
FZJ7# |
1 | ||
| 47395-60031 |
FZJ7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60130 |
FZJ7# |
1 | ||
| 47354-60130 |
FZJ7# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60280 |
FZJ7# |
1 | ||
| 47351-60280 |
FZJ7# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60170 |
FZJ7# |
1 | ||
| 47352-60170 |
FZJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60150 |
FZJ76,78,79 |
1 | ||
| 47355-60150 |
FZJ76,78,79 |
1 | ||
| 47355-60150 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 47355-60150 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90464-00903 |
FZJ7# |
1 | ||
| 90464-00903 |
FZJ7# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
FZJ71,78,79..RHD |
1 | ||
| 90469-07020 |
FZJ71,78,79..RHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
FZJ71,78,79..RHD |
1 | ||
| 90469-07020 |
FZJ71,78,79..RHD |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D05 |
FZJ7# |
1 | ||
| 90949-01D05 |
FZJ7# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D05 |
FZJ7# |
1 | ||
| 90949-01D05 |
FZJ7# |
1 | ||
| Common parts | ||||
| 90119-10121 | ||||
| 90461-08727 | ||||
| 90461-10793 | ||||
| 90461-10845 | ||||
| 90461-12446 | ||||
| 90464-00903 | ||||
| 90949-01854 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80822 | ||||
