FZJ79L-TJMRK3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2008
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9908-0701)HZJ71,78,79

Click highlighted areas on diagram

diagram 78024 78024 78103 78104 78134 78134 78169 78169A 78180P 78180P 78183B 78183B 78184B 78184B 78185B 78193A 78195 78197 78197 9011608208 9011908846 9011908846 9017908053 9038608044 9038608077 9054106008 9054106008 9095901397 91511B0812 91511B0812 91511B0812 9165140625 9165140625 9165140628 9165160614 9414260840 9453100800 9461210800 9461210800 9538102518
Part # Description Qty Price
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60690

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78180-60630

HZJ71,78,79..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60690

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78180-60630

HZJ71,78,79..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60150

HZJ71,78,79..LHD

 1
78183-60180

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60150

HZJ71,78,79..LHD

 1
78183-60180

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K00

FJ7#,FZJ7#,LJ7#,RJ7#..LHD

 1
78184-90K00

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184-90K01

HZJ71,78,79..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K00

FJ7#,FZJ7#,LJ7#,RJ7#..LHD

 1
78184-90K00

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184-90K01

HZJ71,78,79..LHD

 1
78185B - BRACKET, ACCEL CONTROL NO.6 ROD, REAR
78185-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
Common parts
90116-08208
90119-08846
90179-08053
90386-08044
90386-08077
90541-06008
90959-01397
91511-B0812
91651-40625
91651-40628
91651-60614
94142-60840
94531-00800
94612-10800
95381-02518

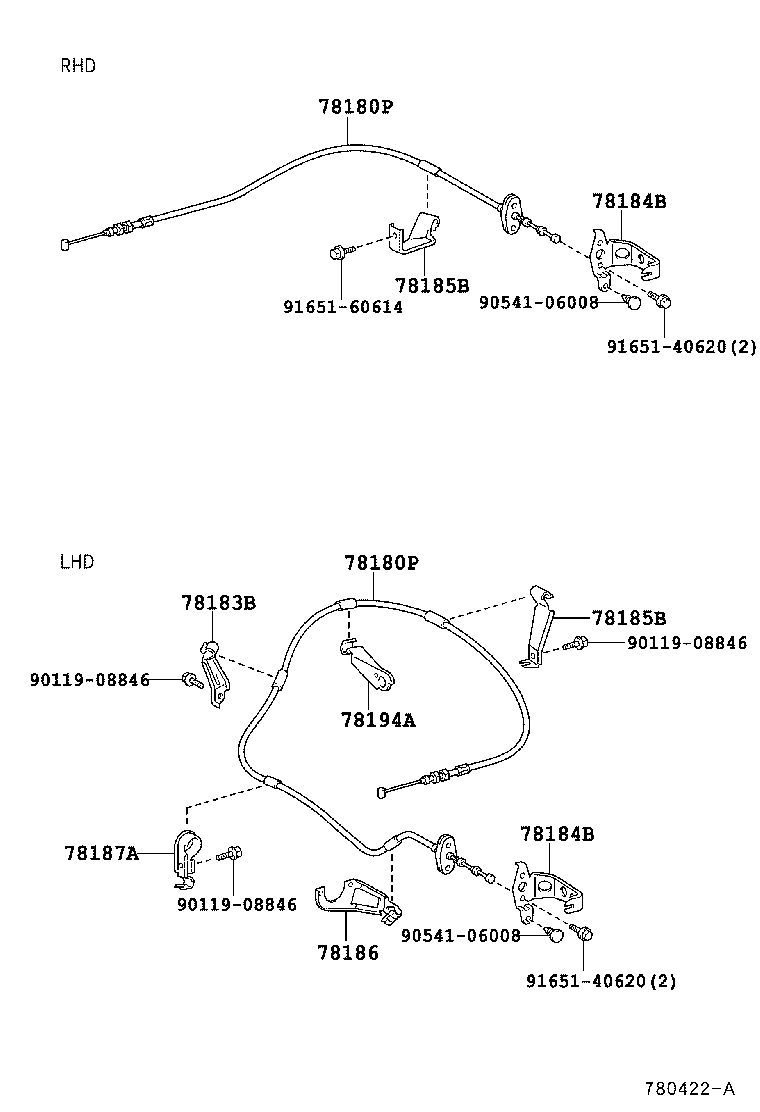

ILLUST NO. 1 OF 2(9908-0808)FZJ71,74,78,79

Click highlighted areas on diagram

diagram 78180P 78180P 78183B 78184B 78184B 78185B 78185B 78186 78187A 78194A 9011908846 9011908846 9011908846 9054106008 9054106008 9165140620 9165140620 9165160614
Part # Description Qty Price
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60690

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78180-60630

HZJ71,78,79..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60690

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78180-60630

HZJ71,78,79..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60150

HZJ71,78,79..LHD

 1
78183-60180

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K00

FJ7#,FZJ7#,LJ7#,RJ7#..LHD

 1
78184-90K00

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184-90K01

HZJ71,78,79..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K00

FJ7#,FZJ7#,LJ7#,RJ7#..LHD

 1
78184-90K00

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78184-90K01

HZJ71,78,79..LHD

 1
78185B - BRACKET, ACCEL CONTROL NO.6 ROD, REAR
78185-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78185B - BRACKET, ACCEL CONTROL NO.6 ROD, REAR
78185-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-60120

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78187A - CLAMP, ACCELERATOR CONTROL CABLE, NO.4
78187-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
Common parts
90119-08846
90541-06008
91651-40620
91651-60614

ILLUST NO. 2 OF 2(0701- )FZJ7#

Click highlighted areas on diagram

diagram 78111A 78111A 78111E 78111E 78118B 78118B 78120G 78120G 78189 78189 78410 78410 78410D 78410D 78411A 78411A 9020211030 9020211030 9165140616 9165140616 9413060800 9413060800 9616000600 9616000600
Part # Description Qty Price
Common parts
90202-11030
91651-40616
94130-60800
96160-00600

ILLUST NO. 1 OF 2(0701- )FZJ7#

Click highlighted areas on diagram

diagram 78180P 78180P 78183B 78184B 78184B 78185B 78185B 78186 78194A 9011908846 9011908846 9054106003 9054106008 9165140620 9165140620 9167380612
Part # Description Qty Price
Common parts
90119-08846
90541-06003
90541-06008
91651-40620
91673-80612
