FZJ79L-TJMRK3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2008
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

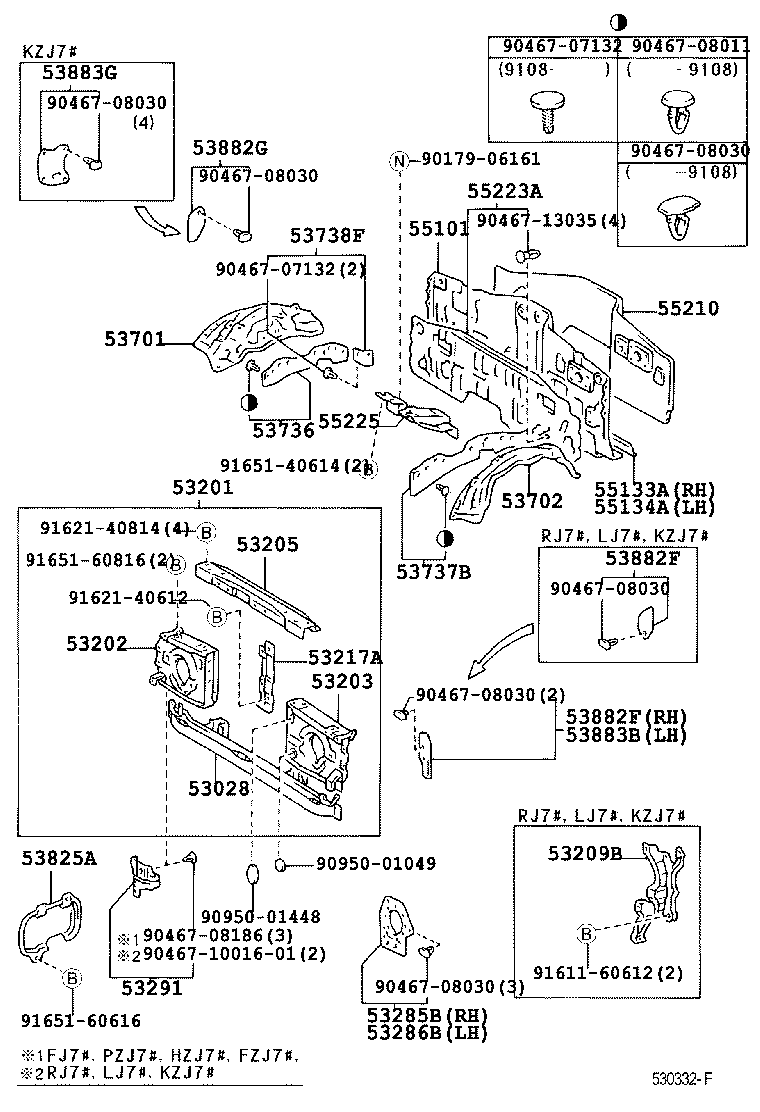

ILLUST NO. 1 OF 2(9001-0701)FJ7#,FZJ70,73,74,75,HZJ70,71,75,78,79,KZJ7#,LJ7#,PZJ70,75,RJ7#..LHD ; (9

Click highlighted areas on diagram

diagram 53028 53201 53202 53203 53205 53209B 53217A 53285B 53286B 53291 53701 53702 53736 53737B 53738F 53825A 53882F 53882F 53882G 53883B 53883G 55101 55133A 55134A 55210 55223A 55225 9017906161 9046707132 9046707132 9046708011 9046708030 9046708030 9046708030 9046708030 9046708030 9046708030 9046708186 904671001601 9046713035 9095001049 9095001448 9161160612 9162140612 9162140814 9165140614 9165160616 9165160816
Part # Description Qty Price
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-60040

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53210-60131

HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71

***

 1
53210-60131

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-60111

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-60111

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-60020

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-60060

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
53217-60060

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-90K00

FJ7#,FZJ7#,HZJ75,PZJ70,75..LHD

 1
53291-90K00

FZJ79..GEN..IV;FZJ71..LHD..GEN

 1
53291-90K00

FZJ71..GCC;FZJ79..LHD..CBU;FZJ74,78,HZJ71,78,79..LHD

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-60410

FJ7#,FZJ7#..LHD

 1
53701-60880

HZJ71,78,79..LHD

W(AIR CONDITIONER)

 1
53701-60860

HZJ71,78,79..LHD

 1
53701-60770

FZJ71,74,78,79..LHD

W(AIR CONDITIONER)

 1
53701-6A010

FZJ74..GCC;FZJ71,78,79..LHD

CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC

 1
53701-60760

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53701-6A020

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC & W(AIR CONDITIONER)

 1
53701-6A020

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

W(AIR CONDITIONER)

 1
53701-6A020

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-6A360

HZJ71,78,79..LHD

W(WINCH)

 1
53702-6A200

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-60090

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-60080

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-60020

FJ75..STD;HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ70,73,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,PZJ7#

 1
53825-60020

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53882F - SEAL, FRONT FENDER
53882-60030

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
53882-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
53882F - SEAL, FRONT FENDER
53882-60030

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
53882-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
55101 - PANEL SUB-ASSY, DASH
55101-6A650

LJ72..SOT;PZJ70,75..LHD;HZJ75..LHD..STD;LJ72,79..LHD..5F

 1
55101-6D760

HZJ71,78,79..LHD

 1
55101-6D830

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC & W(FRONT HEATER)

 1
55101-6D750

FZJ79..GEN..IV

W(FRONT HEATER & SILENCER)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-60040

FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD

 1
55210-60040

FZJ71,74,78,79,HZJ71,78,79..LHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-60210

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
55225 - INSULATOR, DASH PANEL HEAT
55225-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
Common parts
90179-06161
90467-07132
90467-08011
90467-08030
90467-08186
90467-1001601
90467-13035
90950-01049
90950-01448
91611-60612
91621-40612
91621-40814
91651-40614
91651-60616
91651-60816

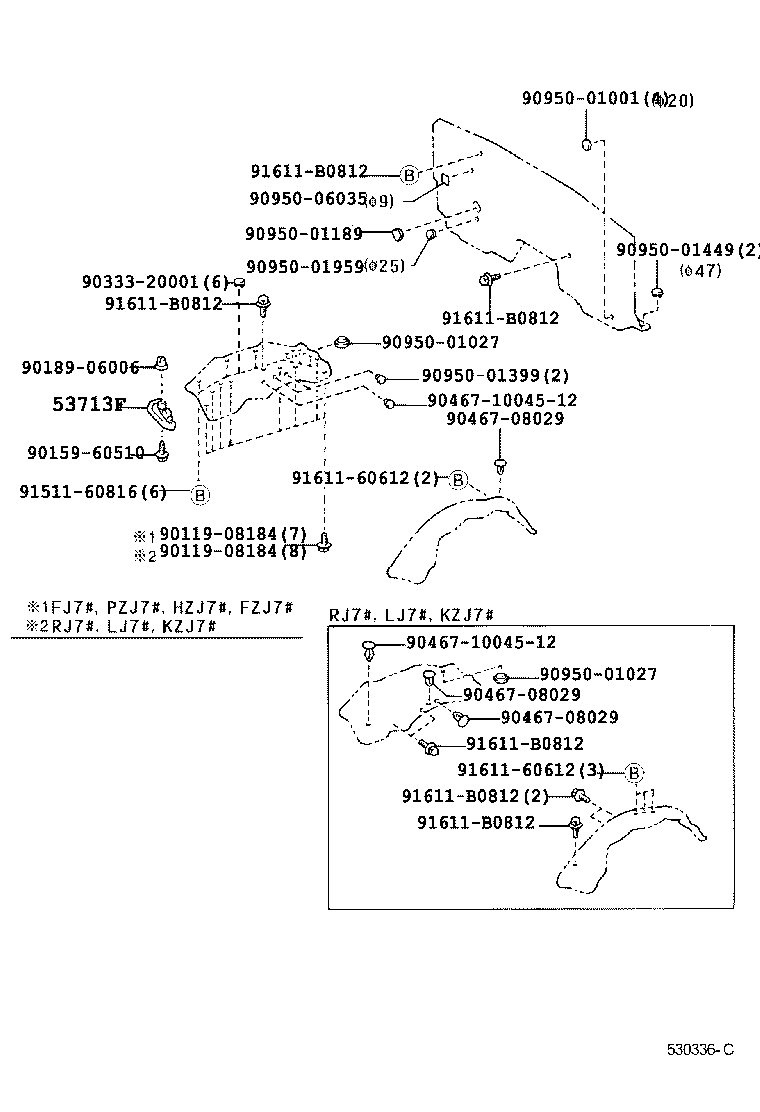

ILLUST NO. 2 OF 2(9001-0701)FJ7#,FZJ70,73,74,75,HZJ70,71,75,78,79,KZJ7#,LJ7#,PZJ70,75,RJ7#..LHD ; (9

Click highlighted areas on diagram

diagram 53713F 9011908184 9011908184 9015960510 9018906006 9033320001 9046708029 9046708029 9046708029 904671004512 904671004512 9095001001 9095001027 9095001027 9095001189 9095001399 9095001449 9095001959 9095006035 9151160816 9161160612 9161160612 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812
Part # Description Qty Price
53713F - PLATE, FENDER APRON SPLASH, RH
53713-60030

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
53713-60030

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
Common parts
90119-08184
90159-60510
90189-06006
90333-20001
90467-08029
90467-1004512
90950-01001
90950-01027
90950-01189
90950-01399
90950-01449
90950-01959
90950-06035
91511-60816
91611-60612
91611-B0812

ILLUST NO. 1 OF 2(0701- )

Click highlighted areas on diagram

diagram 53028 53201 53202 53203 53205 53217A 53233B 53233B 53257B 53258B 53291 53292 53292C 53293C 53294C 53701 53702 53705E 53706D 53713F 53714G 53736 53736A 53736A 53737B 53825A 53835E 53881B 53882F 55101 55133A 55134A 55148F 55210 55210A 55223A 55225 9011908190 9011908190 9011908892 9011908892 9017906161 9017906161 9017906178 9046708217 9046708217 9046710186 9046710186 9046710186 9046710186 9046710186 9046710186 9046711122 9056109013 9056111004 91511B0816 91511B0816 9162140612 9162140814 9162140814 9165160616 91651B0822 91651B0822 91651B0822 91651B0822
Part # Description Qty Price
Common parts
90119-08190
90119-08892
90179-06161
90179-06178
90467-08217
90467-10186
90467-11122
90561-09013
90561-11004
91511-B0816
91621-40612
91621-40814
91651-60616
91651-B0822
