FZJ79L-TJMRK3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2008
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0701)HDJ7#,HZJ78,79 ; (9908- )FZJ78,79

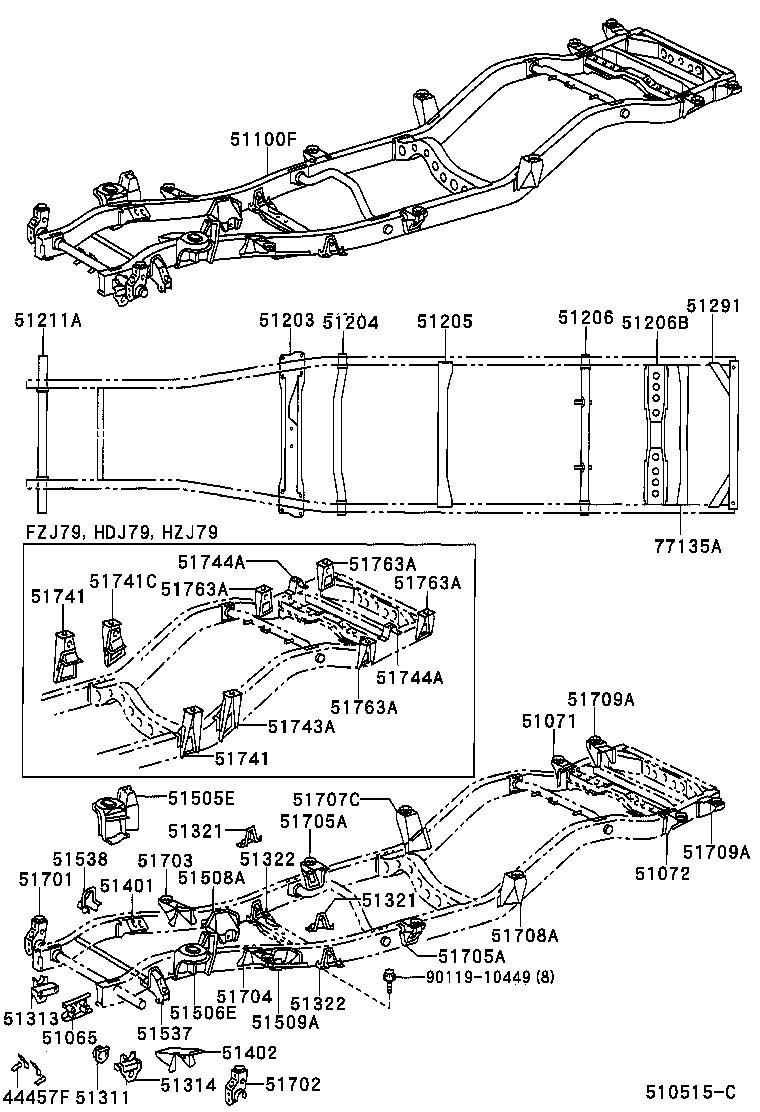

Click highlighted areas on diagram

diagram 44457F 51065 51071 51072 51100F 51203 51204 51205 51206 51206B 51211A 51291 51311 51313 51314 51321 51321 51322 51322 51401 51402 51505E 51506E 51508A 51509A 51537 51538 51701 51702 51703 51704 51705A 51705A 51707C 51708A 51709A 51709A 51741 51741 51741C 51743A 51744A 51744A 51763A 51763A 51763A 51763A 77135A 9011910449
Part # Description Qty Price
44457F - BRACKET, TUBE SUPPORT
44457-60150

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 4
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-60061

FZJ79..GEN..IV

 1
51100F - FRAME SUB-ASSY
51003-6A620

FZJ79,HZJ79..LHD

W(FUEL SUB TANK)

 1
51003-6A580

FZJ79,HZJ79..LHD

 1
51003-6A581

FZJ79,HZJ79..LHD

 1
51003-6A621

FZJ79,HZJ79..LHD

W(FUEL SUB TANK)

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60120

FZJ75..ARL;FZJ73,75..CBR;FJ70,73,HZJ73..4FC;FZJ70,71,74,78,79,HZJ71,78,79

 1
51202-60120

FZJ79..GEN..IV

COLOMBIA SPEC

 1
51202-60240

FZJ71,74,78,79,HDJ7#,HZJ7#

 1
51202-60240

FZJ79..GEN..IV

COLOMBIA SPEC

 1
51202-60120

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-60200

FZJ78,79,HDJ7#,HZJ78,79

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-60160

FZJ78,79,HDJ7#,HZJ78,79

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-60170

FZJ78,79,HZJ78,79

W(FUEL SUB TANK)

 1
51205-60160

FZJ71,74,78,79,HZJ71,78,79

 1
51250-60050

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51250-60060

FZJ78,79,HDJ7#,HZJ78,79

W(FUEL SUB TANK)

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-60020

FZJ78,79,HDJ7#,HZJ78,79

 1
51211A - CROSSMEMBER, FRAME, FRONT
51211-60050

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60140

FZJ79,HDJ79,HZJ79

 1
51311 - GUSSET, FRAME FRONT CROSSMEMBER
51311-60042

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 2
51313 - GUSSET, FRONT FRAME, LOWER RH
51313-60030

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51314 - GUSSET, FRONT FRAME, LOWER LH
51314-60030

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60090

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51322-60080

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51321-60090

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 2
51322-60080

FZJ71,74,78,79,HDJ7#,HZJ7#

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60090

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51322-60080

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51321-60090

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 2
51322-60080

FZJ71,74,78,79,HDJ7#,HZJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60040

FJ7#,FZJ7#,HJ75,HZJ7#

 2
51322-60070

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51322-60080

FZJ71,74,78,79,HDJ7#,HZJ7#

 2
51322-60070

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 2
51322-60080

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60040

FJ7#,FZJ7#,HJ75,HZJ7#

 2
51322-60070

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51322-60080

FZJ71,74,78,79,HDJ7#,HZJ7#

 2
51322-60070

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 2
51322-60080

FZJ79..GEN..IV

COLOMBIA SPEC

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60140

HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,PZJ7#

 1
51421-60140

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60190

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51505E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51505-60030

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51505-60031

FZJ7#,HDJ7#,HZJ7#

 1
51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51506-60030

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51506-60031

FZJ7#,HDJ7#,HZJ7#

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51518-60050

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-60030

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51537 - BRACKET, LATERAL ROD SUPPORT
51547-60010

FZJ71,74,78,79,HZJ71,78,79..LHD

 1
51538 - STAY, LATERAL ROD SUPPORT
51538-60040

FZJ71,74,78,79,HZJ71,78,79..LHD

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 2
51701-60070

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-60070

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60080

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51703-60030

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60020

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51704-60070

FZJ71,74,78,79,HDJ7#,HZJ71,78,79

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60080

FJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77

 2
51705-60091

FZJ78,79,HDJ7#,HZJ78,79

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60080

FJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77

 2
51705-60091

FZJ78,79,HDJ7#,HZJ78,79

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-60060

FZJ79,HDJ79,HZJ79

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-60060

FZJ79,HDJ79,HZJ79

 2
51741C - BRACKET, REAR BODY MOUNTING, NO.2 RH
51742-60050

FZJ79..IV

VENEZUELA SPEC

 1
51742-60060

FZJ79..GEN..IV

VENEZUELA SPEC

 1
51742-60050

FZJ79,HDJ79,HZJ79

 1
51742-60060

FZJ79

 1
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-60020

FZJ79..GEN..IV

 1
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-60020

FZJ79,HDJ79,HZJ79

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-60020

FZJ79,HDJ79,HZJ79

 2
51763A - BRACKET, BODY SUPPORT, NO.6 RH
51763-60010

FZJ79,HDJ79,HZJ79

 4
51763A - BRACKET, BODY SUPPORT, NO.6 RH
51763-60010

FZJ79,HDJ79,HZJ79

 4
51763A - BRACKET, BODY SUPPORT, NO.6 RH
51763-60010

FZJ79,HDJ79,HZJ79

 4
51763A - BRACKET, BODY SUPPORT, NO.6 RH
51763-60010

FZJ79,HDJ79,HZJ79

 4
77135A - PROTECTOR, FUEL TANK SIDE
77135-60030

FZJ78,79,HDJ7#,HZJ78,79

 1
Common parts
90119-10449

ILLUST NO. 1 OF 2(0701- )PIC

Click highlighted areas on diagram

diagram 1702 1702 1702 44457F 44457F 44457F 4804 4804 4804 4804 51100F 51203 51204 51205 51206 51206 51206B 51211A 51231E 51232C 51291 51291 51311 51311 51313 51314 51321 51322 51401 51402 51505E 51506E 51508A 51509A 51537 51537 51538 51538 51701 51702 51703 51704 51705B 51706B 51741 51741 51741C 51743A 51744A 51744A 51763A 51763B 77135A 9011910951
Part # Description Qty Price
Common parts
90119-10951
Linked diagrams
1702
4804

ILLUST NO. 2 OF 2(0701- )

Click highlighted areas on diagram

diagram 38307A 38308A 51491A 51491A 9011912357 91674E1235 9413001202 9461211200
Part # Description Qty Price
Common parts
90119-12357
91674-E1235
94130-01202
94612-11200
