FZJ79L-TJMRK3 (1999)
Toyota Land Cruiser

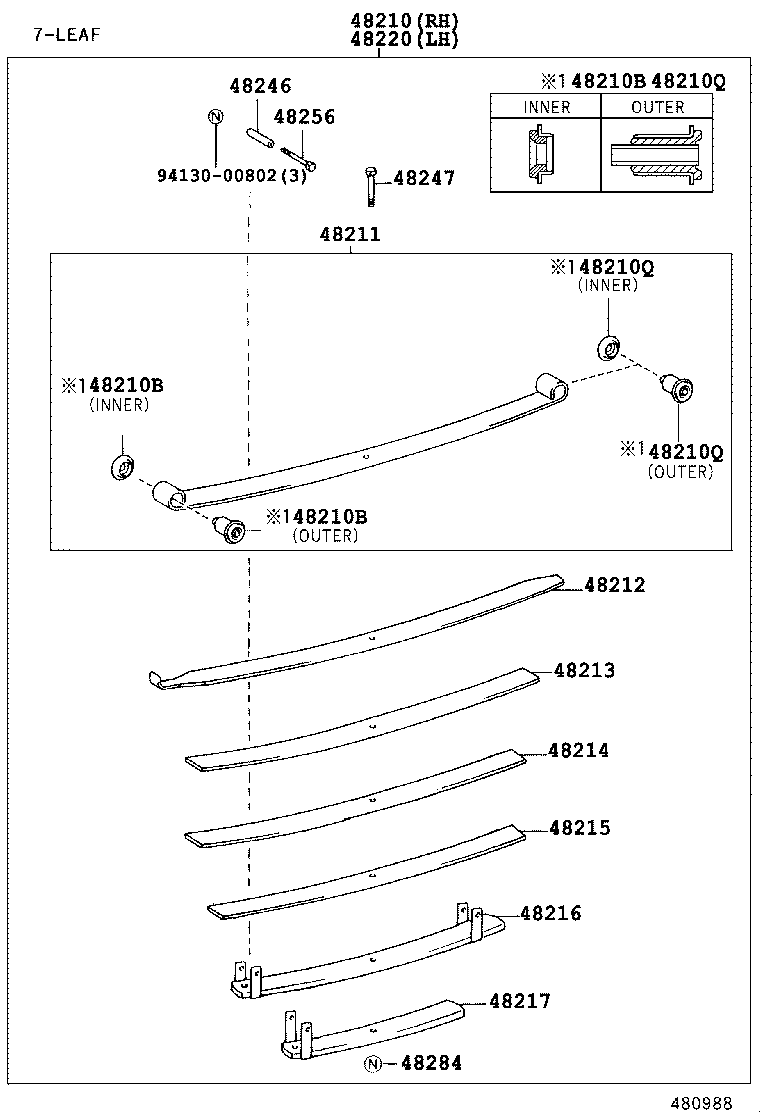

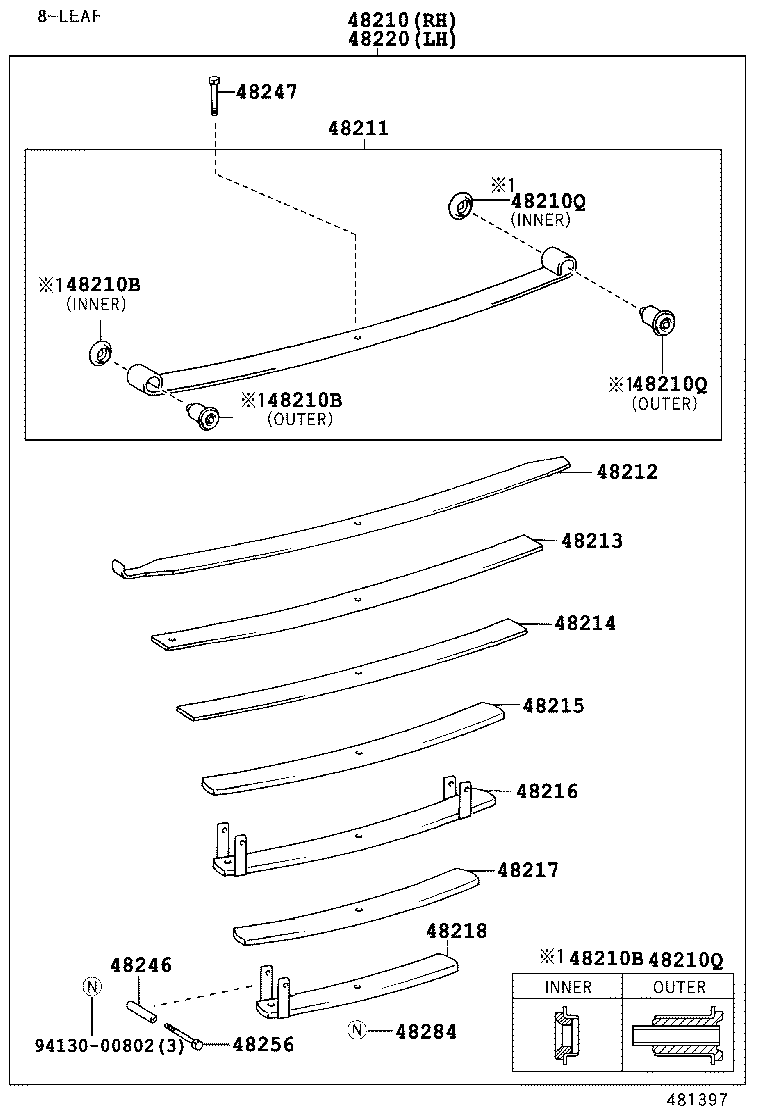

ILLUST NO. 2 OF 3(9908-0108)FZJ79,HZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-6A030 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A120 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48210-6A100 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79 |
2 | ||
| 48031-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48031-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48201-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48201-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD |
2 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48201-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48201-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48031-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48031-60140 |
FZJ79..GEN..IV LH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48212-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..GCC,GEN PASSENGER SIDE |
1 | ||
| 48212-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48212-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48212-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48276-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48277-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48277-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48213-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48277-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48213-6A110 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A120 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48278-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48278-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48278-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48214-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48214-6A110 |
FZJ79,HZJ79..LHD |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48215-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48215-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..GCC,GEN DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48279-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48215-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48215-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48215-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48202-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48202-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48032-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48202-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48286-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48286-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48203-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48286-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48217-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48217-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48220-60090 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48220-60130 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48220-60140 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48146-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48246-36052 |
FZJ79..GEN..IV |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48247-36720 |
FZJ79..GEN..IV |
2 | ||
| 48247-25890 |
FZJ79,HZJ79 |
2 | ||
| 48247-6A040 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48256-25050 |
FZJ79..GEN..IV |
6 | ||
| 48156-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48284-37130 |
FZJ79..GEN..IV |
2 | ||
| 48284-60062 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 3(9908- )FZJ79,HZJ79..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-6A030 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A120 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48210-6A100 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79 |
2 | ||
| 48031-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48031-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48201-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48201-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD |
2 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48201-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48201-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48031-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48031-60140 |
FZJ79..GEN..IV LH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48212-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..GCC,GEN PASSENGER SIDE |
1 | ||
| 48212-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48212-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48212-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48276-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48277-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48277-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48213-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48277-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48213-6A110 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A120 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48278-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48278-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48278-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48214-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48214-6A110 |
FZJ79,HZJ79..LHD |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48215-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48215-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..GCC,GEN DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48279-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48215-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48215-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48215-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48202-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48202-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48032-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48202-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48286-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48286-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48203-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48286-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48217-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48217-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48292-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48261-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48292-60100 |
FZJ79,HZJ79..GCC,GEN LH |
1 | ||
| 48261-6A040 |
FZJ79,HZJ79..GCC,GEN RH |
1 | ||
| 48203-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48261-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48292-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48203-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48207-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48209-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48207-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48209-60100 |
FZJ79,HZJ79..GCC,GEN PASSENGER SIDE |
1 | ||
| 48209-60130 |
FZJ79..GEN..IV LH |
1 | ||
| 48207-6A100 |
FZJ79..GEN..IV RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48220-60090 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48220-60130 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48220-60140 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48221 - LEAF, REAR SPRING, NO.10 | ||||
| 48263-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48294-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48263-6A100 |
FZJ79..GEN..IV RH |
1 | ||
| 48294-60130 |
FZJ79..GEN..IV LH |
1 | ||
| 48222 - LEAF, REAR SPRING, NO.11 | ||||
| 48296-60100 |
FZJ79,HZJ79..GCC,GEN LH |
1 | ||
| 48264-6A040 |
FZJ79,HZJ79..GCC,GEN RH |
1 | ||
| 48296-60130 |
FZJ79..GEN..IV LH |
1 | ||
| 48264-6A100 |
FZJ79..GEN..IV RH |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48146-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48246-36052 |
FZJ79..GEN..IV |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48146-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48246-36052 |
FZJ79..GEN..IV |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48146-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48246-36052 |
FZJ79..GEN..IV |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48247-36720 |
FZJ79..GEN..IV |
2 | ||
| 48247-25890 |
FZJ79,HZJ79 |
2 | ||
| 48247-6A040 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48256-25050 |
FZJ79..GEN..IV |
6 | ||
| 48156-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48256-25050 |
FZJ79..GEN..IV |
6 | ||
| 48156-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48256-25050 |
FZJ79..GEN..IV |
6 | ||
| 48156-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48284-37130 |
FZJ79..GEN..IV |
2 | ||
| 48284-60062 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
ILLUST NO. 2 OF 3(0108- )FZJ79,HDJ79,HZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-6A030 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A090 |
FZJ79,HZJ79..LHD 7-LEAF |
1 | ||
| 48210-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48210-6A120 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48210-6A100 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OUTER |
2 | ||
| 90389-22003 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
FZJ71,74,78,79,HZJ71,78,79 LOWER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV 7-LEAF,INNER,LOWER |
2 | ||
| 90385-18021 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN LOWER |
4 | ||
| 90389-14056 |
FZJ79..GEN..IV 7-LEAF,OUTER,LOWER |
2 | ||
| 90389-14056 |
FZJ79..GEN..IV OUTER |
2 | ||
| 90385-18022 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN UPPER |
4 | ||
| 90389-22003 |
FZJ79..GEN..IV INNER |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79 |
2 | ||
| 48031-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48031-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48201-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48201-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD |
2 | ||
| 48201-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48201-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48201-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48031-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48031-60140 |
FZJ79..GEN..IV LH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48212-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48212-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48212-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48276-60100 |
FZJ79,HZJ79..GCC,GEN PASSENGER SIDE |
1 | ||
| 48212-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48212-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48212-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48276-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48277-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48213-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48277-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48213-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48277-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48213-6A110 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48213-6A120 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48213-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48278-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48214-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48214-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48278-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48278-60130 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48214-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48214-6A100 |
FZJ79,HZJ79..GCC,GEN HEAVY DUTY,RH |
1 | ||
| 48214-6A110 |
FZJ79,HZJ79..LHD |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48215-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48215-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48279-60100 |
FZJ79,HZJ79..GCC,GEN DRIVER SIDE |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48215-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48279-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48215-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48215-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48215-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48202-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD DRIVER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD PASSENGER SIDE |
1 | ||
| 48032-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,PASSENGER SIDE |
1 | ||
| 48202-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48202-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48202-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48032-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48202-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,DRIVER SIDE |
1 | ||
| 48202-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48202-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48286-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79 7-LEAF |
2 | ||
| 48286-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,LH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD 7-LEAF |
2 | ||
| 48203-6A090 |
FZJ79,HZJ79..LHD RH |
1 | ||
| 48203-6A030 |
FZJ79,HZJ79..LHD LH |
1 | ||
| 48217-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF,RH |
1 | ||
| 48286-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48217-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48217-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48217-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48292-60100 |
FZJ79,HZJ79..LHD 11-LEAF,DRIVER SIDE |
1 | ||
| 48261-6A040 |
FZJ79,HZJ79..LHD 11-LEAF,PASSENGER SIDE |
1 | ||
| 48292-60100 |
FZJ79,HZJ79..GCC,GEN LH |
1 | ||
| 48261-6A040 |
FZJ79,HZJ79..GCC,GEN RH |
1 | ||
| 48203-6A120 |
FZJ79..GEN..IV RH |
1 | ||
| 48261-6A100 |
FZJ79..GEN..IV HEAVY DUTY,RH |
1 | ||
| 48292-60130 |
FZJ79..GEN..IV HEAVY DUTY,LH |
1 | ||
| 48203-6A110 |
FZJ79..GEN..IV LH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-60100 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
1 | ||
| 48220-60090 |
FZJ79,HZJ79 7-LEAF |
1 | ||
| 48220-60130 |
FZJ79..GEN..IV 11-LEAF |
1 | ||
| 48220-60140 |
FZJ79..GEN..IV 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48146-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48246-36052 |
FZJ79..GEN..IV |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-6A040 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48247-36720 |
FZJ79..GEN..IV |
2 | ||
| 48247-25890 |
FZJ79,HZJ79 |
2 | ||
| 48247-6A040 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
6 | ||
| 48256-25050 |
FZJ79..GEN..IV |
6 | ||
| 48156-60742 |
FZJ79..GEN..IV 11-LEAF |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
FZJ79,HZJ79..GCC,GEN 11-LEAF |
2 | ||
| 48284-37130 |
FZJ79..GEN..IV |
2 | ||
| 48284-60062 |
FZJ79..GEN..IV 11-LEAF |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 3(0701- )
W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10172 | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90179-08062 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91112-61045 | ||||
| 94185-61000 | ||||
ILLUST NO. 2 OF 3(0701-0907)FZJ79,HZJ79,VDJ79
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 3(0701-0907)FZJ79,HZJ79
11-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 3(0701-0907) ; (0907- )VDJ76,78..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90170-14012 | ||||
| 90178-14009 | ||||
| 90178-14017 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94130-01432 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
