FZJ79L-TJMRK3 (1999)
Toyota Land Cruiser
(9908-0808)1FZFE..GCC,GEN
12V 70A

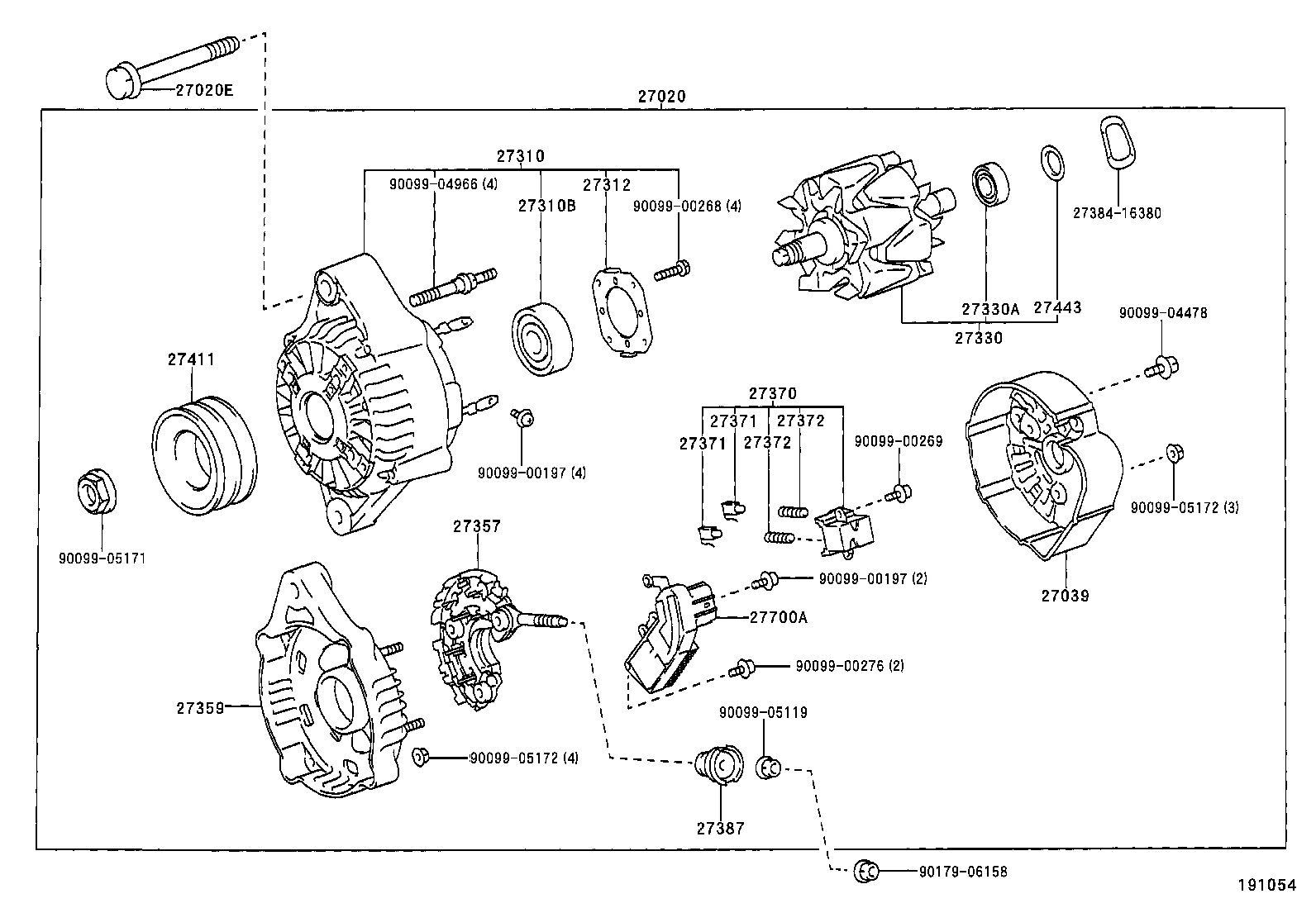

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66110 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27060-66090 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10397 |
1FZFE..FZJ71,74,78,79 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16310 |
1HZ..HZJ75..LHD..HT..5F;1FZF,1PZ..FZJ7#,PZJ73,75..GCC,GEN;1HZ,1PZ..HZJ75,PZJ70..(PIC,SOT)..GEN 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27039-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-66120 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1PZ..PZJ70..STD..GEN;1HZ..HZJ75..GCC,GEN,SA;1FZF,1PZ..FZJ7#,PZJ73,75..GEN,SA 24V 30A |
1 | ||
| 90099-10199 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 110A |
1 | ||
| 90099-10199 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 110A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZJ75..LHD..HT..5F;1FZF,1PZ..FZJ7#,PZJ73,75..GCC,GEN;1HZ,1PZ..HZJ75,PZJ70..(PIC,SOT)..GEN 12V 80A |
1 | ||
| 27312-70200 |
1PZ..PZJ70..STD..GEN;1HZ..HZJ75..GCC,GEN,SA;1FZF,1PZ..FZJ7#,PZJ73,75..GEN,SA 24V 30A |
1 | ||
| 27312-72100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27312-72100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1PZ..PZJ70..STD..GEN;1HZ..HZJ75..GCC,GEN,SA;1FZF,1PZ..FZJ7#,PZJ73,75..GEN,SA |
1 | ||
| 27330-76030 |
1PZ..PZJ70..LX;1HZ..HZJ75..HT..ARL;1FZFE..FZJ71,74,78,79;1HZ..HZJ75..LHD..5F..GEN..CBU;1FZFE,1HZ,1PZ..FZJ70,75,HZJ70,PZJ70..ARL;1HZ,1PZ..HZJ75,PZJ70..RHD..(PIC,SOT)..(ARL,GEN);1FZF,1HZ,1PZ..FZJ70,73,75,HZJ73,PZJ73,75..ARL,GCC,GEN 12V 80A |
1 | ||
| 27330-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-76030 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27330-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-16390 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 90099-10140 |
1HZ..HZJ75;1FZ#,1HZ,2LT,3L,1PZ..FZJ7#,HZJ70,73,LJ7#,PZJ7#..ARL,GEN,SA 12V 55A |
1 | ||
| 90099-10216 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
1PZ..PZJ70..STD..GEN;1HZ,1PZ..HZJ75,PZJ73..GCC,GEN,SA;1FZF,2LT,3L,1PZ..FZJ7#,LJ7#,PZJ75..ARL,GEN,SA |
1 | ||
| 27357-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27357-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-55080 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-66120 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
1PZ..PZJ70..STD..GEN;1FZF,1HZ,1PZ..FZJ7#,HZJ75,PZJ73,75..GCC,GEN,SA 24V 30A |
1 | ||
| 27370-75060 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27370-35060 |
1FZFE..FZJ71,74,78,79..GCC,GEN;1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN 24V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1FZFE..FZJ71,74,78,79..GCC,GEN |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1FZFE..FZJ71,74,78,79..GCC,GEN |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1FZFE..FZJ71,74,78,79..GCC,GEN;1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN |
2 | ||
| 27372-87501 |
1FZFE..FZJ71,74,78,79..GCC,GEN |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1FZFE..FZJ71,74,78,79..GCC,GEN;1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN |
2 | ||
| 27372-87501 |
1FZFE..FZJ71,74,78,79..GCC,GEN |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
1FZFE..FZJ71,74,78,79..GCC,GEN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-66040 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27411-66030 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 55A,70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZJ75..RHD;1HZ..HZJ75..LHD..CBU;1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,73,78,79,LJ7#,PZJ7# |
1 | ||
| 27443-63020 |
1HDFTE..HDJ7#;1FZFE..FZJ71,74,78,79..GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75020 |
1FZFE..FZJ71,74,78,79 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
(9908-0808)1FZFE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66110 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27060-66090 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10397 |
1FZFE..FZJ71,74,78,79 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16310 |
1HZ..HZJ75..LHD..HT..5F;1FZF,1PZ..FZJ7#,PZJ73,75..GCC,GEN;1HZ,1PZ..HZJ75,PZJ70..(PIC,SOT)..GEN 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27039-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1PZ..PZJ70..STD..GEN;1HZ..HZJ75..GCC,GEN,SA;1FZF,1PZ..FZJ7#,PZJ73,75..GEN,SA |
1 | ||
| 27330-76030 |
1PZ..PZJ70..LX;1HZ..HZJ75..HT..ARL;1FZFE..FZJ71,74,78,79;1HZ..HZJ75..LHD..5F..GEN..CBU;1FZFE,1HZ,1PZ..FZJ70,75,HZJ70,PZJ70..ARL;1HZ,1PZ..HZJ75,PZJ70..RHD..(PIC,SOT)..(ARL,GEN);1FZF,1HZ,1PZ..FZJ70,73,75,HZJ73,PZJ73,75..ARL,GCC,GEN 12V 80A |
1 | ||
| 27330-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-76030 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27330-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-16390 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
1PZ..PZJ70..STD..GEN;1HZ,1PZ..HZJ75,PZJ73..GCC,GEN,SA;1FZF,2LT,3L,1PZ..FZJ7#,LJ7#,PZJ75..ARL,GEN,SA |
1 | ||
| 27357-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27357-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-67100 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-55080 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
1PZ..PZJ70..STD..GEN;1FZF,1HZ,1PZ..FZJ7#,HZJ75,PZJ73,75..GCC,GEN,SA 24V 30A |
1 | ||
| 27370-75060 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27370-35060 |
1FZFE..FZJ71,74,78,79..GCC,GEN;1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN 24V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-66040 |
1FZFE..FZJ71,74,78,79 12V 80A |
1 | ||
| 27411-66030 |
1FZFE..FZJ71,74,78,79..GCC,GEN 12V 55A,70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75020 |
1FZFE..FZJ71,74,78,79 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
(0701-0907)1FZFE
12V 70A,12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06158 | ||||
