FZJ79L-TJMRK (2007)
Toyota Land Cruiser

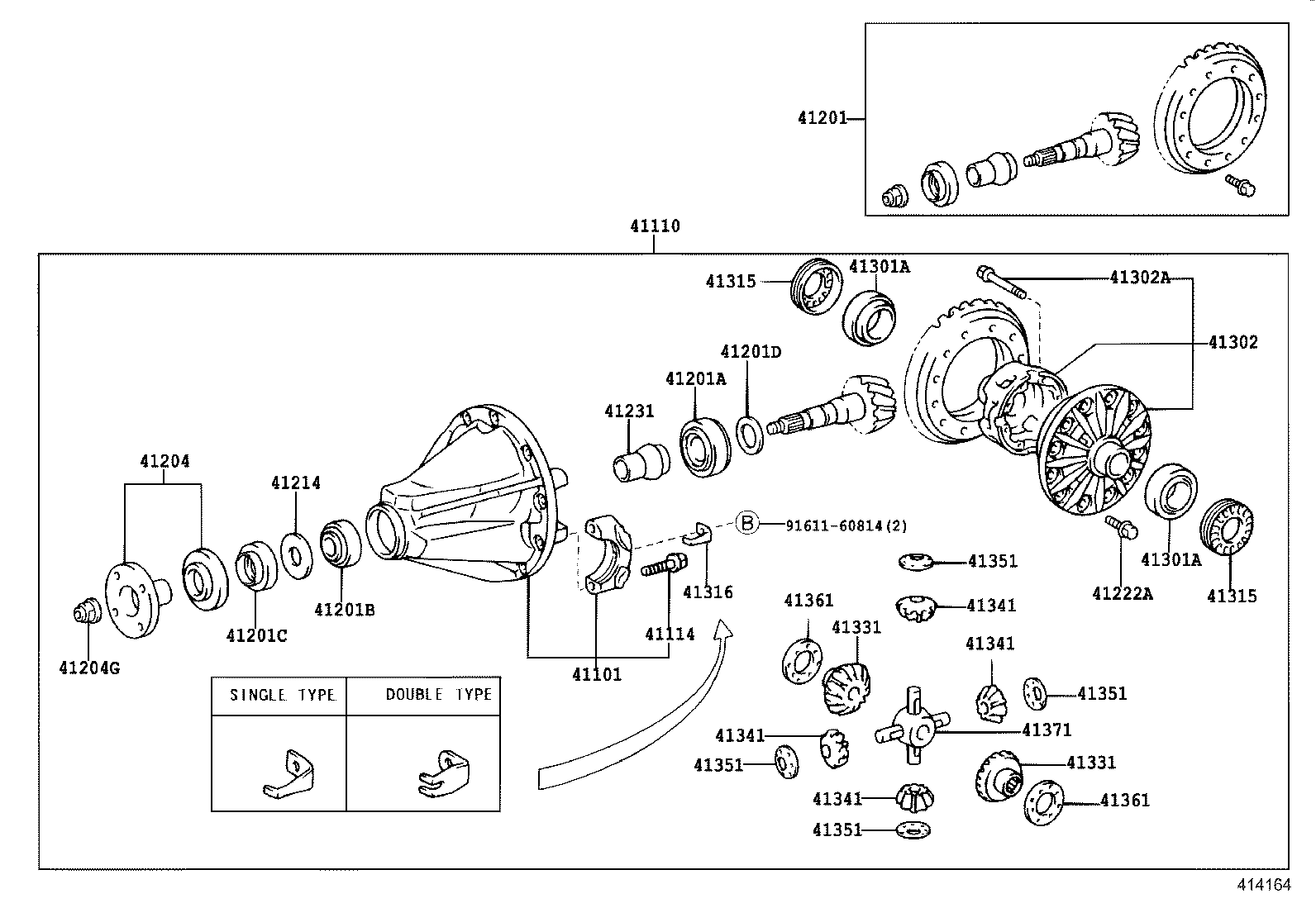

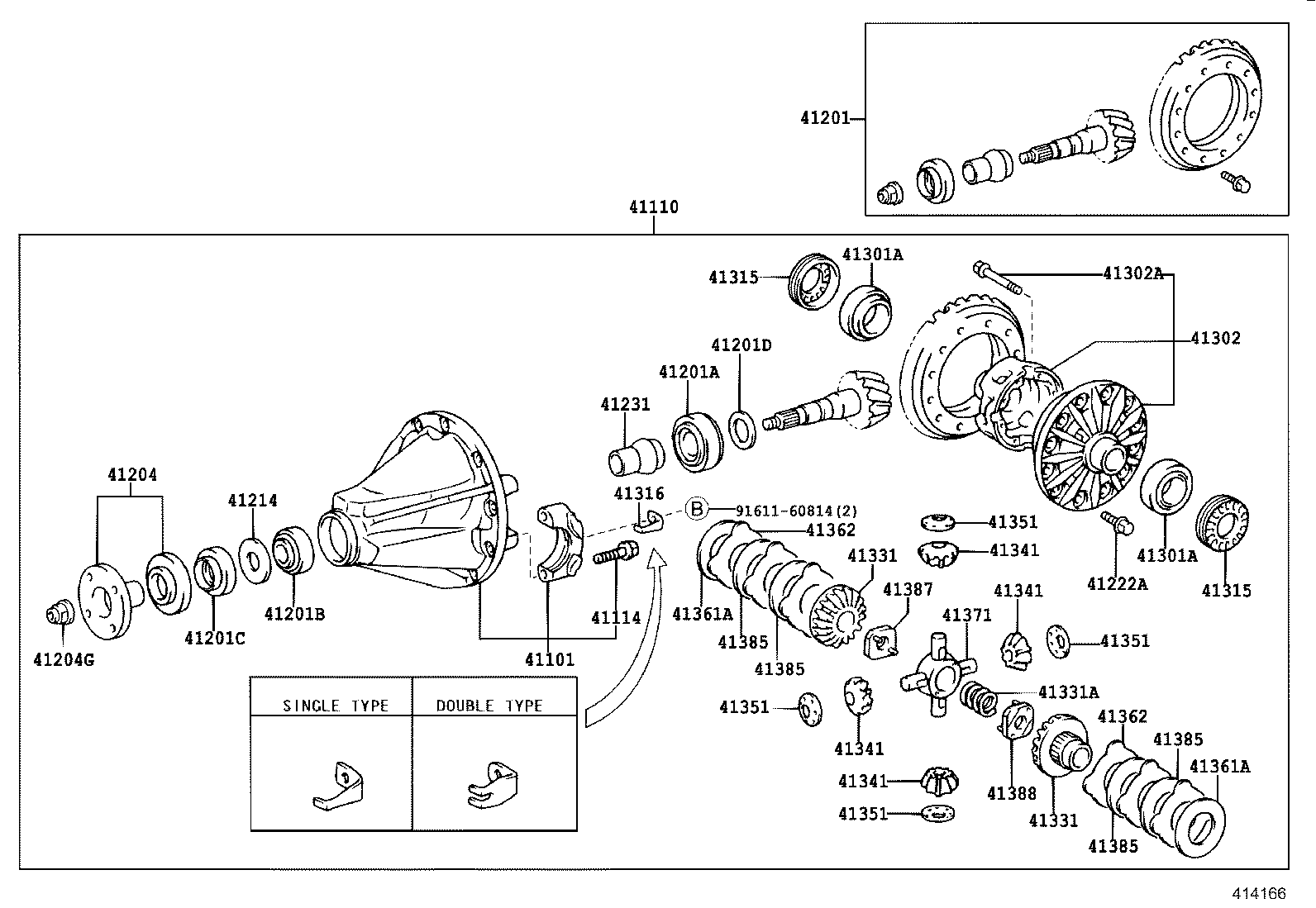

ILLUST NO. 1 OF 2(0701- )VDJ79..GCC ; (0701- )FZJ7#,GRJ7#,HZJ7#,VDJ76,78..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40111 |
FZJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-33006 |
FZJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-45028 |
FZJ7# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22029 |
FZJ7# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60020 |
FZJ7# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
FZJ7# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60040 |
FZJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
FZJ7# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FZJ7# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FZJ7# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
FZJ7# SINGLE TYPE |
2 | ||
| 41317-30010 |
FZJ7# DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-60020 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41371-60050 |
FZJ7# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(0701- )VDJ7#..RHD ; (0701- )FZJ7#,GRJ7#,HZJ7#
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40111 |
FZJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-33006 |
FZJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-45028 |
FZJ7# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22029 |
FZJ7# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60020 |
FZJ7# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
FZJ7# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60040 |
FZJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
FZJ7# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FZJ7# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FZJ7# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
FZJ7# SINGLE TYPE |
2 | ||
| 41317-30010 |
FZJ7# DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-07127 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54001 |
FZJ79 T=0.20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54003 |
FZJ79 T=0.30,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54002 |
FZJ79 T=0.25,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54004 |
FZJ79 T=0.35,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54001 |
FZJ79 T=0.20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54003 |
FZJ79 T=0.30,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54002 |
FZJ79 T=0.25,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 90564-54004 |
FZJ79 T=0.35,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60341 |
FZJ79 T=2.00,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
6 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60341 |
FZJ79 T=2.00,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
6 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-60020 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41371-60050 |
FZJ7# |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41308-35010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35020 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(0701- )FZJ76,79,GRJ76,79,HZJ76,78,79,VDJ7#
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40111 |
FZJ7# |
1 | ||
| 90366-40111 |
FZJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-33006 |
FZJ7# |
1 | ||
| 90366-33006 |
FZJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-45028 |
FZJ7# |
1 | ||
| 90311-45028 |
FZJ7# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22029 |
FZJ7# |
1 | ||
| 90179-22029 |
FZJ7# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60020 |
FZJ7# |
1 | ||
| 41214-60020 |
FZJ7# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
FZJ7# |
12 | ||
| 90901-05002 |
FZJ7# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60040 |
FZJ7# |
1 | ||
| 41231-60040 |
FZJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
3 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41375 - HOLDER, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41375-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-60042 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60030 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41456 - COVER, REAR DIFFERENTIAL LOCK | ||||
| 41456-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41460F - BOLT (FOR REAR DIFFERENTIAL LOCK CYLINDER SET) | ||||
| 90105-08328 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41463B - BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) | ||||
| 90105-06052 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41467 - PROTECTOR, DIFFERENTIAL LOCK CYLINDER | ||||
| 41467-60031 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-60040 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| Common parts | ||||
| 90109-10091 | ||||
| 90469-07027 | ||||
| 90949-01C91 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0701- )GRJ78..GCC ; (0701- )GRJ71..LHD..HT ; (0701- )GRJ71..SOT..GEN ; (0
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60190 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41101-60180 |
FZJ7# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60A30 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300 |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B00 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60B50 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41110-60A60 |
FZJ79,GRJ7#,HZJ7# *FGR=43:10=4.300,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60020 |
FZJ7# |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41114-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80493 |
FZJ79 *FGR=43:10=4.300 |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201-80492 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU *FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40111 |
FZJ7# |
1 | ||
| 90366-40111 |
FZJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-33006 |
FZJ7# |
1 | ||
| 90366-33006 |
FZJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-45028 |
FZJ7# |
1 | ||
| 90311-45028 |
FZJ7# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40008 |
FZJ7# T=1.125 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40007 |
FZJ7# T=1.10 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40012 |
FZJ7# T=1.225 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40004 |
FZJ7# T=1.05 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40013 |
FZJ7# T=1.25 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40006 |
FZJ7# T=1.075 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40015 |
FZJ7# T=1.30 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40011 |
FZJ7# T=1.20 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40010 |
FZJ7# T=1.175 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40018 |
FZJ7# T=1.375 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40016 |
FZJ7# T=1.325 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40014 |
FZJ7# T=1.275 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40009 |
FZJ7# T=1.15 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40024 |
FZJ7# T=1.525 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40017 |
FZJ7# T=1.35 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40022 |
FZJ7# T=1.475 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40021 |
FZJ7# T=1.45 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40023 |
FZJ7# T=1.50 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40019 |
FZJ7# T=1.40 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40025 |
FZJ7# T=1.55 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 90564-40020 |
FZJ7# T=1.425 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204-60060 |
FZJ7# |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22029 |
FZJ7# |
1 | ||
| 90179-22029 |
FZJ7# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60020 |
FZJ7# |
1 | ||
| 41214-60020 |
FZJ7# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
FZJ7# |
12 | ||
| 90901-05002 |
FZJ7# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60040 |
FZJ7# |
1 | ||
| 41231-60040 |
FZJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-50054 |
FZJ7# |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 90366-60002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
FZJ79 T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
FZJ79 T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
FZJ79 T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
FZJ79 T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
FZJ79 T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
FZJ79 T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
FZJ79 T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
FZJ79 T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
FZJ79 T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
FZJ79 T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
FZJ79 T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
FZJ79 T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
FZJ79 T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
FZJ79 T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
FZJ79 T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
FZJ79 T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
FZJ79 T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
FZJ79 T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
FZJ79 T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
FZJ79 T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
FZJ79 T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
FZJ79 T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79001 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.67,MARK 01,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
FZJ79 T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79003 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.73,MARK 03,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79004 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.76,MARK 04,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79005 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.79,MARK 05,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79002 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.70,MARK 02,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79007 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.85 MARK 07,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79008 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.88 MARK 08,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79006 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.82 MARK 06,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79009 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.91 MARK 09,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79012 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.00 MARK 12,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.94 MARK 10,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.97 MARK 11,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79013 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.03 MARK 13,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79014 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.06 MARK 14,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79017 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.15 MARK 17,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79015 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.09 MARK 15,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79016 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.12 MARK 16,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79018 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.18 MARK 18,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79019 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.21 MARK 19,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79022 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.30 MARK 22,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79020 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.24 MARK 20,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.27 MARK 21,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90201-79023 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=3.33 MARK 23,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60080 |
FZJ7# |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60090 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41301-60100 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60060 |
FZJ7# |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41331-60080 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-55013 |
FZJ7# |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41341-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41342-60011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41342-60021 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
3 | ||
| 41343-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
3 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-60010 |
FZJ7# |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41351-35011 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60830 |
FZJ7# T=1.600 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60890 |
FZJ7# T=1.750 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60810 |
FZJ7# T=1.550 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60850 |
FZJ7# T=1.650 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60B30 |
FZJ7# T=2.100 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A50 |
FZJ7# T=1.900 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A30 |
FZJ7# T=1.850 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60A70 |
FZJ7# T=1.950 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60870 |
FZJ7# T=1.700 |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
FZJ79 T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A10 |
FZJ7# T=1.800 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60A90 |
FZJ7# T=2.000 |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
FZJ79 T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
FZJ79 T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
FZJ79 T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
FZJ79 T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60B10 |
FZJ7# T=2.050 |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
FZJ79 T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
FZJ79 T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
FZJ79 T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
FZJ79 T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
FZJ79 T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
FZJ79 T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
FZJ79 T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
FZJ79 T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
FZJ79 T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
FZJ79 T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
FZJ79 T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
FZJ79 T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
FZJ79 T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
FZJ79 T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
FZJ79 T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
FZJ79 T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
FZJ79 T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
FZJ79 T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
FZJ79 T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
FZJ79 T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.525,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.575,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.625,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.600,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60B60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.550,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.725,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.675,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.650,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.700,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.775,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.750,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.850,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.800,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.825,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60C90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.875,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D10 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.925,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D30 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.975,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D00 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.900,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D20 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=1.950,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D50 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.025,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D60 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.050,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D40 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.000,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D70 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.075,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D90 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.125,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41361-60D80 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU T=2.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
2 | ||
| 41375 - HOLDER, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41375-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41375-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-60042 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41450-60042 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41451-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60030 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41453-60030 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41456 - COVER, REAR DIFFERENTIAL LOCK | ||||
| 41456-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41456-60010 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41460F - BOLT (FOR REAR DIFFERENTIAL LOCK CYLINDER SET) | ||||
| 90105-08328 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 90105-08328 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
4 | ||
| 41463B - BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) | ||||
| 90105-06052 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 90105-06052 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41467 - PROTECTOR, DIFFERENTIAL LOCK CYLINDER | ||||
| 41467-60031 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41467-60031 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ76;FZJ71,78..GEN;FZJ79,GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-60050 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41507-35100 |
FZJ79,GRJ79,HZJ7#;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-60040 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 41534-60040 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| Common parts | ||||
| 90109-10091 | ||||
| 90469-07027 | ||||
| 90949-01C91 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 04412-60190 |
FZJ7# |
1 | ||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 04412-60210 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC;GRJ79..LHD..DCB..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 04412-60210 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC;GRJ79..LHD..DCB..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 04412-60220 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 04412-60190 |
FZJ7# |
1 | ||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 04412-60200 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 04412-60210 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC;GRJ79..LHD..DCB..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 04412-60210 |
HZJ78..GEN;HZJ76,79..CBU;GRJ76,79..GCC;GRJ79..LHD..DCB..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 04412-60220 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 |
FZJ79 S=16 & 12.5,L=40.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
4 | ||
| 90116-10074 |
FZJ79 S=16 & 12.5,L=40.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
4 | ||
| 90116-10074 |
FZJ79 S=16 & 12.5,L=40.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
4 | ||
| 90116-10074 |
FZJ7# S=16 & 12.5,L=40.5 |
8 | ||
| 90116-10075 |
FZJ7# S=18 & 12.5,L=53.5 |
2 | ||
| 90116-10075 |
FZJ79 S=18 & 12.5,L=53.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
3 | ||
| 90116-10075 |
FZJ79 S=18 & 12.5,L=53.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
3 | ||
| 90116-10124 |
FZJ79 S=32 & 12.5,L=91.4,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
2 | ||
| 90116-10075 |
FZJ79 S=18 & 12.5,L=53.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
3 | ||
| 90116-10124 |
FZJ79 S=32 & 12.5,L=91.4,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
2 | ||
| 90116-10124 |
FZJ79 S=32 & 12.5,L=91.4,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
2 | ||
| 90116-10167 |
FZJ79 S=28 & 12.5,L=63.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 90116-10167 |
FZJ79 S=28 & 12.5,L=63.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 90116-10167 |
FZJ79 S=28 & 12.5,L=63.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 90116-10075 |
GRJ79..GCC;HZJ78..GEN;HZJ76,79..CBU S=18 & 12.5,L=53.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REARWHEEL BRAKE-DISC FS14 18V |
3 | ||
| 90116-10074 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN S=16 & 12.5,L=40.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REARWHEEL BRAKE-DISC FS14 18V |
4 | ||
| 90116-10124 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN S=32 & 12.5,L=91.4,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REARWHEEL BRAKE-DISC FS14 18V |
2 | ||
| 90116-10167 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN S=28 & 12.5,L=63.5,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REARWHEEL BRAKE-DISC FS14 18V |
1 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41993-34020 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD,W(LSD) |
1 | ||
| 41993-34010 |
FZJ7# |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60740 |
VDJ76,79 REAR WHEEL BRAKE-DRUM 295LT |
1 | ||
| 42110-60740 |
HZJ76..GEN;FZJ71,76,79,GRJ71,76,79,HZJ71,79 |
1 | ||
| 42110-60750 |
HZJ76..GEN;FZJ79,GRJ79,HZJ71,79;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42110-60780 |
VDJ76,79 |
1 | ||
| 42110-60750 |
VDJ76,79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK&REAR WHEEL BRAKE-DRUM 295LT |
1 | ||
| 42110-60780 |
HZJ76,79..STD..CBU;FZJ79,GRJ76,79..GCC REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 42110-60790 |
VDJ76,79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 42110-60790 |
FZJ79,GRJ79..GCC;HZJ76,79..STD..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 42110-60A10 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 42110-60780 |
HZJ76,79..STD..CBU;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 42110-60A10 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 42110-60A10 |
FZJ79,GRJ79,HZJ79 SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 42110-60A10 |
FZJ79,GRJ79,HZJ79 SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 42110-60A30 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 42110-60A30 |
FZJ79,GRJ79,HZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
FZJ7# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
FZJ7# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
FZJ7# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
FZJ7# |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-60030 |
FZJ7# |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-60030 |
FZJ7# |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60060 |
FZJ7# |
1 | ||
| 42181-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42181-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF HEAVY DUTY |
1 | ||
| 42181-60070 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
1 | ||
| 42181-60070 |
HZJ78..GEN;GRJ79..GCC;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60130 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42306-60120 |
FZJ7# |
1 | ||
| 42306-60130 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60130 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42306-60120 |
FZJ7# |
1 | ||
| 42306-60130 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51068 |
FZJ7# |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51068 |
FZJ7# |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95333-06060 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42316-60010 |
FZJ7# |
1 | ||
| 95333-06060 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95333-06060 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 42316-60010 |
FZJ7# |
1 | ||
| 95333-06060 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-51100 |
FZJ7# |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-51100 |
FZJ7# |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01645 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01645 |
FZJ7# |
1 | ||
| 90949-01645 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01646 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 90949-01646 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.2 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01645 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01645 |
FZJ7# |
1 | ||
| 90949-01645 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01646 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 90949-01646 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.2 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01645 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01645 |
FZJ7# |
1 | ||
| 90949-01645 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.1 |
1 | ||
| 90949-01646 |
FZJ79 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,NO.2 |
1 | ||
| 90949-01646 |
GRJ79..LX;GRJ71,79..LHD..(HT,PIC)..STD..GEN..CBU REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,NO.2 |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
FZJ7# |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
FZJ7# |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90170-10021 | ||||
| 91611-B0812 | ||||
| 94621-11000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
