FZJ79L-TJMNKV (2007)

Toyota Land Cruiser

Production Jan 2007 - Jul 2009
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )VDJ79..GCC ; (0701- )FZJ79,GRJ79,HZJ79..CBU ; (2101- )VDJ79..GEN

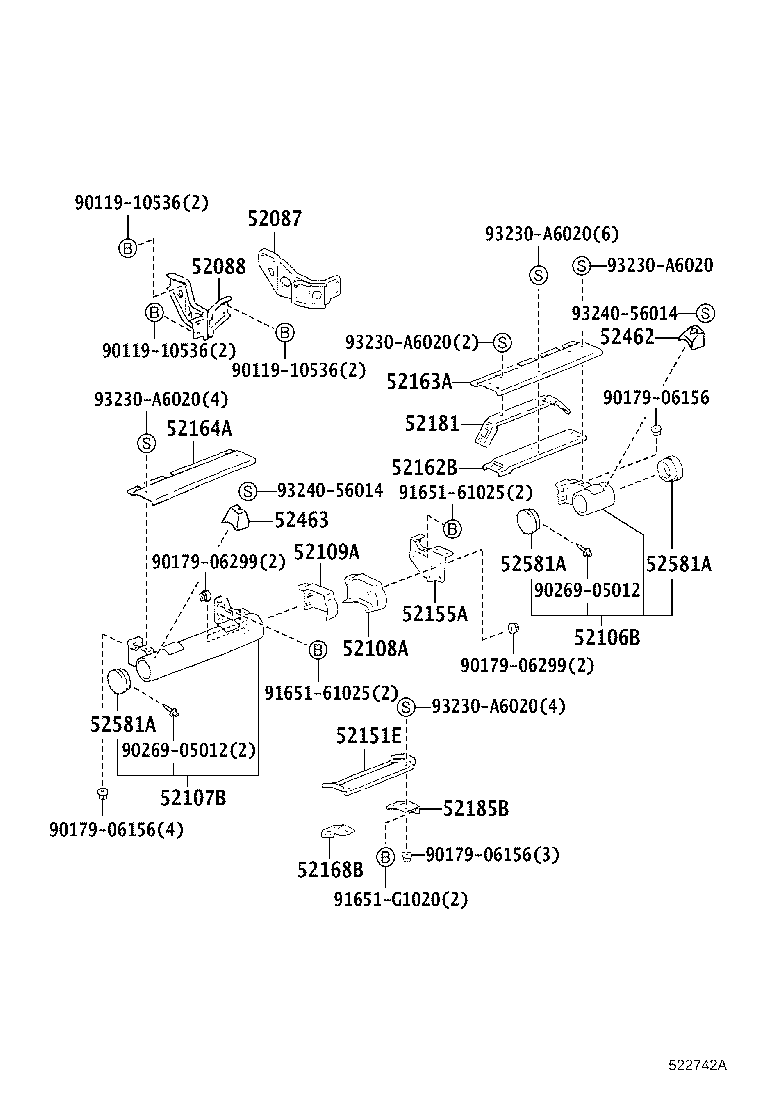

Click highlighted areas on diagram

diagram 52087 52088 52106B 52107B 52108A 52109A 52151E 52155A 52162B 52163A 52164A 52168B 52181 52185B 52462 52463 52581A 52581A 52581A 9011910536 9011910536 9011910536 9017906156 9017906156 9017906156 9017906299 9017906299 9026905012 9026905012 9165161025 9165161025 91651G1020 93230A6020 93230A6020 93230A6020 93230A6020 93230A6020 9324056014 9324056014
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-60010

FZJ79..CBU

REAR BUMPER-PLATING

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-60010

FZJ79..CBU

REAR BUMPER-PLATING

 1
52106B - BUMPER SUB-ASSY, REAR RH
52106-60153

FZJ79..CBU

REAR BUMPER-PLATING

 1
52107B - BUMPER SUB-ASSY, REAR LH
52107-60123

FZJ79..CBU

REAR BUMPER-PLATING

 1
52108A - BUMPER SUB-ASSY, REAR SIDE, RH
52108-60060

FZJ79..CBU

REAR BUMPER-PLATING

 1
52109A - BUMPER SUB-ASSY, REAR SIDE, LH
52109-60061

FZJ79..CBU

REAR BUMPER-PLATING

 1
52151E - BAR, REAR BUMPER
52151-60080

FZJ79..CBU

NO PAINT REQ.,REAR BUMPER-PLATING

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-60050

FZJ79..CBU

REAR BUMPER-PLATING

 1
52162B - PLATE, REAR BUMPER, NO.1
52162-60030

FZJ79..CBU

REAR BUMPER-PLATING

 1
52163A - PLATE, REAR BUMPER, RH
52163-60081

FZJ79..CBU

REAR BUMPER-PLATING

 1
52164A - PLATE, REAR BUMPER, LH
52164-60070

FZJ79..CBU

REAR BUMPER-PLATING

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52168-60010

FZJ79..CBU

REAR BUMPER-PLATING

 1
52181 - ARM, REAR BUMPER, RH
52181-60010

FZJ79..CBU

REAR BUMPER-PLATING

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60060

FZJ79..CBU

REAR BUMPER-PLATING

 1
52462 - PAD, REAR BUMPER, RH
52462-60021

FZJ79..CBU

REAR BUMPER-PLATING

 1
52463 - PAD, REAR BUMPER, LH
52463-60011

FZJ79..CBU

REAR BUMPER-PLATING

 1
52581A - PROTECTOR, REAR BUMPER FILLER
52581-60011

FZJ79..CBU

REAR BUMPER-PLATING

 3
52581A - PROTECTOR, REAR BUMPER FILLER
52581-60011

FZJ79..CBU

REAR BUMPER-PLATING

 3
52581A - PROTECTOR, REAR BUMPER FILLER
52581-60011

FZJ79..CBU

REAR BUMPER-PLATING

 3
Common parts
90119-10536
90179-06156
90179-06299
90269-05012
91651-61025
91651-G1020
93230-A6020
93240-56014
