FZJ78L-RJMRKV (1999)
Toyota Land Cruiser

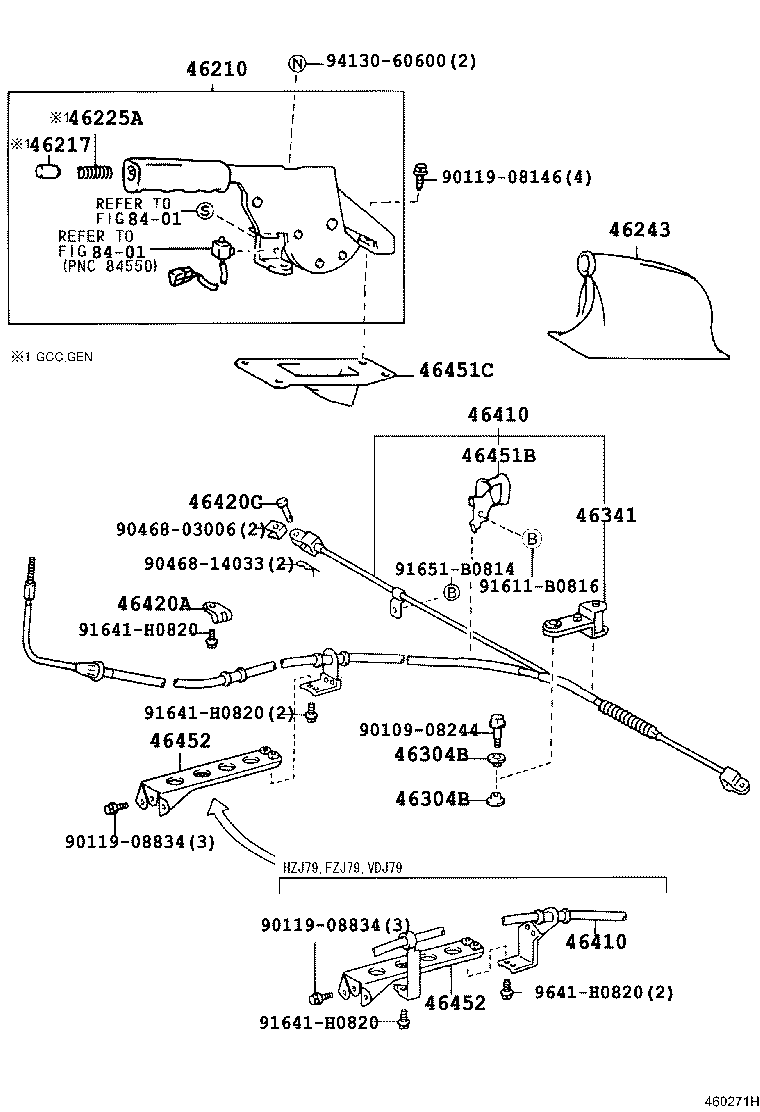

ILLUST NO. 1 OF 2(9908-0701)FZJ78,79,HDJ7#,HZJ78,79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-60230E0 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU SANDAL WOOD,TRIM4# |
1 | ||
| 46210-60230B0 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU SHADOW GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002046 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA SABLE,TRIM4# |
1 | ||
| 46217-2002053 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLUISH GRAY,TRIM1# |
1 | ||
| 46217-20020B3 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU SHADOW GRAY,TRIM1# |
1 | ||
| 46217-20020E4 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU SANDAL WOOD,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 90501-10138 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6006003 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 46243-6006016 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 46243-60060B0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 46243-60060E0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU OAK,TRIM4# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 46341-35030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60840 |
FZJ78,HZJ78..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60840 |
FZJ78,HZJ78..LHD |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-60040 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90240-08059 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
2 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-60180 |
HDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-60150 |
HDJ78;HZJ78..STD;FZJ78..GCC;FZJ78..RHD..GEN |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-60110 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-60110 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| Common parts | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90119-08834 | ||||
| 90468-03006 | ||||
| 90468-14033 | ||||
| 91611-B0816 | ||||
| 91641-H0820 | ||||
| 91651-B0814 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12118 | ||||
| 91611-G0820 | ||||
| 94130-60600 | ||||
