FZJ78L-RJMRKV (1999)
Toyota Land Cruiser

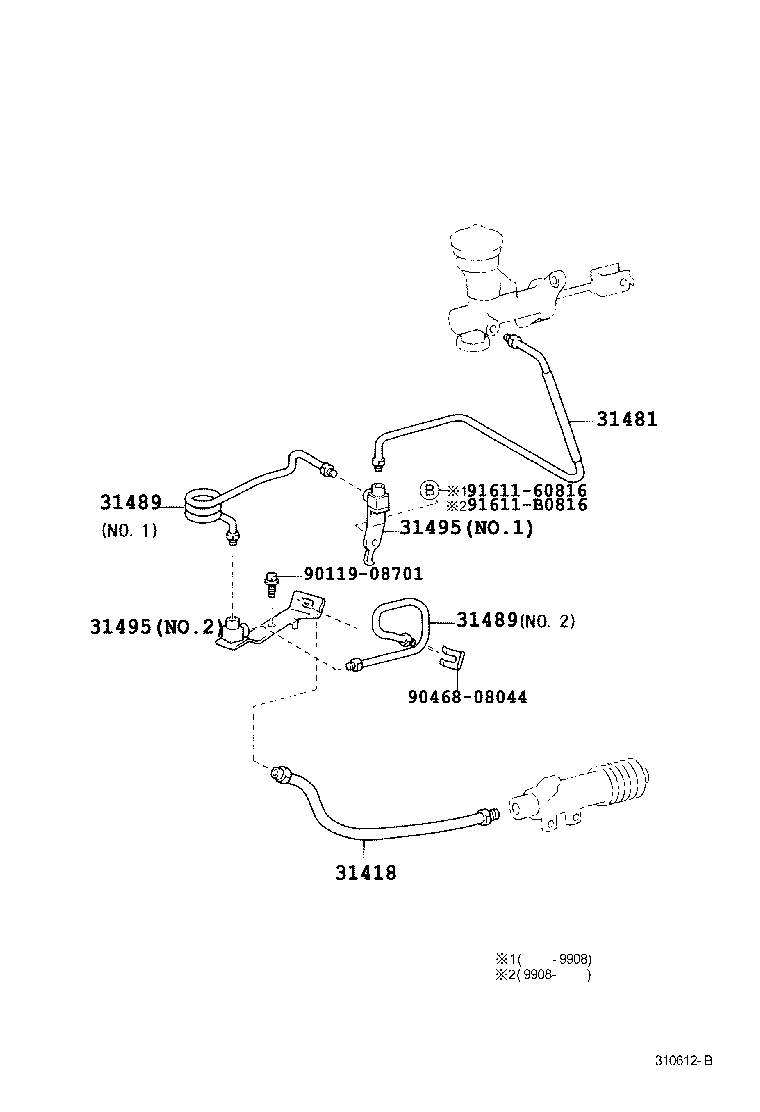

ILLUST NO. 2 OF 2(9908- )FZJ71,74,78,79..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02B49 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60441 |
FZJ7#,HZJ75,PZJ70,75..LHD |
1 | ||
| 31481-6A020 |
HZJ71,78,79..LHD |
1 | ||
| 31481-60880 |
FZJ71,78..GCC;FZJ74,79..LHD..CBU |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31489-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31489-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60040 |
FZJ7#,HZJ7#,PZJ7#..MTM |
1 | ||
| 31495-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31495-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60040 |
FZJ7#,HZJ7#,PZJ7#..MTM |
1 | ||
| 31495-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31495-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90468-08044 | ||||
| 91611-60816 | ||||
| 91611-B0816 | ||||

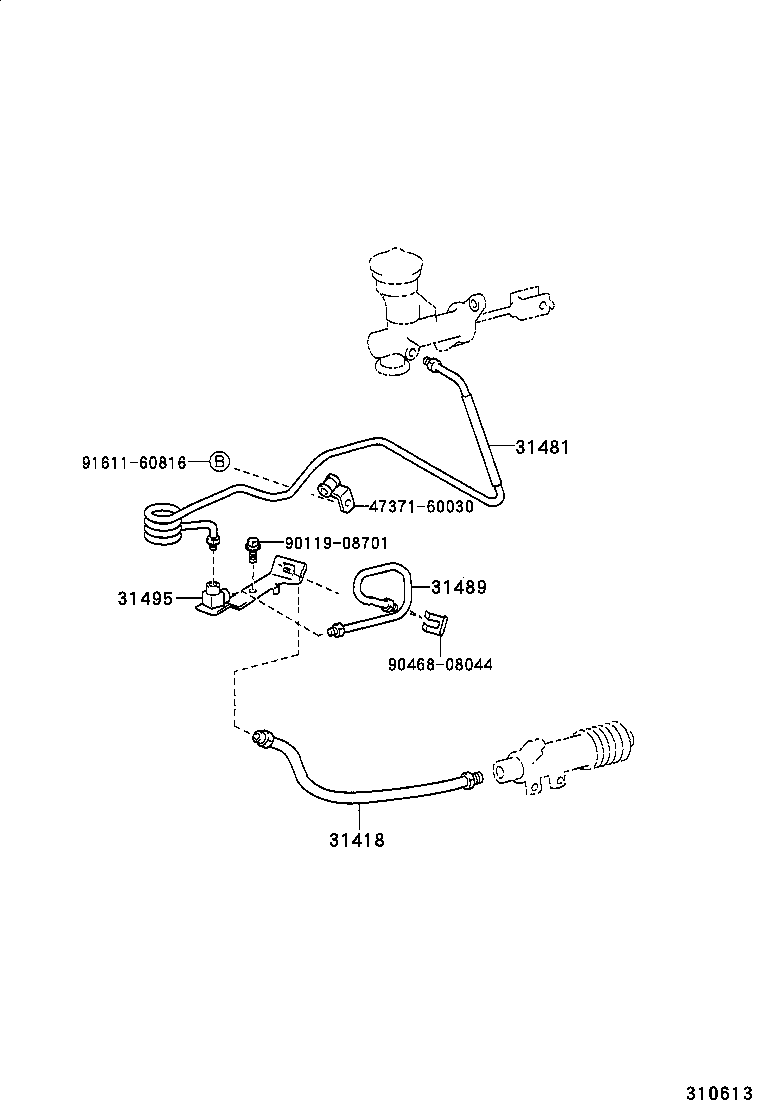

ILLUST NO. 2 OF 2(9908- )HZJ71,78,79..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02B49 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60441 |
FZJ7#,HZJ75,PZJ70,75..LHD |
1 | ||
| 31481-6A020 |
HZJ71,78,79..LHD |
1 | ||
| 31481-60880 |
FZJ71,78..GCC;FZJ74,79..LHD..CBU |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31489-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60040 |
FZJ7#,HZJ7#,PZJ7#..MTM |
1 | ||
| 31495-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN NO.1 |
1 | ||
| 31495-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| Common parts | ||||
| 47371-60030 | ||||
| 90119-08701 | ||||
| 90468-08044 | ||||
| 91611-60816 | ||||

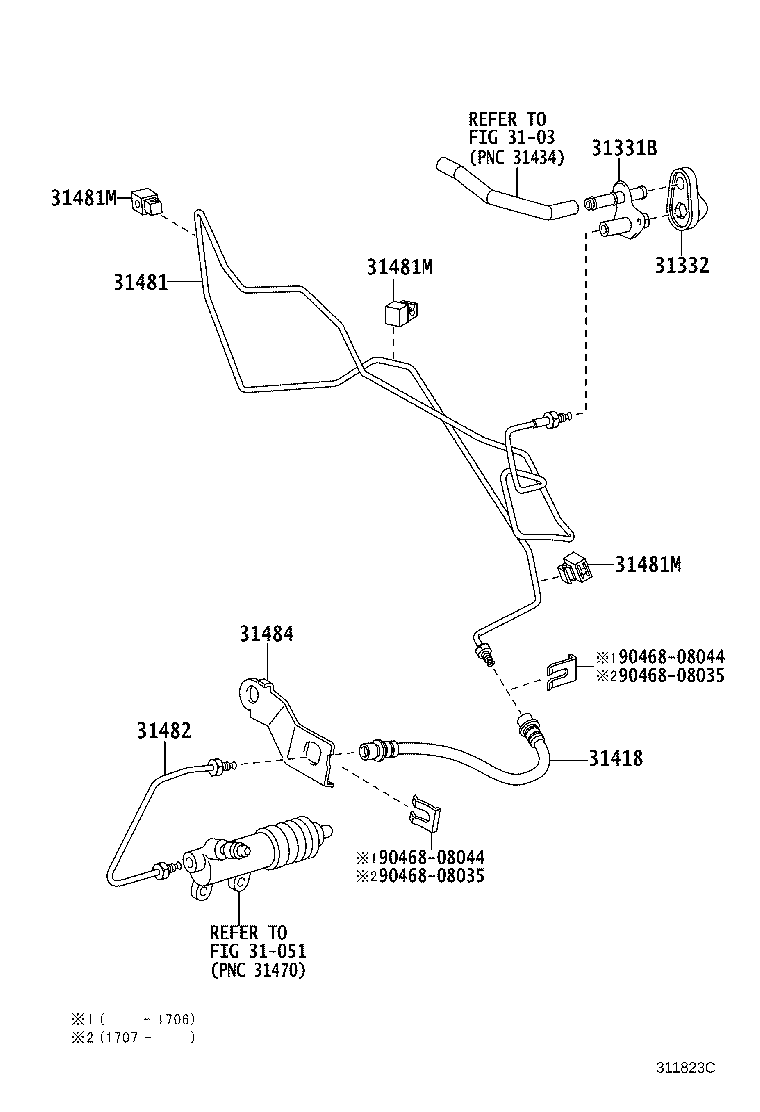

ILLUST NO. 1 OF 2(0701- )FZJ7#,HZJ7#,VDJ7#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10524 | ||||
| 90159-50360 | ||||
| 90179-10088 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 90561-09018 | ||||
| 91651-40865 | ||||
| 91651-60816 | ||||
| 94151-80800 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
ILLUST NO. 2 OF 2(0701- )FZJ7#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
