FZJ78L-RJMRK (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2008
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

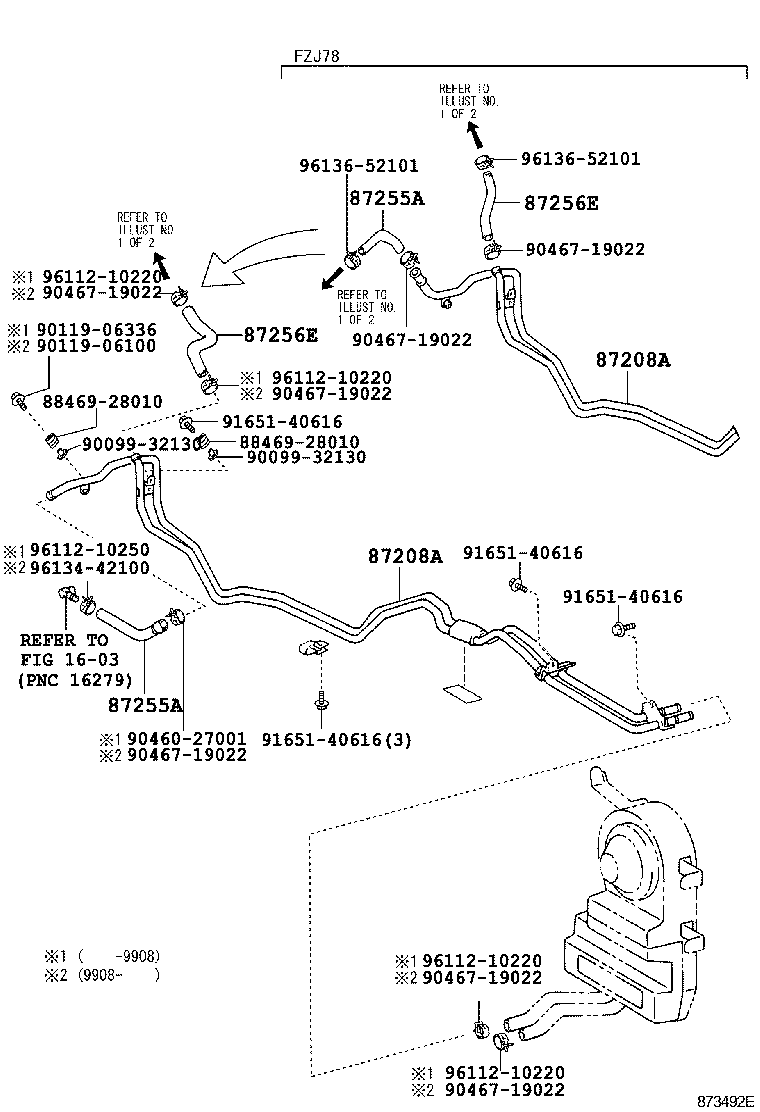

ILLUST NO. 2 OF 2(9001-0701)FZJ78 ; (9001-0701)HZJ78..GEN ; (9001- )HZJ78..ARL ; (9001- )HZJ75

Click highlighted areas on diagram

REAR

diagram 1603 87208A 87208A 87255A 87255A 87256E 87256E 8846928010 8846928010 9009932130 9009932130 9011906100 9011906336 9046027001 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140616 9165140616 9165140616 9165140616 9611210220 9611210220 9611210220 9611210220 9611210250 9613442100 9613652101 9613652101
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60710

FZJ78..GEN

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60710

FZJ78..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60180

HZJ71,75,78..HT..GEN

 1
87245-6A630

FZJ71,74,78..HT..GEN

 1
87245-60180

HZJ71,78..HT..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60180

HZJ71,75,78..HT..GEN

 1
87245-6A630

FZJ71,74,78..HT..GEN

 1
87245-60180

HZJ71,78..HT..GEN

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-6A590

FZJ71,74,78..HT..GEN

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-6A590

FZJ71,74,78..HT..GEN

 1
Common parts
88469-28010
90099-32130
90119-06100
90119-06336
90460-27001
90467-19022
91651-40616
96112-10220
96112-10250
96134-42100
96136-52101
Linked diagrams
1603

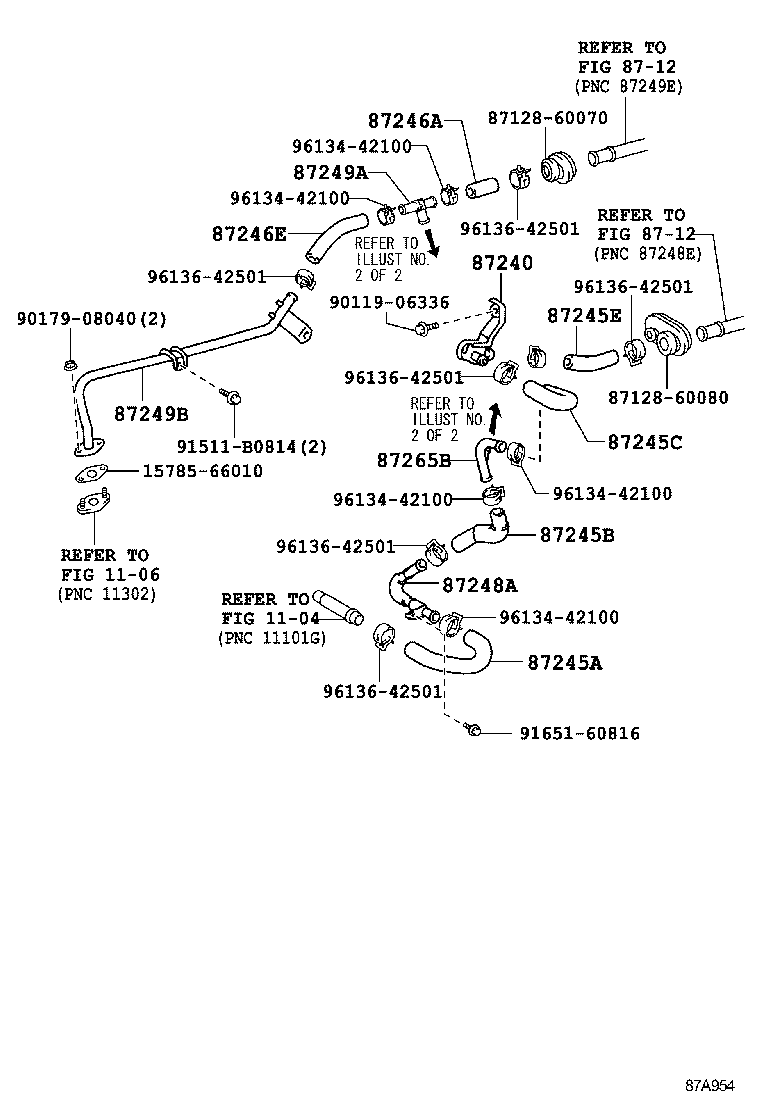

ILLUST NO. 1 OF 2(9908- )EFI

Click highlighted areas on diagram

FRONT

diagram 1578566010 1578566010 8712860070 8712860070 8712860080 8712860080 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87249B 87249B 87265B 9011906336 9011906336 9017908040 9017908040 91511B0814 91511B0814 9165160816 9165160816 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613452100 9613452100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-60110

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-60110

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60160

HZJ75..RHD;HZJ71,78,79;HZJ70,73..ARL;HZJ75..LHD..CBU

 1
87245-6A580

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-60160

HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60160

HZJ75..RHD;HZJ71,78,79;HZJ70,73..ARL;HZJ75..LHD..CBU

 1
87245-6A580

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-60160

HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV

 1
87245B - HOSE, HEATER WATER, INLET B
87245-6A550

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-6A570

FZJ71,74,78..HT..GEN

W(RR HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-6A550

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-6A570

FZJ71,74,78..HT..GEN

W(RR HEATER)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-6A310

FZJ71,74,78..HT..GEN

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A560

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-60360

FZJ71,74,78..HT..GEN

W(REAR HEATER)

 1
87245-60171

HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A560

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87245-60360

FZJ71,74,78..HT..GEN

W(REAR HEATER)

 1
87245-60171

HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60370

FZJ71,74,78..HT..GEN

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60720

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60720

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-60460

FZJ71,74,78..HT..GEN

 1
87248-60460

FZJ71,74,78..HT..GEN

 1
87265-89102

FZJ71,74,78..HT..GEN

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-60161

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-60161

FZJ79..GEN..IV;FZJ71,78..LHD..GEN

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87248-95400

FJ7#,HZJ71,75,78,PZJ70,75,RJ7#..HT..GEN

 1
87208-60690

FZJ71,74,78..HT..GEN

 1
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90179-08040
91511-B0814
91651-60816
96134-42100
96134-52100

ILLUST NO. 1 OF 2(0701-0907)FZJ7#

Click highlighted areas on diagram

FRONT

diagram 1104 1106 1578566010 8712 8712 8712860070 8712860080 87240 87245A 87245B 87245E 87246A 87248A 87249B 9011906336 9017908040 91511B0814 9165160816 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90179-08040
91511-B0814
91651-60816
96134-42100
96136-42501
Linked diagrams
1104
1106
8712

ILLUST NO. 1 OF 2(0701-0907)FZJ76,78..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1104 1106 1578566010 8712 8712 8712860070 8712860080 87240 87245A 87245B 87245C 87245E 87246A 87246E 87248A 87249A 87249B 87265B 9011906336 9017908040 91511B0814 9165160816 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90179-08040
91511-B0814
91651-60816
96134-42100
96136-42501
Linked diagrams
1104
1106
8712

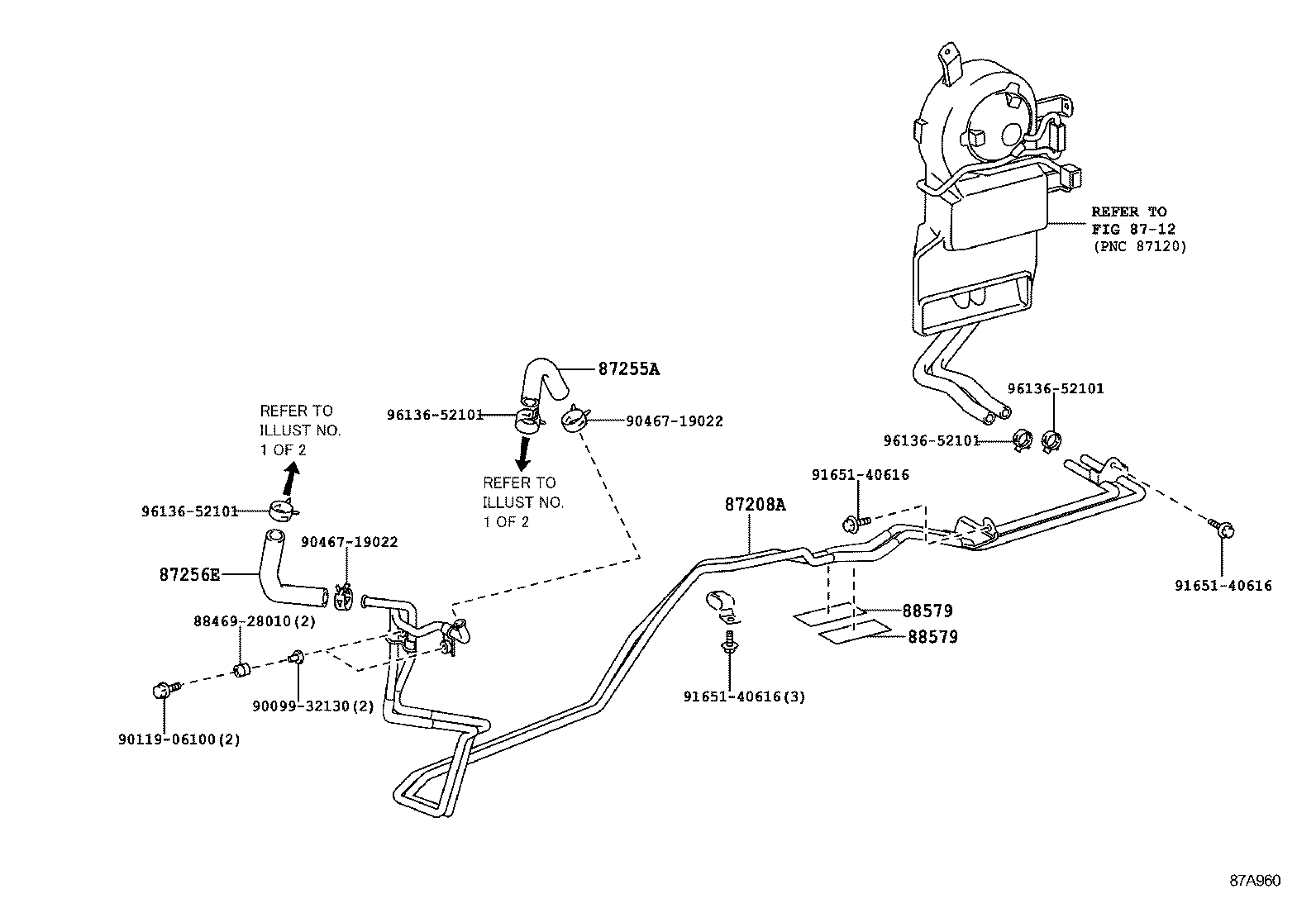

ILLUST NO. 2 OF 2(0701-0907)FZJ78

Click highlighted areas on diagram

REAR

diagram 8712 87208A 87255A 87256E 8846928010 88579 88579 9009932130 9011906100 9046719022 9046719022 9165140616 9165140616 9165140616 9613652101 9613652101 9613652101 9613652101
Part # Description Qty Price
Common parts
88469-28010
90099-32130
90119-06100
90467-19022
91651-40616
96136-52101
Linked diagrams
8712

ILLUST NO. 1 OF 2(0701-1208)HZJ76,78..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712 8712 8712460060 8712860070 8712860080 87240 87245A 87245E 87246A 87246E 87265B 9011906336 9011908197 9046721010 9046721010 9613642501 9613642501 9613642501 9613652701 9613652701
Part # Description Qty Price
Common parts
87124-60060
87128-60070
87128-60080
90119-06336
90119-08197
90467-21010
96136-42501
96136-52701
Linked diagrams
1603
8712
