FZJ76L-RKMRK (2007)
Toyota Land Cruiser
(0701-1608)LX..IV ; (0701- )DCB..IV ; (0701-)RHD..DCB,HT,PIC..CBU ; (1408-16

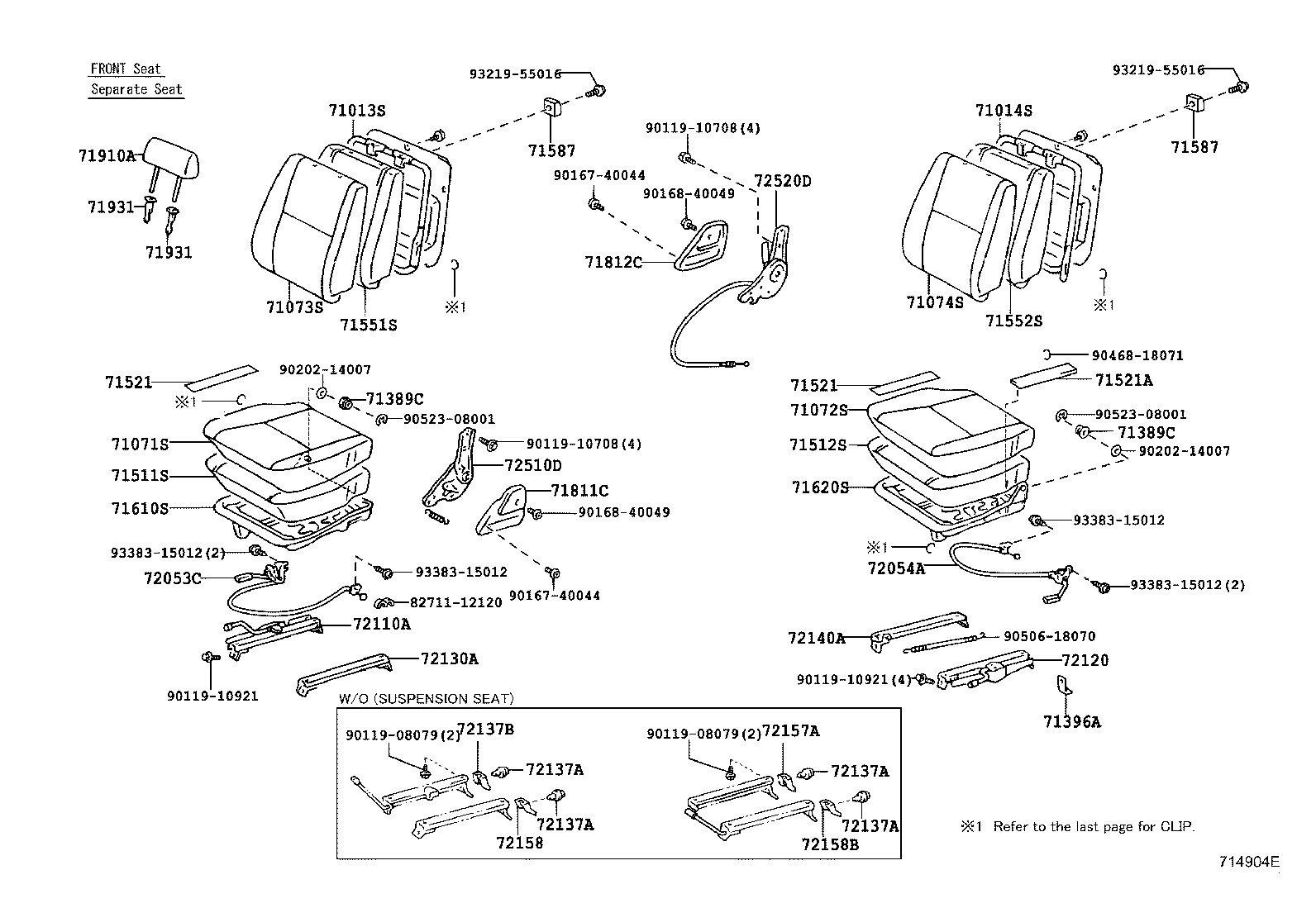

FRONT SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60122 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71013-60191 |
FZJ71,76,78..LHD..STD |
1 | ||
| 71013-60122 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71013-60191 |
HZJ76..LHD;GRJ71,76,78,HZJ71,78..LHD..STD |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60112 |
FZJ71,76,78..LHD |
1 | ||
| 71014-60112 |
VDJ76,78..LX;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60313B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60313E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71071-60332B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71071-60453E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60453B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60332E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60243B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-60020B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71027-60020E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60192B3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60192E3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60592B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71073-60602B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71073-60592E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71073-60602E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-60010B1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60542B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71074-60542E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
HZJ76;GRJ79..RHD..DCB;FZJ79,GRJ79,HZJ79..GCC;FZJ76,GRJ76,HZJ79..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT |
2 | ||
| 71389-60040 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
2 | ||
| 71389-60040 |
FZJ79,GRJ79,HZJ76;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..STD |
1 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
HZJ76;GRJ79..RHD..DCB;FZJ79,GRJ79,HZJ79..GCC;FZJ76,GRJ76,HZJ79..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT |
2 | ||
| 71389-60040 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
2 | ||
| 71389-60040 |
FZJ79,GRJ79,HZJ76;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..STD |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71396-90K01 |
FZJ76..GEN |
1 | ||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60021 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71501-60150 |
FZJ79,HZJ76..LHD;FZJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71501-60021 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60041 |
VDJ7#..LX;FZJ7#,HZJ7#..LHD |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
FZJ79;FZJ76,78..GEN;FZJ71..LHD..STD |
2 | ||
| 71521-60030 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
4 | ||
| 71521-60030 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
4 | ||
| 71521-60030 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
FZJ79;FZJ76,78..GEN;FZJ71..LHD..STD |
2 | ||
| 71521-60030 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
4 | ||
| 71521-60030 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
4 | ||
| 71521-60030 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71505-60011 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71505-60040 |
FZJ79..LHD;FZJ71,76,78..LHD..STD |
1 | ||
| 71505-60040 |
GRJ79,HZJ76..LHD;GRJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60011 |
FZJ7#..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60091 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71610-60091 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71610-60250 |
FZJ71,76..LHD..STD |
1 | ||
| 71610-60250 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60091 |
FZJ71,76..LHD |
1 | ||
| 71620-60091 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020B0 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60020B0 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60041E3 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 OAK,TRIM4# |
2 | ||
| 71910-6004112 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K00B0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K01E0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD OAK,TRIM4# |
1 | ||
| 72053-90K01B0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00E0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,OAK,TRIM4# |
1 | ||
| 72053-90K00E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00B0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K00E0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD OAK,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60241 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72110-60241 |
FZJ71,76..LHD..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60251 |
FZJ71,76..LHD |
1 | ||
| 72120-60251 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60380 |
FZJ71,76..LHD..STD |
1 | ||
| 72130-60400 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72130-60400 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72130-60380 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-90K02B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K02E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60380 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72140-60380 |
FZJ71,76..LHD |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-90K00B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-90K00B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72137-90K02E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72137-90K02B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72510-90K00 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72510-90K02 |
FZJ79;FZJ71,76,78..LHD..STD |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K00 |
FZJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-08079 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90468-18071 | ||||
| 90506-18070 | ||||
| 90523-08001 | ||||
| 93219-55016 | ||||
| 93383-15012 | ||||
(0701- )LHD
FRONT SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60122 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71013-60191 |
FZJ71,76,78..LHD..STD |
1 | ||
| 71013-60122 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71013-60191 |
HZJ76..LHD;GRJ71,76,78,HZJ71,78..LHD..STD |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60112 |
FZJ71,76,78..LHD |
1 | ||
| 71014-60112 |
VDJ76,78..LX;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60313B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60313E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71071-60332B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71071-60453E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60453B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60332E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60243B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-60020B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71027-60020E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60192B3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60192E3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60592B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71073-60602B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71073-60592E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71073-60602E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-60010B1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60542B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71074-60542E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
HZJ76;GRJ79..RHD..DCB;FZJ79,GRJ79,HZJ79..GCC;FZJ76,GRJ76,HZJ79..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT |
2 | ||
| 71389-60040 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
2 | ||
| 71389-60040 |
FZJ79,GRJ79,HZJ76;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..STD |
1 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
HZJ76;GRJ79..RHD..DCB;FZJ79,GRJ79,HZJ79..GCC;FZJ76,GRJ76,HZJ79..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT |
2 | ||
| 71389-60040 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
2 | ||
| 71389-60040 |
FZJ79,GRJ79,HZJ76;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..STD |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71396-90K01 |
FZJ76..GEN |
1 | ||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60021 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71501-60150 |
FZJ79,HZJ76..LHD;FZJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71501-60021 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60041 |
VDJ7#..LX;FZJ7#,HZJ7#..LHD |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
FZJ79;FZJ76,78..GEN;FZJ71..LHD..STD |
2 | ||
| 71521-60030 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
4 | ||
| 71521-60030 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
4 | ||
| 71521-60030 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
FZJ79;FZJ76,78..GEN;FZJ71..LHD..STD |
2 | ||
| 71521-60030 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
4 | ||
| 71521-60030 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
4 | ||
| 71521-60030 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71505-60011 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71505-60040 |
FZJ79..LHD;FZJ71,76,78..LHD..STD |
1 | ||
| 71505-60040 |
GRJ79,HZJ76..LHD;GRJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60011 |
FZJ7#..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60091 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71610-60091 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71610-60250 |
FZJ71,76..LHD..STD |
1 | ||
| 71610-60250 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60091 |
FZJ71,76..LHD |
1 | ||
| 71620-60091 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020B0 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60020B0 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60041E3 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 OAK,TRIM4# |
2 | ||
| 71910-6004112 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K00B0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K01E0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD OAK,TRIM4# |
1 | ||
| 72053-90K01B0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00E0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,OAK,TRIM4# |
1 | ||
| 72053-90K00E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00B0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K00E0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD OAK,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60241 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72110-60241 |
FZJ71,76..LHD..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60251 |
FZJ71,76..LHD |
1 | ||
| 72120-60251 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60380 |
FZJ71,76..LHD..STD |
1 | ||
| 72130-60400 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72130-60400 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72130-60380 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-90K02B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K02E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60380 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72140-60380 |
FZJ71,76..LHD |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-90K00B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-90K00B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72137-90K02E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72137-90K02B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72510-90K00 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72510-90K02 |
FZJ79;FZJ71,76,78..LHD..STD |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K00 |
FZJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90468-04006 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93219-55016 | ||||
| 93383-15012 | ||||
(0701- )FZJ71,76,78,GRJ7#,HZJ71,76,78,VDJ76..LHD
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60122 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71013-60191 |
FZJ71,76,78..LHD..STD |
1 | ||
| 71013-60122 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71013-60191 |
HZJ76..LHD;GRJ71,76,78,HZJ71,78..LHD..STD |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60112 |
FZJ71,76,78..LHD |
1 | ||
| 71014-60112 |
VDJ76,78..LX;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60313B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60313E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71071-60332B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71071-60453E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71071-60453B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60332E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60243B4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262B1 |
FZJ7#,HZJ7#..LHD..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243E4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71072-60243B4 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60262E1 |
FZJ7#,HZJ7#..LHD..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-60020B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71027-60020E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60192B3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60192E3 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 71073-60592B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71073-60602B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71073-60592E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71073-60602E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-60010B1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010E1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 70169-60010B1 |
FZJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60542B2 |
FZJ76,GRJ76,HZJ76..LHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71074-60542E2 |
FZJ76,GRJ76,HZJ76..LHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71132-90K00 |
FZJ79..LHD;FZJ71,76,78..LHD..STD |
1 | ||
| 71132-90K00 |
GRJ79,HZJ76..LHD;GRJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
FZJ79;HZJ79..RHD;FZJ71,76,78..STD |
2 | ||
| 71148-90304 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71389C - SPACER, FRONT SEAT HINGE | ||||
| 71389-60040 |
HZJ76;GRJ79..RHD..DCB;FZJ79,GRJ79,HZJ79..GCC;FZJ76,GRJ76,HZJ79..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT |
2 | ||
| 71389-60040 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
2 | ||
| 71389-60040 |
FZJ79,GRJ79,HZJ76;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..STD |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71396-90K01 |
FZJ76..GEN |
1 | ||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60021 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71501-60150 |
FZJ79,HZJ76..LHD;FZJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71501-60021 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60041 |
VDJ7#..LX;FZJ7#,HZJ7#..LHD |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
FZJ79;FZJ76,78..GEN;FZJ71..LHD..STD |
2 | ||
| 71521-60030 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
4 | ||
| 71521-60030 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
4 | ||
| 71521-60030 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
FZJ79;HZJ79..RHD;FZJ71,76,78..STD |
1 | ||
| 71537-90K00 |
HZJ76,78;GRJ79..LHD;GRJ79,HZJ79..RHD..DCB;GRJ71,76,78,HZJ71,79..LHD..STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71505-60011 |
FZJ76..GEN;FZJ79..GCC FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71505-60040 |
FZJ79..LHD;FZJ71,76,78..LHD..STD |
1 | ||
| 71505-60040 |
GRJ79,HZJ76..LHD;GRJ71,76,78,HZJ71,78,79..LHD..STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60011 |
FZJ7#..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60091 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71610-60091 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71610-60250 |
FZJ71,76..LHD..STD |
1 | ||
| 71610-60250 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60091 |
FZJ71,76..LHD |
1 | ||
| 71620-60091 |
VDJ76,79..DCB,HT;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-07032 |
HZJ71,79..LHD;FZJ7#,HZJ76,78 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020B0 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-60020E1 |
FZJ76,79,GRJ76,79,HZJ76,VDJ7#;FZJ71,78,GRJ71,78,HZJ71,78,79..STD SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60020B0 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
VDJ78..STD;FZJ7#,GRJ7#,HZJ7#,VDJ76,79 SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60041E3 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 OAK,TRIM4# |
2 | ||
| 71910-6004112 |
FZJ76,GRJ76,HZJ76..GEN;FZJ71,78,GRJ71,78,HZJ71,78 BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-90K00B0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K01E0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD OAK,TRIM4# |
1 | ||
| 72053-90K01B0 |
FZJ79,GRJ79,HZJ76..LHD;FZJ71,76,78,GRJ71,76,78,HZJ71,78,79..LHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72053-90K00E0 |
HZJ76..LHD;FZJ76,GRJ76..GEN;FZJ79,GRJ79,HZJ79..GCC FRONT SEAT-SEPARATE SEAT,OAK,TRIM4# |
1 | ||
| 72053-90K00E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC,OAK,TRIM4# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00B0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K00E0 |
VDJ7#..LX;FZJ7#,GRJ7#,HZJ7#..LHD OAK,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60241 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72110-60241 |
FZJ71,76..LHD..STD |
1 | ||
| 72110-60231 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60251 |
FZJ71,76..LHD |
1 | ||
| 72120-60251 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60380 |
FZJ71,76..LHD..STD |
1 | ||
| 72130-60400 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72130-60400 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72130-60380 |
HZJ76..LHD;GRJ71,76,79,HZJ71,79..LHD..(DCB,HT,SOT)..STD |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 OAK,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-90K02B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K02E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60380 |
VDJ76;GRJ71,76,HZJ71,76..LHD |
1 | ||
| 72140-60380 |
FZJ71,76..LHD |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-90K00B0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
FZJ71,GRJ71,HZJ71..STD;FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-90K00B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72137-90K02E0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 OAK,TRIM4# |
1 | ||
| 72137-90K02B0 |
GRJ71..STD;FZJ71,76,GRJ76,HZJ71,76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH | ||||
| 72205-90K00 |
FZJ79;FZJ71,76,78..STD |
1 | ||
| 72205-90K00 |
GRJ79,HZJ7#;GRJ71,76,78..LHD..STD |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 72510-90K00 |
FZJ76..GEN H PACKAGE&FRONT SEAT-SEPARATE SEAT&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72510-90K02 |
FZJ79;FZJ71,76,78..LHD..STD |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K00 |
FZJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||

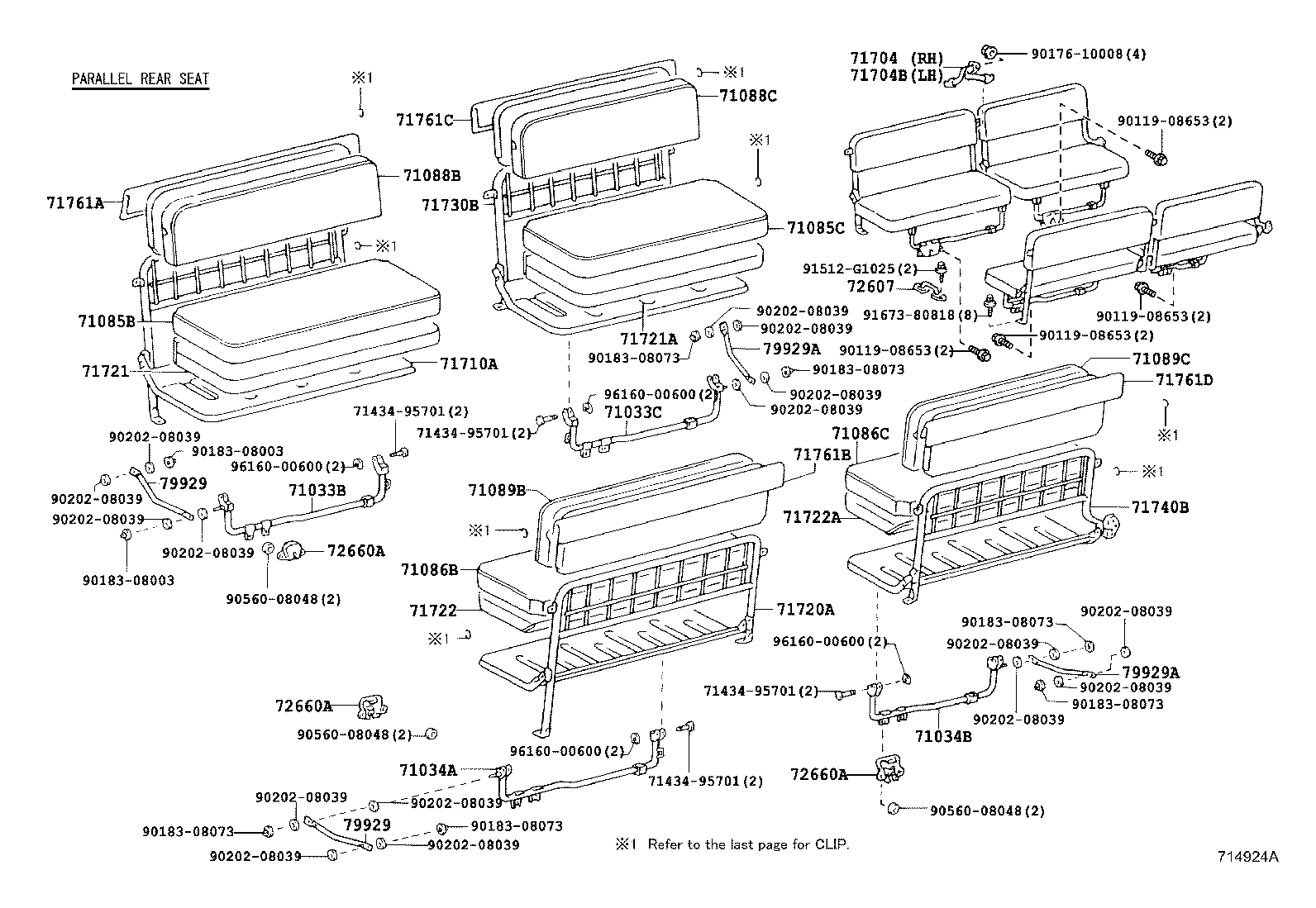

(0701-1208)GRJ78..RHD ; (0701-1608)GRJ78..LHD ;(0701-1608)HZJ78..GEN ; (0701- )
PARALLEL REAR SEAT, W(SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60180 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71033-60180 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71034-60140 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71034-60140 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-60122B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71085-60122E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71085-60132E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71085-60132B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60112B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71086-60112E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71086-60122B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71086-60122E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-60530B0 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71088-60530E0 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71088-60192B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71088-60192E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-60112B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71089-60112E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71089-60430B0 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71089-60430E0 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-60020S1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704-60020E1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020E1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020S1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-60020E1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020E1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020S1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704-60020S1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60130 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71710-60130 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60140 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71720-60140 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-60050 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71721-60050 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71722-60040 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71722-60040 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-60030 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761-60030 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71762-60010 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71762-60010 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| Common parts | ||||
| 71434-95701 | ||||
| 90119-08653 | ||||
| 90176-10008 | ||||
| 90183-08003 | ||||
| 90183-08073 | ||||
| 90202-08039 | ||||
| 90560-08048 | ||||
| 91512-G1025 | ||||
| 91673-80818 | ||||
| 96160-00600 | ||||
(0701-1408)FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT
TRANSVERSE REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65661B - GUIDE, ROLLAR | ||||
| 65661-60010 |
FZJ76 |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-60210 |
FZJ76 |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-60102 |
FZJ76 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-60541B2 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71065-60541B2 |
FZJ76,HZJ76..GEN H PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71065-60541E1 |
FZJ76,HZJ76..GEN H PACKAGE,OAK,TRIM4# |
1 | ||
| 71065-60541E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71075-60A00B1 |
FZJ76,GRJ76,HZJ76..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71075-60A00E1 |
FZJ76,GRJ76,HZJ76..GEN MD.OAK,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-60634B3 |
FZJ76,HZJ76..GEN H PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60634B3 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60634E2 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71077-60634E2 |
FZJ76,HZJ76..GEN H PACKAGE,OAK,TRIM4# |
1 | ||
| 71077-60A10E1 |
FZJ76,GRJ76,HZJ76..GEN MD.OAK,TRIM4# |
1 | ||
| 71077-60A10B1 |
FZJ76,GRJ76,HZJ76..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71311D - HINGE, REAR SEAT, LOWER RH | ||||
| 71311-60020 |
FZJ76 |
2 | ||
| 71311D - HINGE, REAR SEAT, LOWER RH | ||||
| 71311-60020 |
FZJ76 |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-60071 |
FZJ76 |
2 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-60180 |
FZJ76 |
2 | ||
| 71335C - STAY, REAR SEAT CUSHION LINK, RH | ||||
| 71335-60050 |
FZJ76 |
1 | ||
| 71336A - STAY, REAR SEAT CUSHION LINK, LH | ||||
| 71336-60040 |
FZJ76 |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71396-90K01 |
FZJ76..GEN |
1 | ||
| 71396-90K00 |
FZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71462 - SPRING, REAR SEAT CUSHION, NO.2 | ||||
| 71462-60010 |
FZJ76 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-60090 |
FZJ76 |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-60310 |
FZJ76 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60010E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 71833-60010B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-60010B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 71834-60010E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ76,GRJ76,HZJ76;FZJ71,GRJ71,VDJ76,78..LX W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-6004112 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60041E3 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76..GEN OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE,OAK,TRIM4# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-6004112 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60041E3 |
FZJ71,GRJ71..LX;FZJ76,GRJ76,HZJ76..GEN OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500B0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE,OAK,TRIM4# |
2 | ||
| 71910-60500E0 |
FZJ76,GRJ76,HZJ76..LHD..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-60010E0 |
FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
2 | ||
| 72123-60010B0 |
FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
2 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-60040B0 |
FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-60040E0 |
FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72138-60020E0 |
FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 72138-60020B0 |
FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| 72181 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT RH | ||||
| 72181-60020 |
FZJ76 |
1 | ||
| 72182 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT LH | ||||
| 72182-60010 |
FZJ76 |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-60030 |
FZJ76 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-60030E1 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
2 | ||
| 72525-60030B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISHGRAY,TRIM1# |
2 | ||
| 72593A - KNOB, REMOTE CONTROL LEVER, RH | ||||
| 72593-60010E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72593-60010B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72594 - KNOB, REMOTE CONTROL LEVER, LH | ||||
| 72593-60010E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72593-60010B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-60020E1 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72597-60020B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72597-60020E1 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72597-60020B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-60061 |
FZJ76 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-60061 |
FZJ76 |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60060 |
FZJ76 |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60060 |
FZJ76 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-60050E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72665-60050B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-60050E0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT OAK,TRIM4# |
1 | ||
| 72666-60050B0 |
FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT BLUISH GRAY,TRIM1# |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60010 |
FZJ76 |
2 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-60051 |
FZJ76 |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-60041E0 |
FZJ76,GRJ76,HZJ76,VDJ76 OAK,TRIM4# |
1 | ||
| 78950-60041B0 |
FZJ76,GRJ76,HZJ76,VDJ76 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90105-11007 | ||||
| 90105-11033 | ||||
| 90119-08079 | ||||
| 90119-10315 | ||||
| 90119-10363 | ||||
| 90150-60003 | ||||
| 90168-40043 | ||||
| 90183-08073 | ||||
| 90201-06012 | ||||
| 90204-11042 | ||||
| 90387-15022 | ||||
| 90389-11014 | ||||
| 90467-08053 | ||||
| 90523-04003 | ||||
| 91512-G1025 | ||||
| 91552-81020 | ||||
| 93240-56018 | ||||
| 93510-53510 | ||||
| 94613-10601 | ||||
| 96160-00600 | ||||
(0701- )FZJ76,GRJ76,HZJ76,VDJ76
PARALLEL REAR SEAT(REAR NO.2 SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60180 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71033-60180 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71034-60140 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71034-60140 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-60122B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71085-60122E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71085-60132E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71085-60132B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60112B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71086-60112E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71086-60122B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71086-60122E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-60530B0 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71088-60530E0 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71088-60192B1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71088-60192E1 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-60112B1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71089-60112E1 |
FZJ76,HZJ76..GEN H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71089-60430B0 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,SLATE GRAY,TRIM1# |
1 | ||
| 71089-60430E0 |
FZJ76,GRJ76,HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL,MD.OAK,TRIM4# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-60020S1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704-60020E1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020E1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020S1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-60020E1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020E1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,OAK,TRIM4# |
1 | ||
| 71704-60020S1 |
HZJ76..GEN;FZJ76,GRJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71704-60020S1 |
FZJ76,GRJ76,HZJ76..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT & PARALLEL,BLUISH GRAY,TRIM1# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60130 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71710-60130 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60140 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71720-60140 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-60050 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71721-60050 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71722-60040 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71722-60040 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-60030 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761-60030 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71762-60010 |
FZJ76 REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| 71762-60010 |
FZJ76..GEN;HZJ76..RHD H PACKAGE&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
1 | ||
| Common parts | ||||
| 71434-95701 | ||||
| 79977-60040 | ||||
| 90176-10008 | ||||
| 91673-80818 | ||||
| 96160-00600 | ||||
(0701- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
