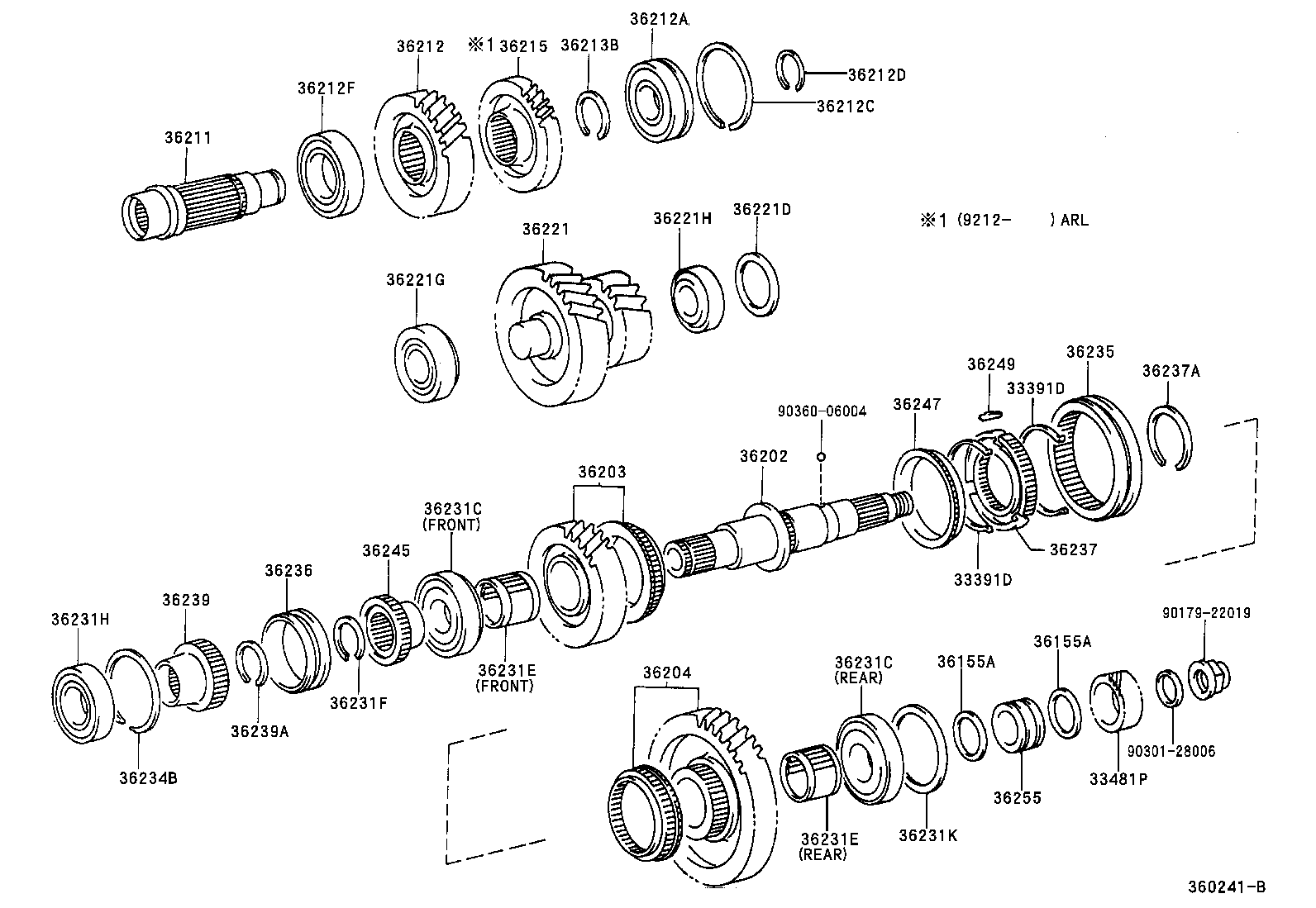

FZJ75RP-MRUN (1992)
Toyota Land Cruiser
(9001-0405)FJ7#,HJ75,HZJ70,73,75..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 N=12,MARK 12:31-33 |
1 | ||
| 33481-60100 |
FZJ75..SA N=12,MARK 12:31-33 |
1 | ||
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60040 |
FZJ75..SA |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60070 |
FZJ7# |
1 | ||
| 36203-60071 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36203-60090 |
FZJ75..SA |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36204-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36212-60120 |
FZJ75..SA |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60110 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36205-60010 |
FZJ75..SA |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60050 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60021 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-35008 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=17.5 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70003 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.50 |
1 | ||
| 90564-70002 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.40 |
1 | ||
| 90564-70004 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.60 |
1 | ||
| 90564-70008 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.00 |
1 | ||
| 90564-70001 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.15 |
1 | ||
| 90564-70005 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.70 |
1 | ||
| 90564-70012 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.40 |
1 | ||
| 90564-70013 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.50 |
1 | ||
| 90564-70006 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.80 |
1 | ||
| 90564-70010 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.20 |
1 | ||
| 90564-70009 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.10 |
1 | ||
| 90564-70007 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=0.90 |
1 | ||
| 90564-70011 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU T=1.30 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-32005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.4,MARK E |
1 | ||
| 90520-32005 |
FZJ75..SA T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..SA T=2.1,MARK B |
1 | ||
| 90520-32009 |
FZJ75..SA T=2.4,MARK E |
1 | ||
| 90520-32008 |
FZJ75..SA T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..SA T=2.2,MARK C |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60040 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.7,MARK A |
1 | ||
| 90521-84002 |
FZJ75..SA T=1.7,MARK A |
1 | ||
| 90521-84003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.8,MARK B |
1 | ||
| 90521-84003 |
FZJ75..SA T=1.8,MARK B |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FZJ75..SA |
1 | ||
| 36235-60040 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236-60060 |
FZJ75..SA |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60030 |
FZJ7# |
1 | ||
| 36237-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36237-60050 |
FZJ75..SA |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60030 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-38003 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| Common parts | ||||
| 90119-08709 | ||||
| 91611-60618 | ||||
(9201-9801)FZJ7# ; (9801-0701)FZJ75,78,79,HDJ7#..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33391-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
2 | ||
| 33391-60010 |
FZJ7# |
2 | ||
| 33371-37030 |
FZJ75..SA |
2 | ||
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33391-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
2 | ||
| 33391-60010 |
FZJ7# |
2 | ||
| 33371-37030 |
FZJ75..SA |
2 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 N=12,MARK 12:31-33 |
1 | ||
| 33481-60100 |
FZJ75..SA N=12,MARK 12:31-33 |
1 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
2 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
2 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60020 |
FZJ75..SA |
1 | ||
| 36202-60030 |
FZJ7# |
1 | ||
| 36202-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60070 |
FZJ7# |
1 | ||
| 36203-60071 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36203-60090 |
FZJ75..SA |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36204-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60030 |
FZJ7# |
1 | ||
| 36211-60030 |
FZJ7#..CBR |
1 | ||
| 36211-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36212-60120 |
FZJ75..SA |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35030 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-35030 |
FZJ75..SA |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.65 |
1 | ||
| 90520-82001 |
FZJ75..SA T=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK B |
1 | ||
| 90520-32005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK A |
1 | ||
| 90520-32009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.4,MARK E |
1 | ||
| 90520-32007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK C |
1 | ||
| 90520-32008 |
FZJ75..SA T=2.3,MARK D |
1 | ||
| 90520-32005 |
FZJ75..SA T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..SA T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..SA T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ75..SA T=2.4,MARK E |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-50003 |
FZJ75..SA |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44024 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.2,MARK C |
1 | ||
| 90520-44022 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.0,MARK A |
1 | ||
| 90520-44027 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.5,MARK F |
1 | ||
| 90520-44023 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.1,MARK B |
1 | ||
| 90520-44026 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.4,MARK E |
1 | ||
| 90520-44028 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.6,MARK G |
1 | ||
| 90520-44025 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.3,MARK D |
1 | ||
| 90520-44029 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.7,MARK H |
1 | ||
| 90520-44030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU T=2.8,MARK J |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
HZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60110 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36205-60010 |
FZJ75..SA |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57004 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57012 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57013 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.55,MARK 13 |
1 | ||
| 90201-57003 |
FZJ75..SA T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57006 |
FZJ75..SA T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57010 |
FZJ75..SA T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57007 |
FZJ75..SA T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57008 |
FZJ75..SA T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57009 |
FZJ75..SA T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57011 |
FZJ75..SA T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57013 |
FZJ75..SA T=0.55,MARK 13 |
1 | ||
| 90201-57005 |
FZJ75..SA T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57002 |
FZJ75..SA T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57012 |
FZJ75..SA T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57004 |
FZJ75..SA T=2.39-2.41,MARK 4 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FZJ75..SA |
1 | ||
| 90366-35060 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90366-33002 |
FZJ75..SA |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-32005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.4,MARK E |
1 | ||
| 90520-32005 |
FZJ75..SA T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..SA T=2.1,MARK B |
1 | ||
| 90520-32009 |
FZJ75..SA T=2.4,MARK E |
1 | ||
| 90520-32008 |
FZJ75..SA T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..SA T=2.2,MARK C |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-40044 |
FZJ75..SA |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-76002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-76005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.19-1.21,MARK 5 |
1 | ||
| 90201-76006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.39-1.41,MARK 6 |
1 | ||
| 90201-76003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-76004 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.99-1.01,MARK 4 |
1 | ||
| 90201-76007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.59-1.61,MARK 7 |
1 | ||
| 90201-76009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.99-2.01,MARK 9 |
1 | ||
| 90201-76010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.19-2.21,MARK 10 |
1 | ||
| 90201-76012 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.59-2.61,MARK 12 |
1 | ||
| 90201-76008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.79-1.81,MARK 8 |
1 | ||
| 90201-76013 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.51-0.59,MARK 13 |
1 | ||
| 90201-76011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.39-2.41,MARK 11 |
1 | ||
| 90201-76002 |
FZJ75..SA T=0.29-0.31,MARK 2 |
1 | ||
| 90201-76006 |
FZJ75..SA T=1.39-1.41,MARK 6 |
1 | ||
| 90201-76003 |
FZJ75..SA T=0.44-0.46,MARK 3 |
1 | ||
| 90201-76009 |
FZJ75..SA T=1.99-2.01,MARK 9 |
1 | ||
| 90201-76008 |
FZJ75..SA T=1.79-1.81,MARK 8 |
1 | ||
| 90201-76011 |
FZJ75..SA T=2.39-2.41,MARK 11 |
1 | ||
| 90201-76005 |
FZJ75..SA T=1.19-1.21,MARK 5 |
1 | ||
| 90201-76013 |
FZJ75..SA T=0.51-0.59,MARK 13 |
1 | ||
| 90201-76010 |
FZJ75..SA T=2.19-2.21,MARK 10 |
1 | ||
| 90201-76004 |
FZJ75..SA T=0.99-1.01,MARK 4 |
1 | ||
| 90201-76012 |
FZJ75..SA T=2.59-2.61,MARK 12 |
1 | ||
| 90201-76007 |
FZJ75..SA T=1.59-1.61,MARK 7 |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.7,MARK A |
1 | ||
| 90521-84002 |
FZJ75..SA T=1.7,MARK A |
1 | ||
| 90521-84003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.8,MARK B |
1 | ||
| 90521-84003 |
FZJ75..SA T=1.8,MARK B |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FZJ75..SA |
1 | ||
| 36235-60040 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236-60060 |
FZJ75..SA |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60030 |
FZJ7# |
1 | ||
| 36237-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36237-60050 |
FZJ75..SA |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39019 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.80,MARK E |
1 | ||
| 90520-39018 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.75,MARK D |
1 | ||
| 90520-39021 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.90,MARK G |
1 | ||
| 90520-39016 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.65,MARK B |
1 | ||
| 90520-39020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.85,MARK F |
1 | ||
| 90520-39017 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.70,MARK C |
1 | ||
| 90520-39015 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.60,MARK A |
1 | ||
| 90520-39016 |
FZJ75..SA T=2.65,MARK B |
1 | ||
| 90520-39019 |
FZJ75..SA T=2.80,MARK E |
1 | ||
| 90520-39015 |
FZJ75..SA T=2.60,MARK A |
1 | ||
| 90520-39018 |
FZJ75..SA T=2.75,MARK D |
1 | ||
| 90520-39017 |
FZJ75..SA T=2.70,MARK C |
1 | ||
| 90520-39021 |
FZJ75..SA T=2.90,MARK G |
1 | ||
| 90520-39020 |
FZJ75..SA T=2.85,MARK F |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36239-60010 |
FZJ75..SA |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36021 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK C |
1 | ||
| 90520-36019 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK E |
1 | ||
| 90520-36022 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK D |
1 | ||
| 90520-36020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.9,MARK B |
1 | ||
| 90520-36023 |
FZJ75..SA T=2.2,MARK E |
1 | ||
| 90520-36020 |
FZJ75..SA T=1.9,MARK B |
1 | ||
| 90520-36021 |
FZJ75..SA T=2.0,MARK C |
1 | ||
| 90520-36019 |
FZJ75..SA T=1.8,MARK A |
1 | ||
| 90520-36022 |
FZJ75..SA T=2.1,MARK D |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36245-60030 |
FZJ75..SA |
1 | ||
| 36247 - RING, TRANSFER SYNCHRONIZER | ||||
| 36247-60010 |
FZJ7# |
1 | ||
| 36247-60011 |
FZJ75..SA |
1 | ||
| 36247-60011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-60020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
3 | ||
| 36249-60020 |
FZJ75..SA |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60030 |
FZJ75..SA NO.1 |
1 | ||
| 36255-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36255-60020 |
FZJ75..SA NO.2 |
1 | ||
| Common parts | ||||
| 90179-22019 | ||||
| 90301-28006 | ||||
| 90360-06004 | ||||
(9801- )FZJ7#..GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33391-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
2 | ||
| 33391-60010 |
FZJ7# |
2 | ||
| 33371-37030 |
FZJ75..SA |
2 | ||
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33391-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
2 | ||
| 33391-60010 |
FZJ7# |
2 | ||
| 33371-37030 |
FZJ75..SA |
2 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 N=12,MARK 12:31-33 |
1 | ||
| 33481-60100 |
FZJ75..SA N=12,MARK 12:31-33 |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60040 |
FZJ75..SA |
1 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60020 |
FZJ75..SA |
1 | ||
| 36202-60030 |
FZJ7# |
1 | ||
| 36202-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60070 |
FZJ7# |
1 | ||
| 36203-60071 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36203-60090 |
FZJ75..SA |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36212-60120 |
FZJ75..SA |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35030 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-35030 |
FZJ75..SA |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.65 |
1 | ||
| 90520-82001 |
FZJ75..SA T=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK B |
1 | ||
| 90520-32005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK A |
1 | ||
| 90520-32009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.4,MARK E |
1 | ||
| 90520-32007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK C |
1 | ||
| 90520-32008 |
FZJ75..SA T=2.3,MARK D |
1 | ||
| 90520-32005 |
FZJ75..SA T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..SA T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..SA T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ75..SA T=2.4,MARK E |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-50003 |
FZJ75..SA |
1 | ||
| 36212L - RING, SHAFT SNAP | ||||
| 90520-46007 |
FZJ75..SA T=3.05-3.10,MARK D |
1 | ||
| 90520-46005 |
FZJ75..SA T=2.95-3.00,MARK B |
1 | ||
| 90520-46004 |
FZJ75..SA T=2.90-2.95,MARK A |
1 | ||
| 90520-46009 |
FZJ75..SA T=3.15-3.20,MARK F |
1 | ||
| 90520-46008 |
FZJ75..SA T=3.10-3.15,MARK E |
1 | ||
| 90520-46006 |
FZJ75..SA T=3.00-3.05,MARK C |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60110 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36205-60010 |
FZJ75..SA |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57004 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57012 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57013 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.55,MARK 13 |
1 | ||
| 90201-57003 |
FZJ75..SA T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57006 |
FZJ75..SA T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57010 |
FZJ75..SA T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57007 |
FZJ75..SA T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57008 |
FZJ75..SA T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57009 |
FZJ75..SA T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57011 |
FZJ75..SA T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57013 |
FZJ75..SA T=0.55,MARK 13 |
1 | ||
| 90201-57005 |
FZJ75..SA T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57002 |
FZJ75..SA T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57012 |
FZJ75..SA T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57004 |
FZJ75..SA T=2.39-2.41,MARK 4 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FZJ75..SA |
1 | ||
| 90366-35060 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90366-33002 |
FZJ75..SA |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35058 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 FRONT |
1 | ||
| 90366-38007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 REAR |
1 | ||
| 90366-35058 |
FZJ75..SA FRONT |
1 | ||
| 90366-38007 |
FZJ75..SA REAR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-43005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.3 |
1 | ||
| 90364-42001 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 NO.2 |
1 | ||
| 90364-17010 |
FZJ75..SA |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-32005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.4,MARK E |
1 | ||
| 90520-32005 |
FZJ75..SA T=2.0,MARK A |
1 | ||
| 90520-32006 |
FZJ75..SA T=2.1,MARK B |
1 | ||
| 90520-32009 |
FZJ75..SA T=2.4,MARK E |
1 | ||
| 90520-32008 |
FZJ75..SA T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ75..SA T=2.2,MARK C |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 90363-40044 |
FZJ75..SA |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-76002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-76005 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.19-1.21,MARK 5 |
1 | ||
| 90201-76006 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.39-1.41,MARK 6 |
1 | ||
| 90201-76003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-76004 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.99-1.01,MARK 4 |
1 | ||
| 90201-76007 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.59-1.61,MARK 7 |
1 | ||
| 90201-76009 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.99-2.01,MARK 9 |
1 | ||
| 90201-76010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.19-2.21,MARK 10 |
1 | ||
| 90201-76012 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.59-2.61,MARK 12 |
1 | ||
| 90201-76008 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.79-1.81,MARK 8 |
1 | ||
| 90201-76013 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=0.51-0.59,MARK 13 |
1 | ||
| 90201-76011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.39-2.41,MARK 11 |
1 | ||
| 90201-76002 |
FZJ75..SA T=0.29-0.31,MARK 2 |
1 | ||
| 90201-76006 |
FZJ75..SA T=1.39-1.41,MARK 6 |
1 | ||
| 90201-76003 |
FZJ75..SA T=0.44-0.46,MARK 3 |
1 | ||
| 90201-76009 |
FZJ75..SA T=1.99-2.01,MARK 9 |
1 | ||
| 90201-76008 |
FZJ75..SA T=1.79-1.81,MARK 8 |
1 | ||
| 90201-76011 |
FZJ75..SA T=2.39-2.41,MARK 11 |
1 | ||
| 90201-76005 |
FZJ75..SA T=1.19-1.21,MARK 5 |
1 | ||
| 90201-76013 |
FZJ75..SA T=0.51-0.59,MARK 13 |
1 | ||
| 90201-76010 |
FZJ75..SA T=2.19-2.21,MARK 10 |
1 | ||
| 90201-76004 |
FZJ75..SA T=0.99-1.01,MARK 4 |
1 | ||
| 90201-76012 |
FZJ75..SA T=2.59-2.61,MARK 12 |
1 | ||
| 90201-76007 |
FZJ75..SA T=1.59-1.61,MARK 7 |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84002 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.7,MARK A |
1 | ||
| 90521-84002 |
FZJ75..SA T=1.7,MARK A |
1 | ||
| 90521-84003 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.8,MARK B |
1 | ||
| 90521-84003 |
FZJ75..SA T=1.8,MARK B |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FZJ75..SA |
1 | ||
| 36235-60040 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36236-60060 |
FZJ75..SA |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60030 |
FZJ7# |
1 | ||
| 36237-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36237-60050 |
FZJ75..SA |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39019 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.80,MARK E |
1 | ||
| 90520-39018 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.75,MARK D |
1 | ||
| 90520-39021 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.90,MARK G |
1 | ||
| 90520-39016 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.65,MARK B |
1 | ||
| 90520-39020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.85,MARK F |
1 | ||
| 90520-39017 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.70,MARK C |
1 | ||
| 90520-39015 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.60,MARK A |
1 | ||
| 90520-39016 |
FZJ75..SA T=2.65,MARK B |
1 | ||
| 90520-39019 |
FZJ75..SA T=2.80,MARK E |
1 | ||
| 90520-39015 |
FZJ75..SA T=2.60,MARK A |
1 | ||
| 90520-39018 |
FZJ75..SA T=2.75,MARK D |
1 | ||
| 90520-39017 |
FZJ75..SA T=2.70,MARK C |
1 | ||
| 90520-39021 |
FZJ75..SA T=2.90,MARK G |
1 | ||
| 90520-39020 |
FZJ75..SA T=2.85,MARK F |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36239-60010 |
FZJ75..SA |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36021 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.0,MARK C |
1 | ||
| 90520-36019 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.2,MARK E |
1 | ||
| 90520-36022 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=2.1,MARK D |
1 | ||
| 90520-36020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 T=1.9,MARK B |
1 | ||
| 90520-36023 |
FZJ75..SA T=2.2,MARK E |
1 | ||
| 90520-36020 |
FZJ75..SA T=1.9,MARK B |
1 | ||
| 90520-36021 |
FZJ75..SA T=2.0,MARK C |
1 | ||
| 90520-36019 |
FZJ75..SA T=1.8,MARK A |
1 | ||
| 90520-36022 |
FZJ75..SA T=2.1,MARK D |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60160 |
FZJ75..SA |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36245-60030 |
FZJ75..SA |
1 | ||
| 36247 - RING, TRANSFER SYNCHRONIZER | ||||
| 36247-60010 |
FZJ7# |
1 | ||
| 36247-60011 |
FZJ75..SA |
1 | ||
| 36247-60011 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-60020 |
FZJ75..ARL;FZJ73,75..CBR;FZJ70,71,74,78,79 |
3 | ||
| 36249-60020 |
FZJ75..SA |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60030 |
FZJ75..SA NO.1 |
1 | ||
| 36255-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36255-60020 |
FZJ75..SA NO.2 |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60030 |
FZJ75..SA NO.1 |
1 | ||
| 36255-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36255-60020 |
FZJ75..SA NO.2 |
1 | ||
| Common parts | ||||
| 90179-22019 | ||||
| 90301-28006 | ||||
| 91611-60618 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
