FZJ75RP-MRU (1992)
Toyota Land Cruiser

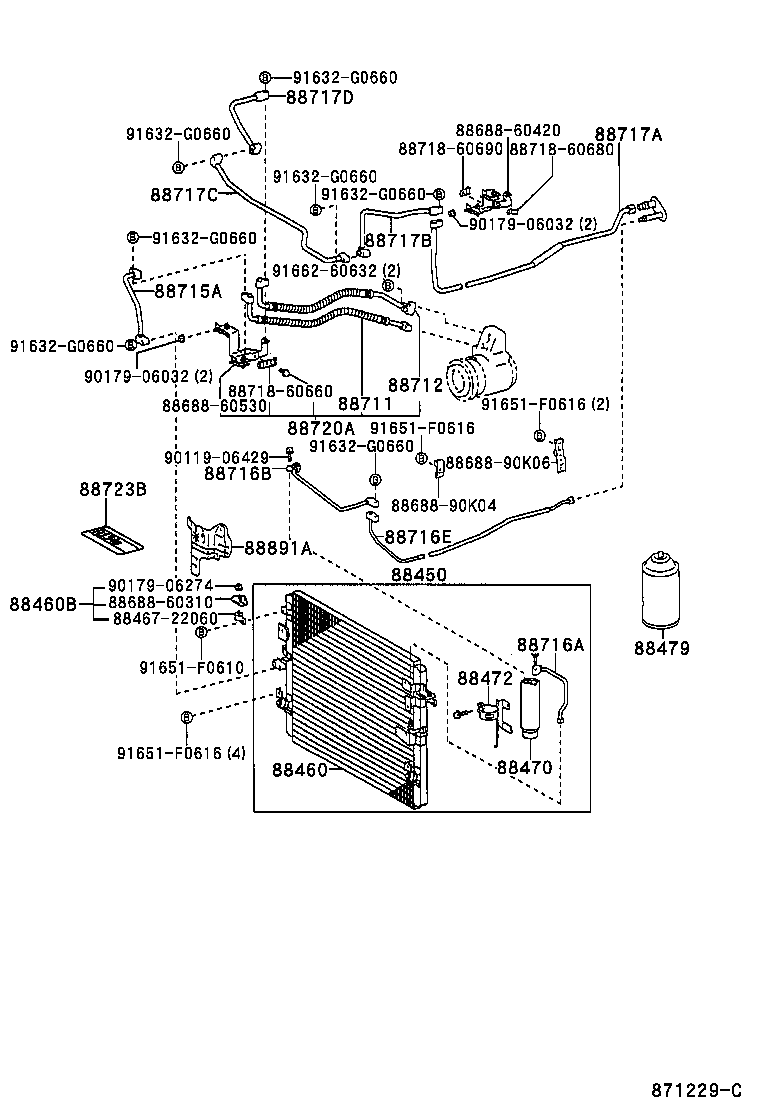

ILLUST NO. 1 OF 3(9201-9908)FZJ70,75..RHD..ARL,GEN ; (9201-9911)FZJ75..SA
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-60070 |
FZJ75..PIC..(GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60140 |
FZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 88460-60190 |
HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..PIC..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88460-60110 |
FZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88409-60020 |
HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60250 |
FZJ70,75..RHD..GEN |
1 | ||
| 88711-60380 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88711-60380 |
FZJ75..ARL..IV;FZJ70,75..RHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60440 |
FZJ70,75..RHD..GEN |
1 | ||
| 88712-60600 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88712-60600 |
FZJ75..ARL..IV;FZJ70,75..RHD..GEN |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60091 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 88715-60090 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-6A290 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88716-6A290 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A180 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-60890 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-6A181 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6A010 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-6A190 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60650 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60500 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60651 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60280 |
FJ70,75,HZJ75,PZJ7#..RHD..GEN |
1 | ||
| 88717-60580 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60480 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-60490 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60591 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60590 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60640 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60470 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60641 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-60020 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-22060 | ||||
| 88688-60310 | ||||
| 88688-60420 | ||||
| 88688-60530 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60660 | ||||
| 88718-60680 | ||||
| 88718-60690 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91632-G0660 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
| 91662-60632 | ||||
ILLUST NO. 1 OF 3(9001-9501)PZJ7# ; (9001-0007)HZJ70,73,75
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60140 |
FZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 88460-60190 |
HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..PIC..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88460-60110 |
FZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60250 |
FZJ70,75..RHD..GEN |
1 | ||
| 88711-60380 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88711-60380 |
FZJ75..ARL..IV;FZJ70,75..RHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60440 |
FZJ70,75..RHD..GEN |
1 | ||
| 88712-60600 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88712-60600 |
FZJ75..ARL..IV;FZJ70,75..RHD..GEN |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60091 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 88715-60090 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-6A290 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88716-6A290 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A180 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-60890 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-6A181 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6A010 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88716-6A190 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60650 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60500 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60651 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60280 |
FJ70,75,HZJ75,PZJ7#..RHD..GEN |
1 | ||
| 88717-60580 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88717-60480 |
FZJ70,75..RHD..(ARL,GEN) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K00 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88895-60010 | ||||
| 88899-60090 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-04995 | ||||
| 90099-32128 | ||||
| 90179-06032 | ||||
| 91613-10610 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
