FZJ75LP-MRU3 (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZ#

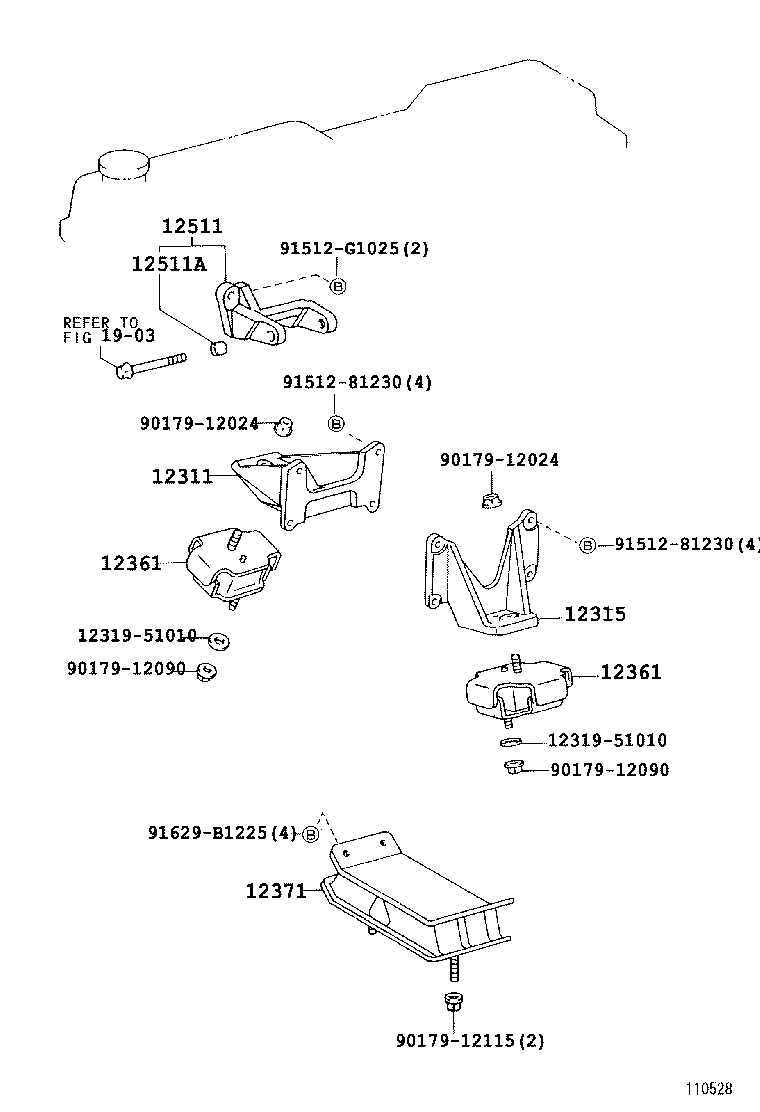

Click highlighted areas on diagram

diagram 12311 12315 1231951010 1231951010 12361 12361 12371 12511 12511A 1903 9017912024 9017912024 9017912090 9017912090 9017912115 9151281230 9151281230 91512G1025 91629B1225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-66020

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
12311-66020

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-66021

1FZ#..FZJ7#

 1
12315-66020

1FZF..FZJ7#

 1
12315-66021

1FZ#..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU

 1
12315-66022

1FZFE..FZJ75..ARL;1FZF..FZJ7#..GCC,GEN

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-66020

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 2
12361-66020

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-66020

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 2
12361-66020

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-66020

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
12371-66020

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
12511-66010

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
90387-10101

1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU

 1
Common parts
12319-51010
90179-12024
90179-12090
90179-12115
91512-81230
91512-G1025
91629-B1225
Linked diagrams
1903
