FZJ74L-KJMRKV (1999)
Toyota Land Cruiser

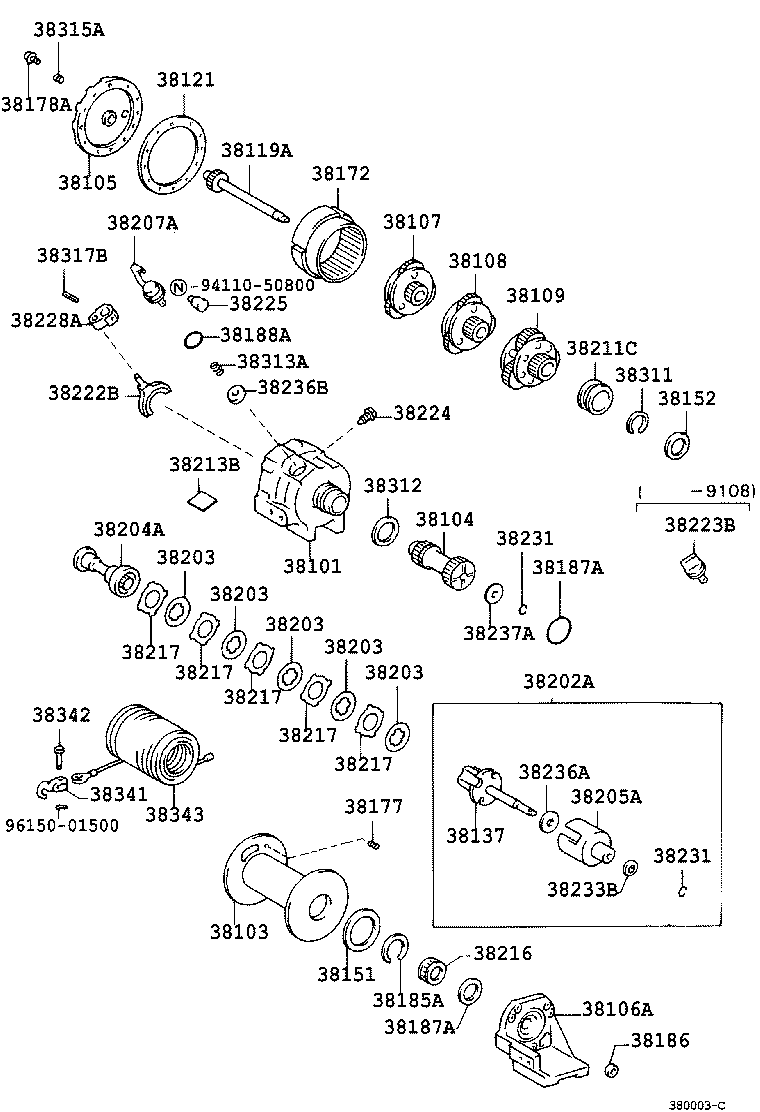

ILLUST NO. 3 OF 3(9001- )GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60221 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60171 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38104 - SHAFT, WINCH OUTPUT | ||||
| 38104-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60210 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38106A - CASE, WINCH BRAKE | ||||
| 38201-60220 |
FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN |
1 | ||
| 38201-60221 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38107 - GEAR SUB-ASSY, WINCH PLANETARY, NO.1 | ||||
| 38107-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38108 - GEAR SUB-ASSY, WINCH PLANETARY, NO.2 | ||||
| 38108-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38109 - GEAR SUB-ASSY, WINCH PLANETARY, NO.3 | ||||
| 38109-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38119A - SHAFT, WINCH DRIVE | ||||
| 38119-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60171 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60171 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38172 - GEAR, WINCH RING | ||||
| 38172-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38177 - BOLT, WINCH SET | ||||
| 38177-35010 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38178A - BOLT, WINCH GEAR CASE COVER | ||||
| 38178-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
12 | ||
| 38185A - RING, WINCH 1 WAY CLUTCH SNAP | ||||
| 38185-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
2 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
2 | ||
| 38188A - RING, WINCH CLUTCH SHIFT HANDLE | ||||
| 38188-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38202A - CLUTCH SUB-ASSY, WINCH, OUTER | ||||
| 38202-60171 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38204A - CLUTCH SUB-ASSY, WINCH INNER | ||||
| 38204-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38205A - CASE SUB-ASSY, WINCH CLUTCH, OUTER | ||||
| 38205-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38207A - LEVER SUB-ASSY, WINCH CLUTCH SHIFT | ||||
| 38207-60211 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38211C - SLEEVE, WINCH CLUTCH | ||||
| 38211-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38213B - PLATE, WINCH CAUTION, NO.5 | ||||
| 38213-60211 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60040 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
5 | ||
| 38222B - FORK, WINCH CLUTCH SHIFT | ||||
| 38222-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38224 - BOLT, WINCH CLUTCH SHIFT HANDLE | ||||
| 38224-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60040 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38228A - ADAPTER, WINCH CLUTCH SHIFT | ||||
| 38228-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
2 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
2 | ||
| 38233B - WASHER, WINCH CLUTCH INPUT SHAFT THRUST | ||||
| 38233-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38236A - WASHER, WINCH CLUTCH THRUST, NO.1 | ||||
| 38236-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38237A - WASHER, WINCH CLUTCH THRUST, NO.2 | ||||
| 38237-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38311 - RING, WINCH OUTPUT SHAFT SNAP | ||||
| 38311-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38312 - SPACER, WINCH OUTPUT SHAFT, NO.2 | ||||
| 38312-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38315A - PLUG, WINCH FILLER | ||||
| 38315-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38317B - PIN, WINCH CLUTCH SHIFT HANDLE SPRING | ||||
| 38317-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38341 - HOOK, WINCH WIRE | ||||
| 38341-60171 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38342 - PIN, WINCH WIRE HOOK | ||||
| 38342-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38343 - WINCH WIRE | ||||
| 38343-60171 |
FZJ71,74,78,79,HZJ7#..GCC,GEN |
1 | ||
| 38343-60172 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 96150-01500 | ||||

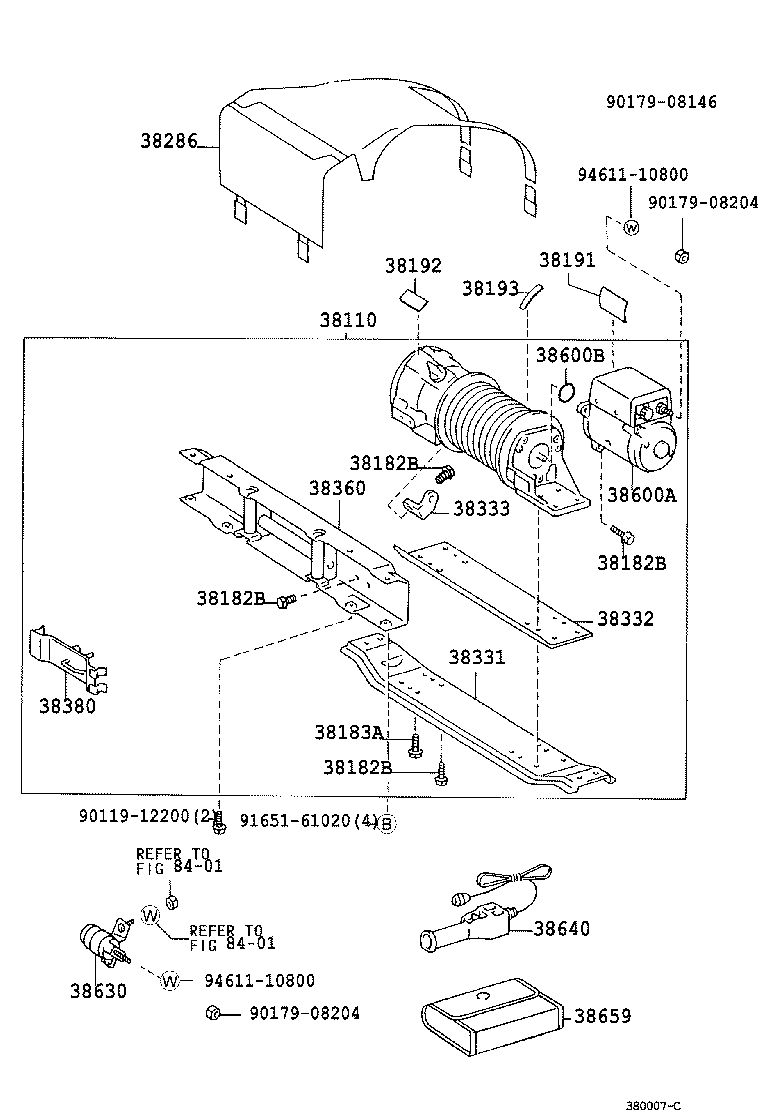

ILLUST NO. 1 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60224 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-40822 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX22-22 |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-40822 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX22-22 |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-40822 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX22-22 |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60830 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182-61025 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX25-25,(6T) |
2 | ||
| 38182-41018 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *10-1.25PX18-18 |
4 | ||
| 38182-40822 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN *8-1.25PX22-22 |
1 | ||
| 38183A - BOLT, WINCH, NO.2 | ||||
| 38183-61235 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
6 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60121 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-60110 |
FJ70,73..4FC;FZJ7#,LJ70,77..GCC,GEN |
1 | ||
| 38286-60111 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38331 - BASE, WINCH, NO.1 | ||||
| 38331-60220 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38332 - BASE, WINCH, NO.2 | ||||
| 38332-60170 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38333 - SPACER, MEMBER, NO.1 | ||||
| 38333-60221 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60042 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60022 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60060 |
HZJ78..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,PZJ7#..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 38600-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38600B - RING, O (FOR WINCH MOTOR) | ||||
| 90301-59044 |
FZJ71,74,78,79,HZJ71,78,79..GCC,GEN |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-60080 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| Common parts | ||||
| 90119-12200 | ||||
| 90179-08146 | ||||
| 90179-08204 | ||||
| 91651-61020 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

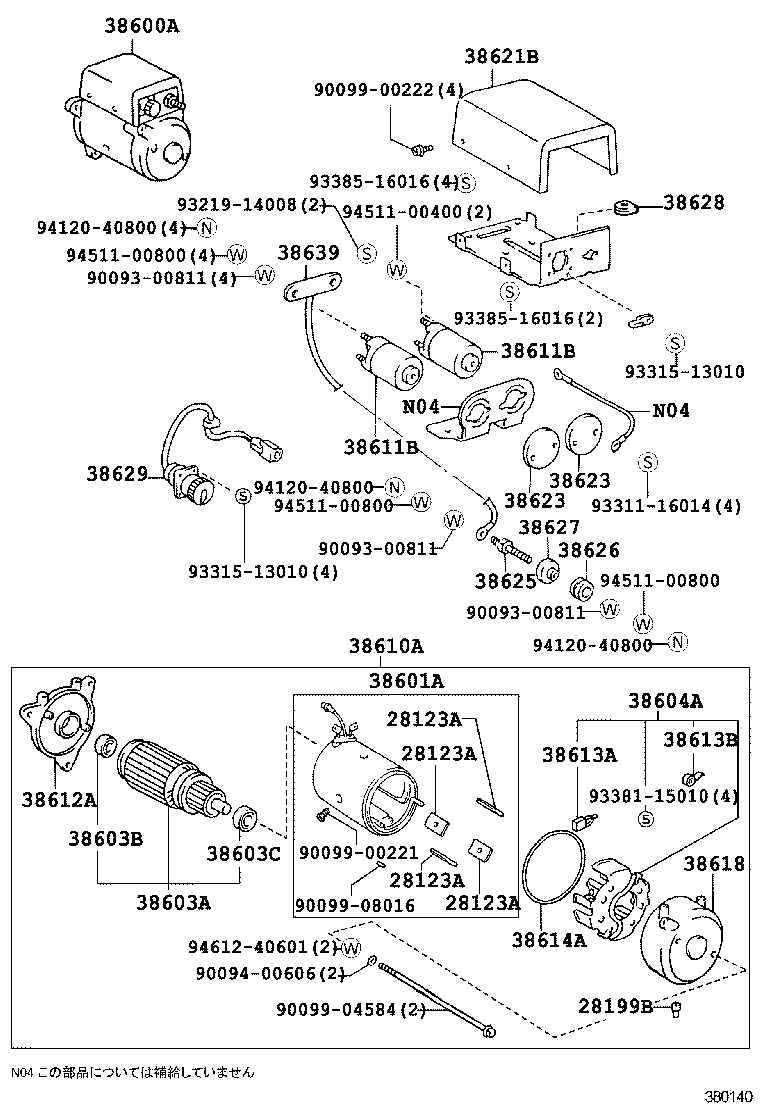

ILLUST NO. 2 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28123A - CORE, POLE | ||||
| 28123-46010 |
1HZ..HZJ79..GCC,GEN;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HZ..FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 28123A - CORE, POLE | ||||
| 28123-46010 |
1HZ..HZJ79..GCC,GEN;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HZ..FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 28123A - CORE, POLE | ||||
| 28123-46010 |
1HZ..HZJ79..GCC,GEN;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HZ..FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 28123A - CORE, POLE | ||||
| 28123-46010 |
1HZ..HZJ79..GCC,GEN;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HZ..FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 28199B - PROTECTOR, DUST WINCH MOTOR | ||||
| 28199-15090 |
1HZ..HZJ79..GCC,GEN;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HZ..FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60060 |
HZJ78..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,PZJ7#..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 38600-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60050 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60050 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38603C - BEARING, NO.2 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10201 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38604A - HOLDER ASSY, WINCH MOTOR BRUSH | ||||
| 38604-60050 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60050 |
FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN |
1 | ||
| 38610-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
2 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
4 | ||
| 38618 - FRAME, WINCH MOTOR COMMUTATOR END | ||||
| 38618-60050 |
FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN |
1 | ||
| 38618-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60050 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
2 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
2 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38628 - GROMET, WINCH | ||||
| 38628-60010 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60060 |
HZJ78..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,PZJ7#..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 38629-60060 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| 38639 - WIRE (FOR WINCH MOTOR) | ||||
| 38639-60050 |
FZJ71,78..GCC;HZJ79..GCC,GEN;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71,78..(GCC,GEN)..CBU |
1 | ||
| Common parts | ||||
| 90093-00811 | ||||
| 90094-00606 | ||||
| 90099-00221 | ||||
| 90099-00222 | ||||
| 90099-04584 | ||||
| 90099-08016 | ||||
| 93219-14008 | ||||
| 93311-16014 | ||||
| 93315-13010 | ||||
| 93381-15010 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00800 | ||||
| 94612-40601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
