FZJ74L-KJMRKV (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1FZFE..FZJ71,74

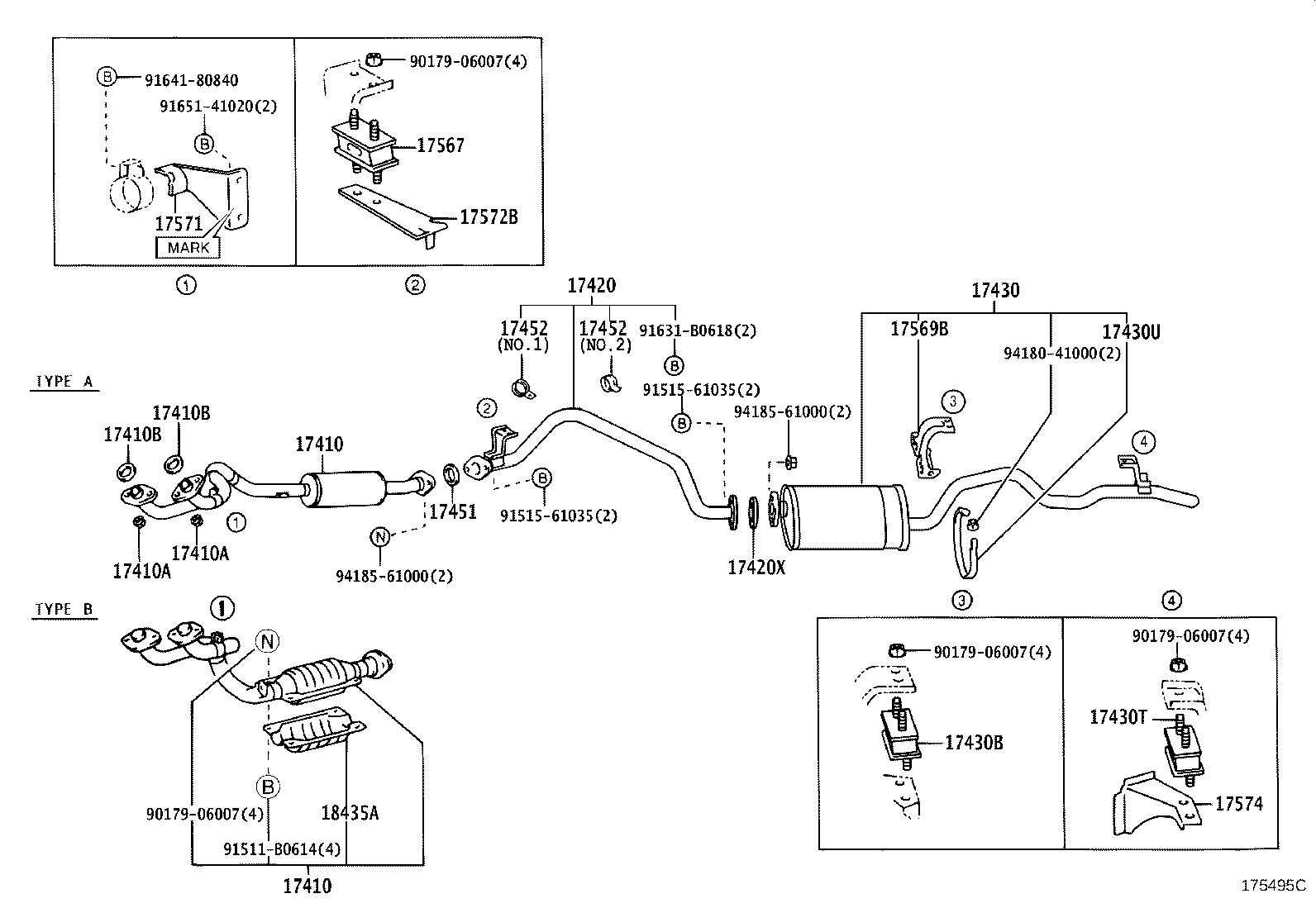

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17430B 17430T 17430U 17430U 17451 17452 17452 17567 17569B 17571 17572B 17574 18435A 9017906007 9017906007 9017906007 9017906007 91511B0614 9151561035 9151561035 91631B0618 9164180840 9165141020 9418041000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-66131

1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD

TYPE B:REFER TO ILLUSTRATION

 1
17410-66132

1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD

TYPE B:REFER TO ILLUSTRATION

 1
17410-66122

1FZFE..FZJ71,74,78,79

TYPE A:REFER TO ILLUSTRATION

 1
17410-66121

1FZFE..FZJ71,74,78,79

TYPE A:REFER TO ILLUSTRATION

 1
17410-66121

1FZFE..FZJ71,74,78,79

 1
17410-66132

1FZFE..FZJ74..STD;1FZFE..FZJ71,74,78,79..(HT,PIC)..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17410-66122

1FZFE..FZJ71,74,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-66131

1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD

TYPE B:REFER TO ILLUSTRATION

 1
17410-66132

1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD

TYPE B:REFER TO ILLUSTRATION

 1
17410-66122

1FZFE..FZJ71,74,78,79

TYPE A:REFER TO ILLUSTRATION

 1
17410-66121

1FZFE..FZJ71,74,78,79

TYPE A:REFER TO ILLUSTRATION

 1
17410-66121

1FZFE..FZJ71,74,78,79

 1
17410-66132

1FZFE..FZJ74..STD;1FZFE..FZJ71,74,78,79..(HT,PIC)..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17410-66122

1FZFE..FZJ71,74,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-66110

1FZFE..FZJ74

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-61352

1FZFE..FZJ74

 1
17405-61351

1FZFE..FZJ74

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-61222

1FZFE..FZJ71,74,78,79

MARK 13

 1
17571-61221

1FZFE..FZJ71,74,78,79

MARK 12

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18436-50040

1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD

TYPE B:REFER TO ILLUSTRATION

 2
18436-50040

1FZFE..FZJ71,74,78,79..GCC

TYPE B:REFER TO ILLUSTRATION

 2
Common parts
90179-06007
91511-B0614
91515-61035
91631-B0618
91641-80840
91651-41020
94180-41000
94185-61000
