FZJ74L-KJMRKV (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1FZFE

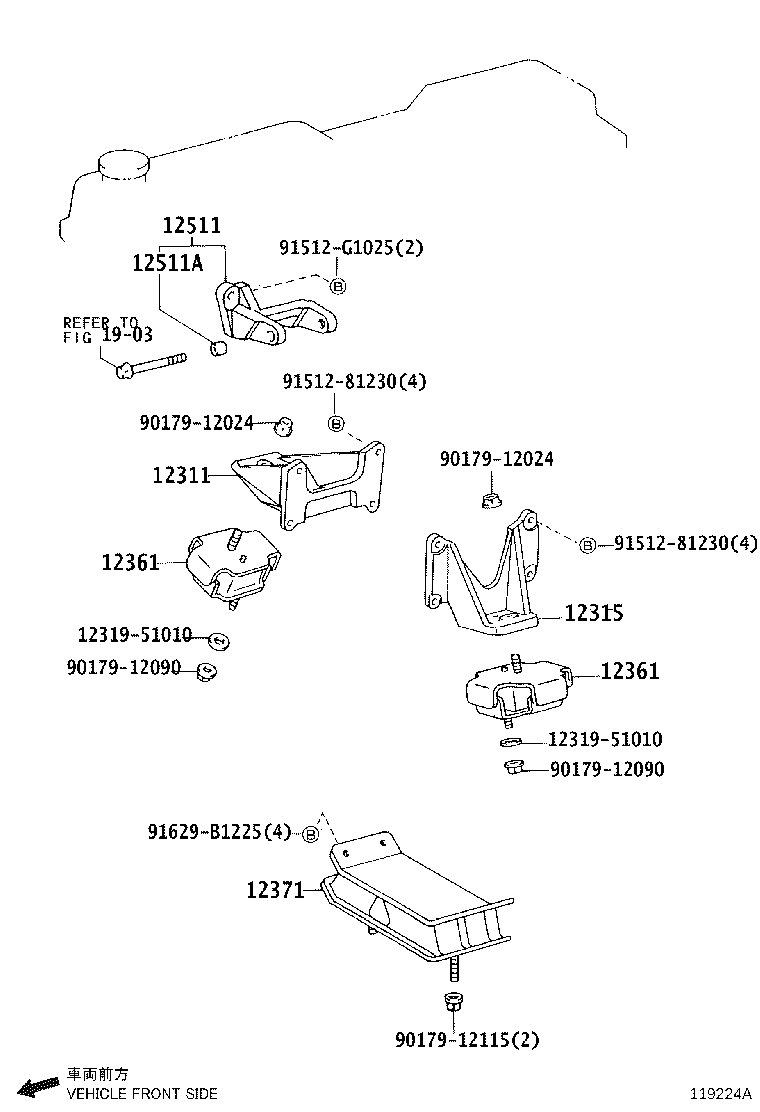

Click highlighted areas on diagram

diagram 12311 12315 1231951010 1231951010 12361 12361 12371 12511 12511A 1903 9017912024 9017912024 9017912090 9017912090 9017912115 9151281230 9151281230 91512G1025 91629B1225
Part # Description Qty Price
Common parts
12319-51010
90179-12024
90179-12090
90179-12115
91512-81230
91512-G1025
91629-B1225
Linked diagrams
1903
