FZJ73LV-MNU (1992)
Toyota Land Cruiser
(9001-9908)FJ70,FZJ70,HZJ70,KZJ70,LJ70,72,PZJ70,RJ70 ; (9908-0701)FZJ70,HZJ70,71 ;

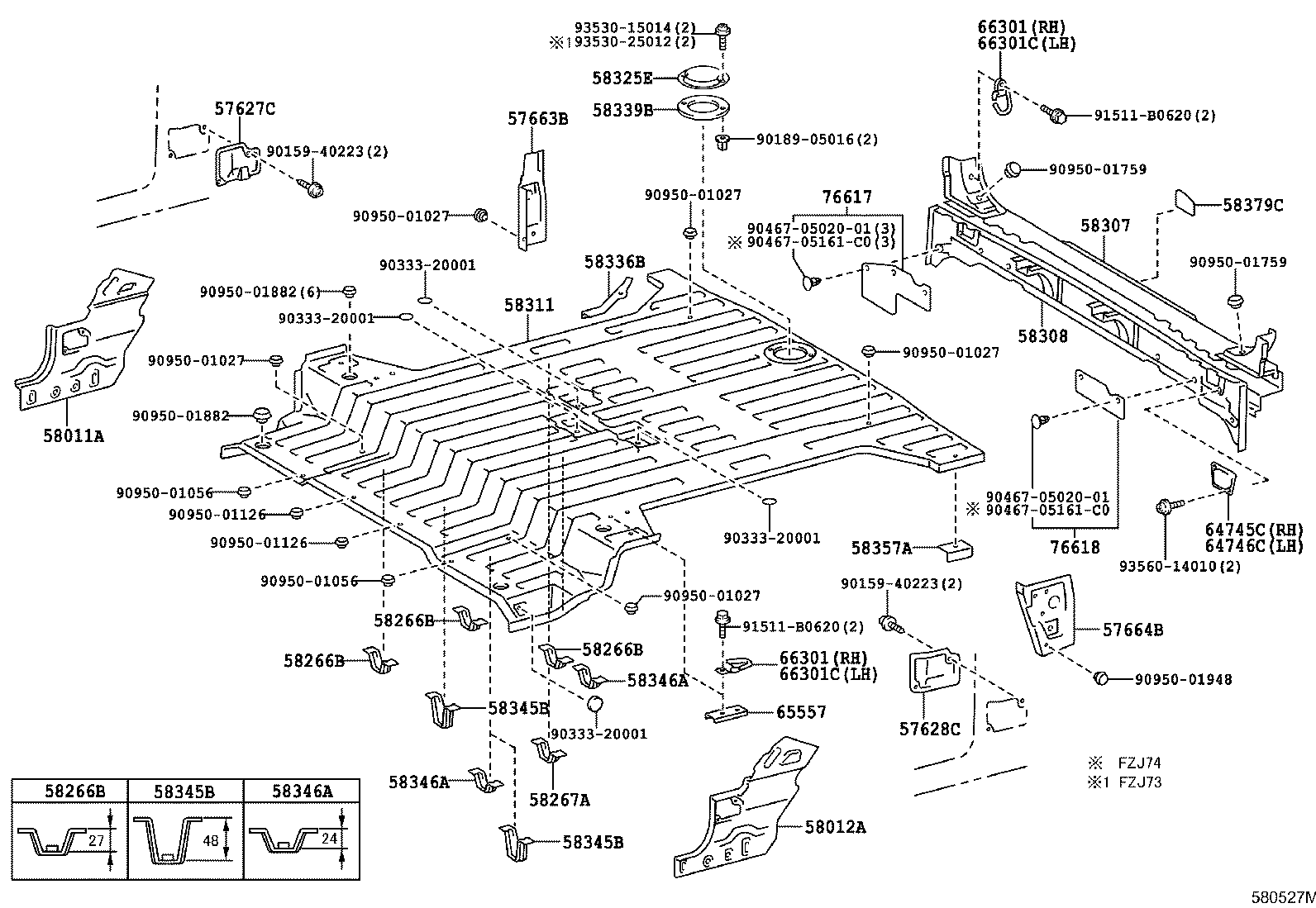

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57627C - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-60030 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 57627-60030 |
FZJ73..CBR |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 57628-60020 |
FZJ73..CBR |
1 | ||
| 57663B - PANEL, REAR FLOOR SIDE, REAR RH | ||||
| 57663-90K00 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57663-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 57663-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664B - PANEL, REAR FLOOR SIDE, REAR LH | ||||
| 57664-90K02 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57664-90K02 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664-90K02 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58011A - PANEL SUB-ASSY, FLOOR PANEL SIDE, RH | ||||
| 58011-90K01 |
FZJ73..CBR |
1 | ||
| 58011-90K01 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012A - PANEL SUB-ASSY, FLOOR PANEL SIDE, LH | ||||
| 58012-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012-60020 |
FZJ73..CBR |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58267A - BRACKET, FUEL TUBE CLAMP, NO.2 | ||||
| 58267-60030 |
FJ70,73,FZJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58267-60030 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58267-60030 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-60070 |
FJ70,73,FZJ70,73,LJ70,72,PZJ70,73,RJ70..GCC,GEN W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60080 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 NO.1 |
1 | ||
| 58307-60080 |
LJ72..LX;LJ72..RHD;FZJ73,PZJ70..HT..GEN;FJ70,FZJ70,RJ70..5F..GEN |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58307-60090 |
FZJ70,73,HZJ70,KZJ70,LJ72,PZJ70,73,RJ70 NO.3 |
1 | ||
| 58307-60070 |
PZJ70,73;RJ70..SOT W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60070 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60090 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) NO.2 |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58308-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 58308-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-60300 |
FZJ73..LX |
1 | ||
| 58311-60290 |
FZJ73..LX W(*FFRS & *SBE) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58325-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58325-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58325-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58336-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58339-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58339-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58339-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58357A - REINFORCEMENT, JACK CARRIER | ||||
| 58357-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58357-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58379C - PROTECTOR, BODY LOWER BACK | ||||
| 58379-60010 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64745C - COVER, LOWER BACK SERVICE HOLE, RH | ||||
| 64745-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 64745-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746C - COVER, LOWER BACK SERVICE HOLE, LH | ||||
| 64746-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K02 |
FZJ70..LX..CBR;FZJ71,HZJ71..HT;FJ70,73,FZJ73,74,HZJ73,LJ70,72,PZJ70,73,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70,KZJ70,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70..GCC;FZJ70,73,HZJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70..LX |
1 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K02 |
FZJ70..LX..CBR;FZJ71,HZJ71..HT;FJ70,73,FZJ73,74,HZJ73,LJ70,72,PZJ70,73,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70,KZJ70,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70..GCC;FZJ70,73,HZJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70..LX |
1 | ||
| 66301C - HOOK SUB-ASSY, ROPE, LH | ||||
| 66301-90K02 |
FJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,KZJ70,LJ72..GEN;FZJ73,HZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70,KZJ70,LJ72,RJ70..HT |
1 | ||
| 66301C - HOOK SUB-ASSY, ROPE, LH | ||||
| 66301-90K02 |
FJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,KZJ70,LJ72..GEN;FZJ73,HZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70,KZJ70,LJ72,RJ70..HT |
1 | ||
| 76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH | ||||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76617-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH | ||||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76618-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 74413-60070 | ||||
| 74453-60070 | ||||
| 90159-40223 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90467-0502001 | ||||
| 90467-05161C0 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
| 91511-B0620 | ||||
| 93530-15014 | ||||
| 93530-25012 | ||||
(9001-9908)FJ75,FZJ75,HJ75,HZJ75,PZJ75 ; (9908-0701)FZJ75,HDJ7#,HZJ75,78,79 ; (9908
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57663B - PANEL, REAR FLOOR SIDE, REAR RH | ||||
| 57663-90K00 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57663-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 57663-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664B - PANEL, REAR FLOOR SIDE, REAR LH | ||||
| 57664-90K02 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57664-90K02 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664-90K02 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58011A - PANEL SUB-ASSY, FLOOR PANEL SIDE, RH | ||||
| 58011-90K01 |
FZJ73..CBR |
1 | ||
| 58011-90K01 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012A - PANEL SUB-ASSY, FLOOR PANEL SIDE, LH | ||||
| 58012-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012-60020 |
FZJ73..CBR |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-60070 |
FJ70,73,FZJ70,73,LJ70,72,PZJ70,73,RJ70..GCC,GEN W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60080 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 NO.1 |
1 | ||
| 58307-60080 |
LJ72..LX;LJ72..RHD;FZJ73,PZJ70..HT..GEN;FJ70,FZJ70,RJ70..5F..GEN |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58307-60090 |
FZJ70,73,HZJ70,KZJ70,LJ72,PZJ70,73,RJ70 NO.3 |
1 | ||
| 58307-60070 |
PZJ70,73;RJ70..SOT W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60070 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60090 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) NO.2 |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58308-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 58308-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-60300 |
FZJ73..LX |
1 | ||
| 58311-60290 |
FZJ73..LX W(*FFRS & *SBE) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58325-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58325-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58325-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58336-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58339-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58339-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58339-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58357A - REINFORCEMENT, JACK CARRIER | ||||
| 58357-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58357-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58379C - PROTECTOR, BODY LOWER BACK | ||||
| 58379-60010 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64745C - COVER, LOWER BACK SERVICE HOLE, RH | ||||
| 64745-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 64745-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746C - COVER, LOWER BACK SERVICE HOLE, LH | ||||
| 64746-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH | ||||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76617-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH | ||||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76618-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90044-63020 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90463-08063 | ||||
| 90467-0502001 | ||||
| 90467-05161C0 | ||||
| 90467-08029 | ||||
| 90950-01011 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
| 93530-15014 | ||||
| 93530-25012 | ||||
| 93540-14008 | ||||
| 93560-14010 | ||||
(9001-9908)FJ73,FZJ73,HZJ73,PZJ73 ; (9908-0701)FZJ73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57627C - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-60030 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 57627-60030 |
FZJ73..CBR |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 57628-60020 |
FZJ73..CBR |
1 | ||
| 57663B - PANEL, REAR FLOOR SIDE, REAR RH | ||||
| 57663-90K00 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57663-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 57663-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664B - PANEL, REAR FLOOR SIDE, REAR LH | ||||
| 57664-90K02 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 57664-90K02 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 57664-90K02 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58011A - PANEL SUB-ASSY, FLOOR PANEL SIDE, RH | ||||
| 58011-90K01 |
FZJ73..CBR |
1 | ||
| 58011-90K01 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012A - PANEL SUB-ASSY, FLOOR PANEL SIDE, LH | ||||
| 58012-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 58012-60020 |
FZJ73..CBR |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-90K00 |
FZJ73..CBR |
4 | ||
| 58267A - BRACKET, FUEL TUBE CLAMP, NO.2 | ||||
| 58267-60030 |
FJ70,73,FZJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58267-60030 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58267-60030 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-60070 |
FJ70,73,FZJ70,73,LJ70,72,PZJ70,73,RJ70..GCC,GEN W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60080 |
FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70 NO.1 |
1 | ||
| 58307-60080 |
LJ72..LX;LJ72..RHD;FZJ73,PZJ70..HT..GEN;FJ70,FZJ70,RJ70..5F..GEN |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58307-60090 |
FZJ70,73,HZJ70,KZJ70,LJ72,PZJ70,73,RJ70 NO.3 |
1 | ||
| 58307-60070 |
PZJ70,73;RJ70..SOT W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60070 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR) |
1 | ||
| 58307-60090 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) NO.2 |
1 | ||
| 58307-60090 |
FZJ73..LX..GEN NO.4 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58308-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70 |
1 | ||
| 58308-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-60300 |
FZJ73..LX |
1 | ||
| 58311-60290 |
FZJ73..LX W(*FFRS & *SBE) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58325-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58325-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58325-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58336-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-90K00 |
FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 58339-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58339-90K00 |
FZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN) |
1 | ||
| 58339-90K00 |
PZJ70,73;RJ70..SOT |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-90K00 |
FJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77 |
1 | ||
| 58345-90K00 |
FZJ73..CBR |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-90K00 |
FJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77 |
1 | ||
| 58345-90K00 |
FZJ73..CBR |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-90K00 |
FJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77 |
1 | ||
| 58345-90K00 |
FZJ73..CBR |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-90K00 |
FZJ73..CBR |
5 | ||
| 58346-90K00 |
FJ73,FZJ73,HZJ73,PZJ73 |
5 | ||
| 58357A - REINFORCEMENT, JACK CARRIER | ||||
| 58357-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 58357-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 58379C - PROTECTOR, BODY LOWER BACK | ||||
| 58379-60010 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64745C - COVER, LOWER BACK SERVICE HOLE, RH | ||||
| 64745-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 64745-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746C - COVER, LOWER BACK SERVICE HOLE, LH | ||||
| 64746-90K00 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 64746-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K02 |
FZJ70..LX..CBR;FZJ71,HZJ71..HT;FJ70,73,FZJ73,74,HZJ73,LJ70,72,PZJ70,73,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70,KZJ70,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70..GCC;FZJ70,73,HZJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70..LX |
1 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K02 |
FZJ70..LX..CBR;FZJ71,HZJ71..HT;FJ70,73,FZJ73,74,HZJ73,LJ70,72,PZJ70,73,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70,KZJ70,RJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70..GCC;FZJ70,73,HZJ70..LX |
1 | ||
| 66301-90K02 |
FZJ70,73,HZJ70..LX |
1 | ||
| 66301C - HOOK SUB-ASSY, ROPE, LH | ||||
| 66301-90K02 |
FJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,KZJ70,LJ72..GEN;FZJ73,HZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70,KZJ70,LJ72,RJ70..HT |
1 | ||
| 66301C - HOOK SUB-ASSY, ROPE, LH | ||||
| 66301-90K02 |
FJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,KZJ70,LJ72..GEN;FZJ73,HZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70..HT |
1 | ||
| 66302-90K00 |
FZJ70,73,HZJ70,KZJ70,LJ72,RJ70..HT |
1 | ||
| 76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH | ||||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76617-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76617-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH | ||||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ70,72,PZJ7#,RJ70..HT,SOT |
1 | ||
| 76618-90K01 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 76618-90K01 |
FZJ75..HT;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90467-0502001 | ||||
| 90467-05161C0 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 91511-B0620 | ||||
| 93530-15014 | ||||
| 93530-25012 | ||||
| 93560-14010 | ||||
ILLUST NO. 2 OF 2(0701-1608)HT,PIC,SOT
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-50001 | ||||
| 90950-01027 | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| 90950-01826 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
