FZJ73LV-MNU (1992)
Toyota Land Cruiser
(9201-9801)FZJ7# ; (9801-0701)FZJ75,78,79,HDJ7#..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60090 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33325-60060 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ7# |
1 | ||
| 33449-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ7# |
1 | ||
| 33469-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60210 |
FZJ7# |
1 | ||
| 36103-60230 |
FZJ7#..GCC,GEN W(*ELC) |
1 | ||
| 36103-60230 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36103-60210 |
FZJ7#..CBR |
1 | ||
| 36103-60280 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 36103-60230 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU W(*ELC) |
1 | ||
| 36103-60270 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36103-60210 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FZJ7# |
1 | ||
| 36105-60010 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36105-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36109-60050 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ7# |
1 | ||
| 36104-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36104-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11128 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90447-11028 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11128 |
FZJ7# |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 90447-11029 |
FZJ7# |
1 | ||
| 90445-11143 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
FZJ7# ID=6.0 |
1 | ||
| 90301-07012 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU ID=6.0 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36122-60040 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36122-60040 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36124-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60020 |
FZJ7# |
1 | ||
| 36129-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36144-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36149-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36149-60020 |
FZJ7# |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60011 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36182-60010 |
FZJ7# |
1 | ||
| 36182-60011 |
FZJ7# |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 36184-60010 |
FZJ7# |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36185-60030 |
FZJ7# |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ7# |
1 | ||
| 36186-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
FZJ7# |
1 | ||
| 36187-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FZJ7# |
1 | ||
| 36209-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209-60030 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10262 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01685 | ||||
| 91611-60614 | ||||
| 91611-60812 | ||||
| 91611-61025 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-30400 | ||||

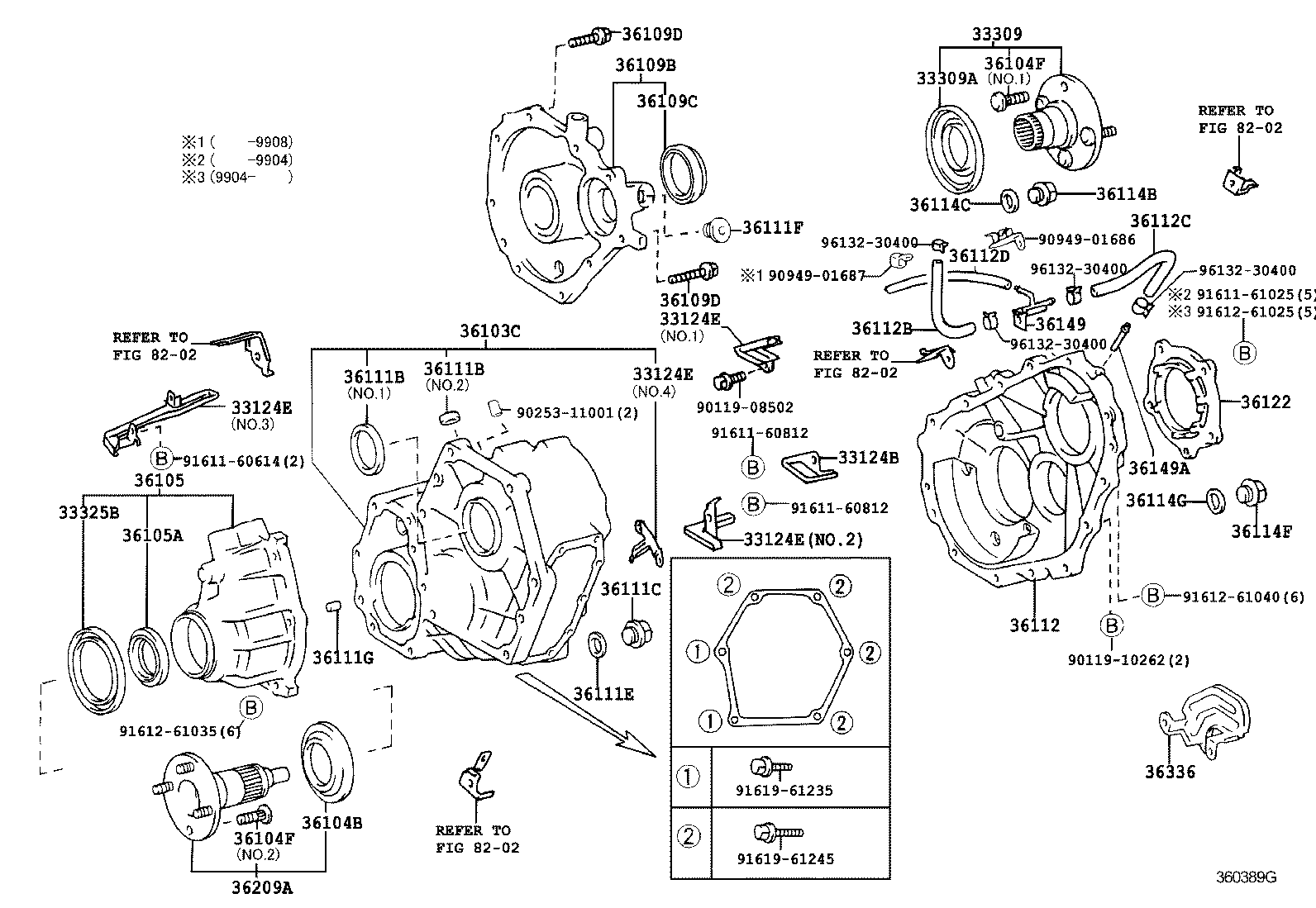

(9001-0007)FJ7#,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-60120 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36103-60150 |
FJ7#,HZJ70,73..5F;HZJ75..5F..(ARL,GCC,GEN) W(*ELC) |
1 | ||
| 36103-60120 |
PZJ70,73 W(MECHANICAL WINCH) |
1 | ||
| 36103-60140 |
FJ75..GCC;FJ75..RHD..5F;FJ75..HT..5F..GEN;FJ70,73,HJ75,HZJ7#..5F |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-10688 |
PZJ70,73;PZJ75..4F;RJ70..SOT *10-1.25PX35-35 |
3 | ||
| 90119-10689 |
PZJ70,73;PZJ75..4F;RJ70..SOT *10-1.25PX40-40 |
8 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 91659-61245 |
PZJ70,73;PZJ75..4F;RJ70..SOT *12-1.25PX40-30 |
4 | ||
| 90119-12234 |
PZJ70,73;PZJ75..4F;RJ70..SOT *12-1.25PX93-30 |
3 | ||
| 91652-61040 |
PZJ70,73;PZJ75..4F;RJ70..SOT *10-1.25PX40-30 |
1 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 91659-61245 |
PZJ70,73;PZJ75..4F;RJ70..SOT *12-1.25PX40-30 |
4 | ||
| 90119-12234 |
PZJ70,73;PZJ75..4F;RJ70..SOT *12-1.25PX93-30 |
3 | ||
| 91652-61040 |
PZJ70,73;PZJ75..4F;RJ70..SOT *10-1.25PX40-30 |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-60041 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,PZJ7# REAR |
1 | ||
| 33309-60060 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33309-60060 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33309-60041 |
PZJ70,73;PZJ75..4F REAR |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-60041 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,PZJ7# REAR |
1 | ||
| 33309-60060 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33309-60060 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33309-60041 |
PZJ70,73;PZJ75..4F REAR |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90179-22005 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90179-22005 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90201-22005 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90201-22005 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03075 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 90930-03075 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-11028 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11128 |
FZJ7# |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 90447-11029 |
FZJ7# |
1 | ||
| 90445-11128 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90445-11143 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36119-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36119B - RECEIVER, TRANSFER OIL, NO.2 | ||||
| 36119-60030 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36119-60030 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36119C - BOLT (FOR TRANSFER OIL RECEIVER NO.1) | ||||
| 91611-60610 |
PZJ70,73;PZJ75..4F;RJ70..SOT *6-1.00PX10-10 |
1 | ||
| 91611-60610 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# *6-1.00PX10-10 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36122-60040 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36122-60040 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36122A - BOLT (FOR TRANSFER CASE)COVER NO.2 | ||||
| 91612-B1020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
6 | ||
| 91611-61020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
6 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36124-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36124A - BOLT (FOR TRANSFER POWER TAKE-OFF COVER) | ||||
| 90119-08353 |
PZJ70,73;PZJ75..4F;RJ70..SOT *8-1.25PX30-23.5 |
2 | ||
| 91651-60830 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# *8-1.25PX30-30 |
4 | ||
| 90119-08353 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# *8-1.25PX30-23.5 |
2 | ||
| 91651-60830 |
PZJ70,73;PZJ75..4F;RJ70..SOT *8-1.25PX30-30 |
4 | ||
| 36124A - BOLT (FOR TRANSFER POWER TAKE-OFF COVER) | ||||
| 90119-08353 |
PZJ70,73;PZJ75..4F;RJ70..SOT *8-1.25PX30-23.5 |
2 | ||
| 91651-60830 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# *8-1.25PX30-30 |
4 | ||
| 90119-08353 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# *8-1.25PX30-23.5 |
2 | ||
| 91651-60830 |
PZJ70,73;PZJ75..4F;RJ70..SOT *8-1.25PX30-30 |
4 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36128-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36128A - BOLT (FOR BREATHER OIL DEFLECTOR) | ||||
| 91611-60610 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 91611-60610 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36132-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER) | ||||
| 90311-48023 |
PZJ70,73;PZJ75..4F;RJ70..SOT OD=65 |
1 | ||
| 90311-48010 |
PZJ70,73;PZJ75..4F;RJ70..SOT OD=62 |
1 | ||
| 36132C - BOLT (FOR OUTPUT SHAFT BEARING RETAINER REAR NO.1) | ||||
| 90119-10262 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
6 | ||
| 90119-10262 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
6 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36134-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90311-48009 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 90311-48009 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-60030 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36142-60030 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 33142-60050 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36144-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36147A - GASKET, TRANSFER CASE | ||||
| 36143-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36143-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36152-60030 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36152-60030 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60010 |
FZJ70,73 |
1 | ||
| 36336-60010 |
FZJ70..HT..GEN;FZJ73..GEN..CBR |
1 | ||

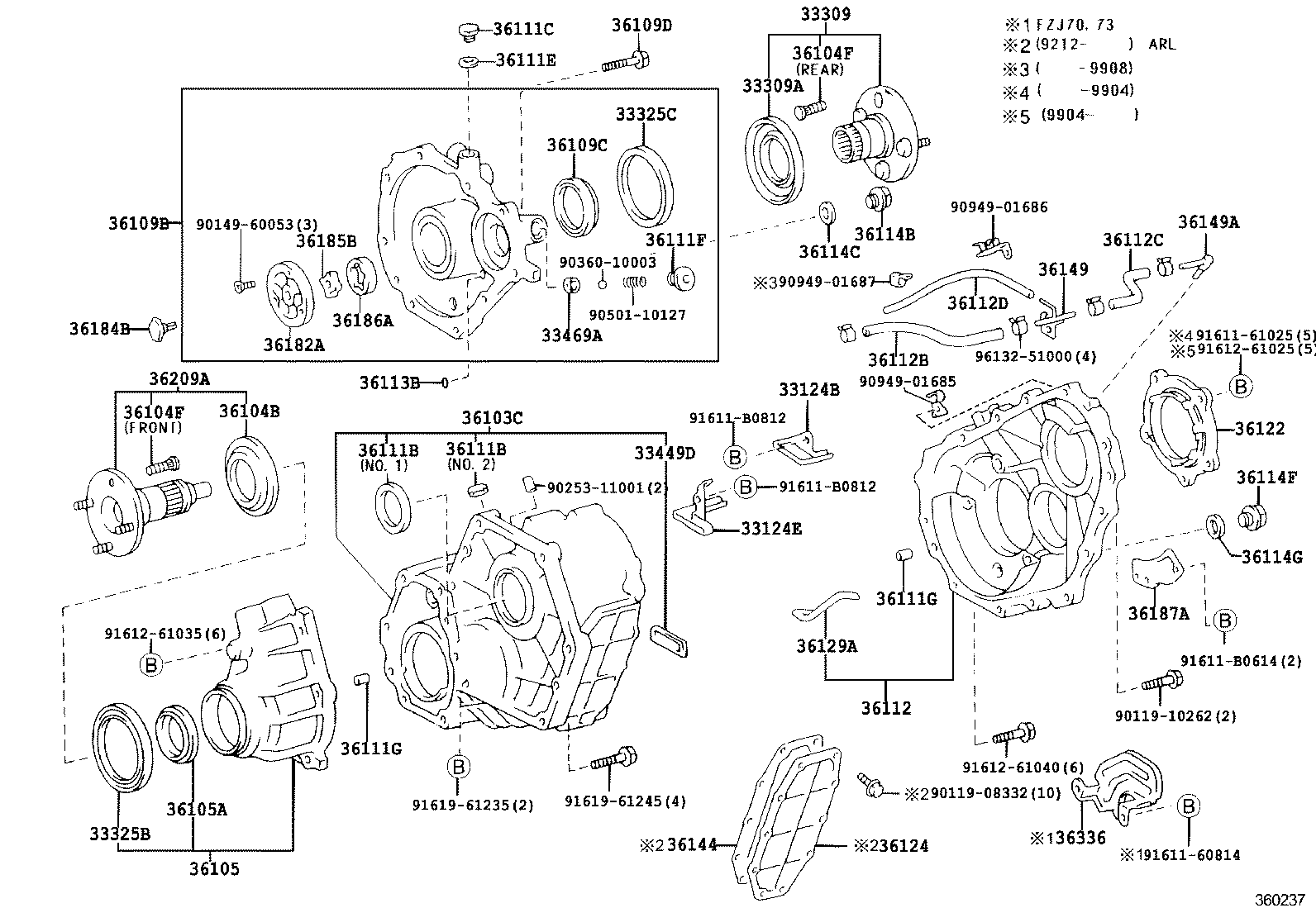

(9201-9801)FZJ70 ; (9201-9801)FZJ75..ARL ; (9201-9801)FZJ73,75..CBR ; (9801-0701)FZ
W(ELECTRIC CONTROL TRANSFER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60090 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33325-60060 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ7# |
1 | ||
| 33449-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ7# |
1 | ||
| 33469-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60210 |
FZJ7# |
1 | ||
| 36103-60230 |
FZJ7#..GCC,GEN W(*ELC) |
1 | ||
| 36103-60230 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36103-60210 |
FZJ7#..CBR |
1 | ||
| 36103-60280 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 36103-60230 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU W(*ELC) |
1 | ||
| 36103-60270 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36103-60210 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FZJ7# |
1 | ||
| 36105-60010 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36105-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36109-60050 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ7# |
1 | ||
| 36104-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36104-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11128 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90447-11028 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11128 |
FZJ7# |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 90447-11029 |
FZJ7# |
1 | ||
| 90445-11143 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11134 |
FZJ7#..GEN..CBR |
1 | ||
| 90445-11108 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 90445-11138 |
FZJ73..CBR;FZJ70,75..GEN..CBR |
1 | ||
| 90445-11108 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08277 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 90445-08277 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 90447-08152 |
FZJ73..CBR;FZJ70,75..GEN..CBR |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
FZJ7# ID=6.0 |
1 | ||
| 90301-07012 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU ID=6.0 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36122-60040 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36122-60040 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36124-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60020 |
FZJ7# |
1 | ||
| 36129-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36144-60020 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36149-60010 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36149-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36149-60020 |
FZJ7# |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60011 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36182-60010 |
FZJ7# |
1 | ||
| 36182-60011 |
FZJ7# |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 36184-60010 |
FZJ7# |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36185-60030 |
FZJ7# |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ7# |
1 | ||
| 36186-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
FZJ7# |
1 | ||
| 36187-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FZJ7# |
1 | ||
| 36209-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209-60030 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60010 |
FZJ70,73 |
1 | ||
| 36336-60010 |
FZJ70..HT..GEN;FZJ73..GEN..CBR |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10262 | ||||
| 90149-60053 | ||||
| 90253-11001 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01685 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||

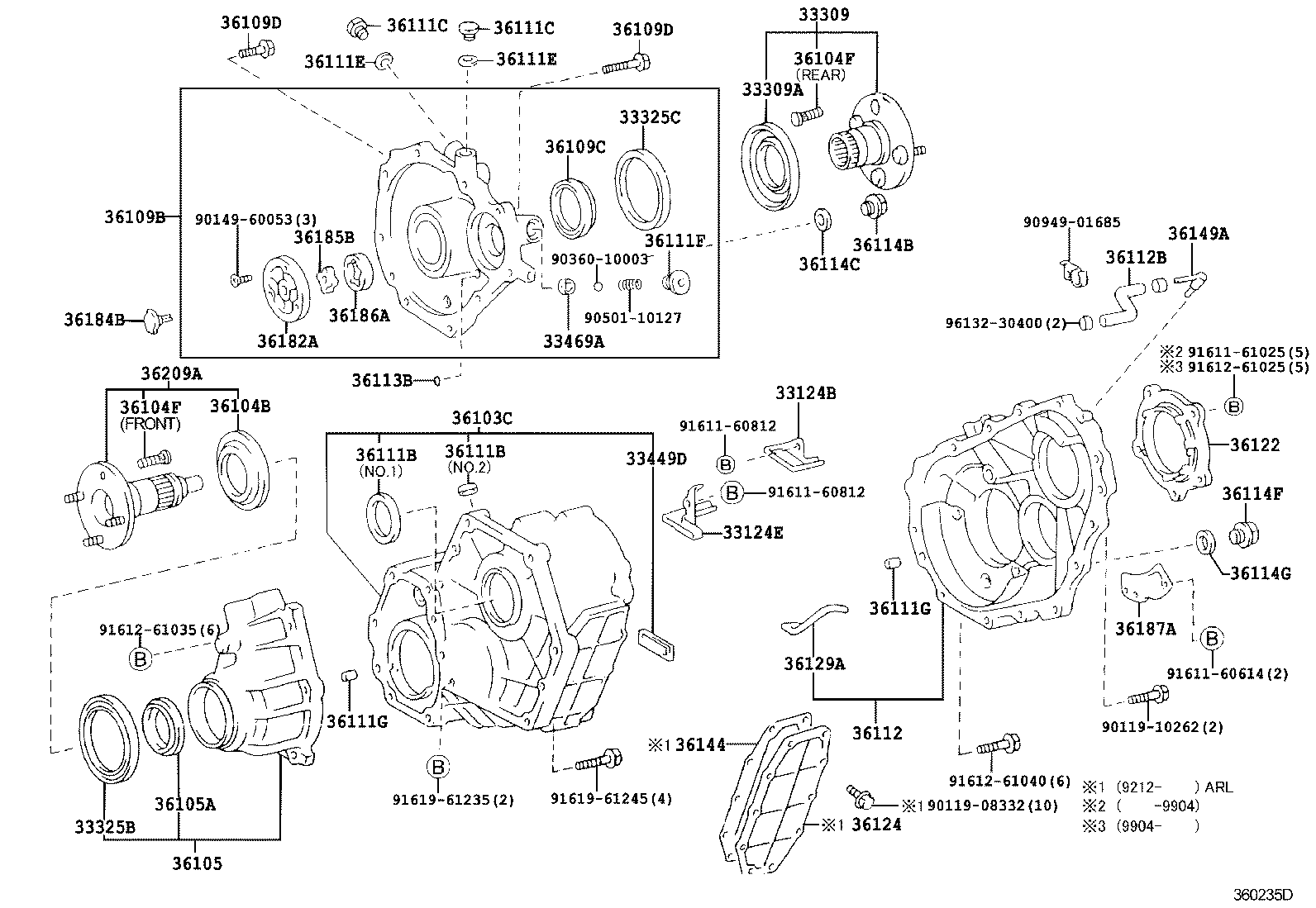

(9801- )FZJ78,79 ; (9801- )FZJ70,71,73,74,75..GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60090 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33325-60060 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60210 |
FZJ7# |
1 | ||
| 36103-60230 |
FZJ7#..GCC,GEN W(*ELC) |
1 | ||
| 36103-60230 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36103-60210 |
FZJ7#..CBR |
1 | ||
| 36103-60280 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 36103-60230 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU W(*ELC) |
1 | ||
| 36103-60270 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36103-60210 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FZJ7# |
1 | ||
| 36105-60010 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36105-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36109-60050 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ7# |
1 | ||
| 36104-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36104-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11128 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90447-11028 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11128 |
FZJ7# |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 90447-11029 |
FZJ7# |
1 | ||
| 90445-11143 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36122-60040 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36122-60040 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36149-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36149-60020 |
FZJ7# |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FZJ7# |
1 | ||
| 36209-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209-60030 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60010 |
FZJ70,73 |
1 | ||
| 36336-60010 |
FZJ70..HT..GEN;FZJ73..GEN..CBR |
1 | ||
| Common parts | ||||
| 90119-10262 | ||||
| 90949-01685 | ||||
| 91611-61025 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(9801- )FZJ73 ; (9801- )FZJ70,75..CBR ; (9801- )FZJ75..GEN..IV..EFI ; (990
W(ELECTRIC CONTROL TRANSFER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ7# |
1 | ||
| 33124-60030 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 33124-60030 |
FZJ7#..GEN..CBR NO.2 |
1 | ||
| 33124-60010 |
FZJ7#..GEN..CBR NO.1 |
1 | ||
| 33124-60050 |
FZJ7#..GEN..CBR NO.3 |
1 | ||
| 33124-60060 |
FZJ7#..GEN..CBR NO.4 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60090 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60090 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33325-60060 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60210 |
FZJ7# |
1 | ||
| 36103-60230 |
FZJ7#..GCC,GEN W(*ELC) |
1 | ||
| 36103-60230 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36103-60210 |
FZJ7#..CBR |
1 | ||
| 36103-60280 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 36103-60230 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU W(*ELC) |
1 | ||
| 36103-60270 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36103-60210 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 33325-60010 |
PZJ70,73;PZJ75..4F;RJ70..SOT FRONT |
1 | ||
| 33325-60021 |
PZJ70,73;PZJ75..4F;RJ70..SOT REAR |
1 | ||
| 33325-60010 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 33325-60040 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
PZJ70,73;PZJ75..4F FRONT |
4 | ||
| 90114-11124 |
PZJ70,73;PZJ75..4F REAR |
4 | ||
| 90114-10017 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV FRONT |
4 | ||
| 90114-10061 |
FZJ7#..GEN..CBR FRONT |
4 | ||
| 90114-11003 |
FZJ7#..GEN..CBR REAR |
4 | ||
| 90114-11124 |
FZJ75..CBU;FZJ75..LHD..IV;FZJ75..ARL..IV;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL) REAR |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FZJ7# |
1 | ||
| 36105-60010 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36105-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36109-60050 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10180 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU *10-1.25PX35-30 |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90311-48016 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI NO.1 |
1 | ||
| 90311-48016 |
FZJ7# NO.1 |
1 | ||
| 90310-16001 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU NO.2 |
1 | ||
| 90311-48018 |
FZJ75..ARL;FZJ7#..GEN..CBR NO.1 |
1 | ||
| 90316-48003 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 96411-11600 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 96411-11600 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90341-18006 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 90430-18008 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90430-18008 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU W(*ELC) |
1 | ||
| 90430-18008 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ7# |
1 | ||
| 90341-18006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.1 |
1 | ||
| 90341-18057 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 90341-18039 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90341-18048 |
FZJ7#..GEN..CBR |
1 | ||
| 90341-18057 |
PZJ70,73;PZJ75..4F;RJ70..SOT DRAIN PLUG |
1 | ||
| 90341-18006 |
PZJ70,73;PZJ75..4F;RJ70..SOT FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# L=24,0D=10 |
2 | ||
| 90250-10006 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=24,0D=10 |
2 | ||
| 90250-12002 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ7# |
1 | ||
| 36104-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36104-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-11028 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11128 |
FZJ7# |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 90445-11127 |
FZJ7#..GEN..CBR W(*ELC) |
1 | ||
| 90447-11029 |
FZJ7# |
1 | ||
| 90445-11128 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 90445-11143 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11134 |
FZJ7#..GEN..CBR |
1 | ||
| 90445-11108 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 90445-11138 |
FZJ73..CBR;FZJ70,75..GEN..CBR |
1 | ||
| 90445-11108 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08277 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 90445-08277 |
FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ70,75..(HT,PIC)..GEN..CBU |
1 | ||
| 90447-08152 |
FZJ73..CBR;FZJ70,75..GEN..CBR |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 36122-60040 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
1 | ||
| 36122-60040 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;FJ7#,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
FZJ70..HT..GEN;FZJ75..ARL..IV;FZJ73..GEN..CBR;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GEN)..CBU |
1 | ||
| 36149-60010 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60040 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36149-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36149-60020 |
FZJ7# |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FZJ7# |
1 | ||
| 36209-60010 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ73,75..(GCC,GEN,SA)..CBU |
1 | ||
| 36209-60030 |
FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60010 |
FZJ70,73 |
1 | ||
| 36336-60010 |
FZJ70..HT..GEN;FZJ73..GEN..CBR |
1 | ||
| Common parts | ||||
| 90119-08502 | ||||
| 90119-10262 | ||||
| 90253-11001 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 91611-60614 | ||||
| 91611-60812 | ||||
| 91611-61025 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
