FZJ73LV-MNU (1992)
Toyota Land Cruiser
(9201- )1FZ#..FZJ70,73,75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 11271-66010 |
1FZF..FZJ7#..GEN,SA |
1 | ||
| 11271-66010 |
1FZF..FZJ7#..GEN |
1 | ||
| 11271-66010 |
1FZF..FZJ7#..GEN,SA |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69505 |
1FZF..FZJ7# |
1 | ||
| 11401-69516 |
1FZF..FZJ7#..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69515 |
1FZF..FZJ7#..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69506 |
1FZF..FZJ7# |
1 | ||
| 11401-69506 |
1FZF..FZJ7# |
1 | ||
| 11401-69516 |
1FZF..FZJ70..LX;1FZF..FZJ70..SOT;1FZF..FZJ73,75..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69516 |
1FZF..FZJ70..LX;1FZF..FZJ73..GEN;1FZF..FZJ75..LHD..PIC..GEN LOW OCTANE SPEC |
1 | ||
| 11401-69518 |
1FZF..FZJ7#..LHD..GEN CHINESE OR LOW OCTANE SPEC |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02110 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
14 | ||
| 90910-02110 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1FZF..FZJ7# |
9 | ||
| 96411-63500 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
9 | ||
| 96411-63500 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
9 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
1FZF..FZJ7# |
2 | ||
| 96411-65000 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
2 | ||
| 96411-65000 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 L=23,OD=8 |
2 | ||
| 90250-08054 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU L=23,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15007 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU L=10.5,OD=15 |
2 | ||
| 90253-15007 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 L=10.5,OD=15 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 L=11,OD=6 |
2 | ||
| 90250-06068 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU L=11,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-11021 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
2 | ||
| 90253-11021 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 11434X - PIN, RING(FOR CHAIN CACE) | ||||
| 90253-13002 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 90253-13002 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-66010 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 11448-66010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-66010 |
1FZ#..FZJ7# |
1 | ||
| 11409-66010 |
1FZ#..FZJ7# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-66080 |
1FZ#..FZJ7#..GCC,GEN,SA |
1 | ||
| 12101-66030 |
1FZF..FZJ7# |
1 | ||
| 12101-66030 |
1FZF..FZJ7# |
1 | ||
| 12101-66031 |
1FZ#..FZJ7#..GCC,GEN,SA |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
1FZ#,3F..FJ7#,FZJ7# |
1 | ||
| 90430-12027 |
1FZ#..FZJ7# |
1 | ||
| 90430-12031 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-66010 |
1FZ#..FZJ7# |
1 | ||
| 12102-66010 |
1FZ#..FZJ7# |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-66010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-66010 |
1FZ#..FZJ7# |
1 | ||
| 15301-66010 |
1FZ#..FZJ7# |
1 | ||
| 15301-66011 |
1FZ#..FZJ7# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-42010 |
1FZ#..FZJ7# |
6 | ||
| 15703-42010 |
1FZ#..FZJ7# |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-66010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
6 | ||
| Common parts | ||||
| 90105-10114 | ||||
| 90116-06014 | ||||
| 90116-06133 | ||||
| 90116-08116 | ||||
| 90119-06600 | ||||
| 90179-06080 | ||||
| 90179-06222 | ||||
| 90179-08040 | ||||
| 90179-10088 | ||||
| 90301-73004 | ||||
| 90341-27006 | ||||
| 90430-27005 | ||||
| 90901-26001 | ||||
| 90950-01803 | ||||
| 91511-60825 | ||||
| 91511-60850 | ||||
| 91511-B0812 | ||||
| 91512-61025 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
| 1603 | ||||

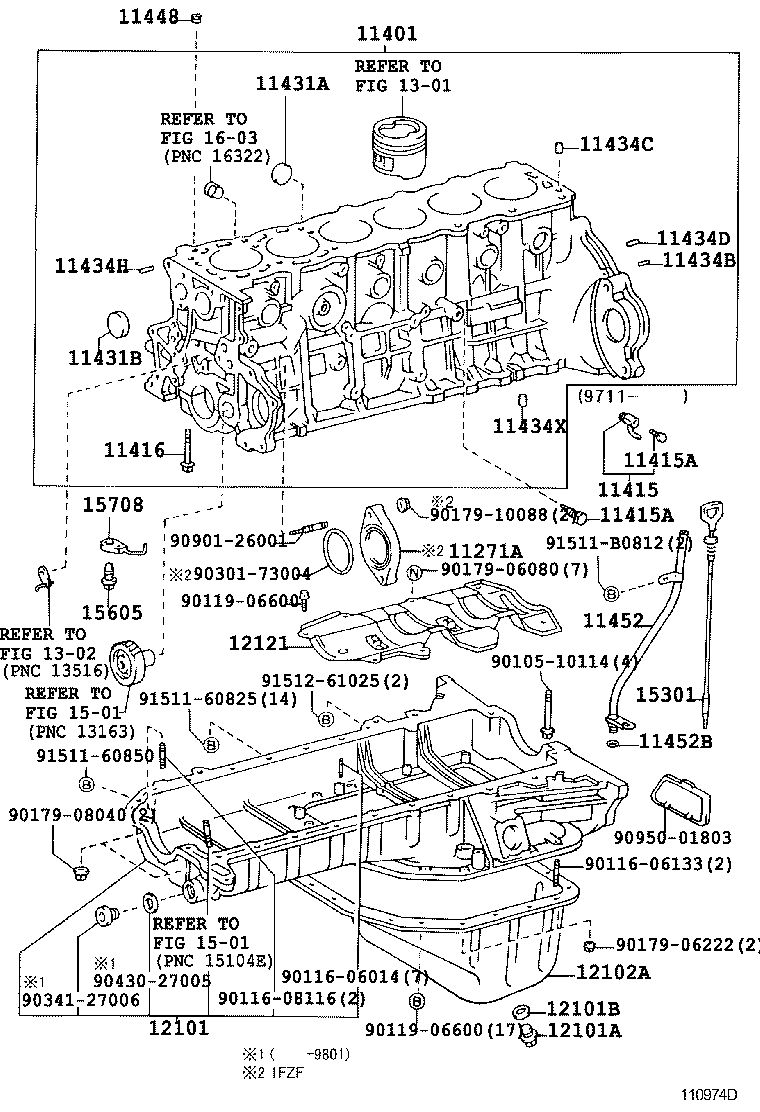

(9001-9305)2LT ; (9004-9604)3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69505 |
1FZF..FZJ7# |
1 | ||
| 11401-69516 |
1FZF..FZJ7#..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69515 |
1FZF..FZJ7#..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69506 |
1FZF..FZJ7# |
1 | ||
| 11401-69506 |
1FZF..FZJ7# |
1 | ||
| 11401-69516 |
1FZF..FZJ70..LX;1FZF..FZJ70..SOT;1FZF..FZJ73,75..LHD..GEN EXHAUST EMISSION CONTROL |
1 | ||
| 11401-69516 |
1FZF..FZJ70..LX;1FZF..FZJ73..GEN;1FZF..FZJ75..LHD..PIC..GEN LOW OCTANE SPEC |
1 | ||
| 11401-69518 |
1FZF..FZJ7#..LHD..GEN CHINESE OR LOW OCTANE SPEC |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 96431-23814 |
1FZ#..FZJ7# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02110 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
14 | ||
| 90910-02110 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1FZF..FZJ7# |
9 | ||
| 96411-63500 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
9 | ||
| 96411-63500 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
9 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
1FZF..FZJ7# |
2 | ||
| 96411-65000 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
2 | ||
| 96411-65000 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15007 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU L=10.5,OD=15 |
2 | ||
| 90253-15007 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 L=10.5,OD=15 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 L=11,OD=6 |
2 | ||
| 90250-06068 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU L=11,OD=6 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-66010 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 11448-66010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-66010 |
1FZ#..FZJ7# |
1 | ||
| 11409-66010 |
1FZ#..FZJ7# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-66080 |
1FZ#..FZJ7#..GCC,GEN,SA |
1 | ||
| 12101-66030 |
1FZF..FZJ7# |
1 | ||
| 12101-66030 |
1FZF..FZJ7# |
1 | ||
| 12101-66031 |
1FZ#..FZJ7#..GCC,GEN,SA |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12027 |
1FZ#,3F..FJ7#,FZJ7# |
1 | ||
| 90430-12027 |
1FZ#..FZJ7# |
1 | ||
| 90430-12031 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-66010 |
1FZ#..FZJ7# |
1 | ||
| 15301-66010 |
1FZ#..FZJ7# |
1 | ||
| 15301-66011 |
1FZ#..FZJ7# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-42010 |
1FZ#..FZJ7# |
6 | ||
| 15703-42010 |
1FZ#..FZJ7# |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-66010 |
1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79 |
6 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| 90430-27001 | ||||
| Linked diagrams | ||||
| 1301 | ||||
