FZJ73L-MRUV (1992)
Toyota Land Cruiser

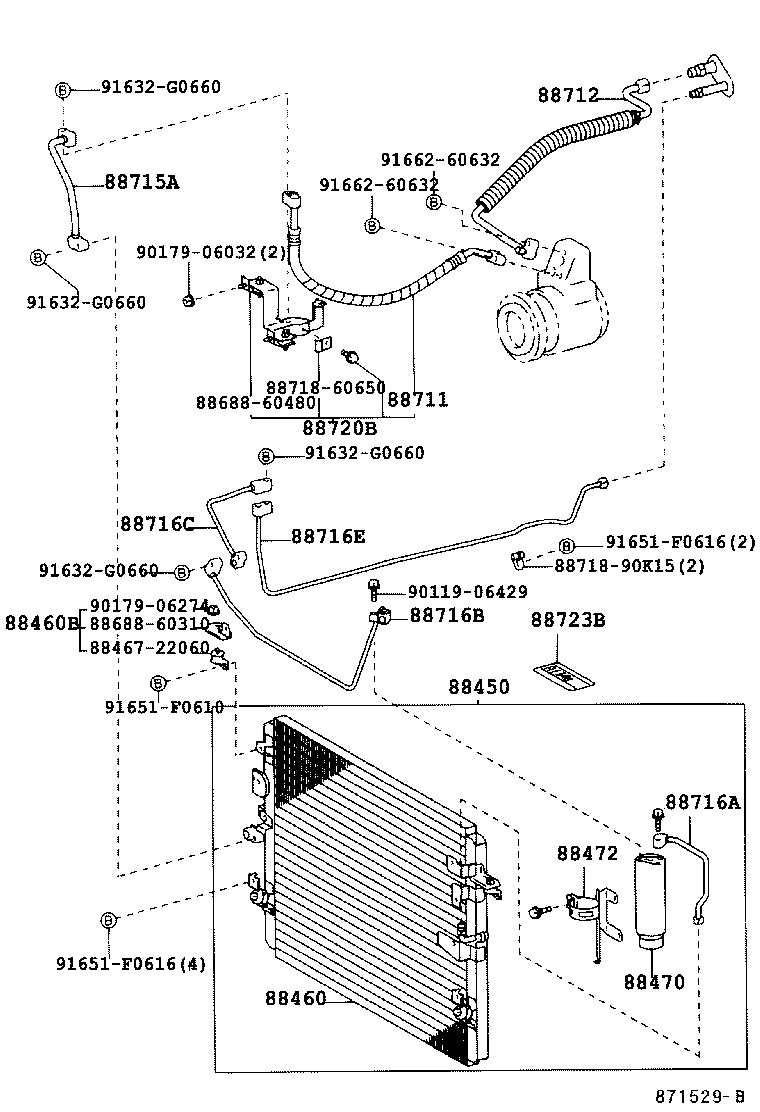

ILLUST NO. 1 OF 3(9201-9908)FZJ7#..LHD..CBR ; (9709-0405)FZJ70,73,75..GEN..EFI
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-60060 |
FZJ7#..(HT,SOT)..CBR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88340-60010 |
HZJ75..ARL;HZJ75..HT..GEN;FJ7#,HZJ70,73,PZJ7#..HT,SOT |
1 | ||
| 88460-60100 |
FZJ7#..HT,SOT |
1 | ||
| 88460-60130 |
FZJ7#..HT,SOT |
1 | ||
| 88460-60180 |
FZJ75,HZJ70..HT;FZJ70,73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88409-60020 |
HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88470-20070 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ7#..GCC,GEN |
1 | ||
| 88471-34010 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
2 | ||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60200 |
FJ70,73;FJ75..ARL;FJ75..GEN..CBU |
1 | ||
| 88711-60260 |
FZJ7#..LHD |
1 | ||
| 88711-60320 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60450 |
FZJ7#..LHD |
1 | ||
| 88712-60490 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60040 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60091 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 88715-60090 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-60550 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-6A290 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88716-6A290 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90K05 |
FJ70,73..GCC;FJ75..PIC..GCC |
1 | ||
| 88716-6A030 |
FZJ7#..LHD |
1 | ||
| 88716-60590 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD |
1 | ||
| 88716-6A200 |
FZJ73..LX;FZJ70,75..LHD;FZJ73..STD..GCC |
1 | ||
| 88716-6A201 |
FZJ73..STD..GCC;FZJ7#..LHD..(HT,PIC)..CBR |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6A280 |
FZJ73..LX;FZJ70,75..LHD;FZJ73..STD..GCC |
1 | ||
| 88716-6A020 |
FZJ7#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6A040 |
FZJ7#..LHD |
1 | ||
| 88716-60580 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD |
1 | ||
| 88716-6A210 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-60030 |
FZJ7#..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-22060 | ||||
| 88688-60310 | ||||
| 88688-60480 | ||||
| 88718-60650 | ||||
| 88718-90K15 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91632-G0660 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
| 91662-60632 | ||||

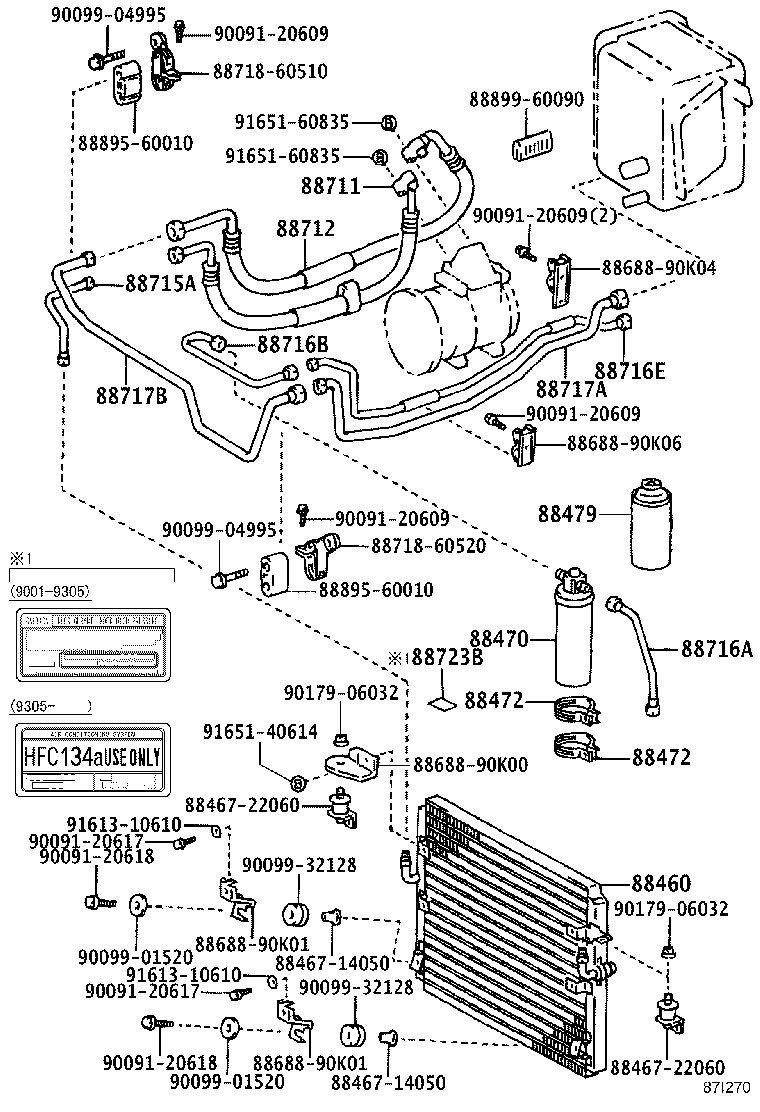

ILLUST NO. 1 OF 3(9001-9501)PZJ7# ; (9001-0007)HZJ70,73,75
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88340-60010 |
HZJ75..ARL;HZJ75..HT..GEN;FJ7#,HZJ70,73,PZJ7#..HT,SOT |
1 | ||
| 88460-60100 |
FZJ7#..HT,SOT |
1 | ||
| 88460-60130 |
FZJ7#..HT,SOT |
1 | ||
| 88460-60180 |
FZJ75,HZJ70..HT;FZJ70,73,HZJ75..(HT,SOT)..(CBR,DSL) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88470-20070 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ7#..GCC,GEN |
1 | ||
| 88471-34010 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88471-34010 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
2 | ||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
2 | ||
| 88472-60090 |
HZJ7#..ARL;FZJ7#..ARL,GCC,GEN |
1 | ||
| 88472-60090 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LHD..PIC..CBU;FZJ7#..(GCC,GEN)..CBR |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60200 |
FJ70,73;FJ75..ARL;FJ75..GEN..CBU |
1 | ||
| 88711-60260 |
FZJ7#..LHD |
1 | ||
| 88711-60320 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60450 |
FZJ7#..LHD |
1 | ||
| 88712-60490 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60040 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60091 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 88715-60090 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88715-60050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A050 |
FZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-60550 |
FJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716-6A290 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 88716-6A290 |
FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90K05 |
FJ70,73..GCC;FJ75..PIC..GCC |
1 | ||
| 88716-6A030 |
FZJ7#..LHD |
1 | ||
| 88716-60590 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD |
1 | ||
| 88716-6A200 |
FZJ73..LX;FZJ70,75..LHD;FZJ73..STD..GCC |
1 | ||
| 88716-6A201 |
FZJ73..STD..GCC;FZJ7#..LHD..(HT,PIC)..CBR |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6A040 |
FZJ7#..LHD |
1 | ||
| 88716-60580 |
FJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD |
1 | ||
| 88716-6A210 |
FZJ70..LHD..HT;FZJ73,75..LHD..CBR |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
HZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI) |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K00 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88895-60010 | ||||
| 88899-60090 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-04995 | ||||
| 90099-32128 | ||||
| 90179-06032 | ||||
| 91613-10610 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
