FZJ73L-MRUV (1992)
Toyota Land Cruiser

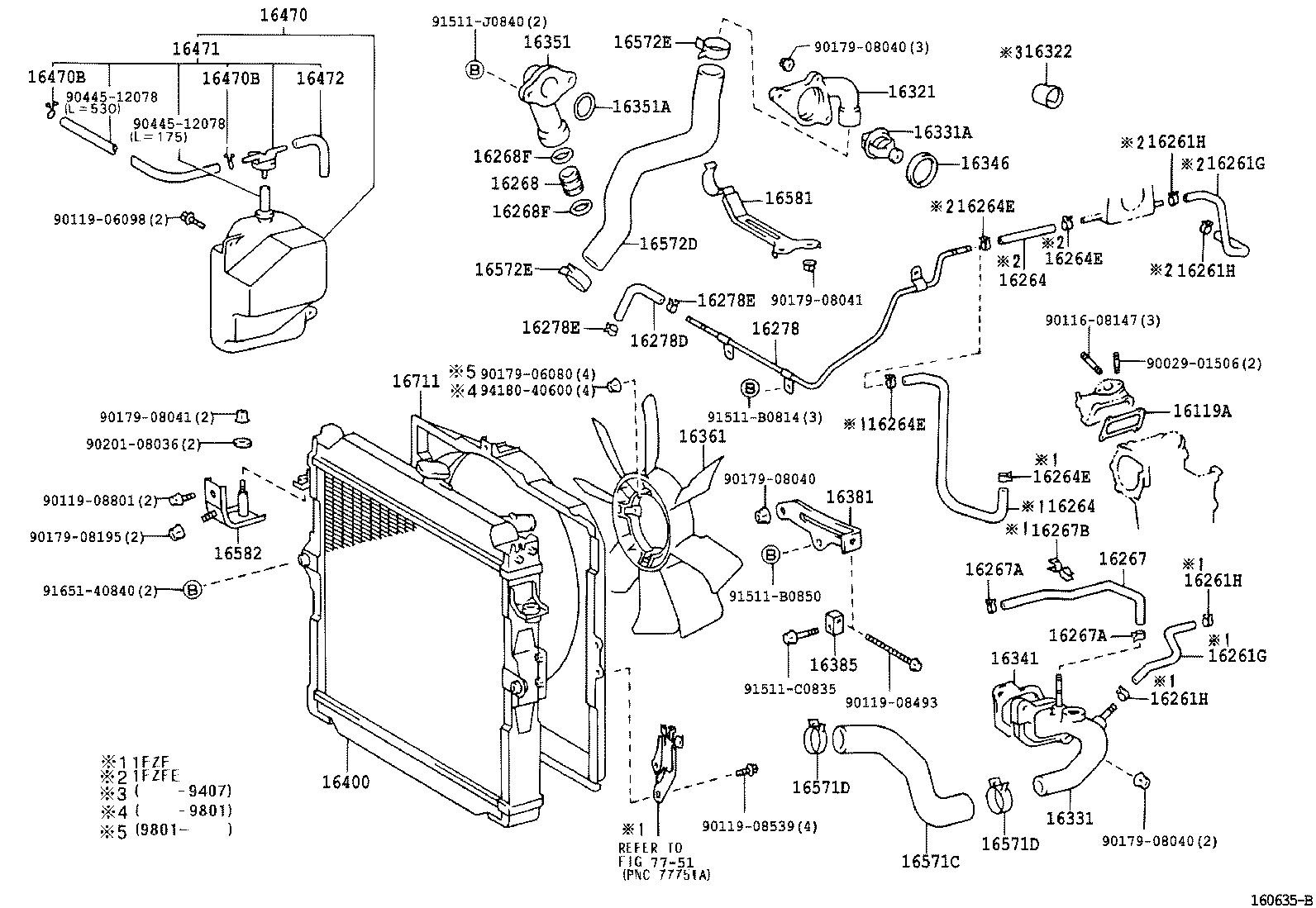

ILLUST NO. 1 OF 2(9201- )1FZ#..FZJ70,73,75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-66020 |
1FZ#..FZJ7# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-66030 |
1FZF..FZJ70,73,75 |
1 | ||
| 16261-66030 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-66030 |
1FZF..FZJ70,73,75 |
1 | ||
| 16261-66030 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-66010 |
1FZF..FZJ70,73,75 |
1 | ||
| 16264-66010 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-66010 |
1FZF..FZJ70,73,75 |
1 | ||
| 16264-66010 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-66020 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZF..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU |
2 | ||
| 90467-13128 |
1FZFE..FZJ75..ARL;1FZF..FZJ7#..GCC,GEN |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZF..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU |
2 | ||
| 90467-13128 |
1FZFE..FZJ75..ARL;1FZF..FZJ7#..GCC,GEN |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90464-00314 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 90464-00314 |
1FZF..FZJ7# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-66010 |
1FZ#..FZJ7# |
1 | ||
| 16268-66010 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-29006 |
1FZ#..FZJ7# |
2 | ||
| 90301-29006 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-29006 |
1FZ#..FZJ7# |
2 | ||
| 90301-29006 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-66010 |
1FZ#..FZJ7# |
1 | ||
| 16278-66010 |
1FZ#..FZJ7# |
1 | ||
| 16278-66011 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99555-10200 |
1FZ#..FZJ7# *H,L=160 |
1 | ||
| 99555-10200 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU *H,L=160 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13051 |
1FZ#..FZJ7# |
2 | ||
| 90467-13001 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-66010 |
1FZ#..FZJ7# |
1 | ||
| 16322-66010 |
1FZ#..FZJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-66010 |
1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03094 |
1FZ#..FZJ7# *WAX 82-95 |
1 | ||
| 90916-03094 |
1FZF..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU *WAX 82-95 |
1 | ||
| 90916-03117 |
1FZFE..FZJ75..ARL;1FZF..FZJ7#..GCC,GEN *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-66020 |
1FZ#..FZJ70,73,75 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16346-66020 |
1FZ#..FZJ7# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-66010 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16351-66010 |
1FZ#..FZJ7# |
1 | ||
| 16351A - RING, O(FOR WATER BY-PASS OUTLET) | ||||
| 90301-29006 |
1FZ#..FZJ7# |
1 | ||
| 90301-29006 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16361 - FAN | ||||
| 16361-66020 |
1FZ#..FZJ7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-66020 |
1FZF..FZJ7#..GCC |
1 | ||
| 16381-66020 |
1FZF..FZJ7#..GCC |
1 | ||
| 16381-66030 |
1FZF..FZJ7#..GCC W(ALTERNATOR 12V-80A IC OR 12V-55A IC) |
1 | ||
| 16381-66030 |
1FZF..FZJ7#..GCC W(ALTERNATOR 12V-80A IC OR 12V-55A IC) |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1FZ#..FZJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-66060 |
1FZF..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU COLOMBIA SPEC |
1 | ||
| 16400-66020 |
1FZ#..FZJ7# |
1 | ||
| 16400-66061 |
1FZF..FZJ7#..GCC |
1 | ||
| 16400-66062 |
1FZF..FZJ7#..GCC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-66010 |
1FZ#..FZJ70;1FZF..FZJ73,75;1FZFE..FZJ75..ARL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZ#,3F..FJ7#,FZJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1FZ#,3F..FJ7#,FZJ7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-66010 |
1FZ#..FZJ7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-20030 |
1FZ#..FZJ7# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-66020 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-42001 |
1FZ#..FZJ7# |
2 | ||
| 90467-41006 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-42001 |
1FZ#..FZJ7# |
2 | ||
| 90467-41006 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-66010 |
1FZ#..FZJ7# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1FZ#..FZJ70;1FZF..FZJ73,75;1FZFE..FZJ75..ARL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1FZ#..FZJ70;1FZF..FZJ73,75;1FZFE..FZJ75..ARL |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-66010 |
1FZ#..FZJ7# |
1 | ||
| 16581-66010 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-68010 |
1FZ#,3F..FJ7#,FZJ7# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-66020 |
1FZ#..FZJ7# |
1 | ||
| 16711-66020 |
1FZF..FZJ73;1FZFE..FZJ75..ARL;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU |
1 | ||
| Common parts | ||||
| 90029-01506 | ||||
| 90116-08147 | ||||
| 90119-06098 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08801 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90179-08041 | ||||
| 90179-08195 | ||||
| 90201-08036 | ||||
| 90445-12078 | ||||
| 91511-B0814 | ||||
| 91511-B0850 | ||||
| 91511-C0835 | ||||
| 91511-J0840 | ||||
| 91651-40840 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 7751 | ||||
