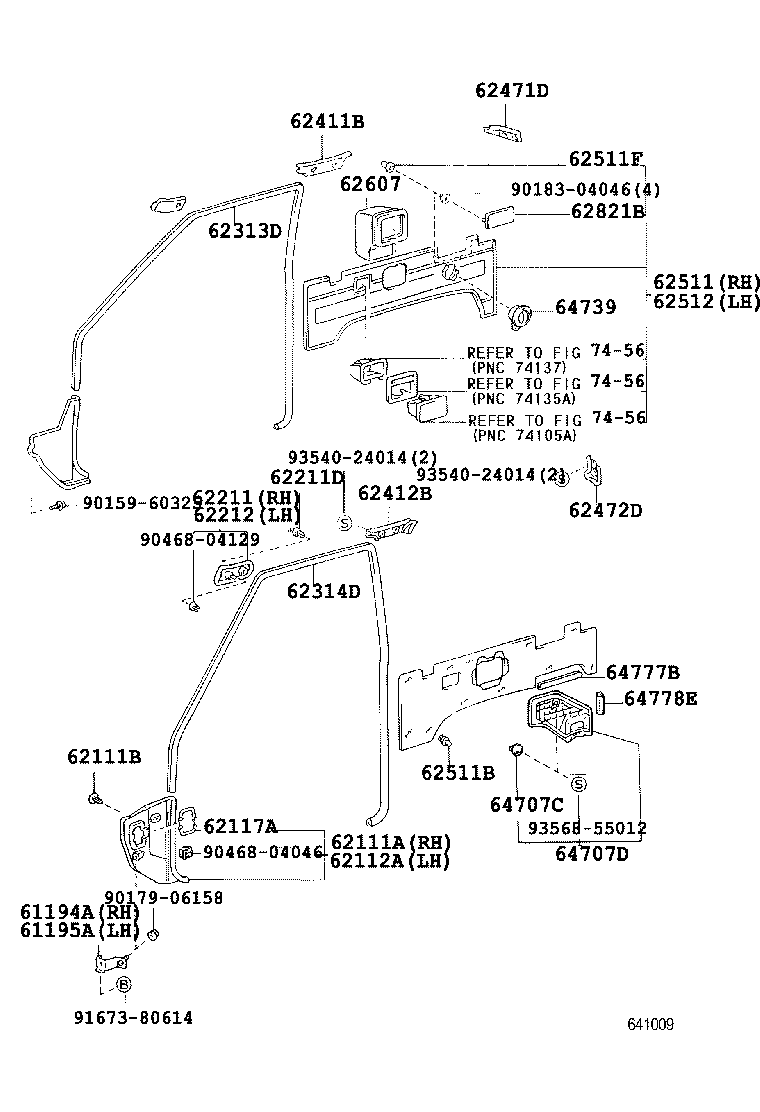

FZJ71R-RJMRK (2007)
Toyota Land Cruiser
(9001-0808)FJ70,FZJ70,71,HZJ70,71,KZJ70,LJ70,72,PZJ70,RJ70..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60325 | ||||
| 90179-06158 | ||||
| 90183-04046 | ||||
| 90468-04046 | ||||
| 90468-04129 | ||||
| 91673-80614 | ||||
| 93540-24014 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||

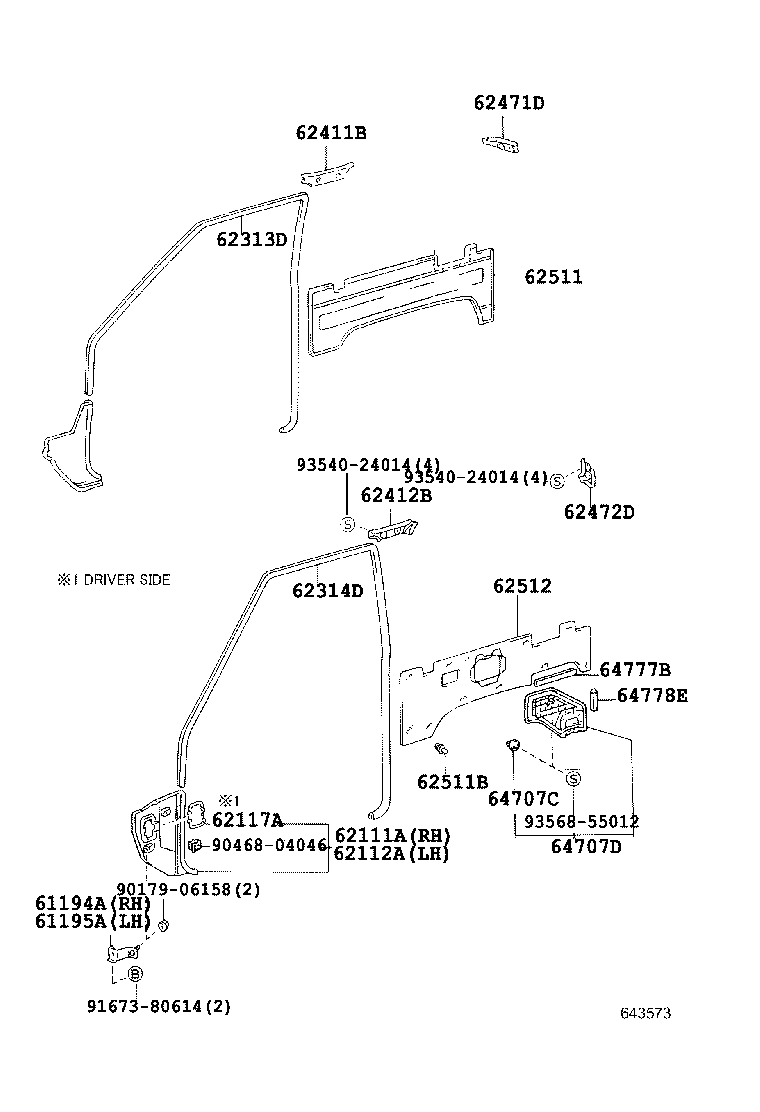

(0701-0907)FZJ71,HZJ71..HT
W(TRANSVERSE REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61194A - BRACKET, COWL SIDE TRIM, RH | ||||
| 61194-90K00 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 61195A - BRACKET, COWL SIDE TRIM, LH | ||||
| 61194-60010 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-90K07S7 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 62101-90K07E0 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-60170B0 |
FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
1 | ||
| 62102-60180E0 |
FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 62102-60170E0 |
FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
1 | ||
| 62102-60180B0 |
FZJ71,78,79,HZJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-90K00E0 |
FZJ7#,HZJ7#,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62117-90K00B0 |
FZJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-60080B1 |
FZJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-60080B1 |
FZJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-90K01B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-60181B1 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62510-60331E2 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62510-60181E2 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62510-60331B1 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62510-60370E1 |
FZJ71,GRJ71,HZJ71..HT..STD REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62510-60370B0 |
FZJ71,GRJ71,HZJ71..HT..STD REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60560B0 |
FZJ71,GRJ71,HZJ71..HT..STD SLATE GRAY,TRIM1# |
1 | ||
| 62510-60560E1 |
FZJ71,GRJ71,HZJ71..HT..STD MD.OAK,TRIM4# |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-30090 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,YELLOW |
7 | ||
| 67771-30090 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,YELLOW |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
FZJ71..STD REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,NATURAL |
19 | ||
| 90467-10161 |
FZJ71,HZJ71..HT..STD REAR SEAT-TRANSVERSE REAR SEAT,NATURAL |
19 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-60151B1 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E2 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62520-60151B1 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E2 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62520-90K39B0 |
FZJ71,GRJ71,HZJ71..HT..STD SLATE GRAY,TRIM1# |
1 | ||
| 62520-90K39E1 |
FZJ71,GRJ71,HZJ71..HT..STD MD.OAK,TRIM4# |
1 | ||
| 62607 - POCKET SUB-ASSY, QUARTER TRIM | ||||
| 62607-90K00B0 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
2 | ||
| 62607-90K00B0 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
2 | ||
| 62607-90K00E1 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,LT.OAK,TRIM4# |
2 | ||
| 62607-90K00E1 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,LT.OAK,TRIM4# |
2 | ||
| 62821B - GLILLE, ROOM VENTILATION | ||||
| 62821-90K01E0 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
2 | ||
| 62821-90K01B0 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
2 | ||
| 62821-90K01B0 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
2 | ||
| 62821-90K01E0 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
2 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-90K00E0 |
HZJ71..HT;FZJ71,76,78,GRJ71,76,78,HZJ76,78,VDJ76,78 MD.OAK,TRIM4# |
1 | ||
| 64769-90K00B3 |
FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 SLATE GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-60030E3 |
HZJ71..HT;FZJ71,GRJ71 MD.OAK,TRIM4# |
1 | ||
| 64707-60030B2 |
FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
1 | ||
| 64739 - COVER, DECK TRIM SIDE WASHER | ||||
| 64739-90K01B0 |
HZJ78..GEN;FZJ71,76,GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 64739-90K01B0 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 64739-90K01E0 |
HZJ78..GEN;FZJ71,76,GRJ71,76,HZJ71,76..HT REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 64739-90K01E0 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 64777-60030 |
FZJ71,78 |
1 | ||
| 64777-90K00B1 |
FZJ71,78,HZJ71,78,VDJ78 SHADOW GRAY,TRIM1#,4# |
1 | ||
| 64778E - PROTECTER, QUARTER INNER, NO.1 | ||||
| 64778-90K00B2 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90183-04046 | ||||
| 90468-04046 | ||||
| 91673-80614 | ||||
| 93540-24014 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
(0701-0907)FZJ71,HZJ71..HT..STD
W(PARALLEL REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61194A - BRACKET, COWL SIDE TRIM, RH | ||||
| 61194-90K00 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 61195A - BRACKET, COWL SIDE TRIM, LH | ||||
| 61194-60010 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-90K07S7 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 62101-90K07E0 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-60170B0 |
FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
1 | ||
| 62102-60180E0 |
FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 62102-60170E0 |
FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
1 | ||
| 62102-60180B0 |
FZJ71,78,79,HZJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-90K00E0 |
FZJ7#,HZJ7#,VDJ7# MD.OAK,TRIM4# |
1 | ||
| 62117-90K00B0 |
FZJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-60080B1 |
FZJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-60080B1 |
FZJ71,78,79,HZJ71,78,79,VDJ78,79..HT,PIC LT.GRAY,TRIM1#,4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-90K01B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-90K00B0 |
FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-60181B1 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62510-60331E2 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62510-60181E2 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62510-60331B1 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62510-60370E1 |
FZJ71,GRJ71,HZJ71..HT..STD REAR WINDOW WIPER-WITH(INTERMITTENT),MD.OAK,TRIM4# |
1 | ||
| 62510-60370B0 |
FZJ71,GRJ71,HZJ71..HT..STD REAR WINDOW WIPER-WITH(INTERMITTENT),SLATE GRAY,TRIM1# |
1 | ||
| 62510-60560B0 |
FZJ71,GRJ71,HZJ71..HT..STD SLATE GRAY,TRIM1# |
1 | ||
| 62510-60560E1 |
FZJ71,GRJ71,HZJ71..HT..STD MD.OAK,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-12031B0 |
FZJ71,HZJ71..HT..STD SLATE GRAY,TRIM1# |
25 | ||
| 90467-12031E1 |
FZJ71,HZJ71..HT..STD LT.OAK,TRIM4# |
25 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-60151B1 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E2 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62520-60151B1 |
FZJ71..STD;GRJ71..HT..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 62520-60151E2 |
FZJ71..STD;GRJ71..HT..GCC REAR SEAT-TRANSVERSE REAR SEAT,MD.OAK,TRIM4# |
1 | ||
| 62520-90K39B0 |
FZJ71,GRJ71,HZJ71..HT..STD SLATE GRAY,TRIM1# |
1 | ||
| 62520-90K39E1 |
FZJ71,GRJ71,HZJ71..HT..STD MD.OAK,TRIM4# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-90K00E0 |
HZJ71..HT;FZJ71,76,78,GRJ71,76,78,HZJ76,78,VDJ76,78 MD.OAK,TRIM4# |
1 | ||
| 64769-90K00B3 |
FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 SLATE GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-60030E3 |
HZJ71..HT;FZJ71,GRJ71 MD.OAK,TRIM4# |
1 | ||
| 64707-60030B2 |
FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 64777-60030 |
FZJ71,78 |
1 | ||
| 64777-90K00B1 |
FZJ71,78,HZJ71,78,VDJ78 SHADOW GRAY,TRIM1#,4# |
1 | ||
| 64778E - PROTECTER, QUARTER INNER, NO.1 | ||||
| 64778-90K00B2 |
FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90468-04046 | ||||
| 91673-80614 | ||||
| 93540-24014 | ||||
| 93568-55012 | ||||
