FZJ71R-RJMRK (2007)
Toyota Land Cruiser
(0701- )VDJ7#..RHD ; (0701- )GRJ71,78..LHD; (0701- )FZJ7#,GRJ76,79,HZJ7#

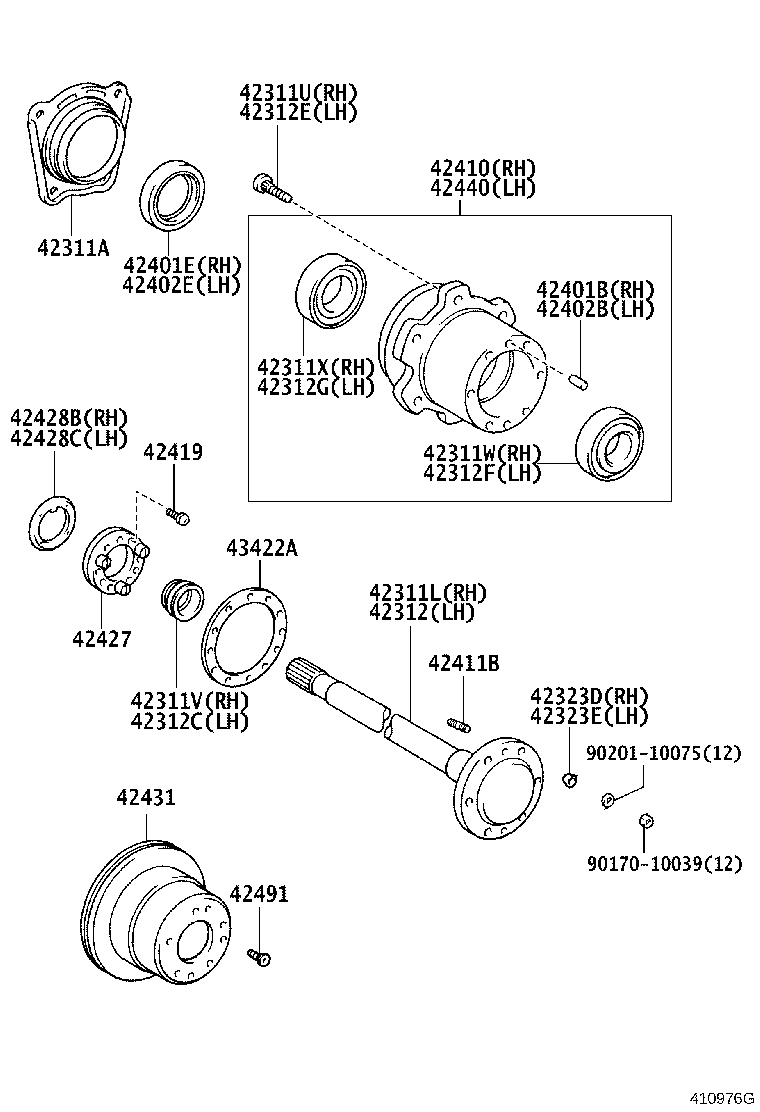

DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FZJ7# |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60200 |
FZJ76;FZJ71,78..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42311-60190 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 42311-60200 |
FZJ7# |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02083 |
FZJ7# |
5 | ||
| 90942-02077 |
FZJ7#,HZJ7#,VDJ7# |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
FZJ7# |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-45087 |
FZJ7# NSK |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90080-36064 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-49084 |
FZJ7# NSK |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60140 |
FZJ7# |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
FZJ7# |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02083 |
FZJ7# |
5 | ||
| 90942-02077 |
FZJ7#,HZJ7#,VDJ7# |
5 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-45087 |
FZJ7# NSK |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90368-49084 |
FZJ7# NSK |
1 | ||
| 90080-36064 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
FZJ7# |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
FZJ7# |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10032 |
FZJ7# |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62001 |
FZJ7# |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
FZJ7# |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
FZJ7# |
1 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10201 |
FZJ7# |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FZJ7# |
4 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FZJ7# |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
FZJ7# |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
FZJ7# |
1 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
FZJ7# |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
(0701- )
DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FZJ7# |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60200 |
FZJ76;FZJ71,78..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 42311-60190 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 42311-60200 |
FZJ7# |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02083 |
FZJ7# |
5 | ||
| 90942-02077 |
FZJ7#,HZJ7#,VDJ7# |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
FZJ7# |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-45087 |
FZJ7# NSK |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90080-36064 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-49084 |
FZJ7# NSK |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60140 |
FZJ7# |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
FZJ7# |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02083 |
FZJ7# |
5 | ||
| 90942-02077 |
FZJ7#,HZJ7#,VDJ7# |
5 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 90368-45087 |
FZJ7# NSK |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90368-49084 |
FZJ7# NSK |
1 | ||
| 90080-36064 |
FZJ7#,HZJ7#,VDJ7# TIMKEN |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
FZJ7# |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
FZJ7# |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10032 |
FZJ7# |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62001 |
FZJ7# |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
FZJ7# |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
FZJ7# |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60250 |
GRJ79..LHD;FZJ7#,GRJ71,76,78,HZJ7# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
FZJ7# 10G |
1 | ||
| 90937-01195 |
FZJ7# 40G |
1 | ||
| 90937-01118 |
FZJ7# 20G |
1 | ||
| 90937-01196 |
FZJ7# 50G |
1 | ||
| 90937-01119 |
FZJ7# 30G |
1 | ||
| 90937-01197 |
FZJ7# 60G |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
FZJ7# |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10201 |
FZJ7# |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FZJ7# |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-69015 |
FZJ7#,HZJ7# |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FZJ7# |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
FZJ7# |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
FZJ7# |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42420-69015 |
FZJ7#,HZJ7# |
1 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
FZJ7# |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
