FZJ71R-RJMRK (2007)

Toyota Land Cruiser

Production Jan 2007 - Jul 2009
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )VDJ7#..RHD ; (0701- )FZJ7#,GRJ7#

Click highlighted areas on diagram

H150,H151

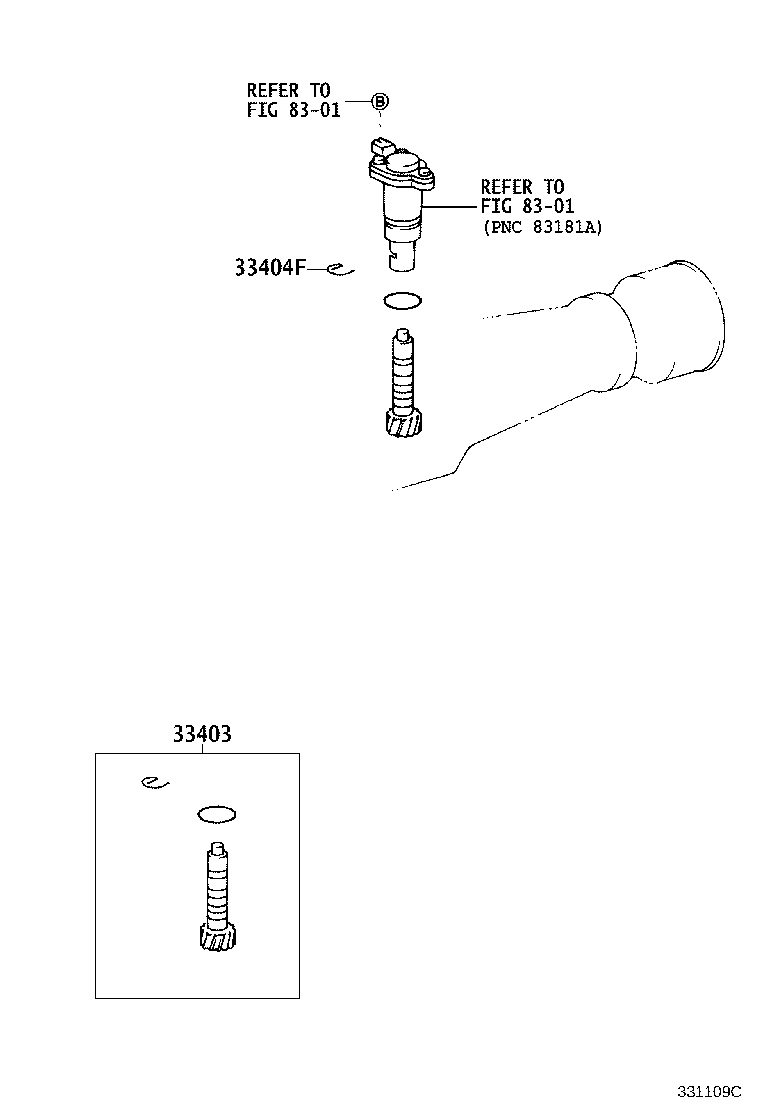

diagram 33403 33404F 8301 8301
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-80001

FZJ71..GEN

N=31,MARK 31:12

 1
33403-19595

FZJ71..GEN

N=32,MARK 12:32,TIRE & DISC WHEEL-7.50R16-8 SAHARA 5.50F

 1
33403-80002

FZJ71

N=33,MARK 33:12,TIRE & DISK WHEEL-265/70R16 7JJ ALUMINUM W(TUBE)

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

FZJ7#

 1
Linked diagrams
8301
