FZJ71L-RJMNK (2007)

Toyota Land Cruiser

Production Jan 2007 - Jul 2009
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )HZJ78,VDJ78..ARL,GEN ; (0701- )FZJ71,76,GRJ71,76,HZJ71,76,VDJ76..HT

Click highlighted areas on diagram

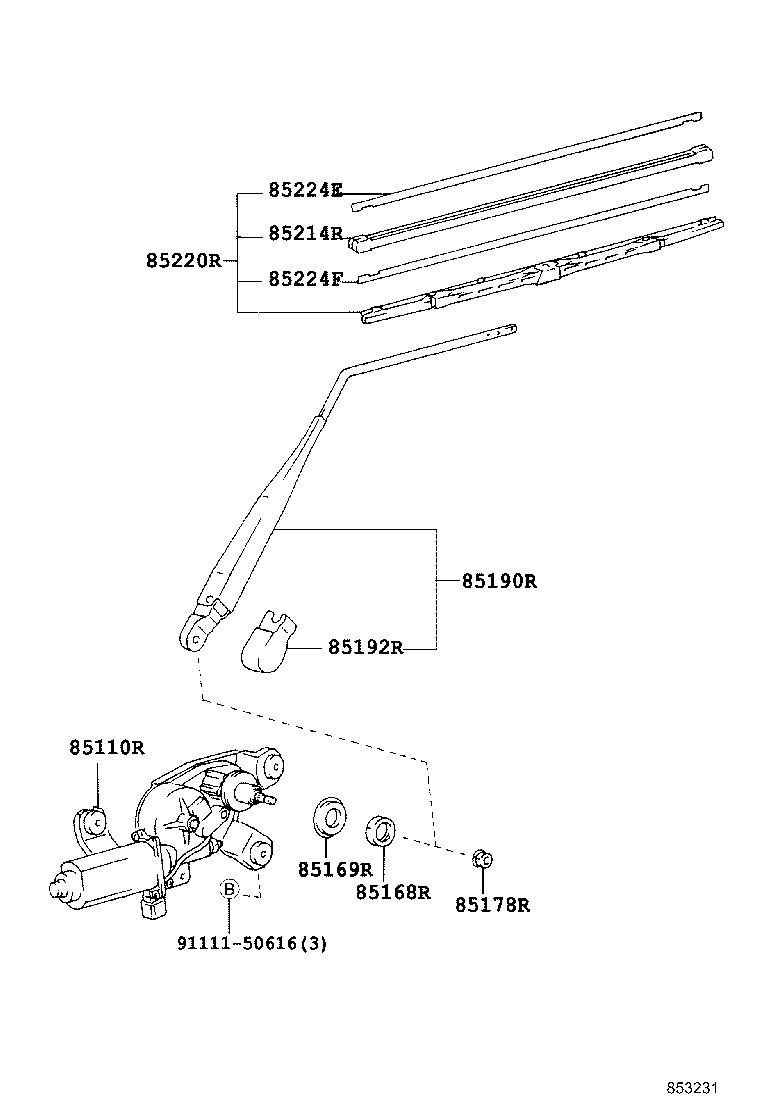

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85214R 85220R 85224E 85224F 9111150616
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-60130

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16150

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85190R - ARM ASSY, REAR WIPER
85241-60050

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85192R - COVER, REAR WIPER ARM
85195-95J01

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85214R - RUBBER, REAR WIPER
85214-60050

HZJ78..GEN;FZJ71,76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85214-68011

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85220R - BLADE ASSY, REAR WIPER
85242-60012

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85242-33040

HZJ78..GEN;FZJ71,76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-60080

HZJ78..GEN;FZJ71,76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85224-60160

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-60160

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85224-60080

HZJ78..GEN;FZJ71,76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
Common parts
91111-50616
