FJ80L-GNPNEA (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)

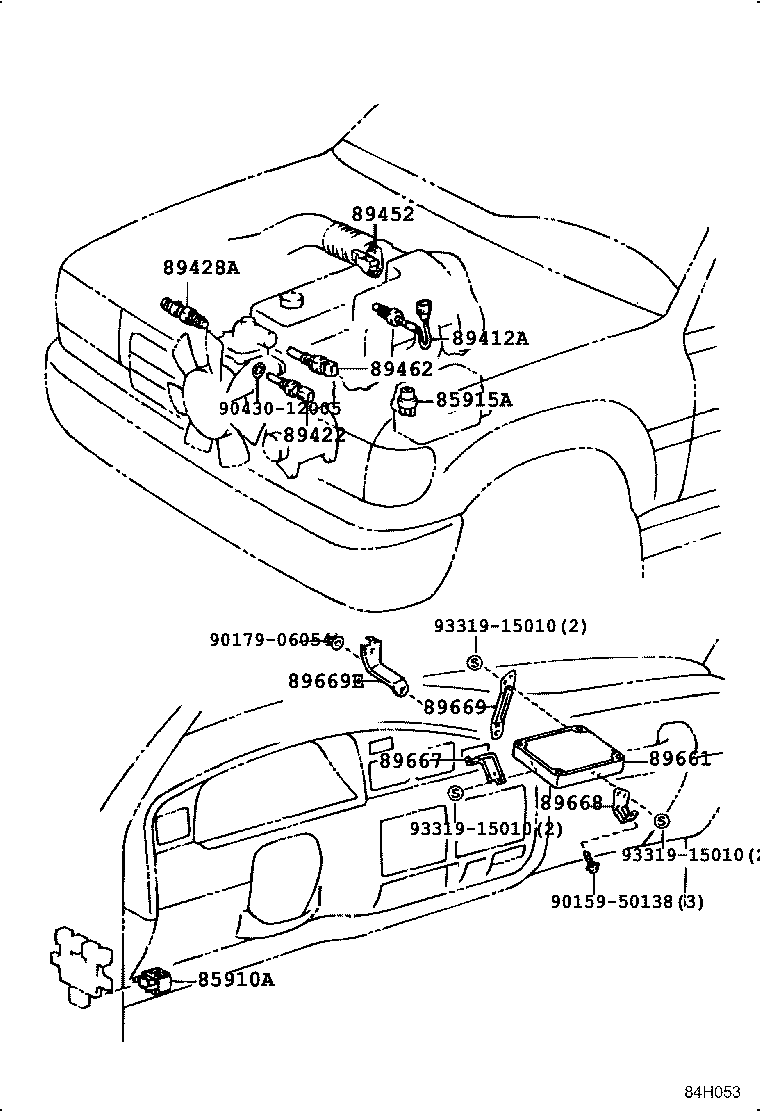

Click highlighted areas on diagram

diagram 85910A 85915A 89412A 89422 89428A 89452 89462 89661 89667 89668 89669 89669E 9015950138 9017906054 9043012005 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

FJ80,FZJ80

 1
85915A - RELAY, MAIN
90987-02004

FJ80,FZJ80

 1
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-12010

FJ80

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

FJ80

 1
89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I)
89428-60060

FJ80

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14050

FJ80

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

FJ80

 1
89661 - COMPUTER, ENGINE CONTROL
89661-60080

FJ80

CALIFORNIA SPEC

 1
89661-60090

FJ80

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60040

FJ80,FZJ80

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60040

FJ80,FZJ80

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-60030

FJ80,FZJ80

 1
89669E - BRACKET, ENGINE CONTROL COMPUTER, NO.4
89667-60070

FJ80,FZJ80

 1
Common parts
90159-50138
90179-06054
90430-12005
93319-15010
