FJ80L-GNPNEA (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

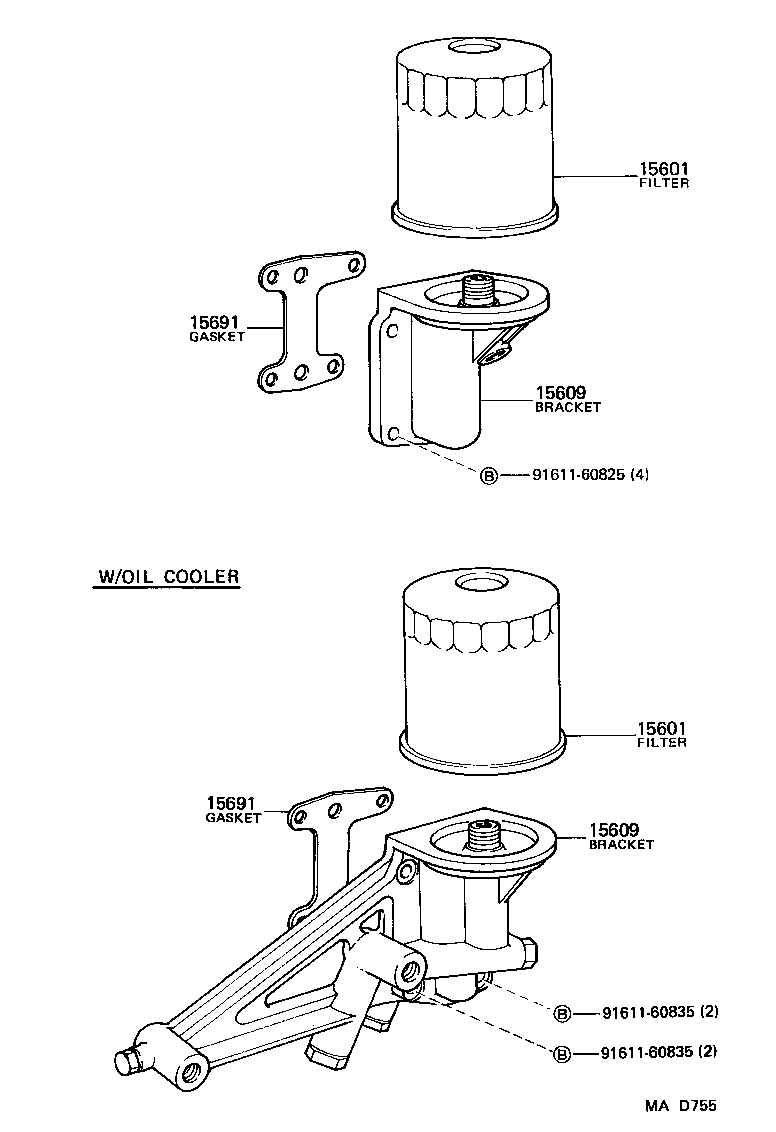

Click highlighted areas on diagram

diagram 15601 15601 15609 15609 15691 15691 9161160825 9161160835 9161160835
Part # Description Qty Price
Common parts
91611-60825
91611-60835

(9001-9208)

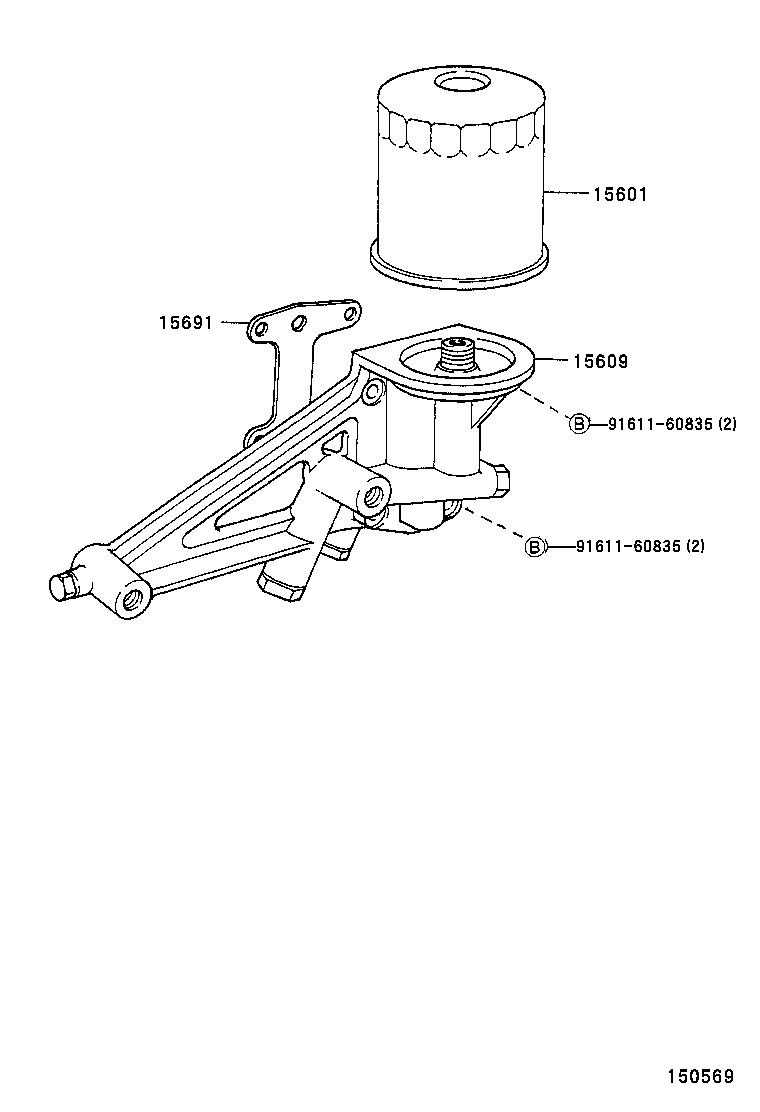

Click highlighted areas on diagram

diagram 15601 15609 15691 9161160835 9161160835
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

3FE..FJ80

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61012

3FE..FJ80

 1
15691 - GASKET, OIL FILTER
15691-61010

3FE..FJ80

 1
Common parts
91611-60835
