FJ73LV-PNV (1990)
Toyota Land Cruiser

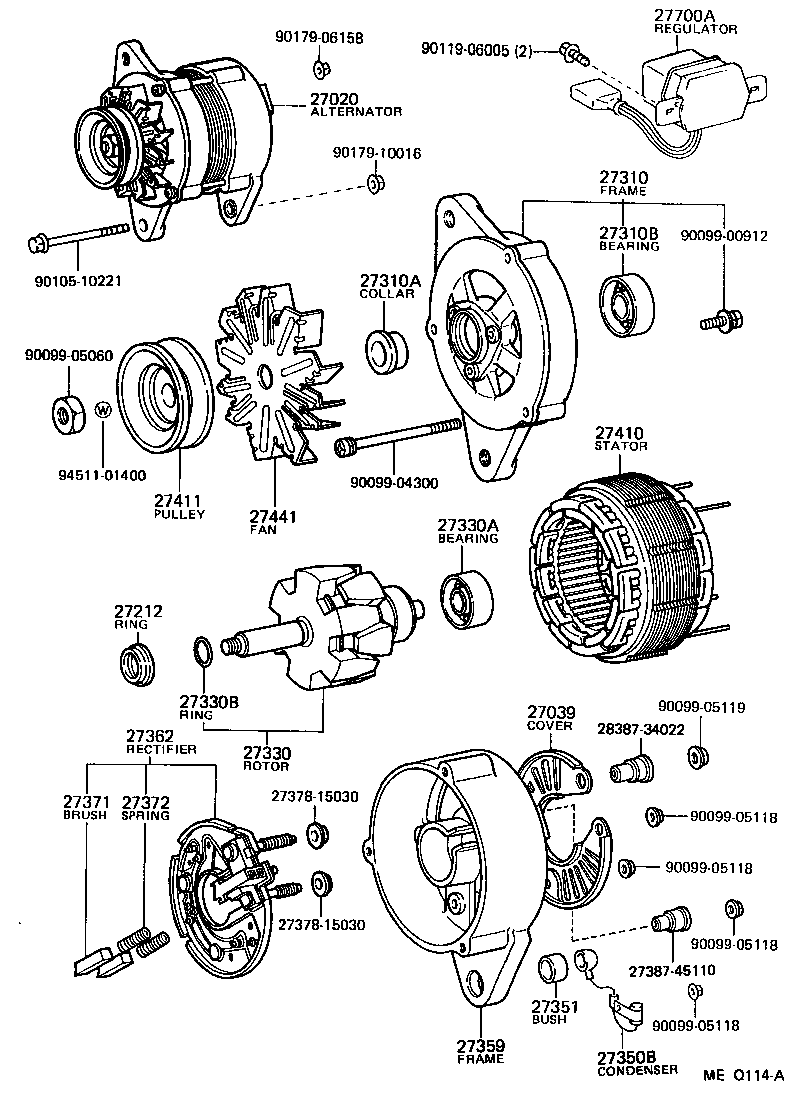

(9001-9604)3F..GCC,GEN,SA
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ7#..ARL,GCC,GEN 12V 65A |
1 | ||
| 27020-61111 |
3F..FJ7#..GCC,GEN,SA 12V 45A |
1 | ||
| 27020-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27412-15150 |
3F..FJ7#..GCC,GEN 12V 50A OR 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27310-18010 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27310-26101 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
22R,3F..FJ7#,RJ70 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27330-45020 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F,1HZ,1PZ..FJ7#,HZJ7#,PZJ7#,RJ70 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27359-72040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27359-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27359-24100 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27362-15022 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362-72080 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27410-38120 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27410-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27411-60032 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R..RJ70;3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27441-34030 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441-34111 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700-15030 |
22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45110 | ||||
| 28387-34022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||

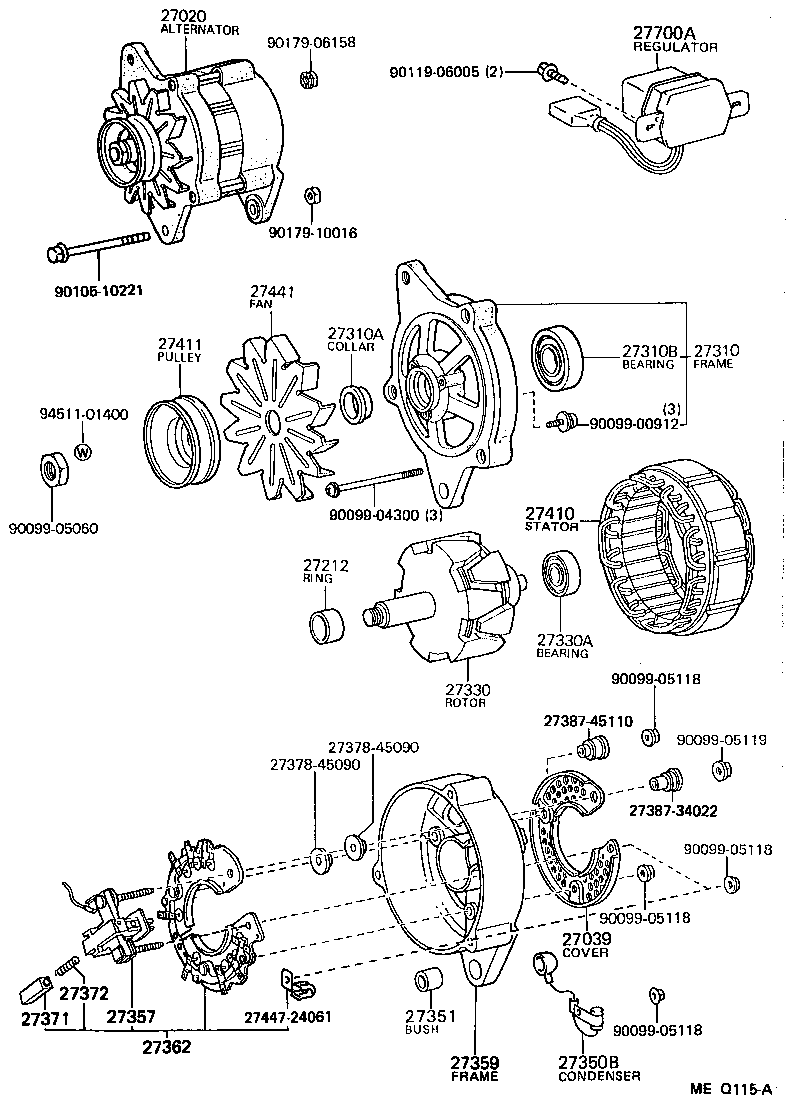

(9001-9604)3F..GCC,GEN,SA
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ7#..ARL,GCC,GEN 12V 65A |
1 | ||
| 27020-61111 |
3F..FJ7#..GCC,GEN,SA 12V 45A |
1 | ||
| 27020-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27412-15150 |
3F..FJ7#..GCC,GEN 12V 50A OR 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27310-18010 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27310-26101 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
22R,3F..FJ7#,RJ70 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27330-45020 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F,1HZ,1PZ..FJ7#,HZJ7#,PZJ7#,RJ70 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
3F..FJ7#..GCC,GEN |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27359-72040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27359-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27359-24100 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27362-15022 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362-72080 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27410-38120 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27410-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27411-60032 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R..RJ70;3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27441-34030 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441-34111 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700-15030 |
22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-34022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||

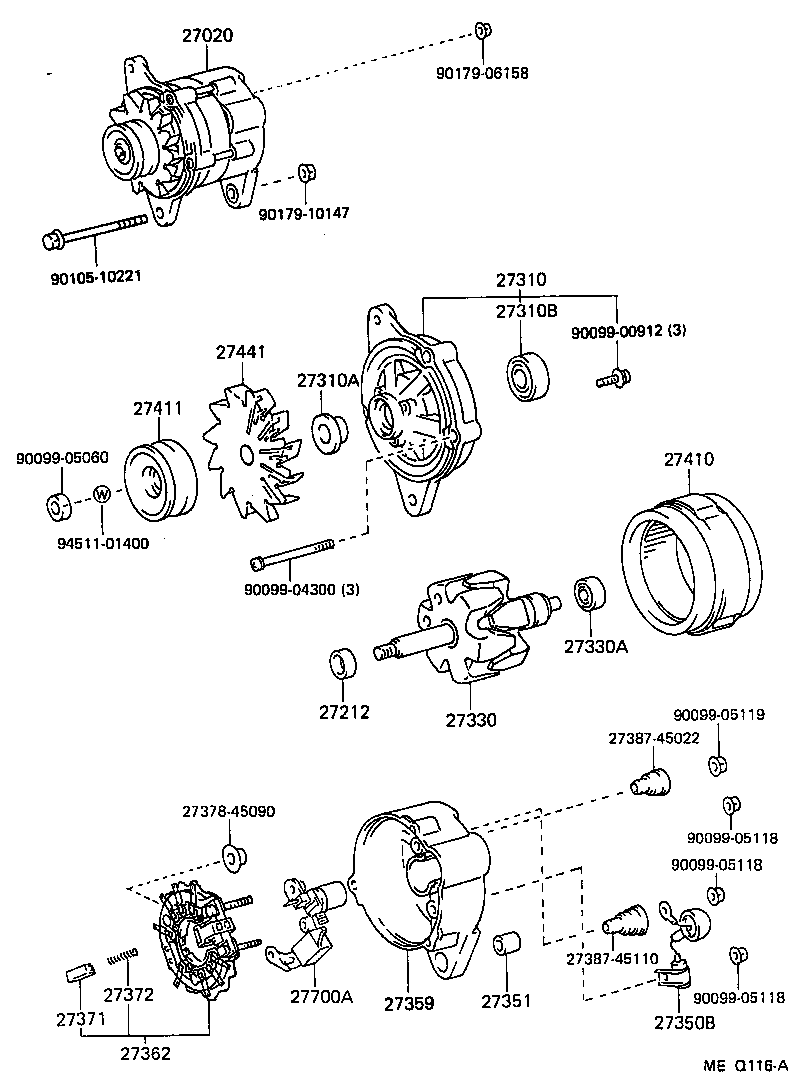

(9001-9604)3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ7#..ARL,GCC,GEN 12V 65A |
1 | ||
| 27020-61111 |
3F..FJ7#..GCC,GEN,SA 12V 45A |
1 | ||
| 27020-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27412-15150 |
3F..FJ7#..GCC,GEN 12V 50A OR 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27310-18010 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27310-26101 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
22R,3F..FJ7#,RJ70 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27330-45020 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F,1HZ,1PZ..FJ7#,HZJ7#,PZJ7#,RJ70 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27359-72040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27359-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27359-24100 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27362-15022 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27362-72080 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27410-38120 |
22R,3F..FJ7#,RJ70..GCC,GEN,SA |
1 | ||
| 27410-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27411-60032 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R..RJ70;3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27441-34030 |
3F..FJ70,73..HT..(GCC,GEN) 12V 50A |
1 | ||
| 27441-34111 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700-15030 |
22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||

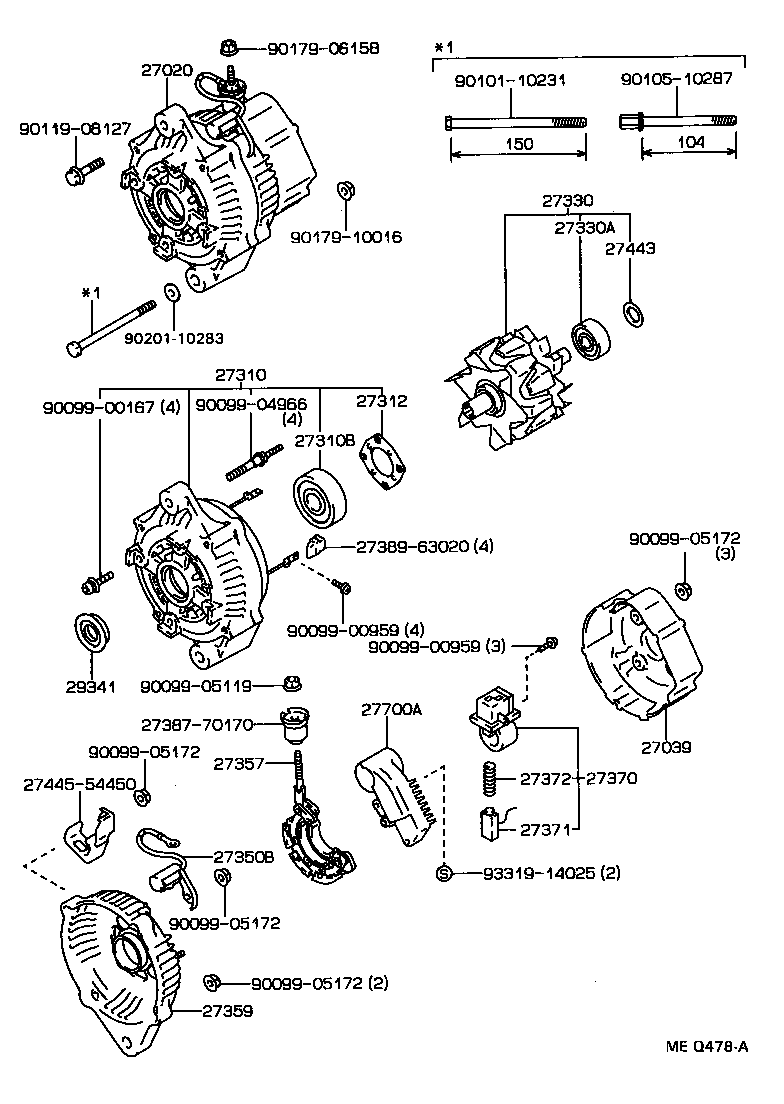

(9001-9604)2LT,3L
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ7#..ARL,GCC,GEN 12V 65A |
1 | ||
| 27020-61111 |
3F..FJ7#..GCC,GEN,SA 12V 45A |
1 | ||
| 27020-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27039-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27310-18010 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27310-26101 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27330-45020 |
22R,3F..FJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R,3F..FJ7#,RJ7# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
3F..FJ7#..GCC,GEN |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-61034 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27359-72040 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27359-61111 |
3F..FJ7#..GCC,GEN,SA |
1 | ||
| 27359-24100 |
3F..FJ7#..GCC,GEN 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ7# |
2 | ||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZJ75..RHD;1HZ..HZJ75..LHD..CBU;1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,73,78,79,LJ7#,PZJ7# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F..FJ7#..GCC,GEN 12V 65A |
1 | ||
| 27700-15030 |
22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 27445-54450 | ||||
| 90099-00167 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90101-10231 | ||||
| 90105-10287 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
