FJ73L-MRV (1990)
Toyota Land Cruiser

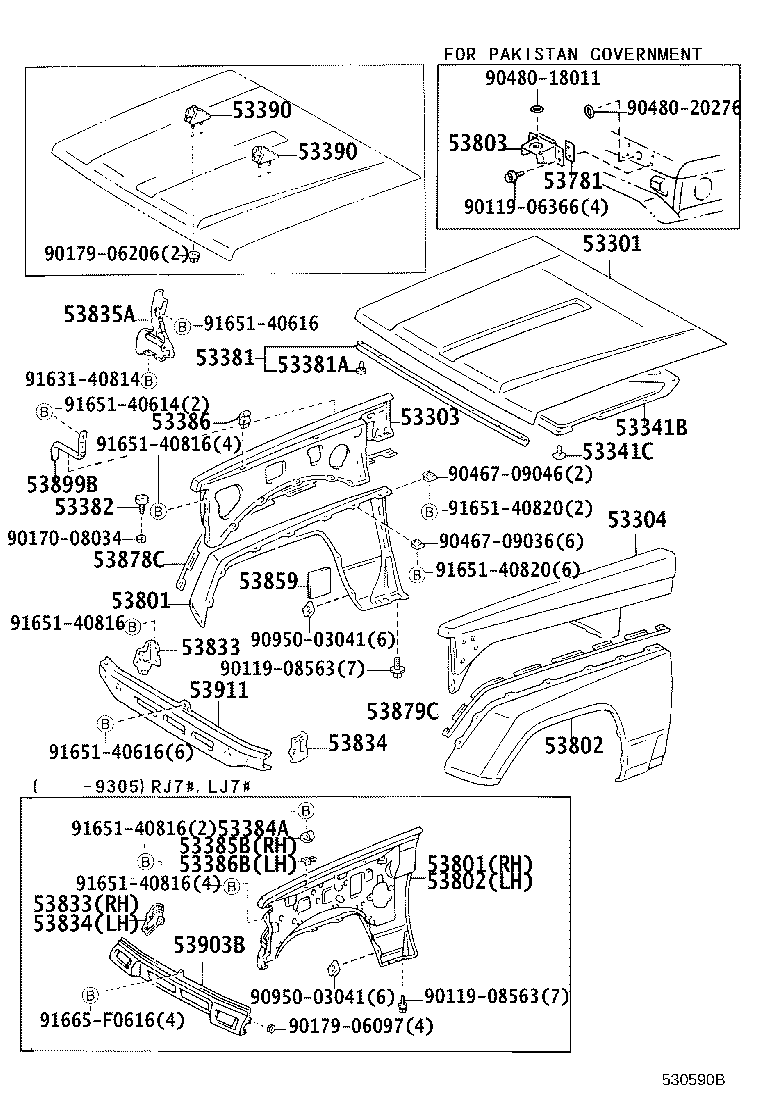

ILLUST NO. 1 OF 2(9001-9305) ; (9305- )FZJ7#,HDJ7#,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60080 |
FJ7#,FZJ7#..(HT,SOT)..GCC W(WINDSHIELD REST CRADLE) |
1 | ||
| 53301-60090 |
FJ73,FZJ73..GCC W(SASH DETACHABLE DOOR) |
1 | ||
| 53303 - PANEL SUB-ASSY, HOOD SIDE, RH | ||||
| 53303-60030 |
HZJ78..STD;HZJ75..LHD..CBU;FZJ75,HZJ70..STD..ARL;HZJ75..RHD..STD..(ARL,GEN);FJ73,FZJ73,75,PZJ73..(GCC,GEN)..(CBR,DSL);FJ70,75,FZJ70,71,74,78,79,HZJ71,79,PZJ70,75..ARL,GCC,GEN |
1 | ||
| 53303-60060 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HZJ71,73,79,PZJ7#..ARL,GCC,GEN W(*STAC) |
1 | ||
| 53304 - PANEL SUB-ASSY, HOOD SIDE, LH | ||||
| 53304-60060 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ71,74,78,79,HZJ71,79;FJ7#,FZJ70,73,75,PZJ70,75..LHD..(CBR,DSL) W(RADIO) |
1 | ||
| 53304-60050 |
HZJ78,PZJ73..ARL,GEN;HZJ75..LHD..STD..CBU;HZJ75..RHD..(ARL,GEN);FJ73,FZJ70,75,HZJ70,73..ARL;FZJ70,73,75..STD..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,79,PZJ70,75..STD..(ARL,GCC,GEN) |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-90K01 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
6 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-60010 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 53382-90K01 |
FJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-30060 |
FJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 53390 - CRADLE ASSY, WINDSHIELD REST | ||||
| 53390-90K00 |
HZJ75..RHD..PIC..GEN;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FJ70,75,FZJ70,74,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(GCC,GEN) |
2 | ||
| 53390 - CRADLE ASSY, WINDSHIELD REST | ||||
| 53390-90K00 |
HZJ75..RHD..PIC..GEN;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FJ70,75,FZJ70,74,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(GCC,GEN) |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-90K13 |
FJ70..GCC,GEN;FJ73,HZJ73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53801-90K04 |
FJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53801-90K13 |
FJ70,73,HZJ70,73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-90K13 |
FJ70..GCC,GEN;FJ73,HZJ73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53801-90K04 |
FJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53801-90K13 |
FJ70,73,HZJ70,73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-90K04 |
FJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53802-90K15 |
FJ70,73,HZJ70,73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53802-90K15 |
FJ70..GCC,GEN;FJ73,HZJ73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-90K04 |
FJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53802-90K15 |
FJ70,73,HZJ70,73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53802-90K15 |
FJ70..GCC,GEN;FJ73,HZJ73,PZJ70,73 W(OVER FENDER) |
1 | ||
| 53833 - PANEL, FRONT FENDER SIDE, LOWER | ||||
| 53833-90K01 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53833 - PANEL, FRONT FENDER SIDE, LOWER | ||||
| 53833-90K01 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53834-90K01 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53834-90K01 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-60010 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,PZJ7# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-90K00 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53879C - RETAINER, FRONT FENDER LINER | ||||
| 53879-90K00 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,PZJ7# |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# PAINT REQ. |
1 | ||
| Common parts | ||||
| 90119-06366 | ||||
| 90119-08563 | ||||
| 90170-08034 | ||||
| 90179-06097 | ||||
| 90179-06206 | ||||
| 90467-09036 | ||||
| 90467-09046 | ||||
| 90480-18011 | ||||
| 90480-20276 | ||||
| 90950-03041 | ||||
| 91631-40814 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91665-F0616 | ||||
ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53087A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH | ||||
| 53087-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 NO PAINT REQ. |
1 | ||
| 53088A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH | ||||
| 53088-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 NO PAINT REQ. |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-90K0001 |
FJ70,PZJ70..SOT;FJ73,HZJ73,PZJ73 BLACK,183 |
2 | ||
| 53851-90K0008 |
FJ70,73,HZJ70,73,PZJ70,73 WHITE,045 |
2 | ||
| 53851-90K0001 |
FJ73;FJ70,PZJ70,73..SOT BLACK,045 ,181 ,183 ,202 ,3H4 ,3H7 ,4E9 ,4K1 ,4L6 ,558 ,6L4 ,8H6 |
2 | ||
| 53861 - BRACKET, FRONT WHEEL OPENING, NO.1 | ||||
| 53861-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 53861 - BRACKET, FRONT WHEEL OPENING, NO.1 | ||||
| 53861-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 53862 - BRACKET, FRONT WHEEL OPENING, NO.2 | ||||
| 53862-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 |
4 | ||
| 53865 - BRACKET, FRONT WHEEL OPENING, NO.3 | ||||
| 53865-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53866B - BRACKET, FRONT WHEEL OPENING, NO.4 | ||||
| 53866-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53868B - BRACKET, FRONT WHEEL OPENING, NO.6 | ||||
| 53868-90K00 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 53871B - BRACKET, FRONT WHEEL OPENING, NO.7 | ||||
| 53871-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 53872B - BRACKET, FRONT WHEEL OPENING, NO.8 | ||||
| 53872-90K00 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-60040 |
RJ70..LHD..STD;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,HJ75,HZJ70,75,LJ72,79,PZJ70,75,RJ77..STD |
1 | ||
| 76603-90K00 |
HZJ78..GEN;FZJ71,74,78,79..(GCC,GEN)..CBU;FJ7#,FZJ70,73,75,HZJ71,75,79,LJ7#,PZJ7#,RJ7#..(GCC,GEN)..CBU..(CBR,DSL,TD) W(FR+RR MUDGUARD) |
1 | ||
| 76603-90K02 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# W(OVER FENDER) |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-60040 |
RJ70..LHD..STD;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,HJ75,HZJ70,75,LJ72,79,PZJ70,75,RJ77..STD |
1 | ||
| 76603-90K00 |
HZJ78..GEN;FZJ71,74,78,79..(GCC,GEN)..CBU;FJ7#,FZJ70,73,75,HZJ71,75,79,LJ7#,PZJ7#,RJ7#..(GCC,GEN)..CBU..(CBR,DSL,TD) W(FR+RR MUDGUARD) |
1 | ||
| 76603-90K02 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# W(OVER FENDER) |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-90K02 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# W(OVER FENDER) |
1 | ||
| 76604-90K00 |
HZJ78..GEN;FZJ71,74,78,79..(GCC,GEN)..CBU;FJ7#,FZJ70,73,75,HZJ71,75,79,LJ7#,PZJ7#,RJ7#..(GCC,GEN)..CBU..(CBR,DSL,TD) W(FR+RR MUDGUARD) |
1 | ||
| 76604-60040 |
RJ70..LHD..STD;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,HJ75,HZJ70,75,LJ72,79,PZJ70,75,RJ77..STD |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-90K02 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# W(OVER FENDER) |
1 | ||
| 76604-90K00 |
HZJ78..GEN;FZJ71,74,78,79..(GCC,GEN)..CBU;FJ7#,FZJ70,73,75,HZJ71,75,79,LJ7#,PZJ7#,RJ7#..(GCC,GEN)..CBU..(CBR,DSL,TD) W(FR+RR MUDGUARD) |
1 | ||
| 76604-60040 |
RJ70..LHD..STD;FJ73,HZJ73,LJ70,PZJ73,RJ70..RHD;FJ7#,HJ75,HZJ70,75,LJ72,79,PZJ70,75,RJ77..STD |
1 | ||
| 76641A - BRACKET, FRONT MUDGUARD | ||||
| 76641-90K01 |
FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| Common parts | ||||
| 90119-06278 | ||||
| 90119-06548 | ||||
| 90159-60266 | ||||
| 90159-60510 | ||||
| 90179-06214 | ||||
| 90189-06134 | ||||
| 90269-05020 | ||||
