FJ73L-MRV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

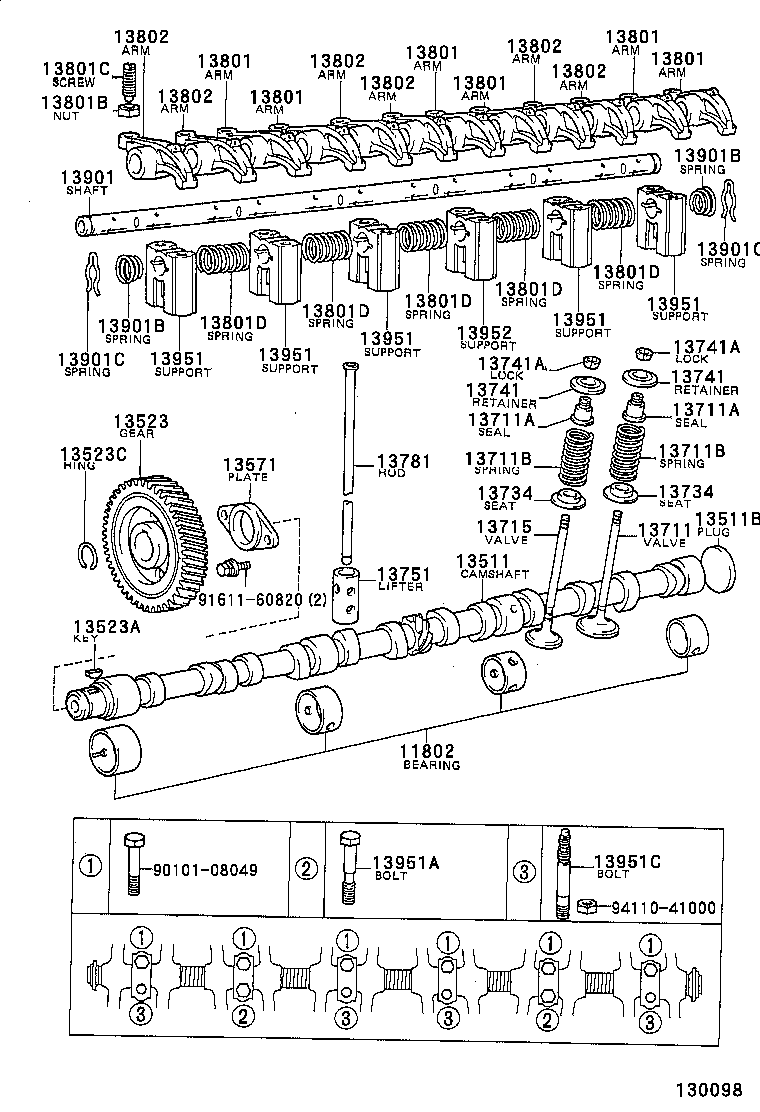

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523C 13571 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13802 13802 13901 13901B 13901B 13901C 13901C 13951 13951 13951 13951 13951 13951A 13951C 13952 9010108049 9161160820 9411041000
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-61010

3F..FJ7#

U/S 0.25

 1
11802-61010

3F..FJ7#

STD

 1
11805-61010

3F..FJ7#

U/S 0.50

 1
13511 - CAMSHAFT
13511-60060

3F..FJ7#

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-48010

3F..FJ7#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-61010

3F..FJ7#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

3F..FJ7#

 1
13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR)
90520-29051

3F..FJ7#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-61010

3F..FJ7#

 1
13711 - VALVE, INTAKE
13711-61010

3F..FJ7#

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02048

3F..FJ7#

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02048

3F..FJ7#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

3F..FJ7#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

3F..FJ7#

 12
13715 - VALVE, EXHAUST
13715-61040

3F..FJ7#

 6
13734 - SEAT, VALVE SPRING
13734-60030

3F..FJ7#

 12
13734 - SEAT, VALVE SPRING
13734-60030

3F..FJ7#

 12
13741 - RETAINER, VALVE SPRING
13741-61010

3F..FJ7#

EXHAUST

 6
13741-60030

3F..FJ7#

INTAKE

 6
13741 - RETAINER, VALVE SPRING
13741-61010

3F..FJ7#

EXHAUST

 6
13741-60030

3F..FJ7#

INTAKE

 6
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

3F..FJ7#

EXHAUST

 12
90913-03012

3F..FJ7#

INTAKE

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

3F..FJ7#

EXHAUST

 12
90913-03012

3F..FJ7#

INTAKE

 12
13751 - LIFTER, VALVE
13751-61020

3F..FJ7#

STD

 12
13755-61020

3F..FJ7#

O/S 0.05

 12
13781 - ROD, VALVE PUSH
13781-61020

3F..FJ7#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61030

3F..FJ7#

 6
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08005

3F..FJ7#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05020

3F..FJ7#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14087

3F..FJ7#

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14087

3F..FJ7#

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14087

3F..FJ7#

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14087

3F..FJ7#

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14087

3F..FJ7#

 5
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61030

3F..FJ7#

 6
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-61020

3F..FJ7#

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

3F..FJ7#

 2
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

3F..FJ7#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

3F..FJ7#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

3F..FJ7#

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-61012

3F..FJ7#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-61012

3F..FJ7#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-61012

3F..FJ7#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-61012

3F..FJ7#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-61012

3F..FJ7#

 5
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01006

3F..FJ7#

*10-1.25PX72-20

 1
90910-01012

3F..FJ7#

*10-1.25PX74-20

 1
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
13994-61020

3F..FJ7#

 4
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-61012

3F..FJ7#

 1
Common parts
90101-08049
91611-60820
94110-41000

(9001-9305)2LT ; (9004-9604)3L

Click highlighted areas on diagram

diagram 11802 13502 13505 13505A 13511 13523A 13523P 13558 13568 13613P 13711 13711A 13711B 13711D 13715 13741 13741A 13751 13753 1708 9009905166 9010508169 9010510235 9010908171 9010908172 9011914005 9056012041
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-61010

3F..FJ7#

U/S 0.25

 1
11802-61010

3F..FJ7#

STD

 1
11805-61010

3F..FJ7#

U/S 0.50

 1
13511 - CAMSHAFT
13511-60060

3F..FJ7#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

3F..FJ7#

 1
13711 - VALVE, INTAKE
13711-61010

3F..FJ7#

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02048

3F..FJ7#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

3F..FJ7#

 12
13715 - VALVE, EXHAUST
13715-61040

3F..FJ7#

 6
13741 - RETAINER, VALVE SPRING
13741-61010

3F..FJ7#

EXHAUST

 6
13741-60030

3F..FJ7#

INTAKE

 6
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

3F..FJ7#

EXHAUST

 12
90913-03012

3F..FJ7#

INTAKE

 12
13751 - LIFTER, VALVE
13751-61020

3F..FJ7#

STD

 12
13755-61020

3F..FJ7#

O/S 0.05

 12
Common parts
90099-05166
90105-08169
90105-10235
90109-08171
90109-08172
90119-14005
90560-12041
Linked diagrams
1708
