FJ70RV-MRQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

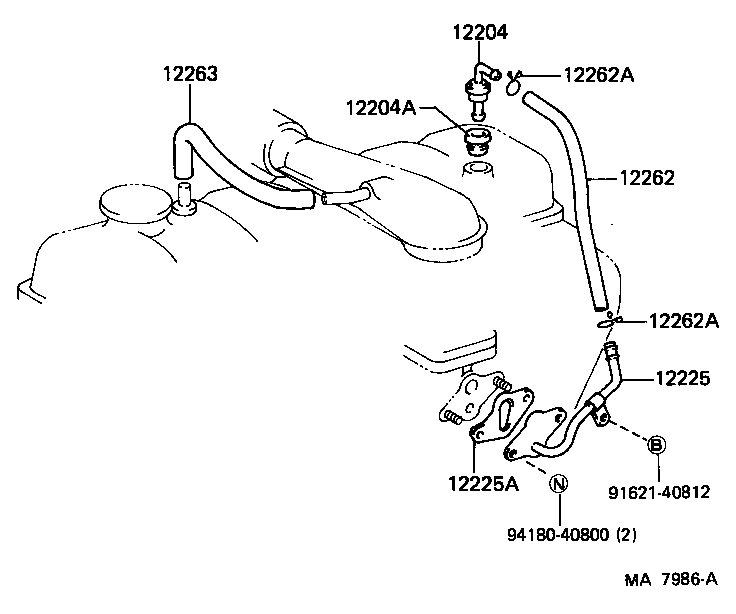

Click highlighted areas on diagram

diagram 12204 12204A 12225 12225A 12262 12262A 12262A 12263 9162140812 9418040800
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-35040

3F..FJ7#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79;1FZF,3F..FJ7#,FZJ70,73,75

 1
12225 - FLANGE, VENTILATION
12225-61010

3F..FJ7#

 1
12225A - GASKET(FOR VENTILATION FLANGE)
25628-61050

3F..FJ7#

 1
12262 - HOSE, VENTILATION, NO.2
12261-61070

3F..FJ7#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15120

3F..FJ7#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15120

3F..FJ7#

 2
12263 - HOSE, VENTILATION, NO.3
12262-61010

3F..FJ7#

 1
Common parts
91621-40812
94180-40800
