FJ70RV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HZJ78 ; (9001- )FJ7#,FZJ7#,HDJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZ

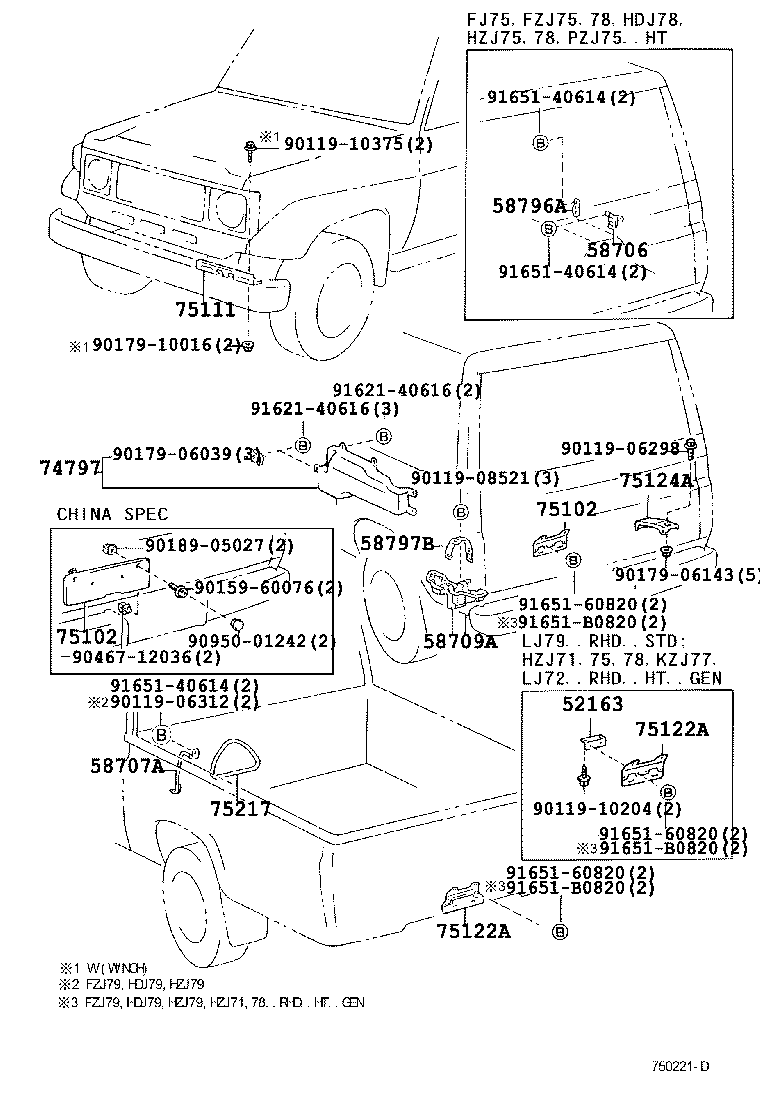

Click highlighted areas on diagram

diagram 52163 58706 58707A 58709A 58796A 58797B 74797 75102 75102 75111 75122A 75122A 75124A 75217 9011906298 9011906312 9011908521 9011910204 9011910375 9015960076 9017906039 9017906143 9017910016 9018905027 9046712036 9095001242 9162140616 9162140616 9165140614 9165140614 9165140614 9165160820 9165160820 9165160820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
58709A - CARRIER SUB-ASSY, JACK
58709-90K01

FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70

 1
58797B - BAND, JACK CLAMP
58797-90K02

HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-60090

FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-60090

FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD)

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-60050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
75124A - BRACKET, REAR LICENSE
75124-60010

FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD)

 1
Common parts
90119-06298
90119-06312
90119-08521
90119-10204
90119-10375
90159-60076
90179-06039
90179-06143
90179-10016
90189-05027
90467-12036
90950-01242
91621-40616
91651-40614
91651-60820
91651-B0820
