FJ70RV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

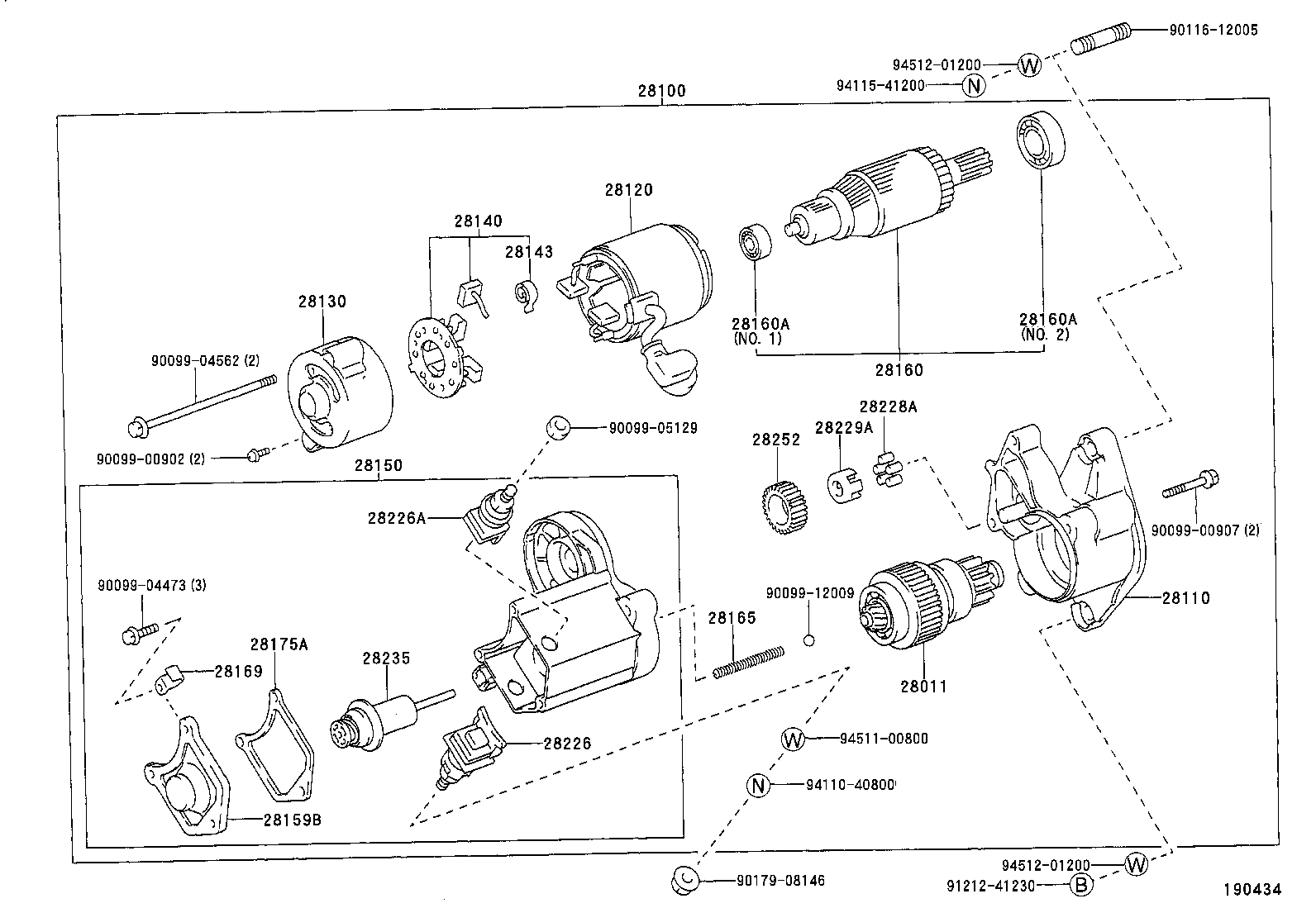

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228A 28229A 28235 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009912009 9011612005 9017908146 9121241230 9411040800 9411541200 9451100800 9451201200 9451201200
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

22R,3F..FJ7#,RJ7#

 1
28100 - STARTER ASSY
28100-60070

3F..FJ7#

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-60070

3F..FJ7#

 1
28120 - YOKE ASSY, STARTER
28120-26071

22R,3F..FJ7#,RJ7#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-34060

22R,3F..FJ7#,RJ7#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

22R,3F..FJ7#,RJ7#

 1
28143 - SPRING, STARTER BRUSH
90099-17112

1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79;22R,1FZF,3F..FJ7#,FZJ70,73,75,RJ7#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

22R,3F..FJ7#,RJ7#

 1
28159B - COVER, MAGNET SWITCH
28159-10040

22R,3F..FJ7#,RJ7#

 1
28160 - ARMATURE ASSY, STARTER
28160-26071

22R,3F..FJ7#,RJ7#

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R,3F..FJ7#,RJ7#

NO.2

 1
90099-10113

22R,3F..FJ7#,RJ7#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R,3F..FJ7#,RJ7#

NO.2

 1
90099-10113

22R,3F..FJ7#,RJ7#

NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

22R,3F,2LT,3L..FJ7#,LJ7#,RJ7#

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

22R,3F..FJ7#,RJ7#

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

22R,3F..FJ7#,RJ70

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080

22R,3F..FJ7#,RJ7#

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

22R,3F..FJ7#,RJ7#

 1
28228A - ROLLER, STARTER CLUTCH
28228-26040

1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79;22R,1FZF,3F,2LT,3L..FJ7#,FZJ70,73,75,LJ7#,RJ7#

 5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040

22R,3F,2LT,3L..FJ7#,LJ7#,RJ7#

 1
28235 - PLUNGER, MAGNET SWITCH
28235-35080

22R,3F..FJ7#,RJ70

 1
28252 - GEAR, STARTER IDLE
28254-45020

22R,3F..FJ7#,RJ7#

 1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-12009
90116-12005
90179-08146
91212-41230
94110-40800
94115-41200
94511-00800
94512-01200
