FJ70LV-MRV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)FJ7#,HJ75..MTM

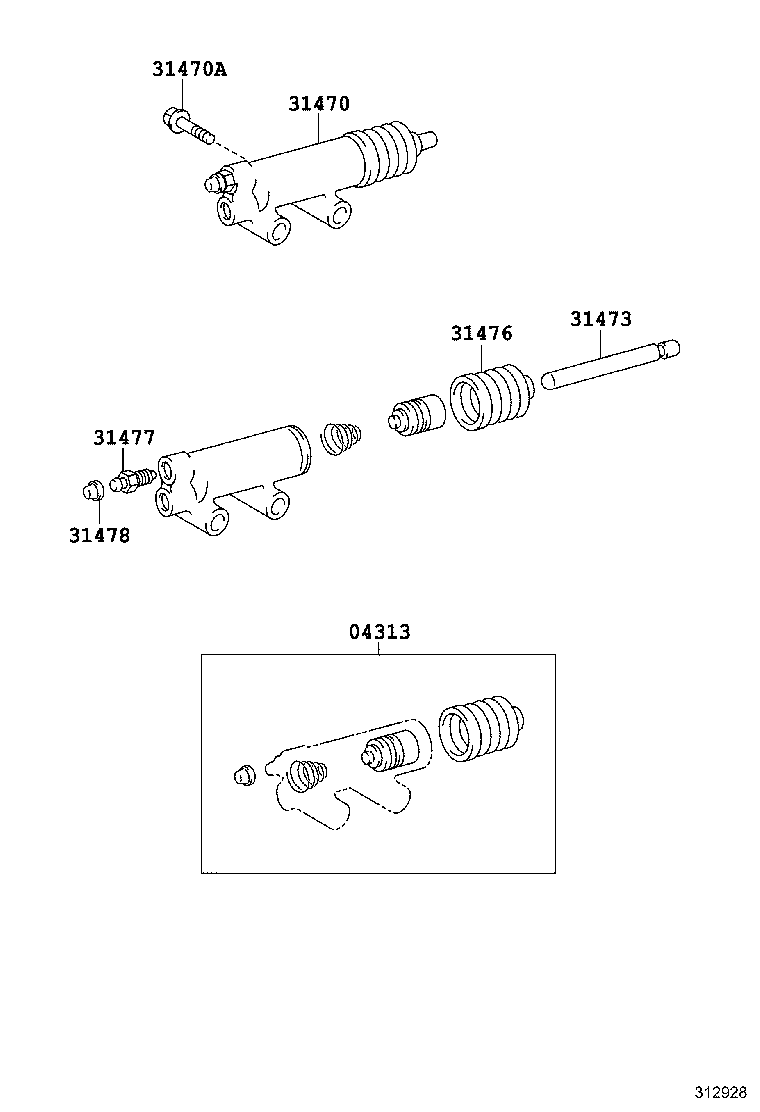

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-60050

FJ7#,HJ75..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-60101

FJ7#,HJ75..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-41045

FJ7#,HJ75..MTM

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60080

FJ7#,HJ75..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-36010

HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ73,PZJ7#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ7#,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..MTM

 1
