FJ70LV-MR (1990)
Toyota Land Cruiser

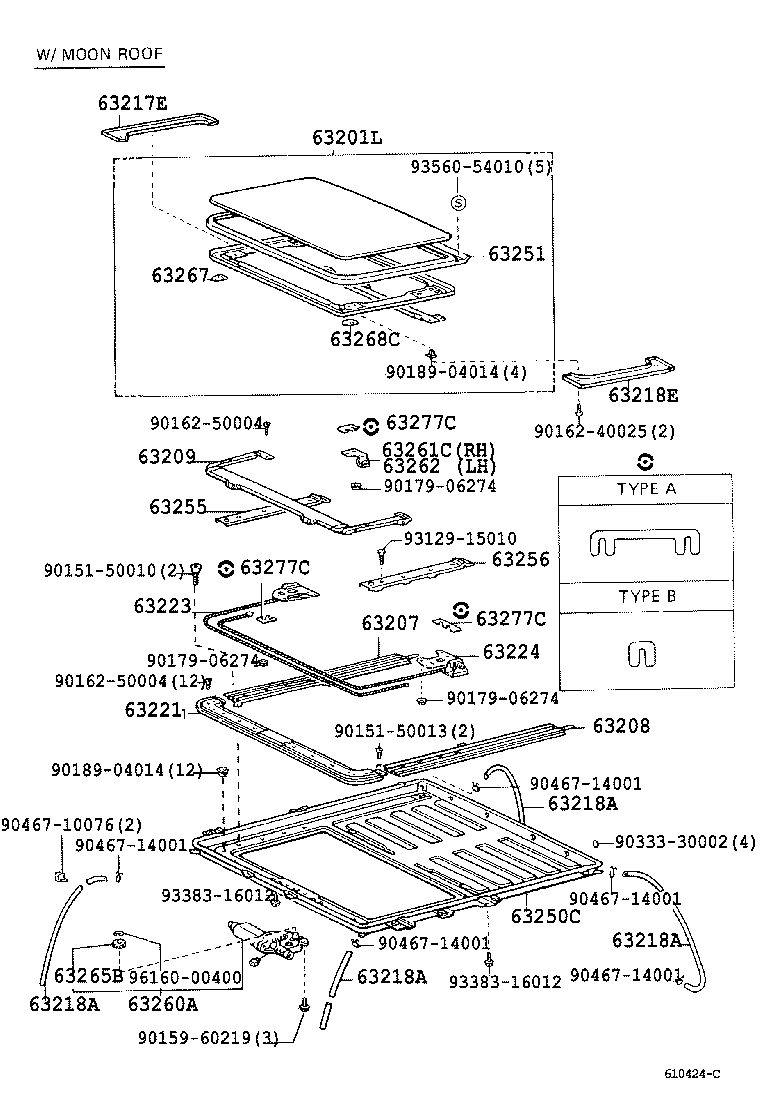

ILLUST NO. 2 OF 3(9001- )FZJ70..LX..CBR ; (9001- )FJ70,FZJ71,HZJ70,KZJ70,LJ70,72,PZJ70,RJ70..L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90151-50010 | ||||
| 90151-50013 | ||||
| 90159-60219 | ||||
| 90162-40025 | ||||
| 90162-50004 | ||||
| 90179-06274 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-10076 | ||||
| 90467-14001 | ||||
| 93129-15010 | ||||
| 93383-16012 | ||||
| 93560-54010 | ||||
| 96160-00400 | ||||

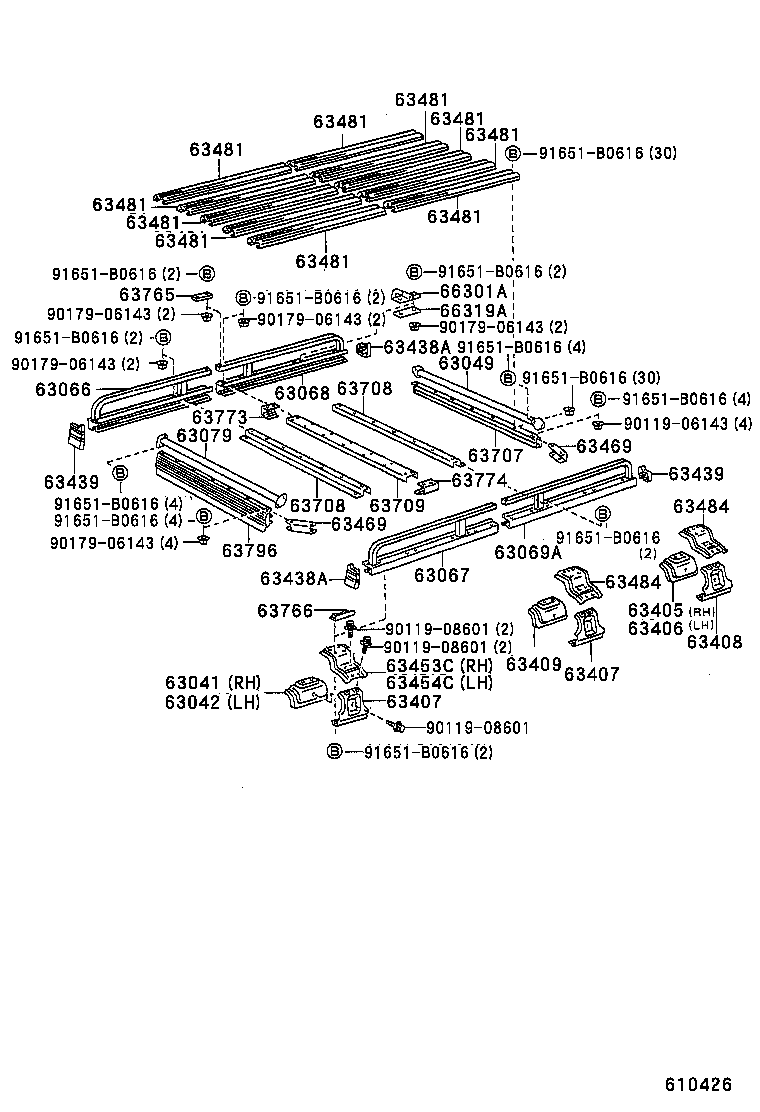

ILLUST NO. 3 OF 3(9001- )FZJ70..HT..CBR ; (9001- )FJ70,FZJ71,HZJ70,71,KZJ70,LJ70,72,PZJ70,RJ70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K02 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K02 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K02 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-90K02 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K01 |
FJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
4 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K01 |
FJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
4 | ||
| 63408 - SUPPORT SUB-ASSY, ROOF RACK LEG, REAR | ||||
| 63408-90K01 |
FJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
2 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-90K02 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=58.5 |
1 | ||
| 63438-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=108.5 |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=58.5 |
1 | ||
| 63438-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=108.5 |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=108.5 |
1 | ||
| 63439-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=58.5 |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=108.5 |
1 | ||
| 63439-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) H=58.5 |
1 | ||
| 63453C - STAY, ROOF RACK, FRONT RH | ||||
| 63453-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63454C - STAY, ROOF RACK, FRONT LH | ||||
| 63454-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63464-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63464-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K02 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
FJ70,75,FZJ70,75,HZJ75,LJ70,72,PZJ70,75,RJ70..HT..(GCC,GEN) |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63773-90K01 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 63796 - FRAME, ROOF RACK, LOWER NO.4 | ||||
| 63796-90K00 |
FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(GCC,GEN) |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| Common parts | ||||
| 90119-06143 | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K08 |
FJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K00 |
FJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K00 |
FJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90K00 |
FZJ70,HZJ70..ARL;FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(CBR,DSL,TD) |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90K00 |
FZJ70,HZJ70..ARL;FJ70,FZJ70,LJ70,72,PZJ70,RJ70..HT..(CBR,DSL,TD) |
2 | ||
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
