FJ70LV-MNV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

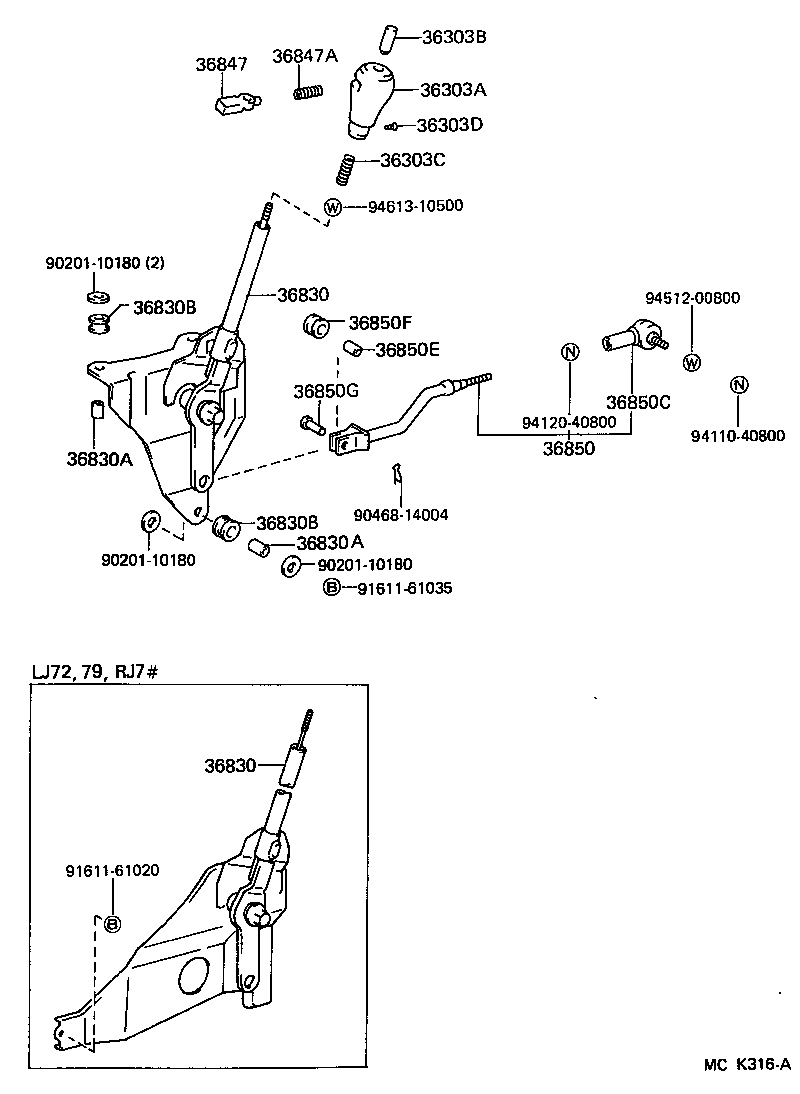

Click highlighted areas on diagram

diagram 36303A 36303B 36303C 36303D 36830 36830 36830A 36830A 36830B 36830B 36847 36847A 36850 36850C 36850E 36850F 36850G 9020110180 9020110180 9020110180 9046814004 9161161020 9161161035 9411040800 9412040800 9451200800 9461310500
Part # Description Qty Price
36303A - KNOB SUB-ASSY, SHIFT LEVER (FOR POWER TAKE-OFF)
36303-60140

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
36303-60140

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36303B - BUTTON, SHIFT LEVER KNOB (FOR POWER TAKE-OFF)
33623-60030

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
33623-60030

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
36303C - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-10073

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
90501-10073

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
36303D - SCREW (FOR SHIFT LEVER KNOB SETTING)
90149-40004

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 2
90149-40004

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 2
36830 - LEVER ASSY, POWER TAKE-OFF SHIFT
36830-60060

FJ7#..MTM..(GCC,GEN)

 1
36830 - LEVER ASSY, POWER TAKE-OFF SHIFT
36830-60060

FJ7#..MTM..(GCC,GEN)

 1
36847 - LEVER, POWER TAKE-OFF LOCK
36847-60020

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
36847-60020

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36847A - SPRING, COMPRESSION (FOR POWER TAKE-OFF LOCK LEVER)
90501-05011

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
90501-05011

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36850 - ROD ASSY, POWER TAKE-OFF SHIFT
36850-60040

FJ7#..MTM..(GCC,GEN)

 1
36850C - END ASSY, POWER TAKE-OFF SHIFT ROD
33740-26010

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
33740-26010

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36850E - BUSH (FOR POWER TAKE-OFF SHIFT ROD)
90389-08005

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
90389-08005

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36850F - GROMMET (FOR POWER TAKE-OFF SHIFT ROD)
90480-17177

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
90480-17177

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
36850G - PIN, W/HOLE (FOR POWER TAKE-OFF SHIFT ROD)
90240-08034

FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)

 1
90240-08034

FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN)

 1
Common parts
90201-10180
90468-14004
91611-61020
91611-61035
94110-40800
94120-40800
94512-00800
94613-10500
