FJ70LV-MNV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

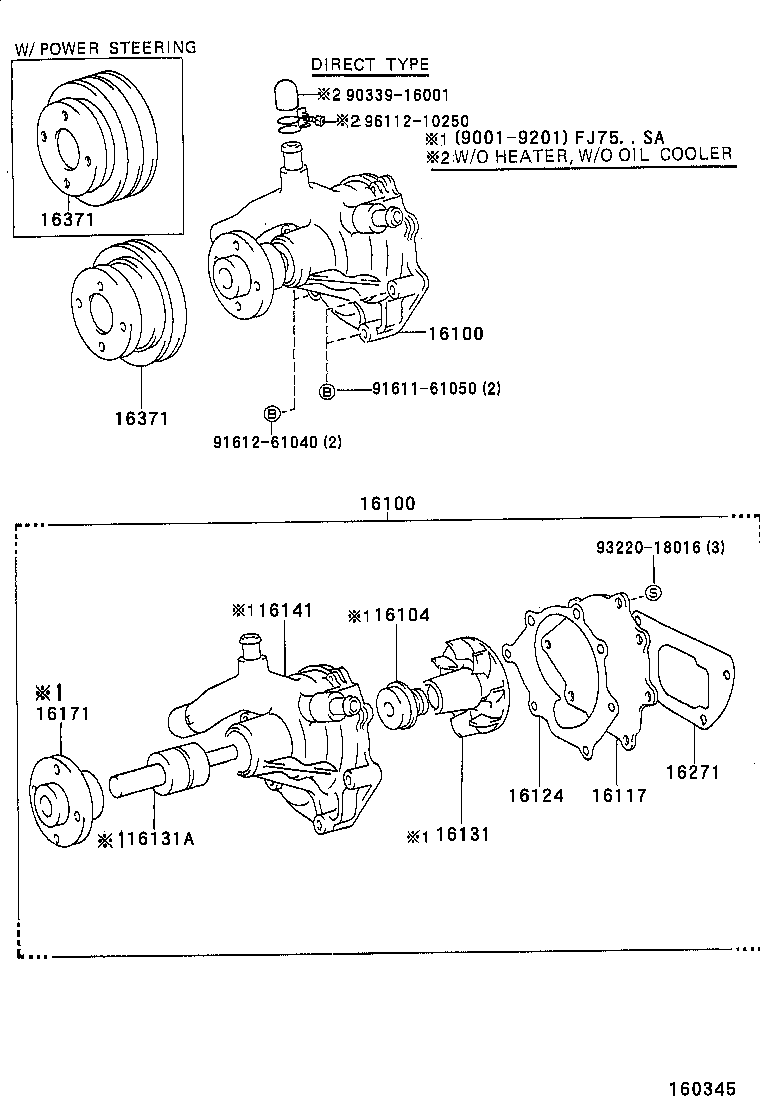

Click highlighted areas on diagram

diagram 16100 16100 16104 16117 16124 16131 16131A 16141 16171 16271 16371 16371 9033916001 9161161050 9161261040 9322018016 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69255

3F..FJ7#..GCC;3F..FJ70..4FC

W(ENGINE OIL COOLER)

 1
16100-69265

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
16100 - PUMP ASSY, ENGINE WATER
16100-69255

3F..FJ7#..GCC;3F..FJ70..4FC

W(ENGINE OIL COOLER)

 1
16100-69265

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
16117 - PLATE, WATER PUMP
16117-61110

3F..FJ7#

 1
16124 - GASKET, WATER PUMP COVER
16124-61250

3F..FJ7#..ARL,GCC,GEN

 1
16271 - GASKET, WATER PUMP
16271-61020

3F..FJ7#

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
Common parts
90339-16001
91611-61050
91612-61040
93220-18016
96112-10250

(9001-9208)3F

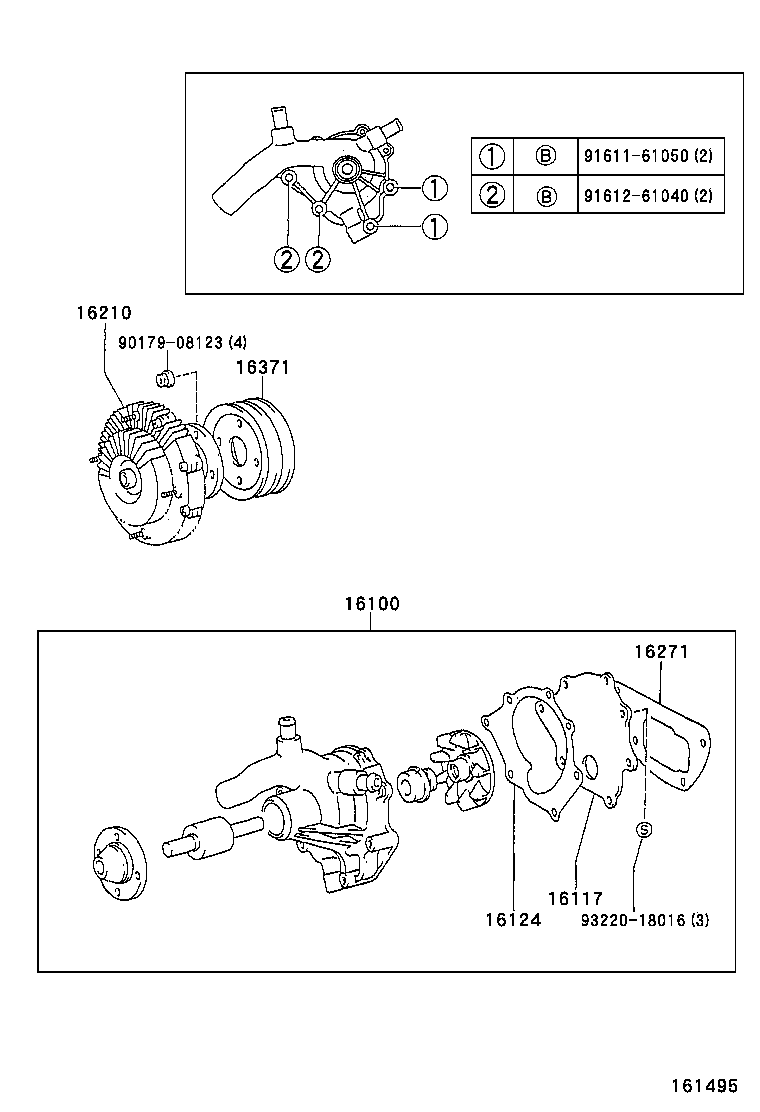

Click highlighted areas on diagram

W/FLUID COUPLING

diagram 16100 16117 16124 16210 16271 16371 9017908123 9161161050 9161261040 9322018016
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69255

3F..FJ7#..GCC;3F..FJ70..4FC

W(ENGINE OIL COOLER)

 1
16100-69265

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
16117 - PLATE, WATER PUMP
16117-61110

3F..FJ7#

 1
16124 - GASKET, WATER PUMP COVER
16124-61250

3F..FJ7#..ARL,GCC,GEN

 1
16210 - COUPLING ASSY, FLUID
16210-61150

3F..FJ75..GCC;3F..FJ70..4F,4FC;3F..FJ73..LX..GEN;3F..FJ70,73..ARL,GCC;3F..FJ75..LHD..HT..4F;3F..FJ75..RHD..(ARL,GEN);3F..FJ75..LHD..PIC..GEN..CBU

 1
16210-61150

3F..FJ73;3F..FJ75..GCC;3F..FJ70..4F,4FC;3F..FJ70..ARL,GCC;3F..FJ75..LHD..HT..4F;3F..FJ75..RHD..(ARL,GEN);3F..FJ75..LHD..PIC..GEN..CBU

 1
16271 - GASKET, WATER PUMP
16271-61020

3F..FJ7#

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ70..4FC;3F..FJ7#..ARL,GCC

 1
Common parts
90179-08123
91611-61050
91612-61040
93220-18016
