FJ70LV-MNV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )3F

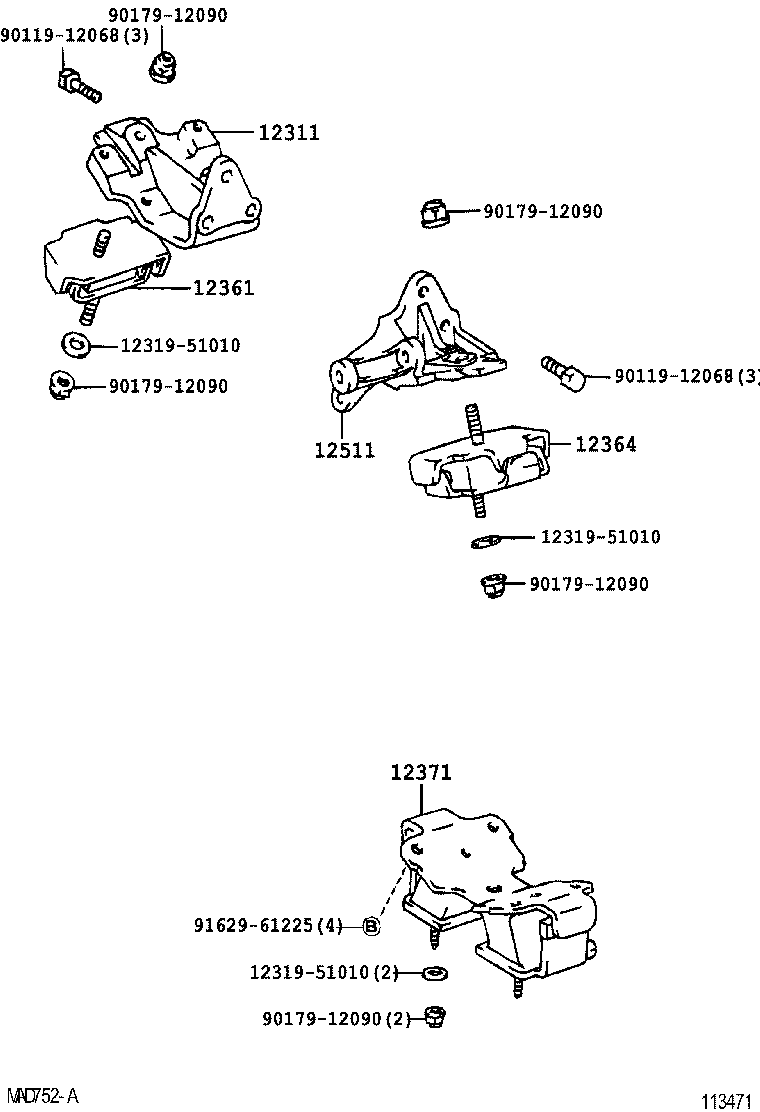

Click highlighted areas on diagram

diagram 12311 1231951010 1231951010 1231951010 12361 12364 12371 12511 9011912068 9011912068 9017912090 9017912090 9017912090 9017912090 9017912090 9162961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61090

3F..FJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61050

3F..FJ7#

 1
12364 - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-61010

3F..FJ7#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61031

3F..FJ7#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61031

3F..FJ7#

 1
Common parts
12319-51010
90119-12068
90179-12090
91629-61225
