FJ70LV-MN (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88340-60010

HZJ75..ARL;HZJ75..HT..GEN;FJ7#,HZJ70,73,PZJ7#..HT,SOT

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88409-90K01

FJ75,HZJ75..HT..ARL;FJ7#,HZJ75,PZJ7#..GCC,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

FJ7#,HZJ75,PZJ7#..GCC,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60200

FJ7#..ARL,GEN

 1
88711-60200

FJ70,73;FJ75..ARL;FJ75..GEN..CBU

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60280

FJ7#..LHD

 1
88712-60280

FJ7#..GEN..CBU

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60040

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60550

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60590

HZJ75..LHD;FJ7#,PZJ70,75..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60580

FJ7#,HZJ75,PZJ70,75..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

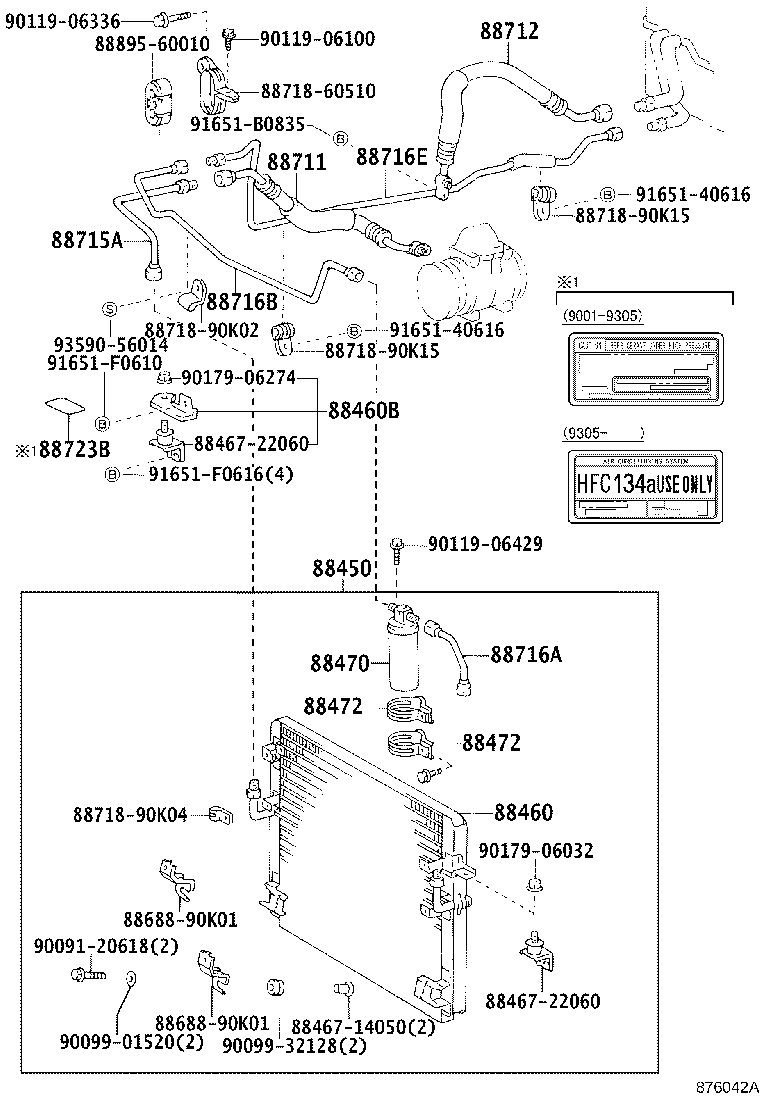

ILLUST NO. 1 OF 3(9001-9201)FJ7#..LHD ; (9001-9401)PZJ70,75..LHD; (9001-9908)HZJ70,75..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 8868890K01 8868890K01 88711 88712 88715A 88716A 88716B 88716E 8871860510 8871890K02 8871890K04 8871890K15 8871890K15 88723B 8889560010 9009120618 9009901520 9009932128 9011906100 9011906336 9011906429 9017906032 9017906274 9165140616 9165140616 91651B0835 91651F0610 91651F0616 9359056014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88340-60010

HZJ75..ARL;HZJ75..HT..GEN;FJ7#,HZJ70,73,PZJ7#..HT,SOT

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88409-90K01

FJ75,HZJ75..HT..ARL;FJ7#,HZJ75,PZJ7#..GCC,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

FJ7#,HZJ75,PZJ7#..GCC,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60200

FJ7#..ARL,GEN

 1
88711-60200

FJ70,73;FJ75..ARL;FJ75..GEN..CBU

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60280

FJ7#..LHD

 1
88712-60280

FJ7#..GEN..CBU

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60040

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60550

FJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60590

HZJ75..LHD;FJ7#,PZJ70,75..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60580

FJ7#,HZJ75,PZJ70,75..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
Common parts
88467-14050
88467-22060
88688-90K01
88718-60510
88718-90K02
88718-90K04
88718-90K15
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91651-40616
91651-B0835
91651-F0610
91651-F0616
93590-56014
