FJ70LV-MN (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(9001-0808)HZJ78 ; (9001-0808)FJ7#,FZJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZJ7#,RJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
FJ7#,HJ75,HZJ7#,LJ70,PZJ7#,RJ70 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
FJ7#,HJ75,HZJ7#,LJ70,PZJ7#,RJ70 |
2 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-29017 |
HZJ75..RHD;FZJ70,75..CBR;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75,HZJ70..ARL;FZJ73,HZJ71,79..LHD..(CBR,DSL);FJ7#,FZJ71,74,78,79,HJ75,HZJ73,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78111E - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HJ75,HZJ71,73,79,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K02 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75..LHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50835 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K01 |
HZJ75..LHD..CBU;FZJ73,75..LHD..CBR;FJ7#,FZJ70,71,74,78,79,HZJ71,78,79,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FZJ73,HJ75..CBR,DSL;FZJ75..(GCC,GEN)..CBR;FJ7#,FZJ70,71,74,78,79,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-60030 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FZJ73,HJ75..CBR,DSL;FZJ75..(GCC,GEN)..CBR;FJ7#,FZJ70,71,74,78,79,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| 96160-00600 | ||||

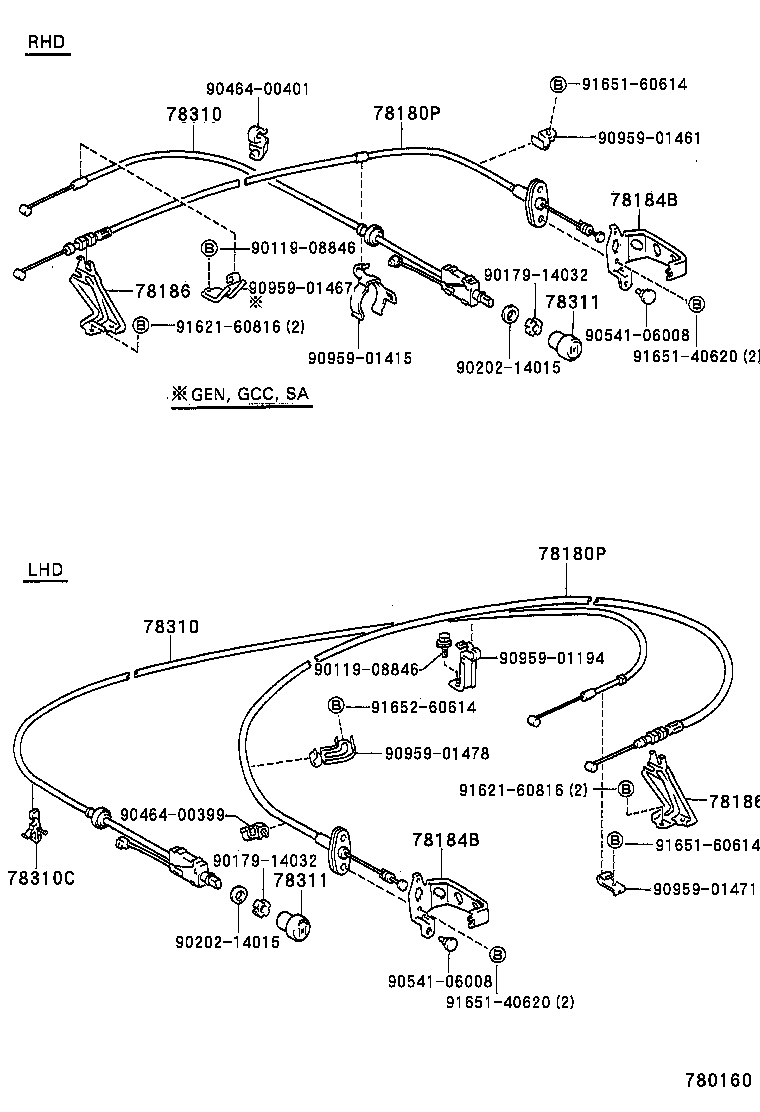

ILLUST NO. 1 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K00 |
FJ7#,FZJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K00 |
FJ7#,FZJ7#,LJ7#,RJ7#..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90A02 |
FJ7# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90A02 |
FJ7# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90K01 |
FJ7#..LHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90K01 |
FJ7#..LHD |
1 | ||
| 78310C - CLIP (FOR CHOKE CABLE) | ||||
| 90467-18004 |
FJ7#..LHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78303-90A03 |
FJ7# |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78303-90A03 |
FJ7# |
1 | ||
| Common parts | ||||
| 90119-08846 | ||||
| 90179-14032 | ||||
| 90202-14015 | ||||
| 90464-00399 | ||||
| 90464-00401 | ||||
| 90541-06008 | ||||
| 90959-01194 | ||||
| 90959-01415 | ||||
| 90959-01461 | ||||
| 90959-01467 | ||||
| 90959-01471 | ||||
| 90959-01478 | ||||
| 91621-60816 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
| 91652-60614 | ||||
