FJ62LV-PNEA (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

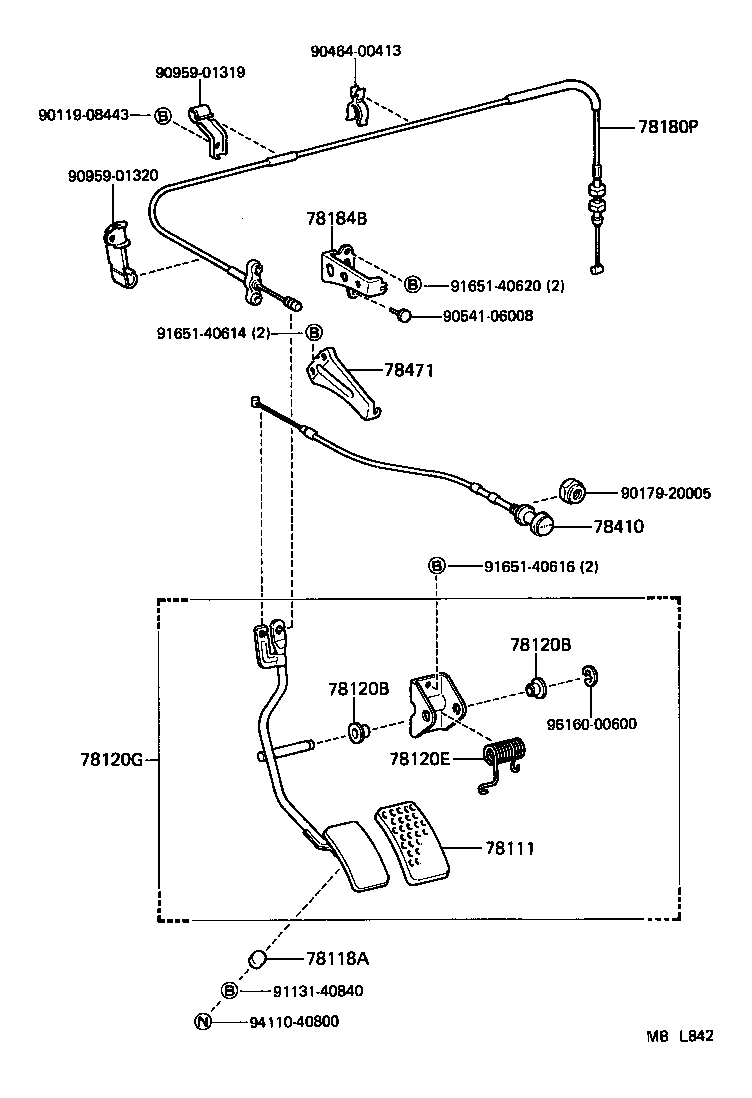

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-95110 |
FJ62 |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
FJ62 |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08155 |
FJ62 |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08155 |
FJ62 |
2 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-29017 |
FJ62 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90A08 |
FJ62 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90A24 |
FJ62 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90A01 |
FJ62 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90A03 |
FJ62 |
1 | ||
| 78471 - BRACKET, THROTTLE CONTROL CABLE | ||||
| 78471-90A00 |
FJ62 |
1 | ||
| Common parts | ||||
| 90119-08443 | ||||
| 90179-20005 | ||||
| 90464-00413 | ||||
| 90541-06008 | ||||
| 90959-01319 | ||||
| 90959-01320 | ||||
| 91131-40840 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
