FJ62LV-PNEA (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 3FE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

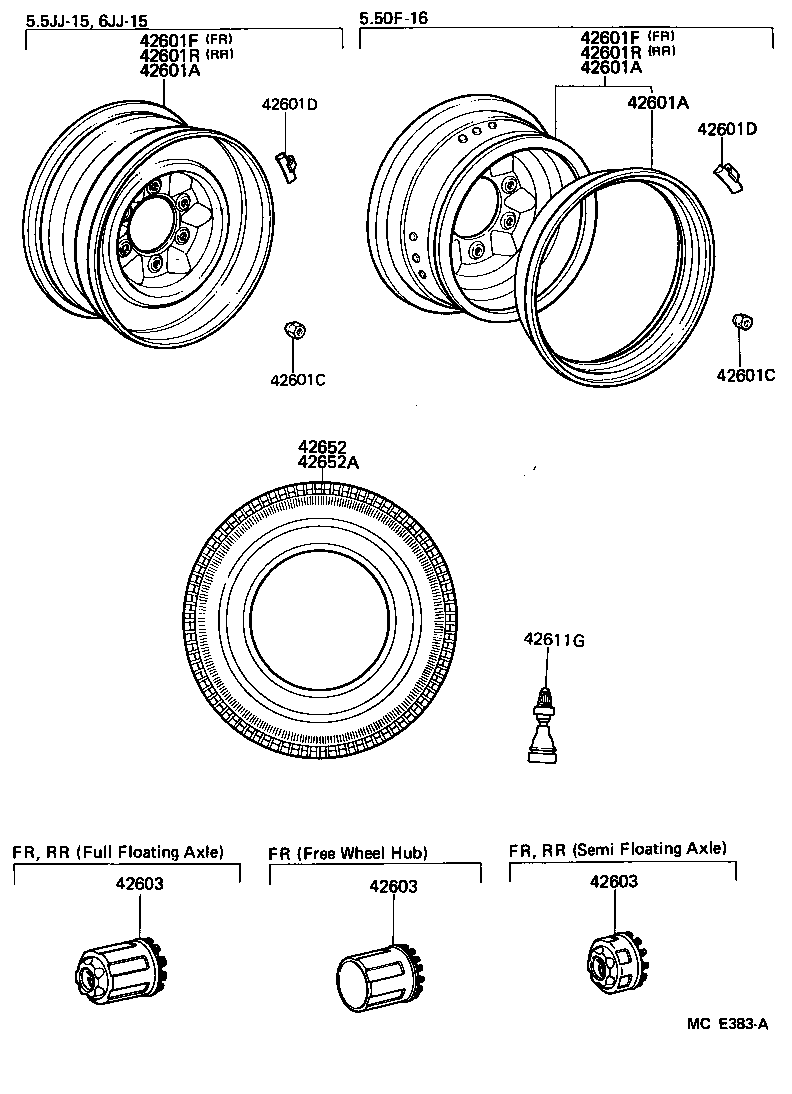

Click highlighted areas on diagram

diagram 42601A 42601A 42601A 42601C 42601C 42601D 42601D 42601F 42601F 42601R 42601R 42603 42603 42603 42611G 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-60221

FJ62

6JJX15,CHROM PLATED

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-60221

FJ62

6JJX15,CHROM PLATED

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-60221

FJ62

6JJX15,CHROM PLATED

 1
42601C - NUT, HUB (FOR AXLE)
90942-01047

FJ62

 24
42601C - NUT, HUB (FOR AXLE)
90942-01047

FJ62

 24
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03083

FJ62

60G,T=9.3

 1
90942-03082

FJ62

50G,T=9.3

 1
90942-03085

FJ62

80G,T=9.3

 1
90942-03080

FJ62

30G,T=9.3

 1
90942-03084

FJ62

70G,T=9.3

 1
90942-03081

FJ62

40G,T=9.3

 1
90942-03079

FJ62

20G,T=10

 1
90942-03086

FJ62

100G

 1
90942-03107

FJ62

10G,T=8

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03083

FJ62

60G,T=9.3

 1
90942-03082

FJ62

50G,T=9.3

 1
90942-03085

FJ62

80G,T=9.3

 1
90942-03080

FJ62

30G,T=9.3

 1
90942-03084

FJ62

70G,T=9.3

 1
90942-03081

FJ62

40G,T=9.3

 1
90942-03079

FJ62

20G,T=10

 1
90942-03086

FJ62

100G

 1
90942-03107

FJ62

10G,T=8

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-60221

FJ62

6JJX15,CHROM PLATED

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-60221

FJ62

6JJX15,CHROM PLATED

 2
42601R - WHEEL, DISC (FOR REAR)
42601-60221

FJ62

6JJX15,CHROM PLATED

 2
42601R - WHEEL, DISC (FOR REAR)
42601-60221

FJ62

6JJX15,CHROM PLATED

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-60052

FJ62

RR,*SFA

 2
42603-60012

FJ62

RR,*FFA

 2
42603-35080

FJ62

*STE,FR,W/*FWH

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-60052

FJ62

RR,*SFA

 2
42603-60012

FJ62

RR,*FFA

 2
42603-35080

FJ62

*STE,FR,W/*FWH

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-60052

FJ62

RR,*SFA

 2
42603-60012

FJ62

RR,*FFA

 2
42603-35080

FJ62

*STE,FR,W/*FWH

 2
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

FJ62

 5
42652 - TIRE
42652-60060

FJ62

P225/75R15,*B/S,*D/L

 4
42652A - TIRE (FOR SPARE)
42652-60060

FJ62

P225/75R15,*B/S,*D/L

 1
