FJ62LV-PNEA (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 3FE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

Click highlighted areas on diagram

diagram 16100 16100 16104 16117 16124 16131 16131A 16141 16171 16271 16371 16371 9033916001 9161161050 9161261040 9322018016 9611210250
Part # Description Qty Price
Common parts
90339-16001
91611-61050
91612-61040
93220-18016
96112-10250

(9001-9208)3F

Click highlighted areas on diagram

W/FLUID COUPLING

diagram 16100 16117 16124 16210 16271 16371 9017908123 9161161050 9161261040 9322018016
Part # Description Qty Price
Common parts
90179-08123
91611-61050
91612-61040
93220-18016

(8708- )

Click highlighted areas on diagram

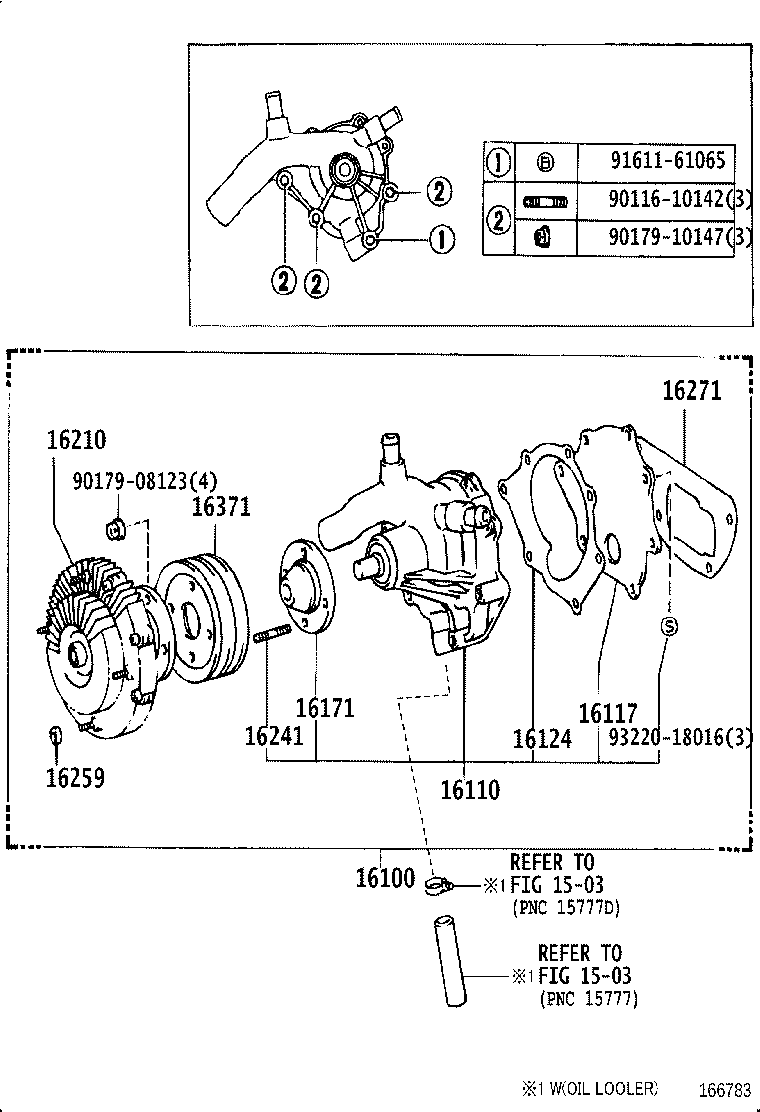

diagram 1503 1503 16100 16110 16117 16124 16171 16210 16241 16259 16271 16371 9011610142 9017908123 9017910147 9161161065 9322018016
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69195

3FE..FJ62

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61180

3FE..FJ62

 1
16117 - PLATE, WATER PUMP
16117-61110

3FE..FJ62

 1
16124 - GASKET, WATER PUMP COVER
16124-61110

3FE..FJ62

 1
16171 - SEAT, WATER PUMP PULLEY
16171-61071

3FE..FJ62

 1
16210 - COUPLING ASSY, FLUID
16210-61140

3FE..FJ62

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-41050

3FE..FJ62

 1
16271 - GASKET, WATER PUMP
16271-61010

3FE..FJ62

 1
16371 - PULLEY, FAN
16173-61070

3FE..FJ62

 1
Common parts
90116-10142
90179-08123
90179-10147
91611-61065
93220-18016
Linked diagrams
1503
